Key specification for this centrifugal blower: voltage Other, DC 3V/5V/12V/24V/48V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Topfan Technology Development Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Model Number: MX***ABH1
- Power Source: Electric
- Voltage: Other, DC 3V/5V/12V/24V/48V
- Blade Material: Plastic
- Material: Plastic Blade
- Warranty: 1 years
Technical Specifications
| Voltage | Other, DC 3V/5V/12V/24V/48V |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | TOPFAN |
| Model Number | MX***ABH1 |
| Product Name | Cooling Fan |
| Application | Exhaust Ventilation |
| Usage | Air Cooling System |
| Keyword | Exhaust Cooling Fan |
| Material | Plastic Blade |
| Motor | Copper Motor |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 1.500 kg |
Product Details
Model | Bearing Type | Rated Volt | Operating Volt | Rated Current | Input Power | Speed | Max. Airflow | Max. Static Pressure | Noise Level | ||||||||
Part No. | S B Y | VDC | VDC | AMP | Watt | RPM | CFM | mmAq | dB-A | ||||||||
MX1504AYM5 | Y | 3.3 | 2.8-3.6 | 0.03 | 0.1 | 10000 | 0.3 | 1.5 | 25 | ||||||||
MX2010AYL5 | Y | 5 | 2.8-5.5 | 0.07 | 0.35 | 8000 | 0.42 | 8.73 | 21 | ||||||||
MX3010AYL5 | Y | 5 | 3.0-6.5 | 0.1 | 0.5 | 6000 | 2.01 | 16.87 | 20 | ||||||||
MX4010ABD5 | B | 5 | 3.5-5.5 | 0.08 | 0.4 | 4000 | 4.39 | 14.32 | 21 | ||||||||
MX5010ABD5 | B | 5 | 3.5-5.5 | 0.15 | 0.75 | 4000 | 7.64 | 17.55 | 24 | ||||||||
MX6025ABM1 | B | 12 | 6.0-13.8 | 0.18 | 2.16 | 4000 | 19.15 | 42.56 | 32 | ||||||||
MX7015ABL1 | B | 12 | 6.0-13.8 | 0.13 | 1.56 | 2900 | 24.7 | 23.6 | 26.5 | ||||||||
MX8038ZBL1 | B | 12 | 6.0-13.8 | 0.4 | 4.8 | 3500 | 45.11 | 65.7 | 43 | ||||||||
MX9238ZBL1 | B | 12 | 6.0-13.8 | 0.9 | 10.8 | 4500 | 102.73 | 145.04 | 45 | ||||||||
MX12038ZBD1 | B | 12 | 6.0-13.8 | 2.1 | 25.2 | 5500 | 192.6 | 265 | 60 | ||||||||
MX14038ABL1 | B | 12 | 6.0-13.8 | 0.6 | 7.2 | 3300 | 130 | 170 | 46 | ||||||||
MX22580ABH2 | B | 24 | 13.8-26.8 | 2.08 | 50 | 3000 | 588 | 1000 | 59 | ||||||||
More Models | Other RPM/CFM/Voltage/Current…please contact us see the specification for more details. | ||||||||||||||||
Product Name | DC Brushless Fan |
Brand | MX topfan/OEM/ODM |
Frame and Impeller | Plastic(94V-0)，PBT |
Bearing Type | Sleeve bearing&Ball Bearing&Hydraulic bearing |
Function Range | PWM FG RD IP58 IP68 |
Leadwire | Red Wire Positive(+)，Black Wire Negative(-) |
Rated Voltage | 5V 12V 24V 36V 48V … |
Operating Tempetature | -30℃ to +80℃ |
Product Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |
Product Name | DC AC EC Axial Fan |
More Sizes | 15mm 17mm 18mm 20mm 25mm 30mm 35mm 36mm 38mm 40mm 45mm 50mm 52mm 60mm 70mm 80mm 92mm 120mm 125mm 127mm 136mm 140mm 150mm 160mm 172mm 200mm 220mm 225mm 254mm 280mm …… |
Material | Metal & Plastic |
Bearing Type | Ball Bearing & Hydraulic Bearing & Sleeve Bearing |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V… |
Function Range | PWM FG RD IP58 IP68 |
Applications | Household Appliances/Machine/Aeronautical/Power equipment, etc |

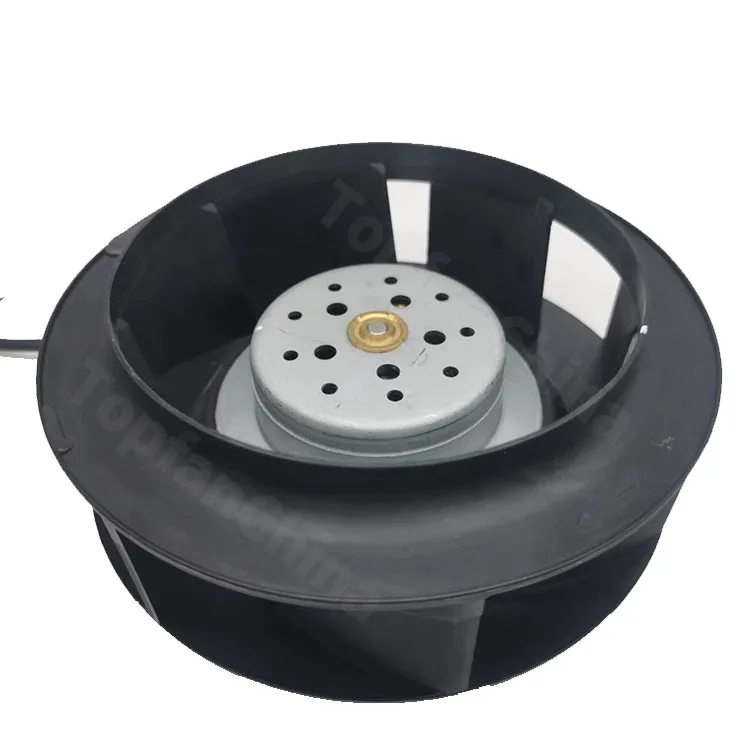

Product Name | DC AC EC Backward Curved Centrifugal Fan |
More Sizes | 70mm 100mm 120mm 133mm 150mm 175mm 190mm 225mm 250mm 280mm …… |
Impeller Material | Aluminum Alloy & Plastic |
Voltage | DC 5V/12V/24V/48V/72V ，AC 110-240V , EC 110-240V… |
Protection Class | IP55 / IP54 / IP44 PWM FG RD IP58 IP68 |
Applications | Air purifiers, building ventilation, air conditioning units, etc |

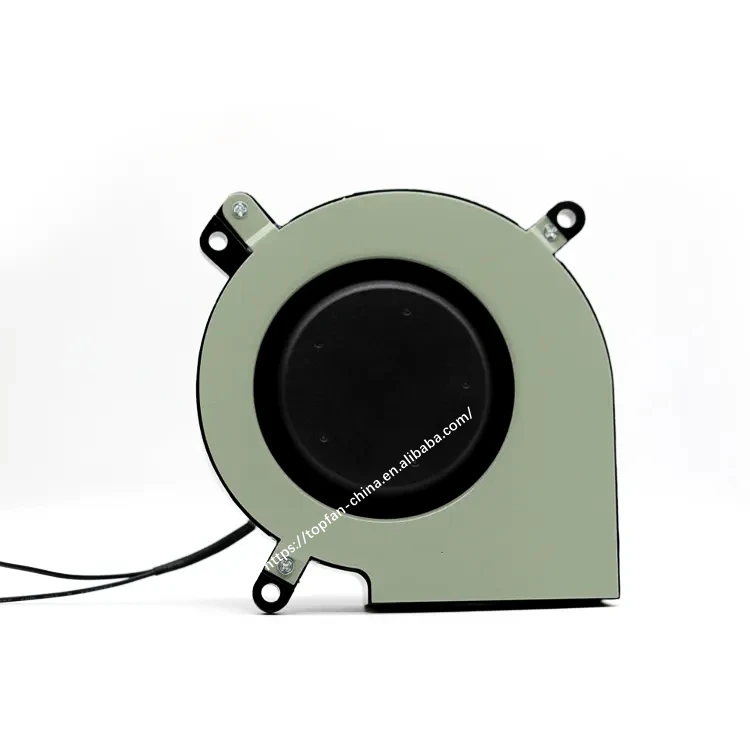

Product Name | DC AC EC Centrifugal Blower |
More Sizes | 18mm 20mm 25mm 30mm 35mm 40mm 50mm 51mm 52mm 60mm 75mm 77mm 81mm 85mm 93mm 97mm 120mm 140mm …… |
Material | Housing – Galvanized Metal Impeller – Galvanized Metal & Plastic |
Motor Type | AC Capacitor Motor , DC/EC brushless external rotor motor |
Voltage | DC 3V/5V/12V/24V/48V72V ，AC 110-240V , EC 110-240V… |
Function Range | PWM FG RD IP58 IP68 |
Applications | split air conditioner , air curtains , cooling, etc |
Product Name | Forward Centrifugal Fan-single inlet without housing |
Diameter of impeller: | 150mm 160mm 180mm 200mm 246mm …… |
Material | Housing – Galvanized Metal Impeller – Galvanized Metal |
Voltage | DC 5V/12V/24V/48V ，AC 115V/230V/380V/480V , EC 115V/230V… |
Product Name | Dust cover, Protective cover |
More Sizes | 18mm 20mm 25mm 30mm 35mm 40mm 50mm 51mm 52mm 60mm 75mm 77mm 81mm 85mm 93mm 97mm 120mm 140mm …… |
Material | Plastic, Metal |
Applications | Axial fan, Blower fan, Cooling fan |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–999 piece: US $1.98 / piece
- 1000–9999 piece: US $1.13 / piece
- 10000+ piece: US $0.87 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is Other, DC 3V/5V/12V/24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Topfan Technology Development Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Shenzhen Topfan Technology Development Co., Ltd. range on HVACR Nexus.
