The centrifugal blower listed here carries 12 V, 24 V, 5 V, power source type DC, documented exactly as the manufacturer publishes it. Made by Shenzhen Xuhongxiang Electronics Co., Ltd. (8 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Power Source Type: DC
- Voltage: 12 V, 24 V, 5 V
- Material: plastic
- Blade Material: PBT engineering plastic
- Noise Level: 35-39 dB
- Speed: 5500RPM
Technical Specifications
| Duct Diameter | 28mm |
|---|---|
| Mounting | screw fixing |
| Voltage | 12 V, 24 V, 5 V |
| Motor Type | DC Motor |
| Speed | 5500RPM |
| Material | plastic |
| Blade Material | PBT engineering plastic |
| Power Source Type | DC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 35-39 dB |
| Place Of Origin | Guangdong, China |
| Brand Name | xuhongxiang |
| Selling Units | Single item |
| Single Package Size | 6X6X2.5 cm |
| Single Gross Weight | 10.000 kg |

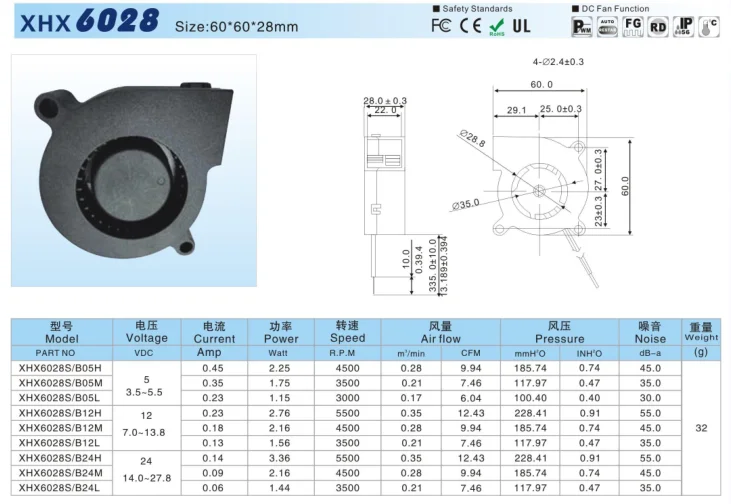

Product Details
Brand Name | XuHongXiang |
Product Name | DC Cooling Fan |
Model Number | XHX6028 |
Dimensions (L x W x H) | 60mm*60mm*28mm |
Materials of Fan Frame | Thermoplastic PBT engineering plastics |
Materials of Fan Blade | Thermoplastic PBT engineering plastics |
Direction of Rotation | Counter-clockwise viewed from front of fan blade |
Certification | EMC/CE/RoHS/GS/CUL/UL |
Motor | Brushless DC, auto restart Impedance & polarity protected |
Weight | 32 |
After-sales Service Provided | Return and Replacement |
Application | Warm air blower, air purifier, humidifier, hair removal device, beauty device |
A: We are a manufacturer.
Q2. What kinds of products supplied by your factory?
A:We provide DC cooling fan, DC blower fan,AC cooling fan and EC cooling fan. We have full series dimension ranging from 20mm to
250mm, and the bearing type, current amp, rated voltage, speed, air flow can all be customized.
Q3. How do we carry out quality control?
A: There are more than 20 processes to making a fan, our production procedure follow ISO9001:2008, we need to control every process well.
1.Bearing: NMB from Japan which will ensure the working life.
2.ICMos and other electronic components, our suppliers include ROHM IR DALLAS Feeling Technology, and other famous brands.
3.Life testing, all of our projects will testing more than 1 year in such a environment: temperature is 60°C, voltage is more
than 20%(such as: 24V, the testing voltage is 28V),and the power restarts every 2 minutes.
4.We have experiences of making high quality fan for more than 10 years, all of our fanscan work more than 50000H in normal condition with dual ball bearing. 30000H with sleeve bearing.
5.All of our fans will be 100%tested at least twice during production.
Q4. Lead Time
1. Samples:3-7 working days
2. Mass production: 7-15 working days
3.Waterproof fan need 3 more days
Q5. Payment We accept payment by T/T ,VISA, MASTER CARD, PAYPAL, APPLE PAY, GOOGLE PAY 100%payment for sample orders 70% deposit and 30% balance before shipment .
Q6. Guarantee 3 years warranty for ball bearing fans 2 years warranty for hydraulic bearing fans 1 year warranty for sleeve
bearing fans
Q7. Service OEM service based on MOQ1000pcs 100% test before shipping UL material and waterproof material optional The defective rate is less than 5% Customized service can be provided.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4999 piece: US $4 / piece
- 5000–8999 piece: US $3.7 / piece
- 9000+ piece: US $3.2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 12 V, 24 V, 5 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Xuhongxiang Electronics Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Xuhongxiang Electronics Co., Ltd. range on HVACR Nexus.
