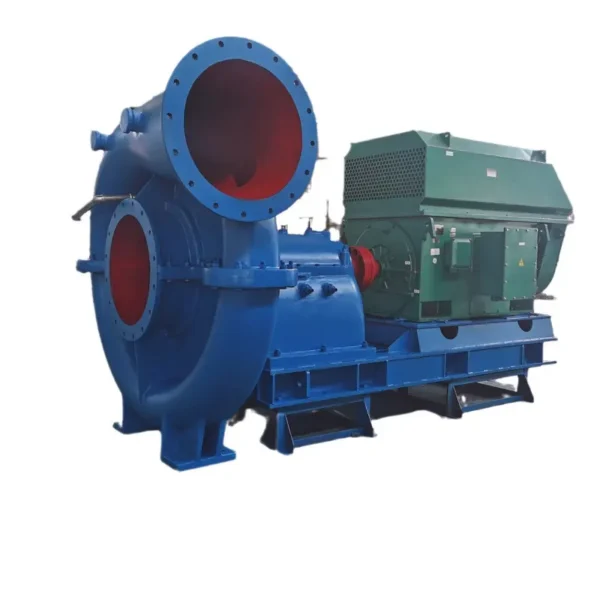

Centrifugal Blower, Electric, Cast Iron

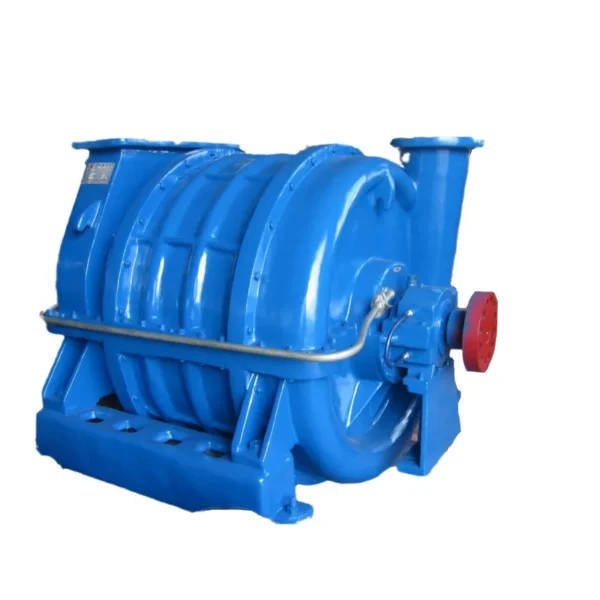

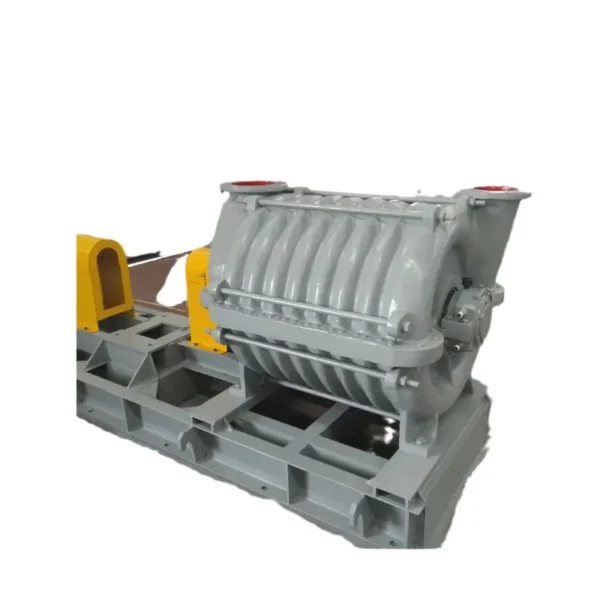

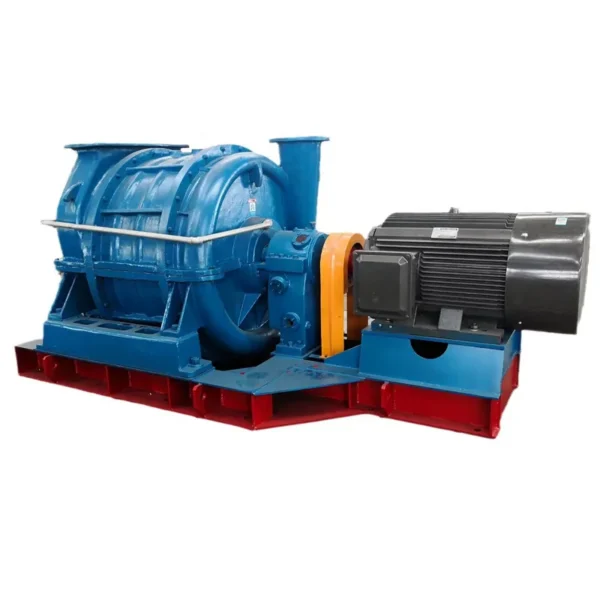

    Multi stage centrifugal blowers are widely used for gas transportation in various factories, and can transport various mixed gases such  as air/carbon dioxide/carbon monoxide gas/nitrogen. Used for various smelting blast furnaces, coal washing plants, mining flotation plants, sewage treatment, chemical gas production, etc. This series of blowers has the characteristics of high efficiency, low noise, smooth operation, few vulnerable parts, and simple installation, operation, and maintenance.

Product Description

    For most plant equipment has been in digitization, and the machine tool can conduct automatic processing when compile the process programs of parts in advance; and main machine tools are with PTC networking processing function, achieving the integration of design, processing and programming, which not only increase the efficiency significantly but also ensure the reliable precision. Such digital programming makes primary processing available for sophisticated elements, fully eliminating manually-controlled errors and deviations and achieving complex operations that manual control could not achieve, which can be best interpreted by the three-dimensional flow impeller machining. Another enormous advantage lies in achieving the accurate universality of element processing. All elements could be interchanged and complemented mutually, each blade would also be identical even for the cutting of steel plate.

High Precision Dynamic Balance Test

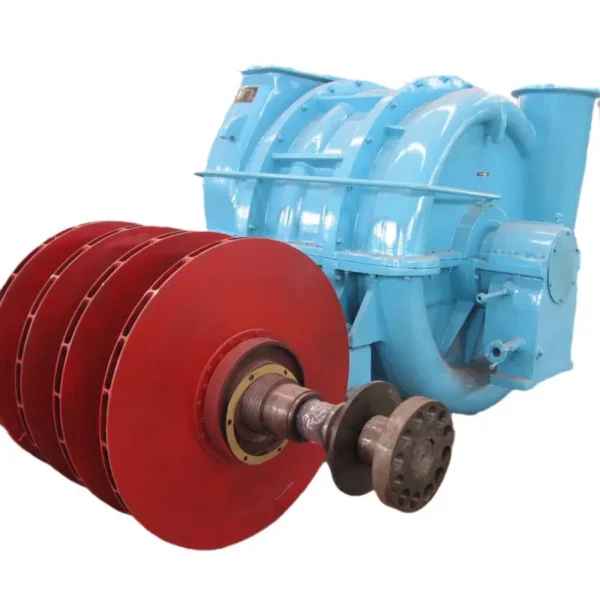

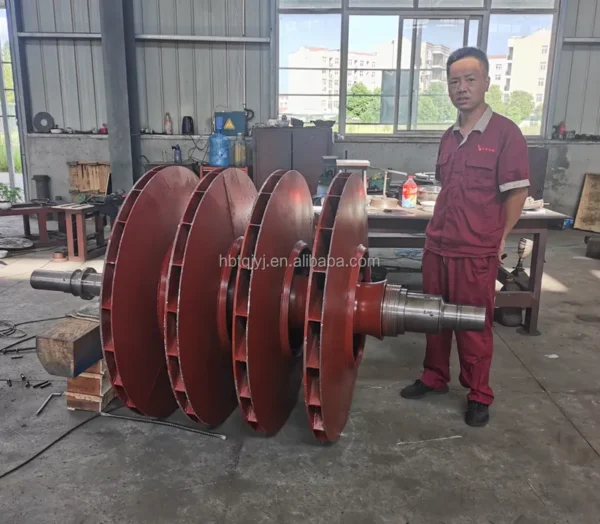

The dynamic balance check is required for the fan rotor. Three advanced dynamic balancing machines introduced by our Company could conduct the test on the whole dynamic balance of a 20 tons rotor. We insist on testing in the light of EU standards from low-speed ventilation fans to high-speed compressors, so as to make sure the smooth rotor running when the fan is in service.

Please provide the required parameters for your selection:
Transported gas:
Gas temperature:
Required air volume:
Required pressure:
Location altitude:
Gas composition and proportion (special mixed gases):
Usage:

24-hour online

Contact person: Mr. Yi

1. Can your fan transport other gases?
Reply: Yes, design can be selected based on the provided gas composition and proportion, such as the transportation of special gases such as gas, nitrogen, and waste.
2. How much maximum traffic can be achieved?
Reply: The maximum flow rate can reach 1500000m3/h
3. What is the maximum growth rate that can be achieved?
Reply: Maximum boost of 100 kPa
4. What are the advantages of your fan?
Reply: Our high-pressure fan casing adopts a cast casing, which can effectively prevent leakage. The cast casing is durable and the snail shaped casing design is more efficient.
5. What is the bearing cooling system like?
Reply: Firstly, on-site circulating water cooling is adopted, which has a good effect, balanced cooling, and is not affected by electrical factors and stops. 2, When the shaft power is high, sliding bearing oil lubrication is used for more stable operation.
