The centrifugal duct fan listed here carries 380V, 220V, power source type Corded Electric, documented exactly as the manufacturer publishes it. Made by Hangzhou Meansoon Ventilation Co., Ltd. (5 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Duct Fan
- Power Source Type: Corded Electric
- Voltage: 380V, 220V
- Material: Plastic, Aluminum Alloy, Copper, Steel
- Blade Material: Plastic
- Noise Level: 65~75 dB
- Speed: 2800RPM, 1400RPM
Technical Specifications
| Duct Diameter | 6in, 8 in, 10 in |
|---|---|
| Mounting | Duct Fan |
| Voltage | 380V, 220V |
| Motor Type | AC Motor |
| Speed | 2800RPM, 1400RPM |
| Material | Plastic, Aluminum Alloy, Copper, Steel |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM |
| Noise Level | 65~75 dB |
| Place Of Origin | Zhejiang, China |
| Brand Name | MEANSOON |
| Model Number | MPCF-160-B2S-FL-2026, MPCF-160-B2T-FL-2026, MPCF-200-B2S-FL-2026, MPCF-200-B2T-FL-2026, MPCF-200-B4S-FL-2026, MPCF-200-B4T-FL-2026, MPCF-250-B2S-FL-2026, MPCF-250-B2T-FL-2026, MPCF-250-B4S-FL-2026, MPCF-250-B4T-FL-2026 |
| Selling Units | Single item |
| Single Package Size | 47.0X41.0X51.0 cm |
| Single Gross Weight | 16.0 kg |
Product Details

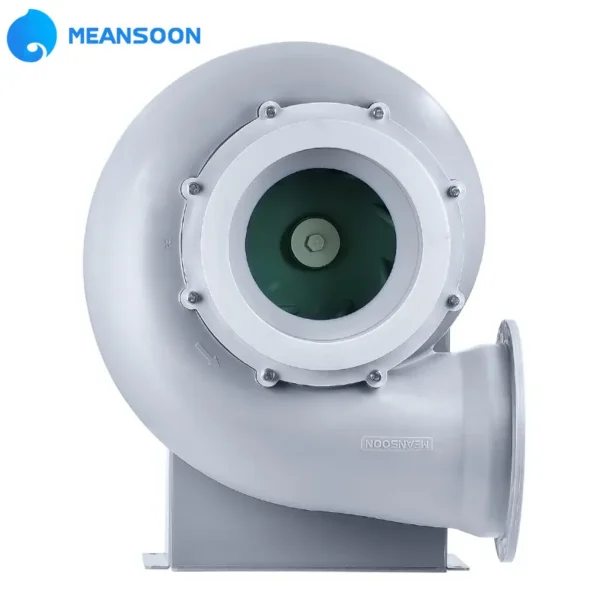

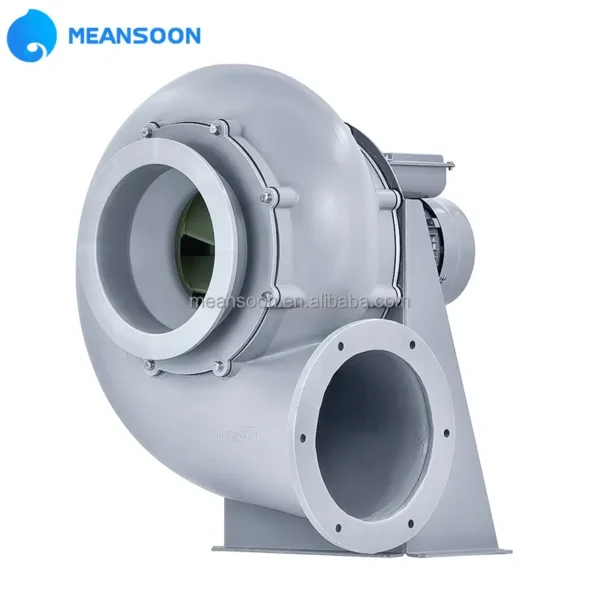

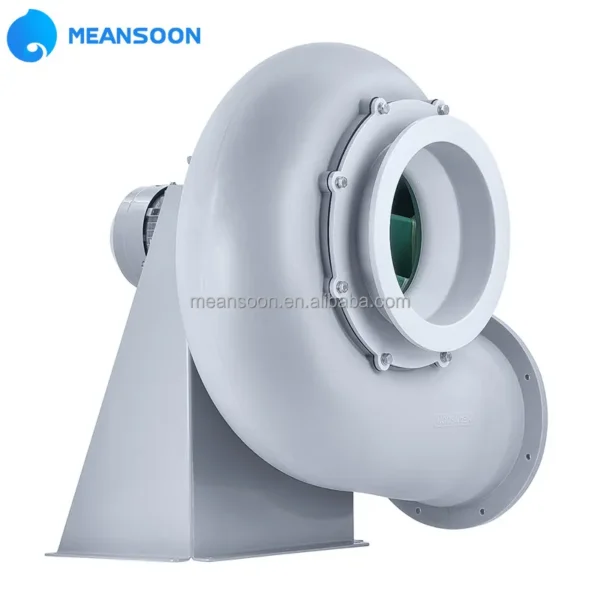

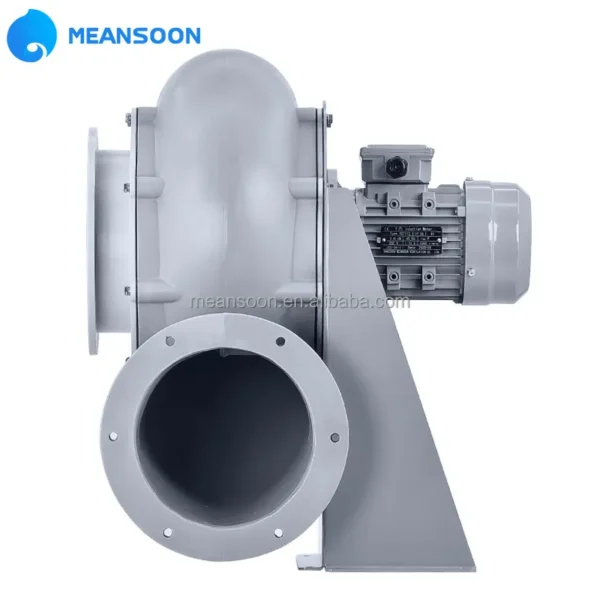

160, 200 and 250 Chemical Resistant Anti-corrosion Plastic PP Centrifugal Fans with Flange
General Description
The MPCF Series (Flange Type) are developed by further optimizing the aerodynamics of the impeller and volutes based on the old MPCF and MACF series . Viton gaskets was used to seal all the gaps to prevent acid and alkali leakage.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid , Sulphurous acid , Nitric acid , Nitrous acid , Hydrofluoric Acid , Boris Acid , Hydrocyanic Acid , Ammonia , Soda , Ethanol , Potassium hydroxide , Methanol , Propane , Formol , Benzene , Formaldehyde .
Application
The MPCF series (Flange Type) of Plastic Centrifugal Fan provides good characteristics of low noise and high
efficiency, which often are applied in laboratory, fume hood , fume cupboard , chemical storehouse , electroplating
factory, medicine factory, mold factory, Electronic workshop and metallurgy for exhaust ventilation .
Volute
UV resistance level UV8 ,Flame retardant level HB, anti- static level 10-10.
The volute is made of polyethylene (PE) , integrated molding , without welding points ; The default air outlet position is 0°, There are 8 angle positions , one every 45 degrees . All fan is with mounting bolts and nuts in 304 stainless steel.
Inlet/outlet are round with standard size: 160 , 200 , 250 , which are good for plastic duct connection .
Impeller
The forward/backward curved impeller is efficiently made of
fibreglass reinforced polypropylene plastic are dynamically balanced.

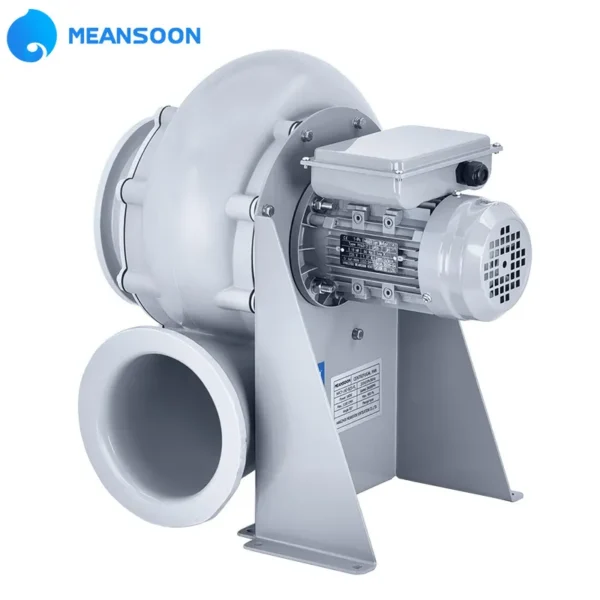

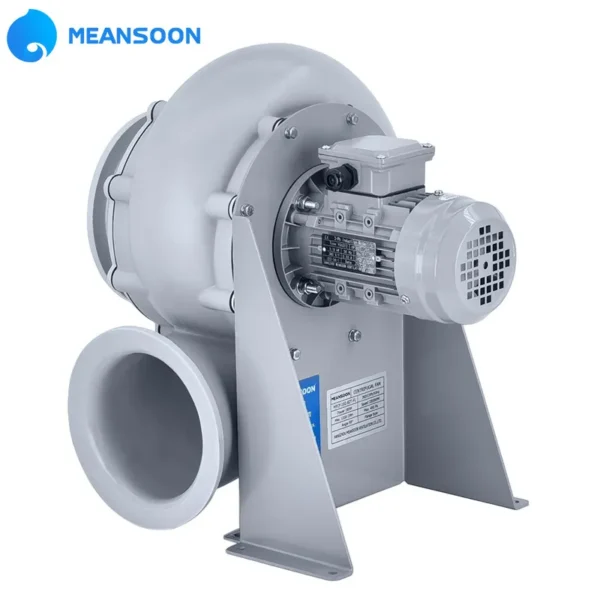

Motor
The Al shell motor is equipped with viton oil seal for better corrosion resistance .
For better motor lifespan , we choose NSK bearings . And
the motors are all equipped with copper wire windings , with a protection level of IP55 , insulation Class F, and B5 Flange .
Explosion proof versions in accordance with CNEX
Directive for three-phase models is available. Motor is
outside the airstream. we can provide Variable-frequency motors , driving by VDF.
Motor stand
Motor stand is made of Q234 steel in 3mm thickness , powder coated in gray by epoxy.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal duct fan?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal duct fan be supplied for my local voltage?
The standard configuration is 380V, 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
