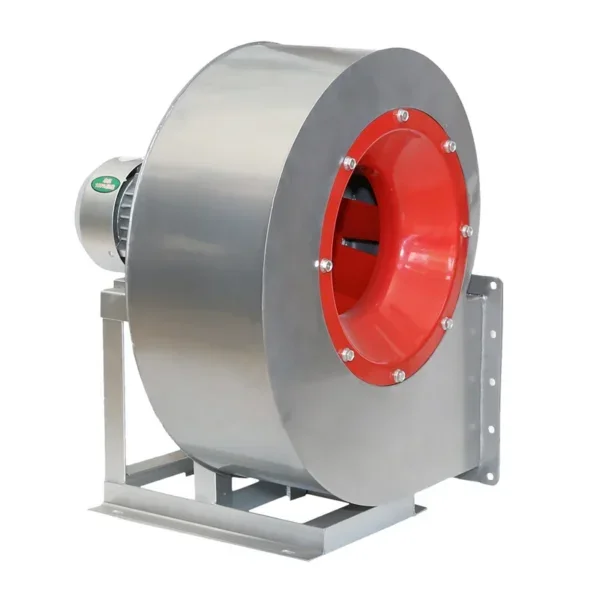

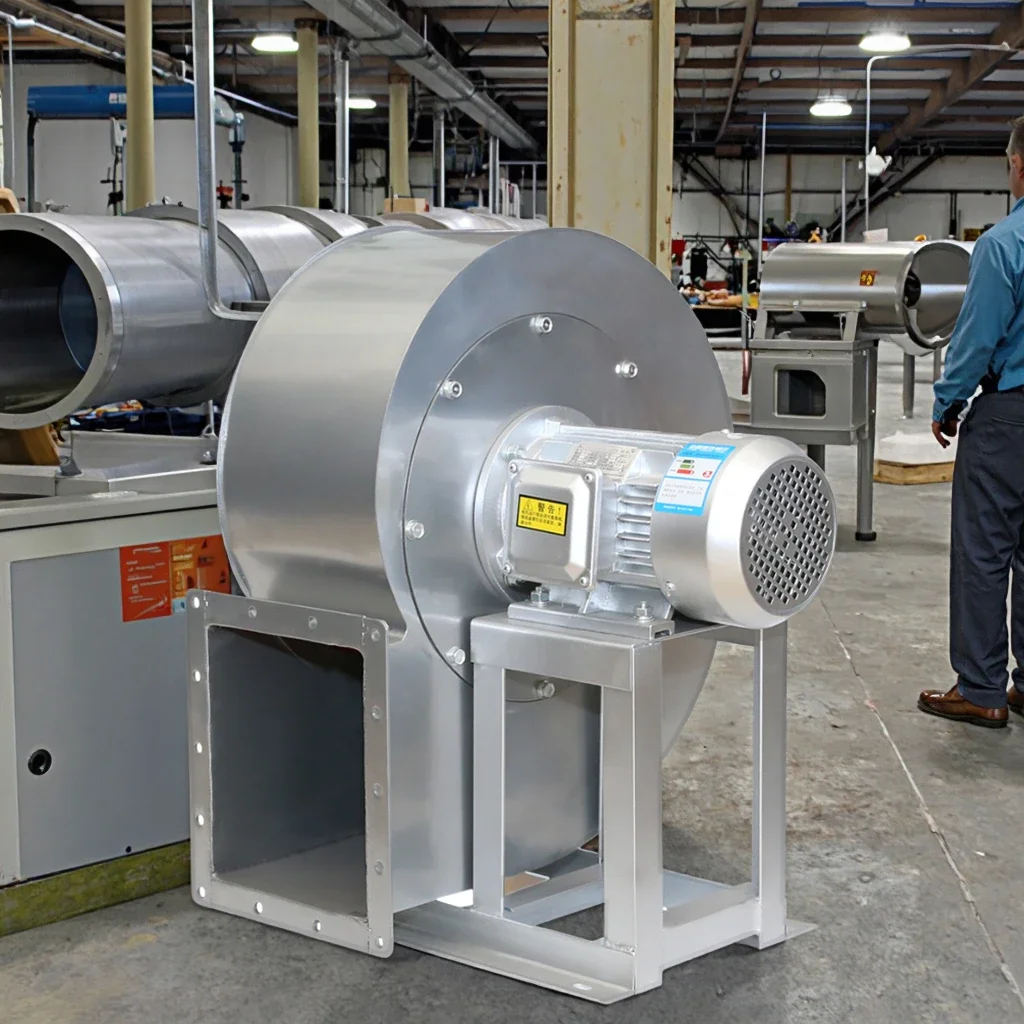

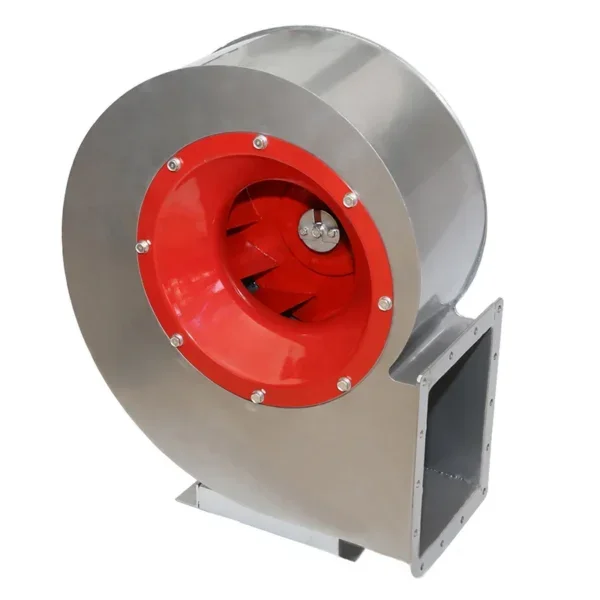

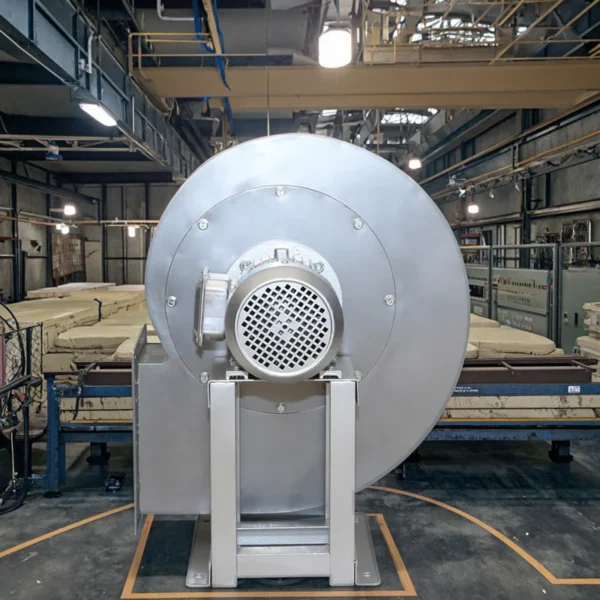

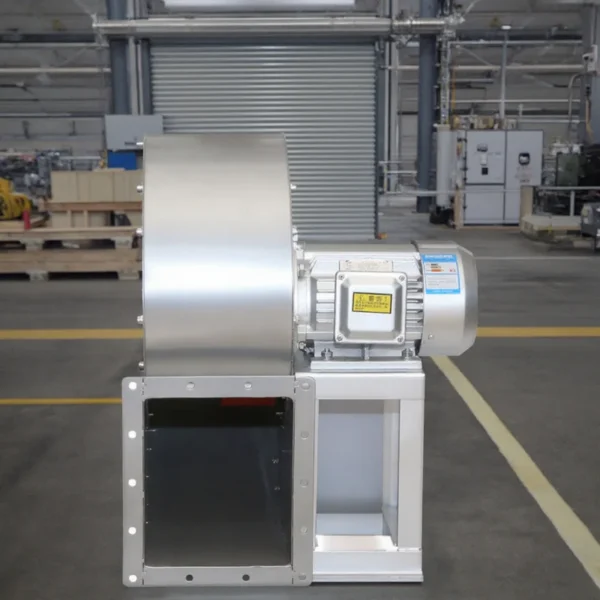

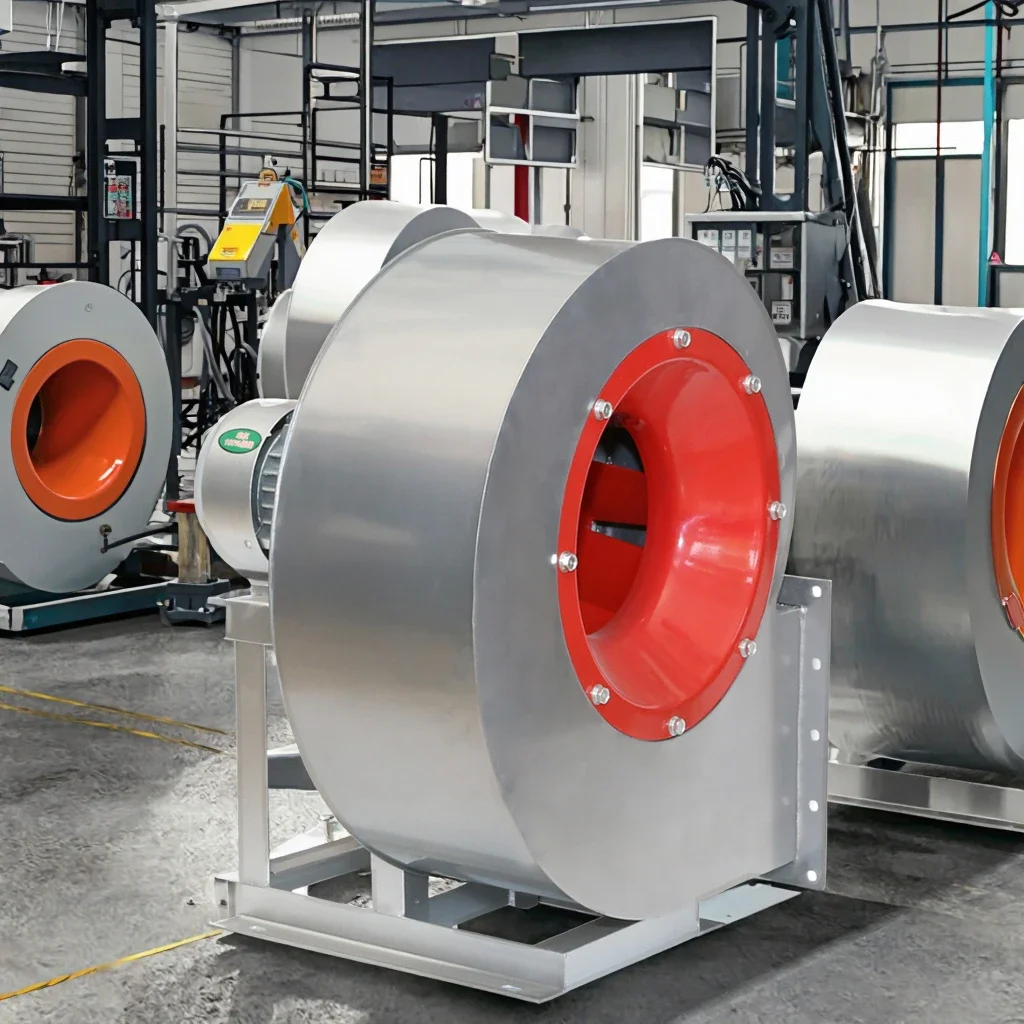

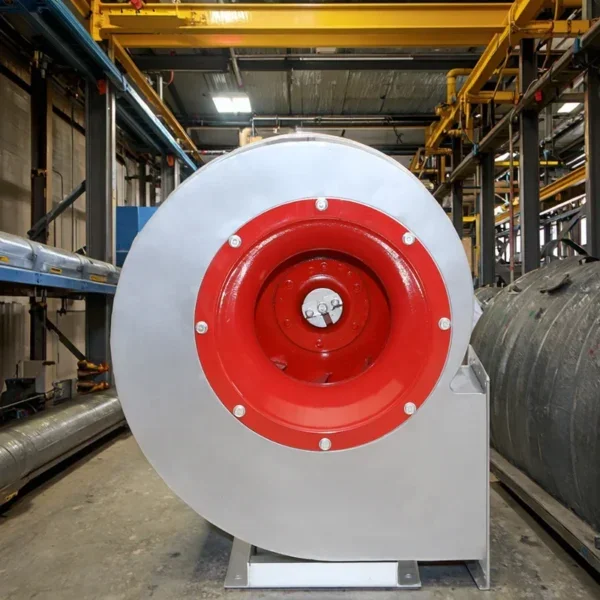

Centrifugal Dust Extraction Fan, 4-72A, 220V, Electric Blower

Centrifugal dust extraction fan — 220V/380V, power source Electric Blower. The complete factory specification follows. Made by Jiangxi Sop Industrial Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Dust Extraction Fan

• Model Number: SOP4-72A
• Power Source: Electric Blower
• Voltage: 220V/380V
• Blade Material: Cast Iron
• Material: Iron
• Warranty: 1 Year

Technical Specifications

Product Details

Buyer feedback

Our Advantages

Product Description

The 4-72 centrifugal fan can transport air and other non self igniting, harmless, and non corrosive gases to copper materials. The gas temperature shall not exceed 80 ℃. This fan has good aerodynamic performance, low vibration, high efficiency, and long service life. There are four types of structures: A, B, C, and D. The fan is widely used for indoor ventilation and air exchange in industrial and mining enterprises, large buildings, hotels and restaurants.

Machine No.	Motor Speed (rpm)	Motor power(kw-P)	Airflow(m³/h)	Total Pressure (Pa)
2A	2900	0.55-2 three phase	570-980	620-380
2.5A	2900	0.75-2 single phase	805-1677	792-483
		2900	1.1-2 single phase	1025-1966	855-585
2.8A	2900	1.5-2 single phase	1131-2356	994-606
3.2A	1450	1.1-4 three phase	884-1758	324-198
		2900	2.2-2 single phase	1688-3517	1300-792
		2900	2.2-2 three phase	1688-3517	1300-792
3.6A	1450	1.1-4 three phase	1332-2634	393-247
		2900	3-2 single phase	2664-5268	1578-989
		2900	3-2 three phase	2664-5268	1578-989
4A	1450	1.1-4 single phase	2006-3709	501-329
		1450	1.1-4 three phase	2006-3709	501-329
		2900	5.5-2 three phase	4012-7419	2014-1320
4.5A	1450	1.1-4 three phase	2856-5281	634-416
		2900	7.5-2 three phase	5712-10562	2554-1673
5A	1450	2.2-4 three phase	3864-7728	790-502
		2900	15-2 three phase	7728-15445	3187-2019
5.6A	1450	3-4 three phase	7062-9885	951-759
		2900	18.5-2 three phase	12940-13450	3375-2765
6A	960	1.5-6 three phase	4420-8841	498-317
		1450	4-4 three phase	6677-13353	1139-724
6.3A	1450	7.5-4 three phase	11158-15618	1538-1218
		960	5.5-6 three phase	6973-9761	600-475
7.1A	960	3-6 three phase	8392-13581	689-512
		1450	11-4 three phase	12676-20513	1573-1168
8A	1450	18.5-4 three phase	15826-29344	2032-1490
		960	5.5-6 three phase	10478-19428	887-651

Company Profile

Certifications

Packing & Delivery

Packaging & Shipping

Packing: each to be packed with a high quality carton box or wooden case as you request

the label "SOP C/NO.1 AND UP" to be attached to each piece

customized label is acceptable

Shipment: express transportation, sea transportation, air transportation and land transportation etc

shipment within 15 working days after receipt of payment

it takes longer time for bulk orders or customized orders

Payment: trade assurance order, credit card, T/T, L/C and western union etc

the bank charges through the payment should be borne by the buyer

please send us the bank slip when/after you make the payment

FAQ

Q1: What's the shipping/freight cost?

A1: It depends on the quantities and shipping methods, please contact us for accurate quotation.

Q2: What's the leading time?

A2: It takes 7 working days for those in stock, and takes 10-15 working days for those out of stock.

Q3: Can you produce special voltage ring blowers? such as 110V and 400V etc

A3: Yes, we can. Please contact us freely for more details.

Q4: How to choose the model?

A4: You need to tell us Air flow, operating pressure, operating mode(vacuum or pressure), motor voltage and frequency, and then we'll choose you the right one.

Q5: How to operate the blower?

A5: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do
according to your voltage, so at first , you need to tell us your voltage and phase,its important.

Q6: What is the material of your machine , is it oil free?

A6: Our machine is aluminum alloy, motor is 100% copper coil. of course, it's oil free.

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal dust extraction fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal dust extraction fan be supplied for my local voltage?

The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangxi Sop Industrial Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangxi Sop Industrial Co., Ltd. range on HVACR Nexus.
