Key specification for this centrifugal fan: rated voltage 12-24V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shenzhen Songlian Electronics Co., Ltd. (7 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: DC9733
- Power Source: Electric
- Power Cord Length: 25 ft
- Rated Voltage: 12-24V
- Material: Plastic
- Blade Material: Plastic
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 12-24V |
| Electric Current Type | DC |
| Speed | 4000 RPM |
| Material | Plastic |
| Blade Material | Plastic |
| Noise Level | below 40dB |
| Pressure | High Pressure |
| Warranty | 3 Years |
| Customized Support | OEM |
| Power Cord Length | 25 ft |
| Place Of Origin | shenzhen |
| Brand Name | songlian |
| Model Number | DC9733 |
| Type | DC blower fan |
| Mounting | Free standing |
| Certification | CE,ROHS,,FC |
| Selling Units | Single item |
| Single Package Size | 100X100X4 cm |
| Single Gross Weight | 0.200 kg |
Product Details
WHY CHOOOSE US?

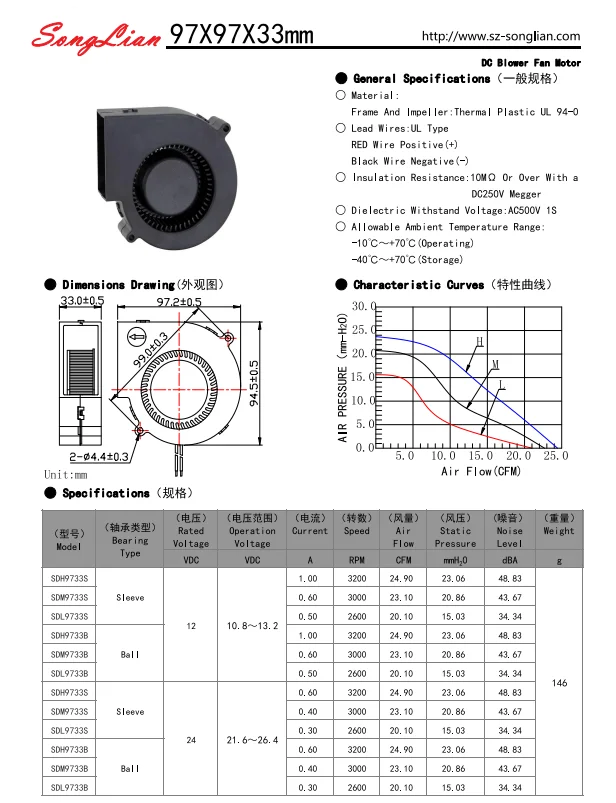

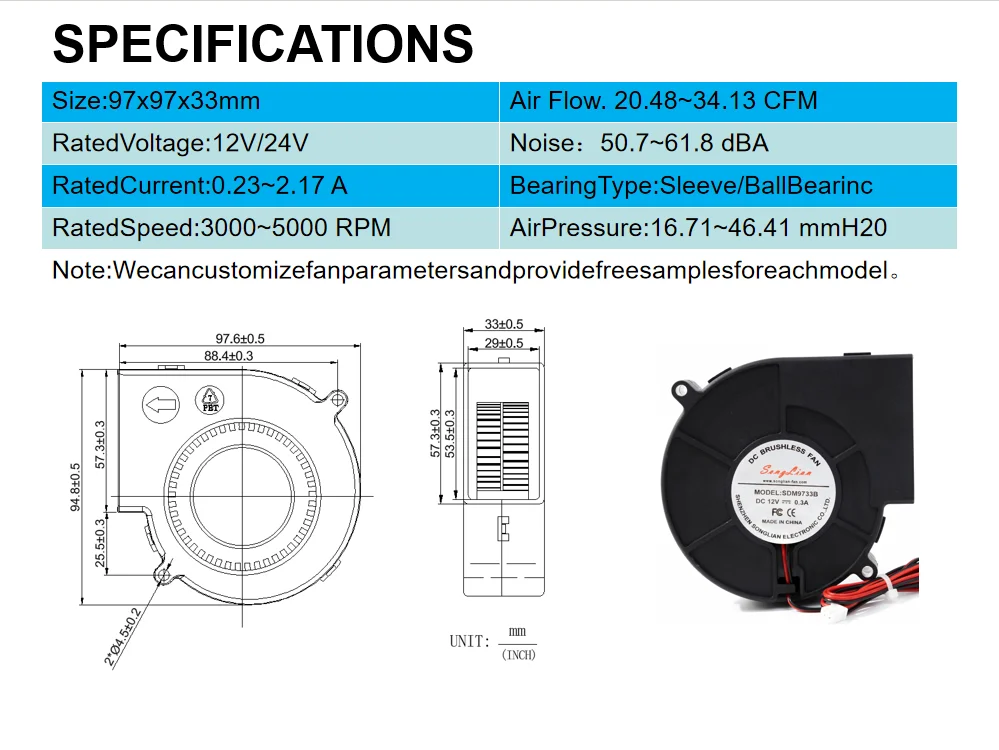

Size | 97*97*33mm | ||||||
Bearing type | Ball Bearing/hydraulic bearing/DUAL BALL BEARING | ||||||
Frame materials | Plastic (UL94V-0) | ||||||
Impeller materials | Plastic (UL94V-0) | ||||||
Fuction | PWM/FG/RD | ||||||
Voltage | DC 5V /12V /24V /48V | ||||||
IP Rating | IP65/IP67/IP68 Waterproof & IP54 Moisture-Resistant | ||||||
Speed | Standard Speed:2600~4500RPM, Accept Customizable to High speeds | ||||||
Noise Level | 23.41~30.1 dBA | ||||||
Wire | 2 pin, 3pin or 4pin with Customized connector | ||||||
Certification | CE, RoHS, CCC, UL | ||||||
Bland | Label Customize | ||||||
Model Number | DC 9733 Blower Fan | ||||||
DC Axial Flow Fan
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
20X20X6 | 0.33~0.82 | 70X70X15 | 16.24~27.06 |
20X20X10 | 0.55~1.56 | 70X70X20 | 25.92~43.20 |
25X25X7 | 1.54~3.09 | 70X70X25 | 26.94~44.90 |
25X25X10 | 1.35~2.51 | 80X80X10 | 14.49~21.74 |
30X30X7 | 1.98~3.64 | 80X80X15 | 23.23~46.47 |
30X30X10 | 2.52~4.10 | 80X80X20 | 24.52~53.94 |
35X35X10 | 3.93~5.90 | 80X80X25 | 30.92~68.02 |
38X38X28 | 8.44~22.05 | 80X80X25 F | 22.51~67.54 |
40X40X7 | 3.13~4.38 | 80X80X25 G | 41.40~93.14 |
40X40X10 | 4.22~6.67 | 80X80X38 | 37.06~92.66 |
40X40X15 | 4.80~8.00 | 80X80X38 F | 34.48~114.28 |
40X40X20 | 4.38~13.76 | 80X80X38 G | 44.28~145.40 |
40X40X20 G | 11.77~19.42 | 92X92X25 | 33.42~58.48 |
40X40X28 | 7.79~20.26 | 92X92X25 F | 35.11~96.56 |
40X40X28 F | 13.63~26.50 | 92X92X32 | 61.67~102.79 |
40X40X28 G | 9.79~30.48 | 92X92X38 | 57.65~105.69 |
45X45X10 | 5.37~10.73 | 120X120X25 | 48.48~96.95 |
50X50X10 | 6.45~11.82 | 120X120X25 J | 38.68~121.14 |
50X50X15 | 6.61~12.27 | 120X120X25 G | 52.46~104.93 |
50X50X20 | 8.09~16.18 | 120X120X25 F | 63.95~201.44 |
60X60X10 | 10.28~17.13 | 120X120X32 | 67.16~93.52 |
60X60X15 | 11.01~28.62 | 120X120X38 | 100.71~146.90 |
60X60X20 | 11.43~19.05 | 120X120X38 J | 118.16~180.36 |
60X60X25 | 16.76~43.10 | 120X120X38 F | 115.11~263.10 |
60X60X28 | 16.23~24.35 | 140X140X25 | 60.34~86.20 |
60X60X38 | 36.73~50.15 | 172X150X51 F | 171.73~274.76 |
60X60X38 F | 40.26~57.51 | 200X51 | 392.22~728.400 |
70X70X10 | 14.56~24.27 | ||
DC Blower Fan
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
20X20X6 | 0.15~0.37 | 55X55X12 | 2.35~3.92 |
20X20X8 | 0.58~0.69 | 60X60X15 | 2.79~3.59 |
25X25X7 | 0.25~0.50 | 60X60X25 | 5.55~9.25 |
30X30X10 | 0.85~1.48 | 60X60X28 | 3.98~6.64 |
35X35X7 | 0.68~0.98 | 桅70X20 | 7.73~15.47 |
40X40X10 | 1.17~2.01 | 75X75X15 | 6.32~10.54 |
52X40X10 | 2.03~2.79 | 75X75X25 | 7.37~13.26 |
40X40X20 | 1.33~2.66 | 75X75X30 | 6.94~20.83 |
45X45X10 | 2.83~3.6 | 93X93X30 | 11.62~22.25 |
50X50X15 | 2.22~4.75 | 97X97X33 | 15.8~22.40 |
50X50X20 | 4.09~6.14 | 桅 100X25 | 32.24~50.09 |
50X50X20 J | 4.62~6.92 | 120X120X32 | 18.45~27.68 |
50X50X25 | 5.22~7.83 | 桅130X69 | 49.67~99.34 |
AC Axial Fan
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
60X60X30 | 8.1~10.3 | 120X120X38 (7 blades) | 64~119 |
80X80X25 | 15~22 | 150X150X50 | 105~235 |
80X80X38 | 18~31 | 158X158X50 | 225~250 |
92X92X25 | 21~37 | 172X150X51 (5 blades) | 105~235 |
92X92X38 | 24~50 | 172X150X51 (7 blades) | 105~235 |
120X120X25 | 50~78 | 172X150X51 (C) | 130~251 |
120X120X38 (5 blades) | 60~113 | 200X200X60 | 370~420 |
EC AXial Flow Fan
Size (MM) | Air Flow ( CFM) | Size (MM) | Air Flow ( CFM) |
60X60X28 | 8.12~16.24 | 92X92X38 | 48.04~67.26 |
60X60X38 | 9.92~19.83 | 120X120X38 | 97.59~136.62 |
80X80X38 | 30.89~49.92 | 172X150X51 | 135.52~202.80 |
Q:What are kinds of cooling fan or centrigugal fan supplied by your company |
Our factory can provide DC cooling fan, AC cooling fan, EC cooling fan and blower fan. |
Q: How to choose sleeve bearings or ball bearings of fan? |
1.Speed and Noise 2.Lifespan and Durability 3.Maintenance 4.Cost |
Q: What is your MOQ and lead time ? |
Our MOQ is 50 PCS. |
Q:How could I get a sample? |
Before we received the first order, please afford the sample cost and express fee.We will return the sample cost back to you in your first order. |
Q: What's your delivery date? |
Sample lead time: 3-5 working days Mass production delivery time: 12-15 working days |
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–1999 piece: US $2 / piece
- 2000–4999 piece: US $1.8 / piece
- 5000+ piece: US $1.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CE,ROHS,,FC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 12-24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Songlian Electronics Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Songlian Electronics Co., Ltd. range on HVACR Nexus.
