Key specification for this centrifugal fan: 220 V, 230 V, power source type Corded Electric. Everything below is reproduced from the factory data sheet. Made by Ningbo Longwell Electric Technology Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: LWBE 133mm
- Power Source Type: Corded Electric
- Voltage: 220 V, 230 V
- Material: Aluminum
- Blade Material: Plastic
- Impeller Material: PA6+GF
Technical Specifications
| Duct Diameter | 20 in, 18 in, 16 in |
|---|---|
| Mounting | Free Standing |
| Voltage | 220 V, 230 V |
| Motor Type | EC |
| Speed | 4400RPM, 3800RPM |
| Material | Aluminum |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Model Number | LWBE 133mm |
| Product Name | Ec Centrifugal Fan |
| Diameter Of Impellers | 133mm diameter |
| Motor | BLEC motor |
| Frequency | 50 / 60 Hz |
| Speed Control | PWM / 0~10v signal |
| Impeller Material | PA6+GF |
| Application | Cooling & Ventilation |
| Operating Temperature | -25℃~ +60℃ |
| Applicable Industries | Food Plant Construction Works Beverage Machinery Repair Shops Hotels |
| Keyword | Centrifugal Blower Ventilation Fan Industrial Exhaust Fan |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 500.0 kg |

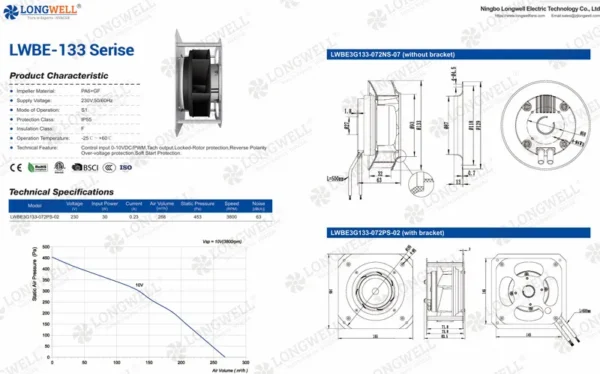

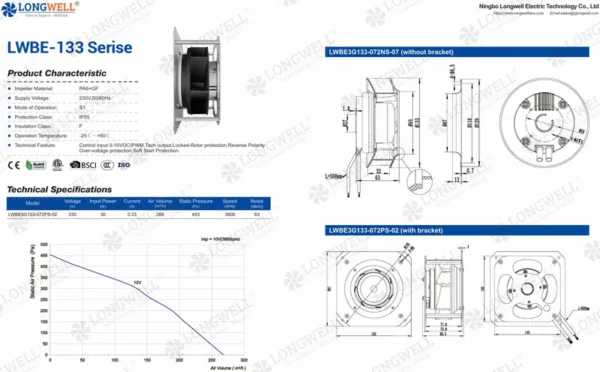

Product Details
Types : | LONGWELL 133mm-630mm IP55 Centrifugal Fans EC Motor Waterproof Backward Customizable OEM Plug-in Ec Backward Centrifugal Fan |
Voltage Ranges : | 230V |
Frequency : | 50/60 Hz |
Diamter : | 133mm ( impeller diameters ) |
Impeller Material: | PA6+GF |
Current: | 0.23A,0.38A |
Static Pressure | 433Pa,453Pa |
Motor Types : | BLEC External Rotor Motor ( EC ) |
Speed Control : | 0-10V Signal / PWM / RS485(Optional) |
Max.ambient Temp: | -25℃～ +60℃ |
Certificating : | All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI |
Protection Level: | IP44 ,IP54,IP55 |
Electronic Protection: | Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start |
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m | |
Balancing | According to JB/T 9101-1999 requirements G6.3 |
Product Standards : | LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3 |
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling / Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $59 / piece
- 100–499 piece: US $57 / piece
- 500–999 piece: US $52 / piece
- 1000+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220 V, 230 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
