This centrifugal fan is published with the manufacturer’s full specification — voltage 110/120V, 220/230V, blade material Galvanized Plate. Made by Zhongshan Pengfei Electrical Appliance Co., Ltd. (8 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: YWF.G2S-150-217AA2A, YWF.G2S-150-217AA20, YWF.G2S-160-217AA2A, YWF.G2S-160-217AA20
- Voltage: 110/120V, 220/230V
- Blade Material: Galvanized Plate
- Impeller Material: Galvanized Plate
- Rotor Material: Aluminum casting
- Housing Material: DC04
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 110/120V, 220/230V |
| Blade Material | Galvanized Plate |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Dailor |
| Model Number | YWF.G2S-150-217AA2A, YWF.G2S-150-217AA20, YWF.G2S-160-217AA2A, YWF.G2S-160-217AA20 |
| Impeller Material | Galvanized Plate |
| Rotor Material | Aluminum casting |
| Housing Material | DC04 |
| Protection Class | IP44 |
| Insulation Class | F |
| Bearing | Maintenance free ball bearing |
| Diameter | 150mm, 160mm |
| Height Of Impeller | 217 mm |
| Motor Poles | 2 |
| Packaging Details | 1. 10-20pcs per carton, it’s based on the model you need. 2. Foam packing or with inner box, it’s based on customers requirement. |
| Port Of Dispatch | Xiaolan Port or Zhongshan Port |
| Selling Units | Single item |
| Single Package Size | 37.7X36.5X21.7 cm |
| Single Gross Weight | 2.1 kg |
| Supply Ability | 200000 pieces per Month |
Product Details
| Backward Centrifugal Fan Sizes | 133mm ~ 560mm |
| Forward Centrifugal Fan Sizes | 120mm ~ 250mm |
| Single Inlet Blower Fan Sizes | 120mm ~ 200mm |
| Double Inlet Blower Fan Sizes | 120mm ~ 146mm |
| Axial Fan Sizes | 200mm ~ 710mm |
| Inline Duct Fan Sizes | 100mm ~ 315mm |
| Voltage | AC Input: 115V, 120V, 220V, 230V, 380V, 400V |
| DC Input: 12V, 24V, 48V | |
| EC Input: 220V, 230V, 380V, 400V | |
| Power | Up to 2300W |
| Speed | Up to 4528RPM |
| Airflow | Up to 24000m3/h |
| Speed Control | Speed controller (AC) or 0-10V/PWM Input (DC&EC) |
| Approvals | CCC, CE, RoHs, UL, CUL |

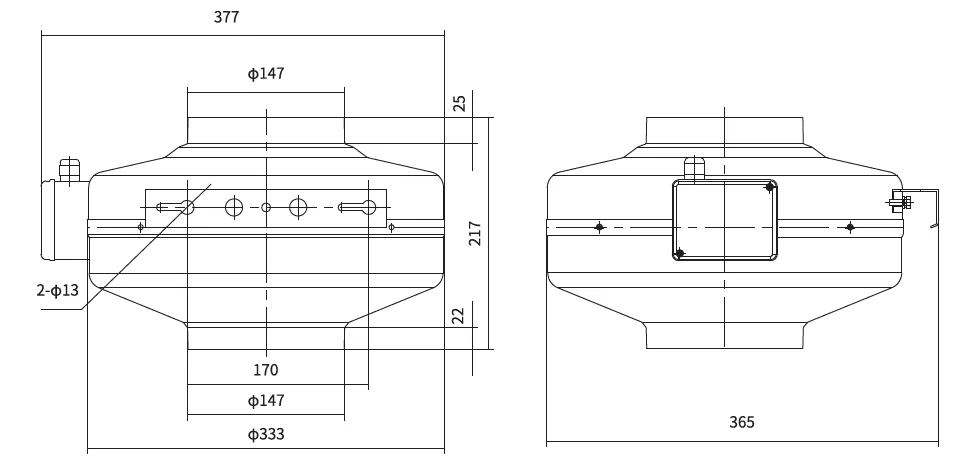

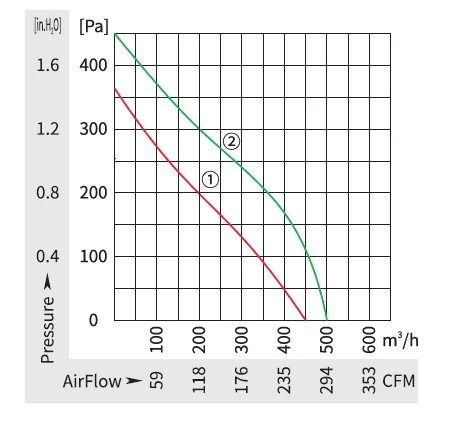

φ150mm Duct Fan
Specification of φ150mm Duct Fan
|
Volatge |
Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temperature | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | Min/Max(℃) |
| YWF.G2S-150-217AA2A | 110/120 | 50 | 0.61 | 75 | 2550 | 10 | 450/260 | 67 | (1) | -30/+60 |
| 60 | 0.84 | 100 | 2700 | 10 | 500/290 | 68 | (2) | -30/+60 | ||
| YWF.G2S-150-217AA20 | 220/230 | 50 | 0.35 | 75 | 2535 | 3 | 450/260 | 67 | (1) | -30/+60 |
| 60 | 0.48 | 102 | 2700 | 3 | 500/290 | 68 | (2) | -30/+60 |
——————————————————————————————————————————————————

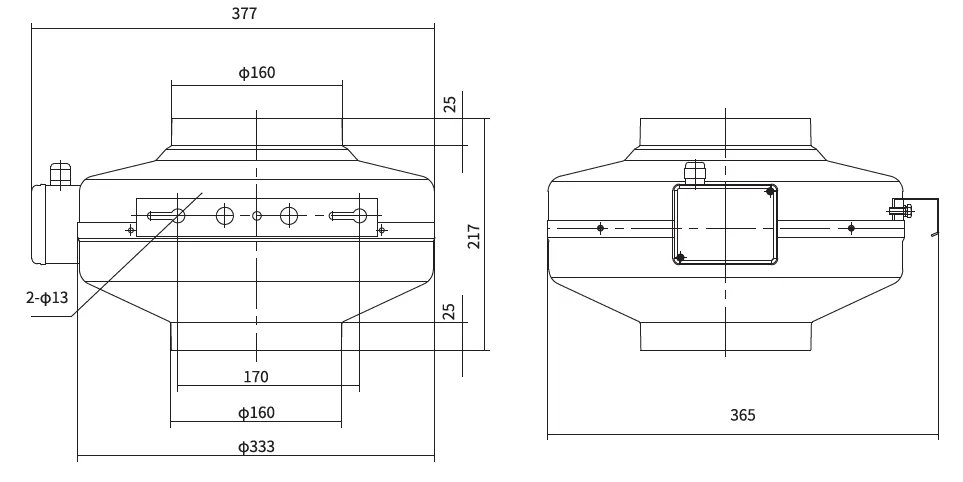

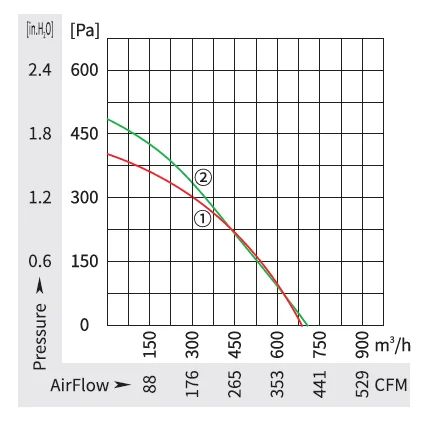

φ160mm Duct Fan
Specification of φ160mm Duct Fan
|
Volatge |
Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temperature | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | Min/Max(℃) |
| YWF.G2S-160-217AA0A | 110/120 | 50 | 0.91 | 110 | 2435 | 12 | 710/417 | 72 | (1) | -30/+60 |
| 60 | 1.28 | 150 | 2430 | 12 | 715/420 | 73 | (2) | -30/+60 | ||
| YWF.G2S-160-217AA20 | 220/230 | 50 | 0.52 | 114 | 2415 | 4 | 710/417 | 72 | (1) | -30/+60 |
| 60 | 0.70 | 152 | 2430 | 4 | 715/420 | 73 | (2) | -30/+60 |
Model Numbering(For example)
- Please kindly click on the model you want for more details:
100mm Inline centrifugal duct fan 125mm Inline centrifugal duct fan 150mm Inline centrifugal duct fan
160mm Inline centrifugal duct fan 200mm Inline centrifugal duct fan 250mm Inline centrifugal duct fan
300mm Inline centrifugal duct fan 315mm Inline centrifugal duct fan
Quality Control
From selecting raw material, making motor parts, to assembling final product, Pengfei motor values every detail of the motor producing process. Full sets of equipments and skilled staffs also make the quality control more accurate. 100% test and inspection achieve good quality and satisfy our customers greatly.
FAQ
1. Are you a trade company or a manufacturer?
A: We are manufacturer in China. We have ISO, CCC, ROHS, CE certification. OEM & ODM services are available.
2. What is your MOQ?
A: Our minimum order quantity is 30pcs.
3.What is your delivery date?
A: The delivery date is about 25-40 days after receipt of payment.
4. What is your payment terms?
A: T/T, 30% deposit in advance and 70% balance before shipment.
5. Can you send free samples?
A: Yes, free samples are available, you just need to pay the express fee. You can provide your a/c like DHL, UPS or you can call your courier to pick up from our factory.
Most importantly, all of our products can be customized. Don’t hesitate, contact us to get more info and customize your products.
Ordering and Pricing
- Minimum order quantity: 30 piece
- Volume pricing:
- 30–499 piece: US $80 / piece
- 500–999 piece: US $70 / piece
- 1000+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 30 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 110/120V, 220/230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
