Centrifugal fan — voltage 1~230V, blade material PA66 firbreglass-reinforced. The complete factory specification follows. Made by Guangzhou Kingan Auto Parts Co., Limited (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: K1A225-AGA-72
- Voltage: 1~230V
- Blade Material: PA66 firbreglass-reinforced
- Material: Impeller made of plastic PA66
- Warranty: 1 Year
- Certification: ce
Technical Specifications
| Voltage | 1~230V |
|---|---|
| Motor Type | AC Motor |
| Blade Material | PA66 firbreglass-reinforced |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Guangdong, China |
| Brand Name | KINGAN |
| Model Number | K1A225-AGA-72 |
| Color | Black |
| Certification | ce |
| Material | Impeller made of plastic PA66 |
| Feature | Low Noise Power Saving |
| Direction Of Rotation | Anticlockwise, seen on leads |
| Type Of Protection | IP42 |
| Bearing | Ball bearing |
| Insulation Class | B |
| Amb.Temp | -40℃ ~65℃ |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

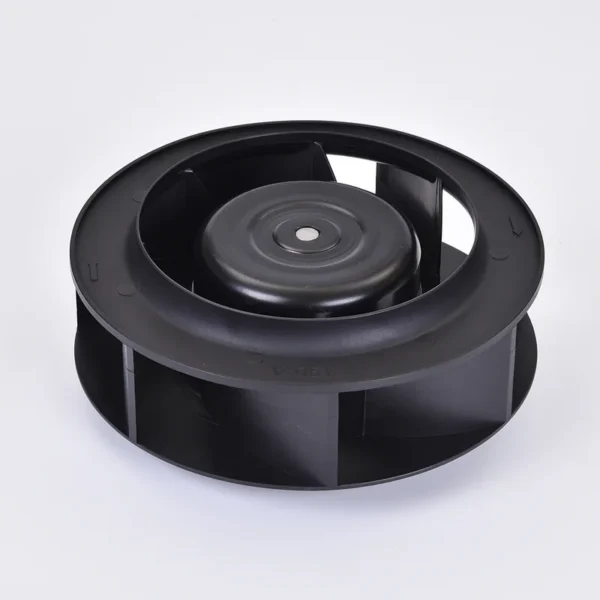

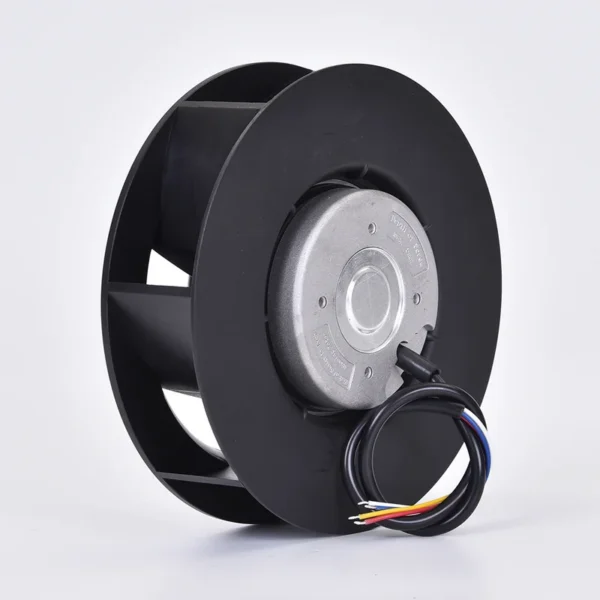

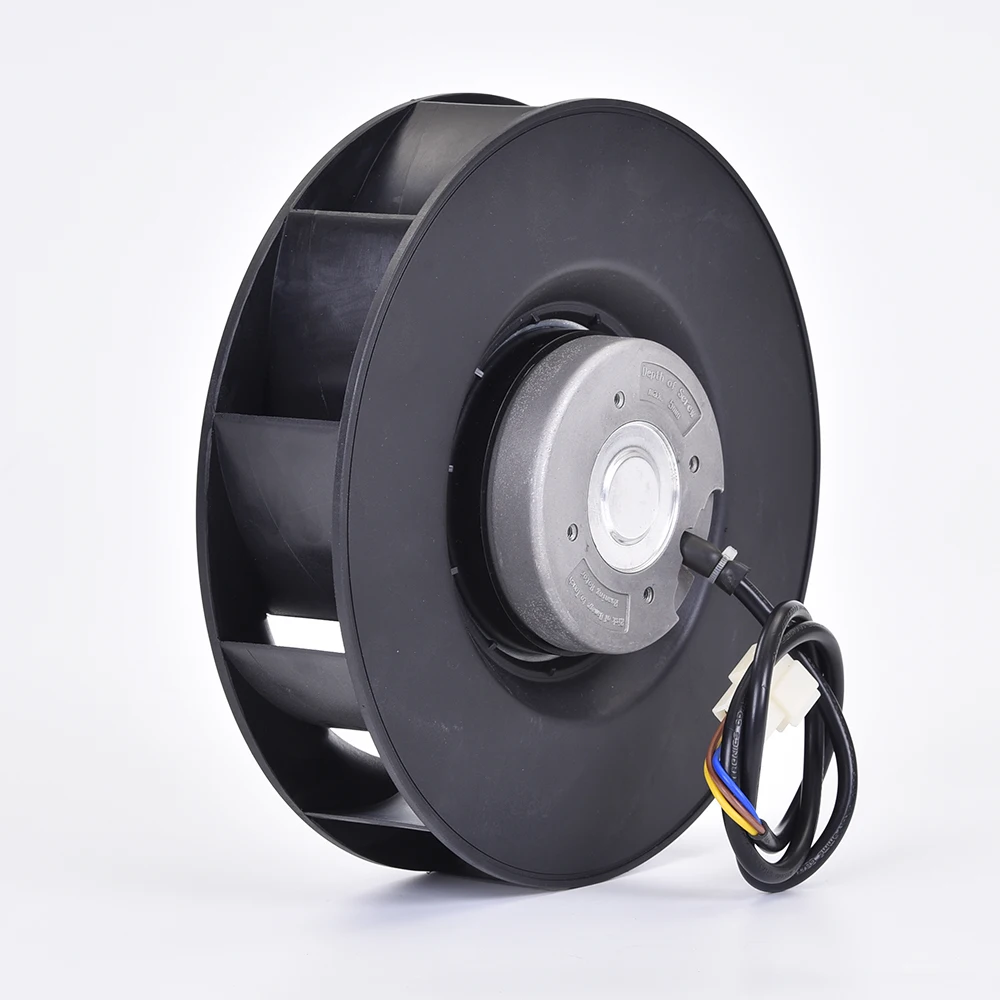

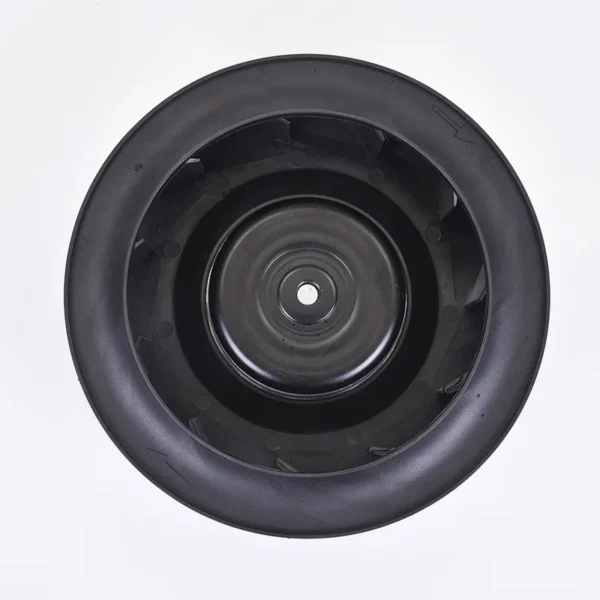

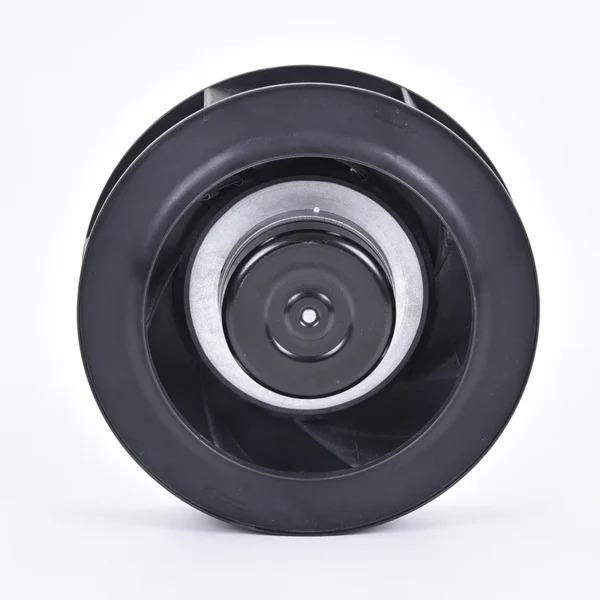

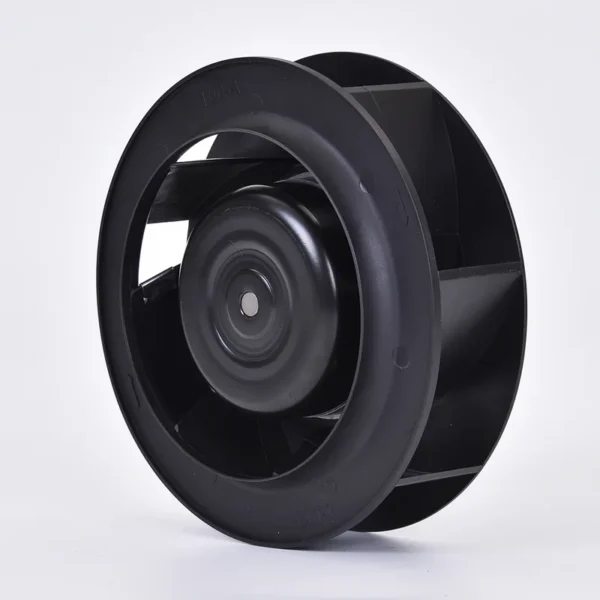

230V 225mm EC Brushless Backward Curved Blower Centrifugal Air Conditioning System Chemical Resistant Centrifugal Fan
Model | K1A225-AGA-72 | ||

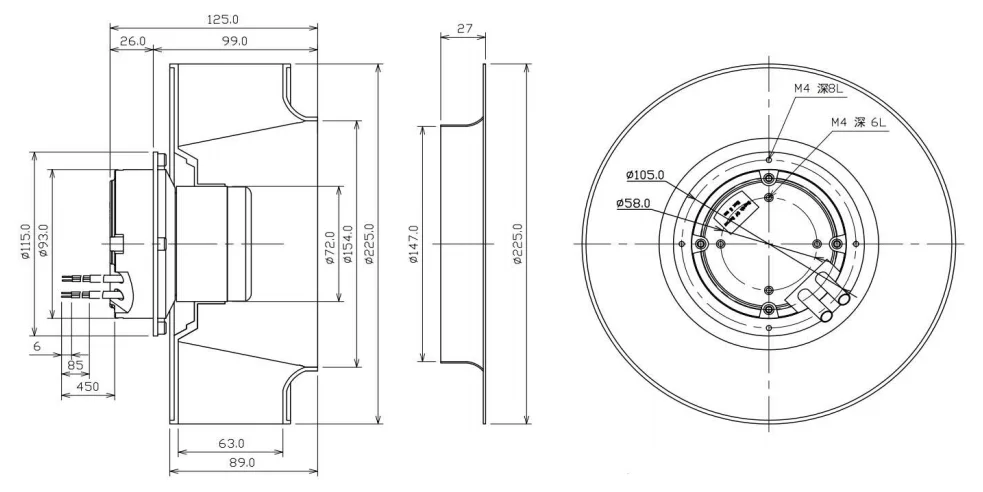

Size | 225mm | ||
Voltage | 1~230V | ||
Current | 0.75A | ||
Motor | Brushless | ||
Rotational speed | 2500rpm | ||

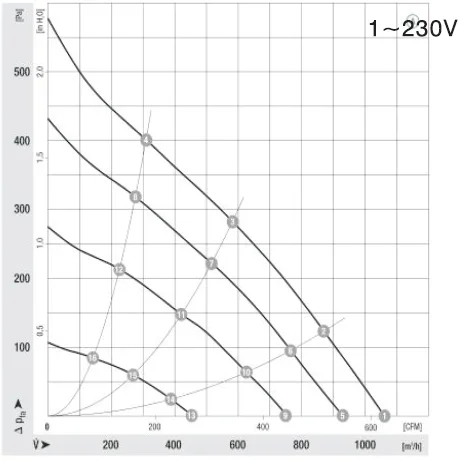

Airflow | 1180 m3/h | ||
Rate Power | 85W | ||
Working temperature | -40℃ ~ 65℃ | ||
Control Mode | 0-10V voltage control PWM control | ||
Motor Protection | Motor shaft-locking + Over-voltage protection = soft-start protection | ||
certificate | ROHS, EMC, LVD, CE | ||
Type | Centrifugal Fan |
Brand Name | KINGAN |
Electric Current Type | EC |
Blade/Impeller Material | PA66 firbreglass-reinforced |
Direction | Clockwise Seen from Rotor |
Motor Type | BLDC External Rotor Motor |
Insulation Class | B |
Warranty | 25 Months |
Amb Working Temp | -40℃ to +65℃ |
Bearing type | Ball Bearing |
Packaging Details | Individual inner box for each single fan and blower. Each order packing is carefully designed according to the transport way. |
Port/Airport | Guangzhou, Shenzhen |
Supply Ability | 5000 Pieces per Month |
After-sales Service Provided | Technical support online (Instant chat messager, email, phone call, video call technical support) |
Place of Origin | Guangzhou, China |
Applicable Industries | Building(Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops,Restaurant,Factory),Farms,AHU,Heating Gas Boiler, Refrigeration ,Industrial Automation,Vehicles,FFU,Construction works ,Energy & Mining, Home Use |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–10 piece: US $56 / piece
- 11–49 piece: US $51 / piece
- 50+ piece: US $48 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 1~230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
