Key specification for this centrifugal fan: voltage Dc 24V, max. air flow 268/455.4CFM / m3 /H. Everything below is reproduced from the factory data sheet. Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: FB3G150-24PL-70
- Power Consumption: 38.4±10%W
- Voltage: Dc 24V
- Nominal Voltage: 24V
- Voltage Range: 16~28V
- Max. Air Flow: 268/455.4CFM / m3 /H
Technical Specifications
| Mounting | Any |
|---|---|
| Voltage | Dc 24V |
| Speed | 3580±5%min -1 |
| Blade Material | Plastic |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 63±5%dB(A |
| Place Of Origin | Jiangsu, China |
| Brand Name | FANOVA |
| Model Number | FB3G150-24PL-70 |
| Fan Type | Backward Centrifugal Fan |
| Type | FB3G150-24PL-70 |
| Model | BLDC72 |
| Nominal Voltage | 24V |
| Voltage Range | 16~28V |
| Current Draw | 1.6±10%A |
| Speed(RPM) | 3580±5%min -1 |
| Power Consumption | 38.4±10%W |
| Sound Pressure Level | 63±5%dB(A) |
| Max. Air Flow | 268/455.4CFM / m3 /H |
| Selling Units | Single item |
Product Details
Products Description
1. DC Backward Centrifugal Fan Specifications | |
Parameter | Value |
Type | FB3G150-24PL-70 |
Model | BLDC72 |
Nominal Voltage | VDC 24 |
Voltage range | VDC 16~28 |
Current draw | A 1.6±10% |
Speed (RPM) | min⁻¹ 3580±5% |
Power consumption | W 38.4±10% |
Sound Pressure Level | dB(A) 63±5% |
Max. Air Flow | CFM / m³/H 268/455.4 |
Max. Static Pressure | in.wg/Pa 1.42/355 |
Insulation class | Class B |
Degree of protection | IP55 |
Control Input | 0~10VDC / PWM |
Signal Output | FG (Tach output) |
2. Electrical Characteristics | |
Parameter | Value |
Breakdown Voltage | 10mA maximum at 600VAC 50Hz 60 seconds |
Life Expectance | 50,000 Hours (L10), at 40°C room, humidity 15%~65%RH |
Direction of Air Flow | All around, Straight forward from air outlet |
Motor | Permanent magnet brushless external rotor motor |
Motor current limitation | Yes |
Soft starting Protection | Yes |
Under/Over voltage detection | Yes |
Thermal overload protection | Yes |
Locked-rotor Protection | Yes |
Reverse Polarity Protection | Yes |
3. Mechanical Specification | |
Parameter | Value |
Weight | 700/100g (Fan/Inlet) |
Impeller Diameter | 150mm |
Rotor Diameter | 72mm |
Number of Blades | 7 |
Impeller Material | Propylene with glass-fiber reinforced |
Housing material | Die-cast aluminum |
Direction of Rotation | Clockwise, viewed toward rotor |
Installation position | Any |
Operation Mode | Continuous (S1) |
Motor bearing | Ball bearing |
4. Surface of Rotor | |
Parameter | Value |
Surface of Rotor | Electrophoretic in black |
Valid For Approval | CE, RoHS, ISO9001, ErP2015 |
5. Standards | |
Standard | Description |
EN ISO12100 | Machinery safety standard |
EN 60204-1 | Safety standard of electrical equipment |
GB12350 | Safety requirements of small-power motors |
JB/T 9101 | Fan rotor balance G6.3 |
EN 61000-6-2 | Immunity standard for industrial environments |
EN 61000-6-4 | Emission standard for industrial environments |
EN 61000-3-2 | Harmonic current standard |
EN 61000-3-3 | Voltage fluctuations and flicker standard |
1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

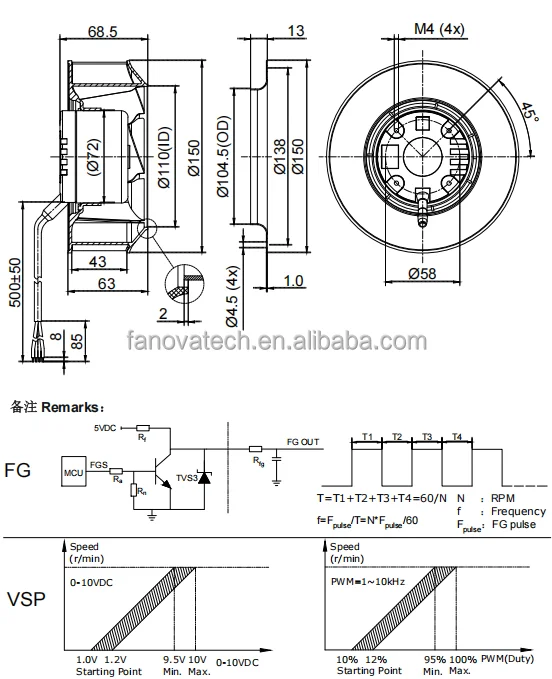

Product Drawing

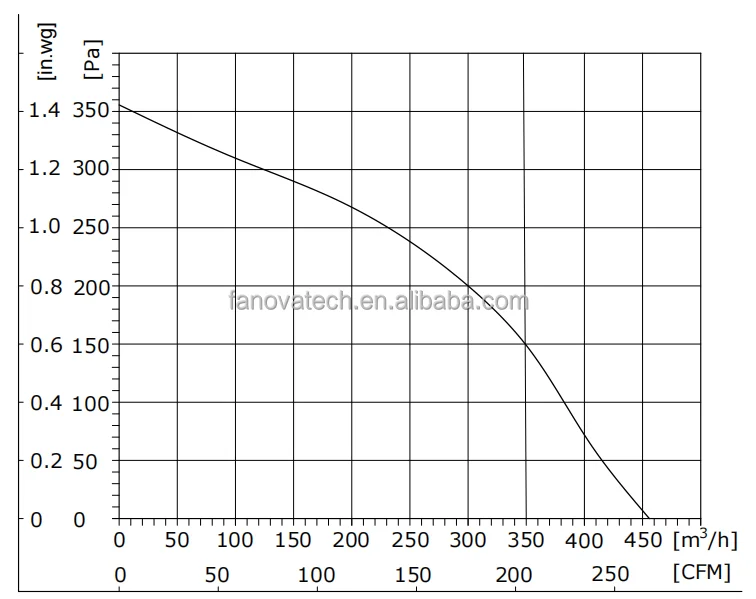

Aerodynamic Performance Charts

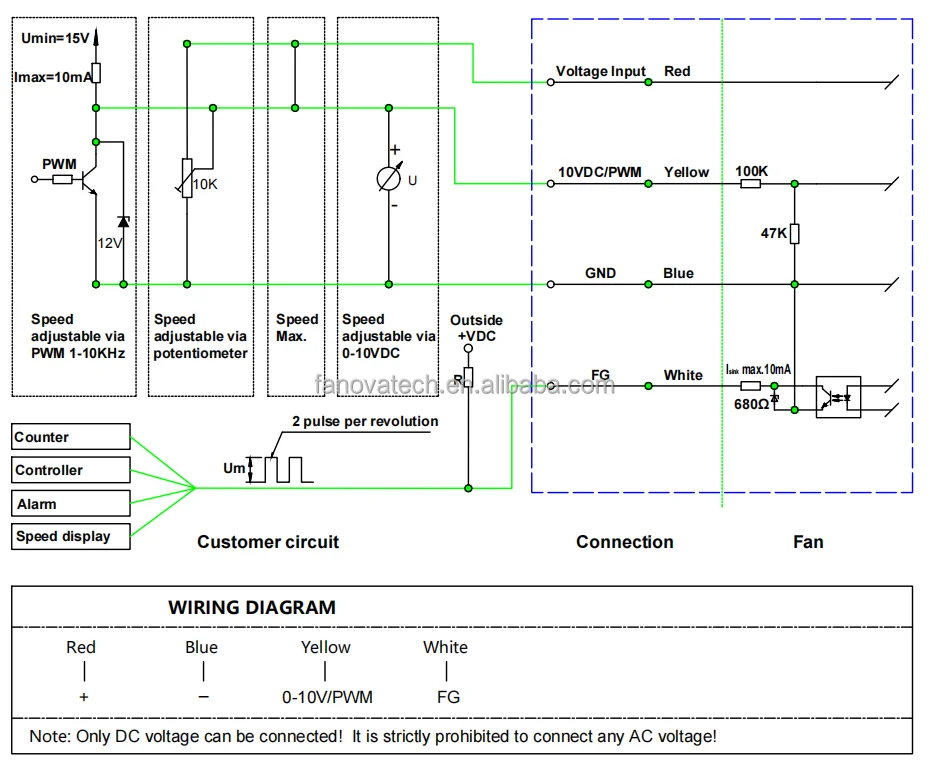

Connection Diagram
Applications
HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
Product packaging
Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.
