Centrifugal Fan, 80mm, 15.8kpa, 28CFM, Radial

This centrifugal fan is published with the manufacturer’s full specification — voltage 24VDC, material Plastic. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Centrifugal Fan

• Model Number: WS9290B-24-220-X300
• Voltage: 24VDC
• Material: Plastic
• Blade Material: Aluminum
• Noise Level: 40 dB and above
• Speed: 28500rpm

Technical Specifications

Product Details

Product Description

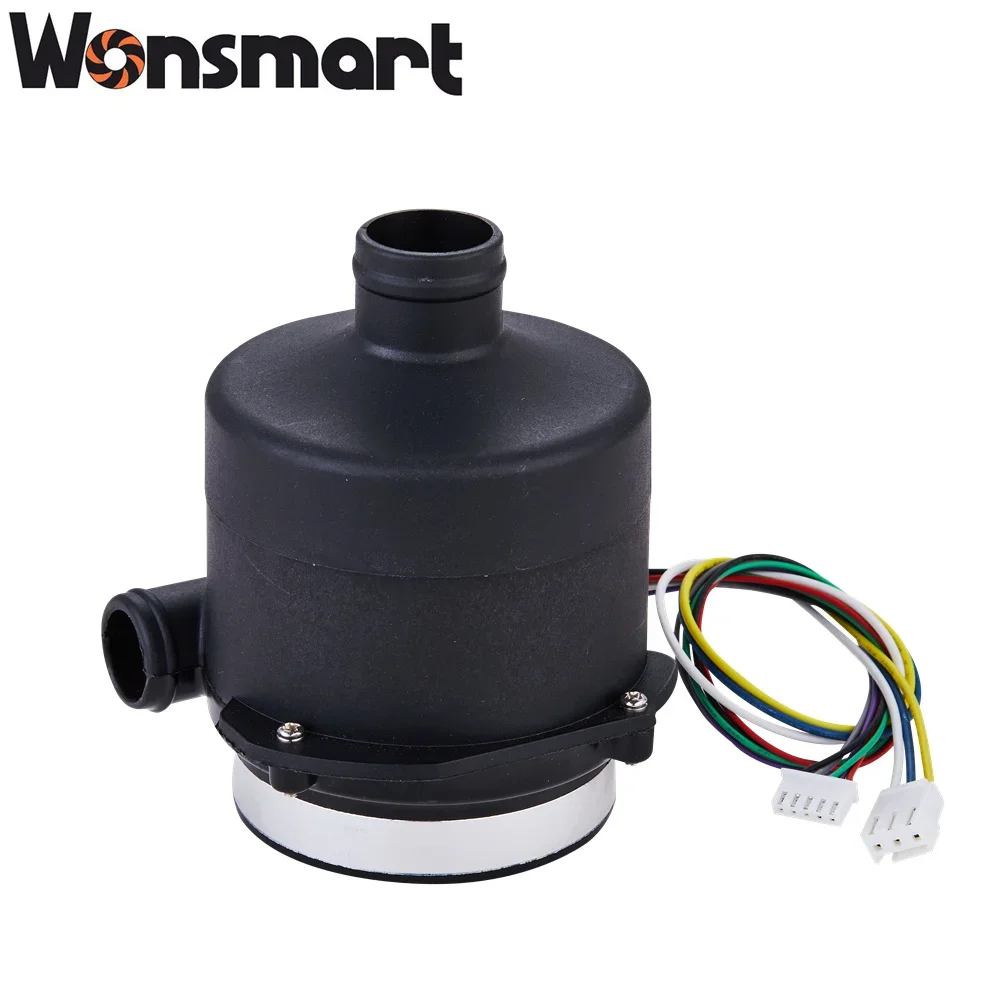

80mm diameter 13.3kPa 26CFM air flow hot radial dust fan 24v dc high pressure blower. Suitable for air cushion machine/fuel cell/medical equipment and inflatables.

Part name	small powerful air blower
Part No	WS9290B-24-220-X300
Rated votlage	24VDC
Max power consumption	180W
Life time(MTTF)	12,000hours
Unit weight	0.5kgs
Bearing	NMB ball bearing
Unit size	D90*L114mm
Insulation class	Class F
Driver board	External
Speed control	PWM or 0~5V

@Free blowing

@working point

@static pressure

Speed

Power

Airflow

Speed

Power

Airflow

Pressuer

Speed

Power

pressure

[rpm]

[W]

[m3/h]

[rpm]

[W]

[m3/h]

[kPa]

[rpm]

[W]

[kPa]

22,500

187.2

47.0

25,500

184.8

25.0

8.0

28,500

124.8

12.5

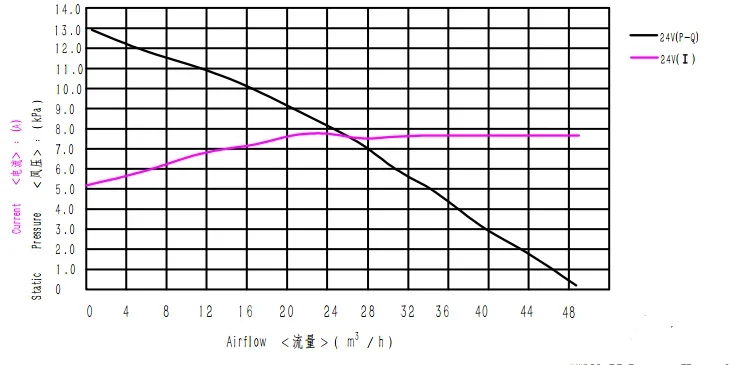

P-Q Curve for 24V dc brushless small powerful air blower

WS9290B-24-220-X300 blower fan airflow against air pressure performance curve as left chart

• Wiring diagram for driver controller

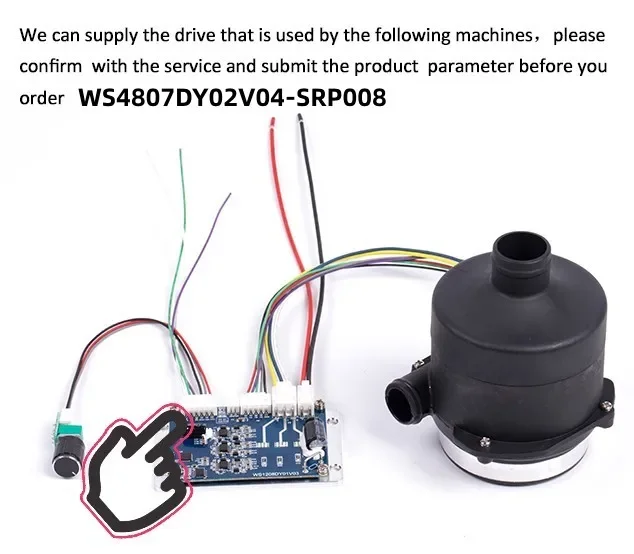

We can supply standard drivers for this blower. If you want to design your own driver, you can refer to the wiring diagram on the
right picture.

Size Information

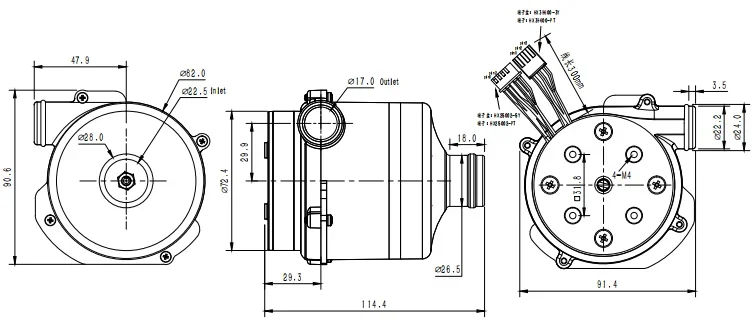

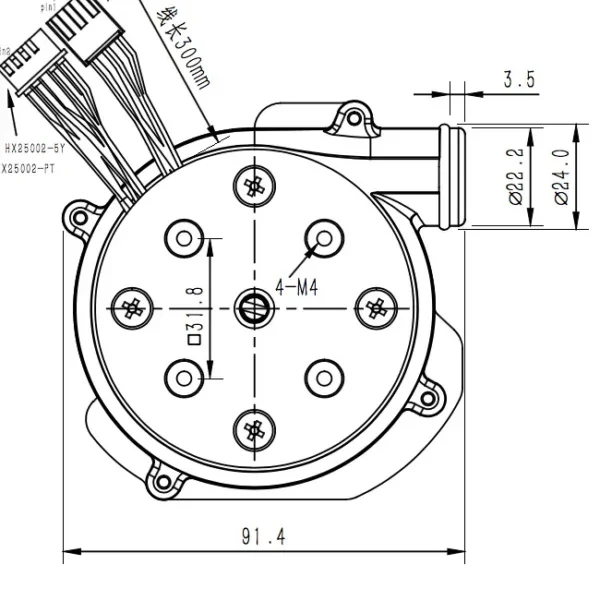

Product drawing as below:
