Key specification for this centrifugal fan: 220V/380V, power 0.18-7.5KW. Everything below is reproduced from the factory data sheet. Made by Taizhou Lion King Signal Co.,Ltd (17 years on the platform, typical reply ≤6h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: LKB
- Power: 0.18-7.5KW
- Voltage: 220V/380V
- Blade Material: hot galvanizing steel sheet
- Impeller Material: High quality hot-galvanizing steel sheet
- Scroll Material: High quality hot-galvanizing steel sheet
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220V/380V |
| Speed | 960~2900r/min |
| Blade Material | hot galvanizing steel sheet |
| Electric Current Type | AC |
| Place Of Origin | Zhejiang, China |
| Power | 0.18-7.5KW |
| Air Volume | 1000-19000 M^3/h |
| Brand Name | LION KING |
| Model Number | LKB |
| Certification | CCC, ce, RoHS, Iso 9000 14000 18000 |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Impeller Diameter | 200-500mm |
| Total Pressure Range | 200-850Pa |
| Sound Range | 60-84dB(A) |
| Drive Type | External rotor motor direct drive |
| Model | 200, 225, 250, 280, 315, 355, 400, 450, 500 |
| Application | Ideal subsidiary equipment for cabinet air-conditioning units |
| Air Volume Range | 1000-20000m3/h |
| Impeller Material | High quality hot-galvanizing steel sheet |
| Feature | HIgh efficiency, low noise, large air flow, compact structure |
| Scroll Material | High quality hot-galvanizing steel sheet |
| Type | Centrifugal Fan |
| Packaging Details | PLY wood. |
| Port Of Dispatch | Ningbo & shanghai |
| Selling Units | Single item |
| Supply Ability | 50000 sets per Month |
Product Details
The fans are characterized by high efficiency, low noise, large air flow, small size, compact structure.
They are ideal subsidiary equipment for cabinet air-conditioning units, variable air volume (VAV) air conditioning units, and other heating, air-conditioning, purification, ventilating equipment.
| Impeller Diameter | 200-500mm |
| Air Volume Range | 1000-20000m3/h |
| Total Pressure Range | 200-850pa |
| Sound Range | 60-84dB(A) |
| Drive Type | External rotor motor direct drive |
| MODEL | 200, 225, 250, 280, 315, 355, 400, 450, 500 |
Applications | Ideal subsidiary equipment for cabinet air-conditioning units, variable air volume (VAV) air conditioning units, and other heating, air-conditioning, purification, ventilating equipment. |

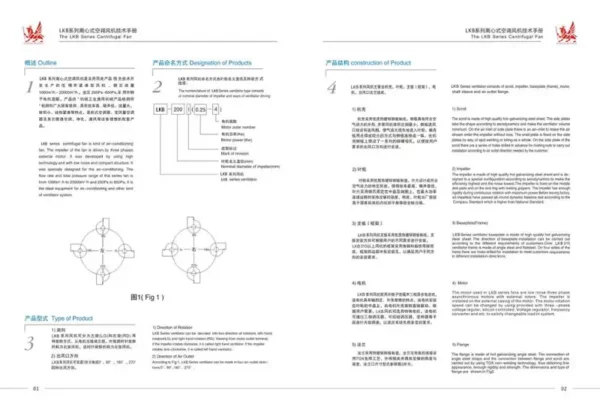

1. Outline
LKB series centrifugal fan is kind of air-conditioning fan. The impeller of the fan is driven by three phases external motor.
It was developed by using high technology and with low noise and compact structure. It was specially designed for the air-conditioning.
The flow rate and total pressure range of this series fan is from 1000m³/h to 20000m³/h and 200Pa to 850Pa. It is the ideal equipment for air-conditioning and other kind of ventilator system.

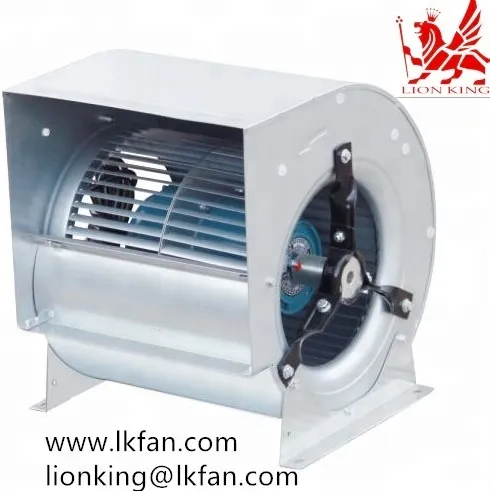

2. Construction of Product
(1). Scroll (made of hot galvanizing steel sheet)
(2). Impeller (made of high quality hot galvanizing steel sheet. Before leaving factory, all imperllers have passed all-round dynamic balance test according to the company standard which is higher level than national standard)
(3). Baseplate/Frame ( made of hot galvanizing steel)
(4). Motor (Low noise three phase asynchronous motors with external rotors)

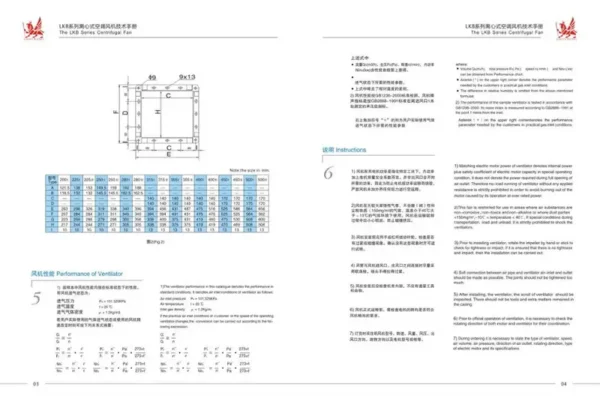

(5). Flange (made of hot galvanizing steel sheet, the dimensions and type of flange are shown as follows)
Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.

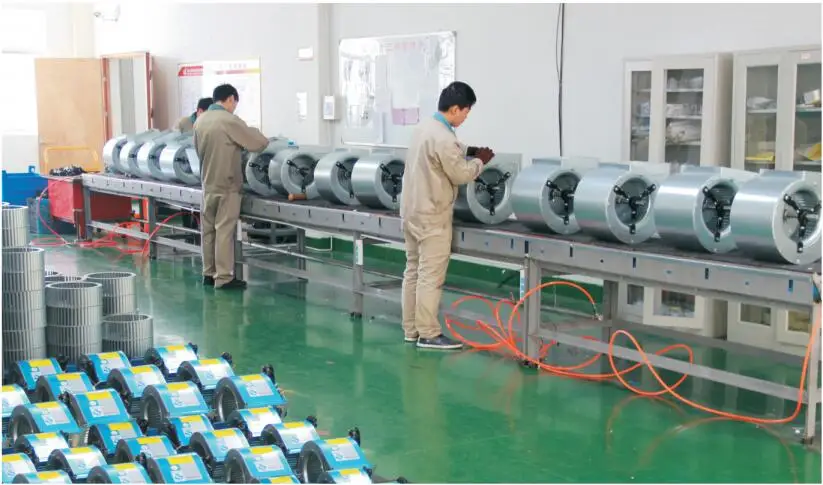

It is located in Taizhou City, Zhejiang Province, which is near to Shanghai and Ningbo with very convenient transportation system. The company has CNC lathes, CNC machining centers, CNC punch press, CNC bending machine, CNC spinning lathes, hydraulic press, dynamic balancing machine and other equipment.
The company has perfect comprehensive Testing Center, which includes facilities for air volume test, noise test, torque force and tensile force test, high and low temperature test, overspeed test , life test etc.
Relying on its mold technology center and engineering technology center, the company has developed forward curved multi-blades centrifugal fan,backward centrifugal fan, voluteless fan, roof fan, axial flow fan, box-type fan series with more than 100 specifications of metal fans and low noise fans.
The company attaches great importance to quality management, and was awarded the ISO9001 international quality system certification very early. At present, the "LION KING" brand has enjoyed great popularity and well-deserved reputation. Meanwhile, the products are also exported to many countries, and honored with consistent high praise and recognition by domestic and foreign customers.
The company always insists the business philosophy of "Safety First, Quality First", and are keeping to serve all customers based on "honesty, innovation, rapid response, and full services."
24-hours on line service with excellent sellers.
NOTE:
Ordering the fan
After selection of the fan best for your needs please order as follows:
1. Fan type and installation
2. Fan code and type
3. Quantity required
4. Duty required standard air and temperature, such air volume in (m³/h), static pressure or total pressure in (Pa)
5. Motor rated power(KW)
6. Electrical supply
7. Ancillaries required
If you interestd in any products, pls contact me directly
Whatsapp or wechat: 0086-13738539157
Skype: blanche-lin
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $150 / piece
- 10+ piece: US $140 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this centrifugal fan carry?
It is supplied with CCC, ce, RoHS, Iso 9000 14000 18000 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
