Key specification for this centrifugal fan: 415V, AC 220V~240V, 460V, 380 V, air flow rate 1648m³/h. Everything below is reproduced from the factory data sheet. Made by Dongguan Jufu Ventilation Equipment Co., Ltd. (4 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: JF-18
- Power Source Type: Corded Electric
- Voltage: 415V, AC 220V~240V, 460V, 380 V
- Air Flow Rate: 1648m³/h
- Material: Stainless Steel, Cast Iron, Aluminum, Carbon Steel
- Blade Material: Carbon Steel
Technical Specifications
| Duct Diameter | 14 in |
|---|---|
| Mounting | Free Standing |
| Voltage | 415V, AC 220V~240V, 460V, 380 V |
| Motor Type | AC Motor |
| Speed | 3 000 RPM |
| Material | Stainless Steel, Cast Iron, Aluminum, Carbon Steel |
| Blade Material | Carbon Steel |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Guangdong, China |
| Brand Name | JUFU |
| Model Number | JF-18 |
| Certification | ISO/CE |
| Safety Standard | Explosion-Proof Option |
| Frequency | 50Hz / 60Hz |
| Size | 748mm*547mm*697mm |
| Total Pressure | 4252Pa |
| Air Flow Rate | 1648m³/h |
| Customization Options | Size, Material, Performance, Accessories |

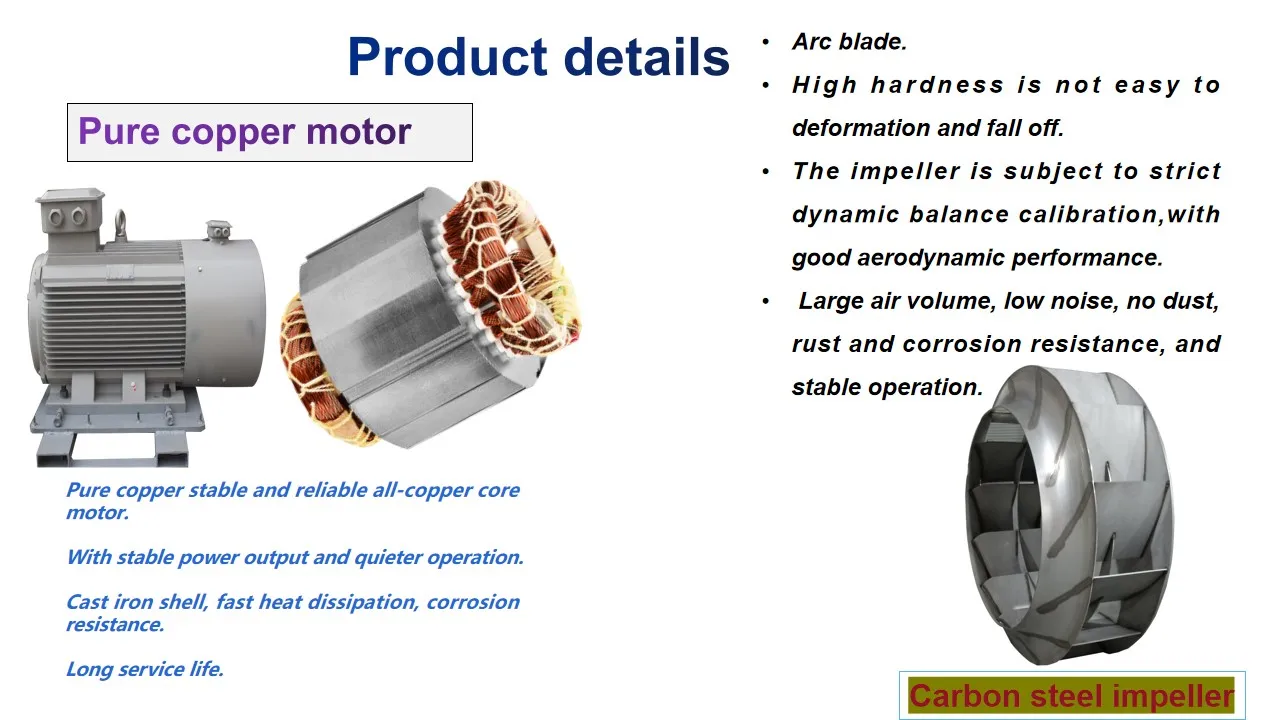

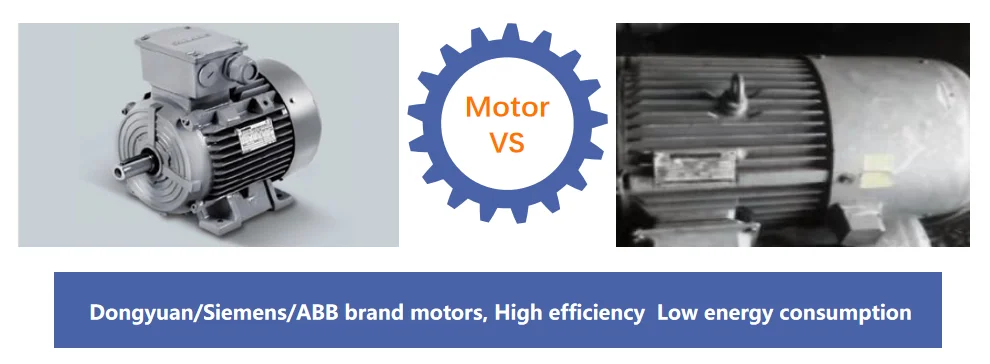

| Motor | Full Copper Wire Motor (Brand Optional) |
| Type Of Shipping | Sea/Air/Land Transport/International Express |
| Packaging Method | Wooden box |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

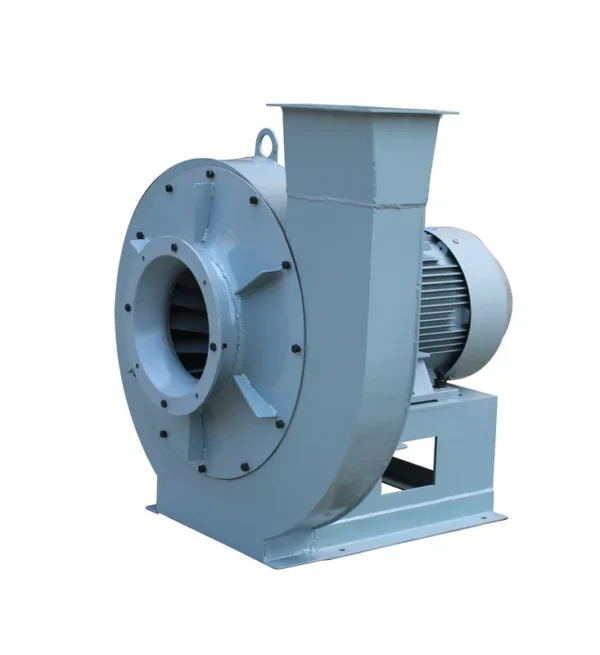

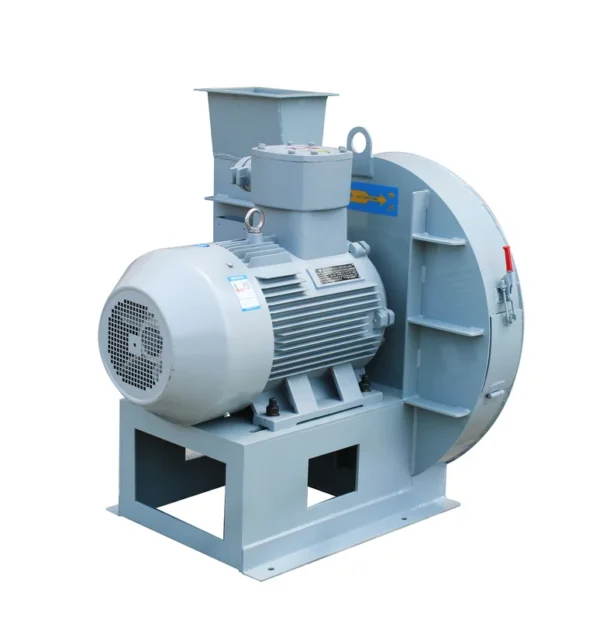

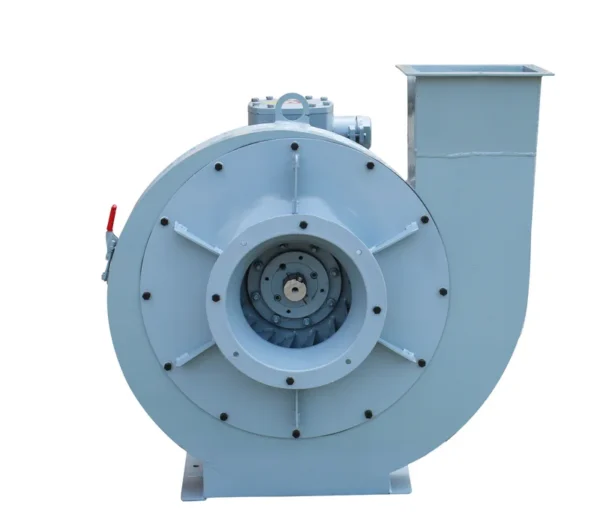

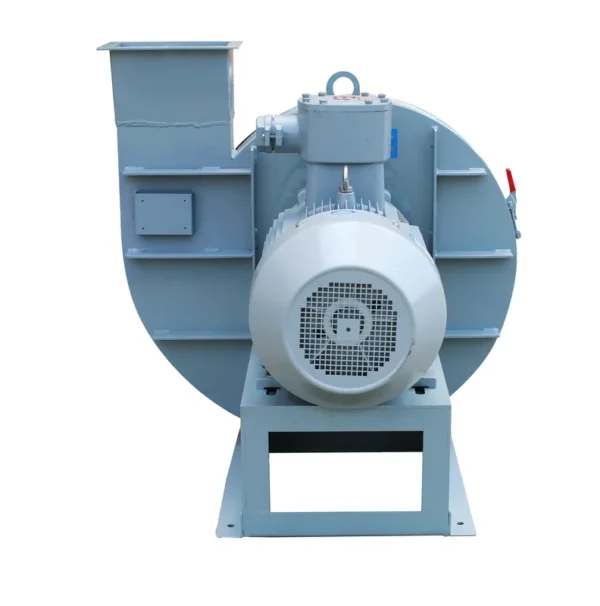

JF-18 centrifugal fan
Type | Rotate speed(r/min) | Air volume(m3/h) | Air pressure(pa) | Power(kw) |
4A | 2900 | 840-1738 | 3351-3775 | 2.2-3 |
1450 | 420-869 | 943-837 | 0.55 | |
4.5A | 2900 | 1197-2554 | 4825-4235 | 4-5.5 |
1450 | 599-1277 | 1206-1059 | 0.75 | |
5A | 2900 | 1642-3558 | 5941-5232 | 7.5-11 |
1450 | 821-1779 | 1485-1308 | 1.1 | |
5.6A | 2900 | 2674-4999 | 7491-6592 | 11-15 |
1450 | 1337-2500 | 1873-1648 | 2.2 | |
6.3A | 2900 | 3284-7118 | 9543-8392 | 18.5-30 |
1450 | 1642-3559 | 2385-2098 | 3 | |
7.1A | 2900 | 4702-10188 | 12224-10739 | 37-55 |
2240 | 3632-7858 | 7293-6407 | 15-22 | |
1450 | 2531-5094 | 3056-2685 | 4-5.5 | |
8A | 2900 | 6726-14573 | 15686-13763 | 75-90 |
2240 | 5195-11256 | 9359-8211 | 30-37 | |
1450 | 3363-7287 | 3775-3328 | 7.5-15 | |
9A | 1800 | 5945-12879 | 7388-6510 | 30-37 |
1450 | 4789-10374 | 4795-4224 | 15-22 | |
1250 | 4128-8943 | 3563-3139 | 7.5-11 | |
10C/D | 1450 | 6569-15764 | 6119-5107 | 30-37 |
1250 | 5663-13589 | 4547-3796 | 15-22 | |
1120 | 5073-12177 | 3651-3047 | 11-18.5 | |
11.2C/D | 1450 | 9228-22147 | 7716-6433 | 45-75 |
1250 | 7955-19092 | 5734-4781 | 30-37 | |
1120 | 7128-17106 | 4603-3839 | 18.5-30 | |
12.5C/D | 1450 | 12829-30790 | 9672-8057 | 75-110 |
1250 | 11059-36542 | 7187-5987 | 45-75 | |
1120 | 9909-23782 | 5770-4807 | 37-55 | |
14C/D | 1450 | 18023-43257 | 12230-10174 | 132-220 |
1250 | 15538-37290 | 9089-7567 | 75-132 | |
1120 | 13922-33412 | 7297-6070 | 55-90 | |
1450 | 18023-43257 | 12230-10174 | 132-220 | |
1250 | 15538-37290 | 9089-7561 | 75-132 | |
1120 | 13922-33412 | 7297-6070 | 55-90 | |
16C/D | 1450 | 26905-64571 | 16171-13426 | 315-410 |
1250 | 23194-55664 | 12018-9978 | 132-250 | |
1120 | 20781-49876 | 9648-8010 | 110-200 | |
960 | 17812-42750 | 6883-5742 | 75-110 |
Q2：What is the MOQ of your company
A2：The minimum order quantity of our company's fan is one
Q3：Does your company support personalized customization
A3：Yes, as long as you provide us with relevant data, we can produce according to your requirements
Q4：Does your company have after-sales service
A4：Our company has a one-year warranty period, and we have a perfect after-sales team to provide you with corresponding technical support
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $389 / set
- 10+ set: US $360 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with ISO/CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 415V, AC 220V~240V, 460V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
