This centrifugal fan is published with the manufacturer’s full specification — 208V, power source type Electric. Made by ASIA PACIFIC SHENGRUI LIMITED (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: G3G250-GN04-11
- Power Source Type: Electric
- Power: 1200W
- Voltage: 208V
- Blade Material: Fiberglass-reinforced PA plastic
- Speed: 4900RPM
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 208V |
| Motor Type | EC Motor |
| Speed | 4900RPM |
| Blade Material | Fiberglass-reinforced PA plastic |
| Power Source Type | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Slovenia |
| Brand Name | ebmpapst |
| Model Number | G3G250-GN04-11 |
| Current | 4.8A |
| Power | 1200W |
| Size | 250mm |
| Type | EC Centrifugal Fan |
| Bearing Type | Ball Bearing |
| Weight | 13.2kg |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Ebmpapst R2E280-AE52-17 M2E068-EG IP44 225W 230V 400V AC Vacon Inverter FFU Fan Filter Unit High CFM Centrifugal Cooling Fan
Specification
item | value |
Voltage | 208V |
Blade Material | Fiberglass-reinforced PA plastic |
place of origin | Slovenia |
speed | 4900RPM |
customized support | OEM, ODM |
mounting | Free Standing |
brand name | ebmpapst |
model number | G3G250-GN04-11 |
Motor Type | EC Motor |
warranty | 1 Year |
After-sales Service Provided | Online support |
Power source type | Electric |
Model number | G3G250-GN04-11 |
Brand name | ebmpapst |
Voltage | 208V |
Current | 4.8A |
Power | 1200W |
Speed | 4900RPM |
Size | 250mm |
Type | EC Centrifugal Fan |
Bearing type | Ball Bearing |
Weight | 13.2kg |
Product Description

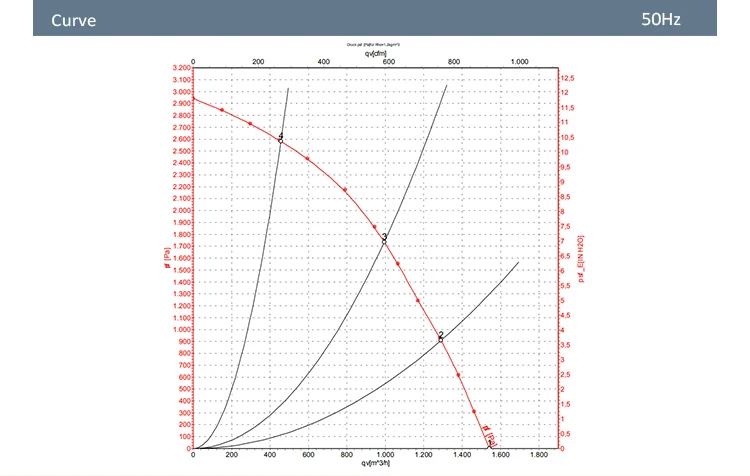

Charts
Fan Wall Technology Reshaping AHU Design
Boost Your AHU's Performance and Slash Operating Costs with Our Advanced EC Fan Technology.
Empower Your Upgrade: AHU Retrofit & Modernization
Beyond New Builds: Unlock Massive Savings in Your Existing AHUs
TRADITIONAL SINGLE CENTRIFUGAL FAN
———————— AC fan ————————
MODERNFANGRID ARRAY
————————- EC fan ————————-
Why Choose EC Fans for AHU?
Easy Installation
Modular design enables fast on-site assembly without the need for large lifting equipment.
Immediate Energy Savings
Upgrade from AC to EC technology and achieve energy savings of over 50% with immediate results.
Return on Investment
Typically achieves payback within 1–3 years, delivering significant long-term value.
Solutions Built for Your Challenges
Beyond New Builds: Unlock Massive Savings in Your Existing AHUs
For the R&D Engineer
High performance, Seamless integration, Ultra-quiet operation.
* EC Technology – High efficiency,
* EC Technology – High efficiency,
Precise airflow.
* FanGrid – Redundant, Quiet, Uniform
* FanGrid – Redundant, Quiet, Uniform
airflow.
* Aerodynamic Design – Optimized
* Aerodynamic Design – Optimized
airflow,Minimal noise.
* Modbus & BACnet – Smart Control
* Modbus & BACnet – Smart Control
Ready.
For the Procurement Manager
Lower Cost. Faster Delivery. Reliable Supply Chain.
* TCO-Driven Cost Optimization
* Energy Efficiency Proven in Real
* TCO-Driven Cost Optimization
* Energy Efficiency Proven in Real
Cases
* Global Supply Chain Network
* Flexible Delivery Solutions
* Global Supply Chain Network
* Flexible Delivery Solutions
For the Project Manager
High Reliability. Easy Installation. Simple Maintenance.
* Plug-and-Play Design. Fast
* Plug-and-Play Design. Fast
Deployment.
* Modular Installation. Maximum
* Modular Installation. Maximum
Flexibility.
* Ultra-Long MTBF. Proven Reliability.
* Predictive Maintenance. Global
* Ultra-Long MTBF. Proven Reliability.
* Predictive Maintenance. Global
Service Support.
Product Recommendations
ebmpapst R3G Series
> Size range covers 355mm–630mm
> Static pressure up to 1200Pa
> Air volume up to 21000m³/h
> Energy-saving and power-efficient, reliable quality, easy
maintenance Free operation
ebmpapst K3G Series
> Modular version with mounting brackets > Static pressure up to 2000 Pa > Maximum air volume up to 19000 m³/h > Low power consumption, high static pressure
> Hot-selling Models
> Related AHU Fans Parameters
About APAC FAN
ASIA PACIFIC SHENGRUI LIMITED is located in Hong Kong, the global trade center, specializing in providing ventilation and air-conditioning related products and solutions. Attached to advantages of import and export price in Hong Kong, we represent and sell various world famous brands of fans, blowers and ventilation related products. Quality is our life, customers are our market, the pursuit of excellence is our belief. We sincerely welcome cooperation with friends from all walks of life, and endeavor to develop and create a better future with our integrity and professional.
Sold To World Market
The company has set up a number of distribution points in Germany, Wuxi, Singapore and other key regional markets, distributing ebmpapst, ZIEHL-ABEGG, Wistro, Rosenberg, DELTA, SANYO, FULLTECH, SANMU and other brands of fans. Products are exported to Europe, North America, Central and South America, Southeast Asia, the Middle East, Africa, Oceania, Russia and other more than 150 countries and regions.
Order Instructions
> About Express Delivery Receipt
· When receiving the express delivery, please be sure to unpack and inspect the goods in the presence of the courier! · If the goods are damaged, the courier is responsible for compensation and handling. · If you sign for it directly without inspection, and later find that the product is deformed or damaged due to
transportation, it cannot be returned or exchanged! We will not be responsible at all!
> About After-sales Instructions
We guarantee the quality under normal working conditions, with a one-year warranty period.In cases such as electroplating factories, humid environments, strong acids and alkalis, oil fumes, high temperatures, heavy dust, 24-hour continuous use, unstable voltage, or three-phase power phase loss, which lead to motor burnout. Or if the motor is disassembled, modified, or damaged manually. We cannot provide warranty for these unsuitable motor environments and conditions.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $1180 / piece
- 50–99 piece: US $1120 / piece
- 100+ piece: US $1068 / piece
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 208V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ASIA PACIFIC SHENGRUI LIMITED. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ASIA PACIFIC SHENGRUI LIMITED range on HVACR Nexus.
See more in Centrifugal Fans on HVACR Nexus.
