Key specification for this centrifugal fan: 400 V, 380V. Everything below is reproduced from the factory data sheet. Made by Ningbo Longwell Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: LWBE3G500
- Power Input: 380V
- Voltage: 400 V
- Material: Stainless Steel, Plastic, Aluminum Alloy, Steel
- Blade Material: aluminum
- Impeller Material: Aluminum Alloy
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 400 V |
| Material | Stainless Steel, Plastic, Aluminum Alloy, Steel |
| Blade Material | aluminum |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Model Number | LWBE3G500 |
| Power Input | 380V |
| Impeller Material | Aluminum Alloy |
| Direction | Clockwise |
| Bearing | Ball Bearing |
| Approvals | CE,CCC,Rohs |
| Motor Type | EC External rotor motor |
| Amb,Temp | -25 to +60℃ |
| Protection | Tech out put /Over voltage protection /Over loading protection |
| Speed Control | 0~10V/ PWM |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Package Size | 60X60X60 cm |
| Single Gross Weight | 20.0 kg |
Product Details

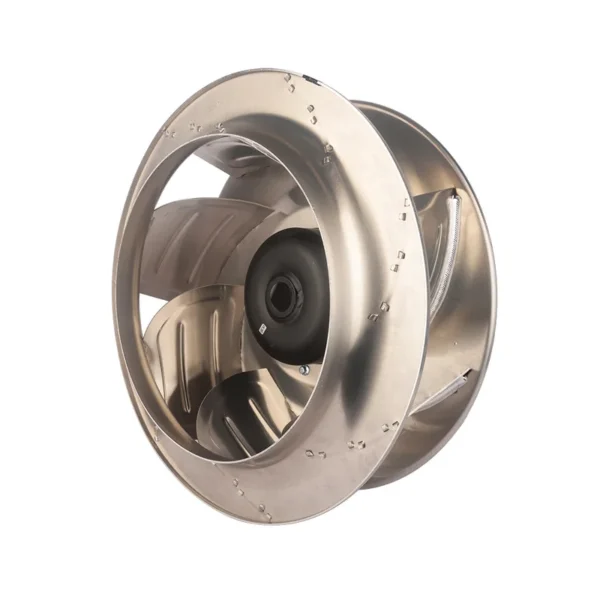

Types : | 500mm EC Brushless radial blower high pressure centrifugal blower fan 3 Phase 380v centrifugal blower for AHU, ventilating |
Voltage Ranges : | 400V |
Frequency : | 50/60 Hz |
Diamter : | 500mm ( impeller diameters ) |
Motor Types : | BLEC External Rotor Motor ( EC ) |

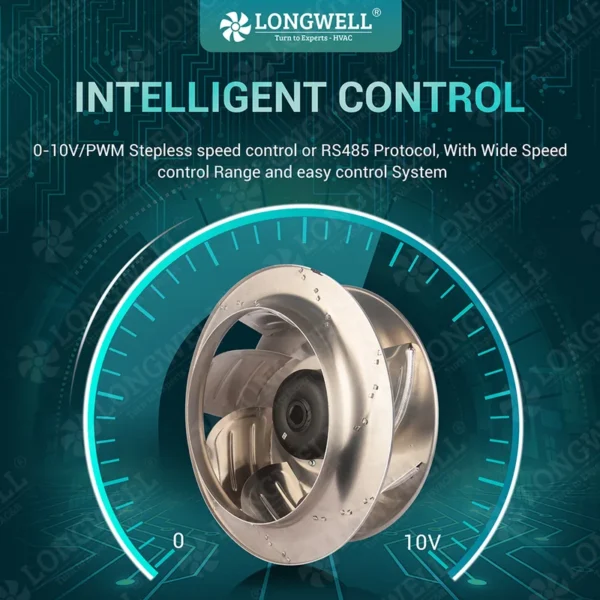

Speed Control : | 0-10V Signal / PWM / RS485(Optional) |
Max.ambient Temp: | -25℃～ +60℃ |
Certificating : | All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI |
Protection Level: | IP44 ,IP54,IP55 |
Electronic Protection: | Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start |
Working & Storage | Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
Balancing | According to JB/T 9101-1999 requirements G6.3 |
Product Standards : | LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3 |

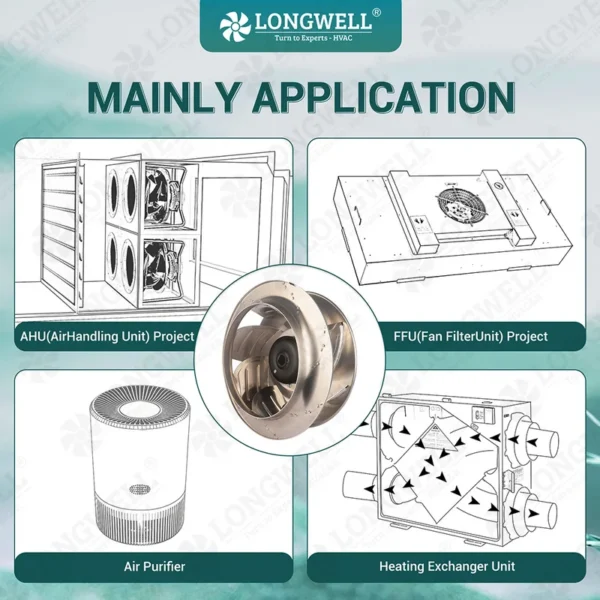

Mainly Applications | AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling / Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $200 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CE,CCC,Rohs documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 400 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
