Centrifugal fan — model number TFL. The complete factory specification follows. Made by Hangzhou Xinjian Electronic Co., LTD. (18 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: TFL
- Place Of Origin: Zhejiang, China
- Brand Name: Xinjian
- Selling Units: Single item
Technical Specifications
| Model Number | TFL |
|---|---|
| Brand Name | Xinjian |
| Place Of Origin | Zhejiang, China |
| Selling Units | Single item |
Product Details

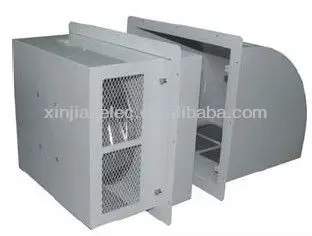

TFL contrifugal telecome ventilation system:
lcontains air-intake unit and air-outtake unit, and air-intake unit use high efficiency DC centrifugal fan made by EBMPAPST. Another type of fan with same size can be chosen based on requirements.
lAir-outtake unit can choose unit with DC axial fan (force exhaust), or without fan (natural exhaust). Nature exhaust unit is advised.
lSuit for sandwich wall, width is between 70mm and 100m, can customize split type to suit other type of wall.
Air-intake unit Air-outtake unit

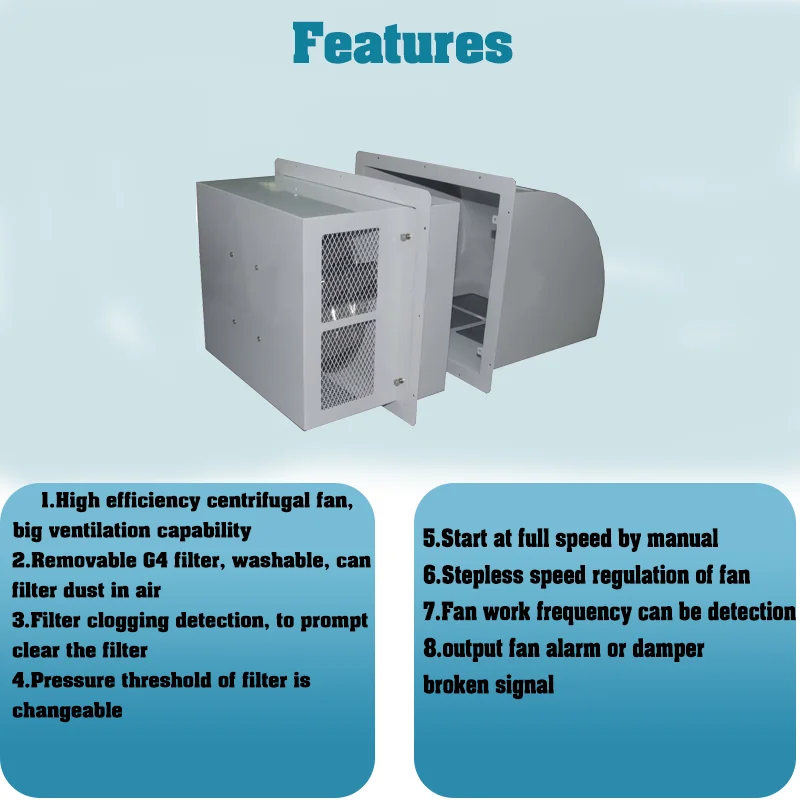

| Feature |
lHigh efficiency centrifugal fan, big ventilation capability
lRemovable G4 filter, washable, can filter dust in air
lFilter clogging detection, to prompt clear the filter
lPressure threshold of filter is changeable
lStart at full speed by manual
lStepless speed regulation of fan (optional)
lFan work frequency can be detection (optional)
loutput fan alarm or damper broken signal
| Technical Parameter (air-intake unit) |
| Parameter | Unit | Value |
| Rating voltage | V | DC 48 |
| Theory ventilation capability per fan | m3/h | 2790 |
| Speed of fan | RPM | 1560 |
| Current per fan | Amp | 3.7 |
| Power per fan | W | 178 |
| Use life of fan @ 40°C | Hours | 50000 |
| Size of fan | mm | 355 |
| Speed control signal(PWM) | V | DC 0-10V |

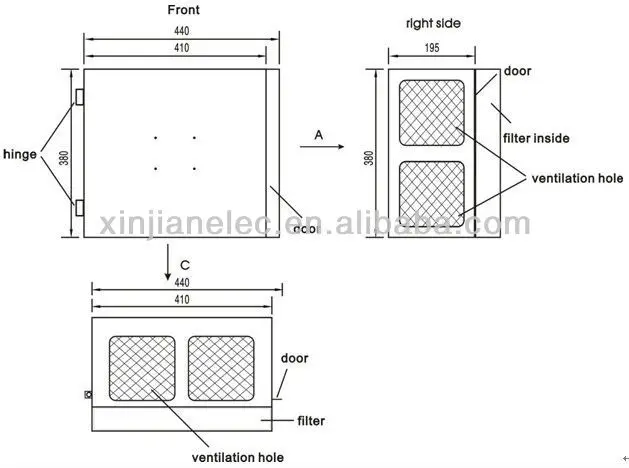

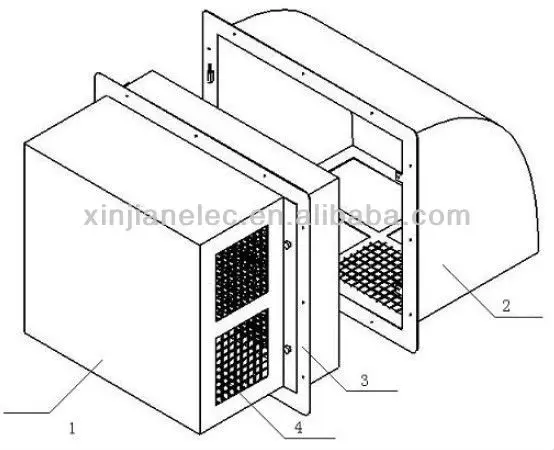

| Dimension (Air-intake unit) |

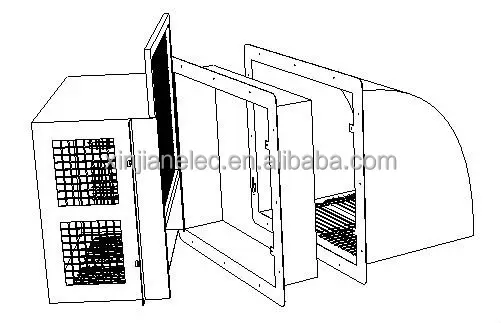

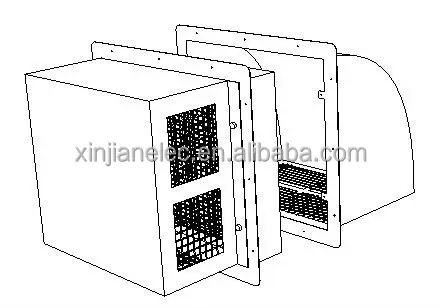

- fan box (contains DC centrifugal fan, control board, G4 filter, filter clogging pressure sensor)
- rain cover with fly net in bottom
- door
- ventilation hole (bottom, left side, right side)
Fan box size
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
