Key specification for this ceiling fan: 220 V, 620W. Everything below is reproduced from the factory data sheet. Made by Shanghai Aipu Fans Co., Ltd. (17 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

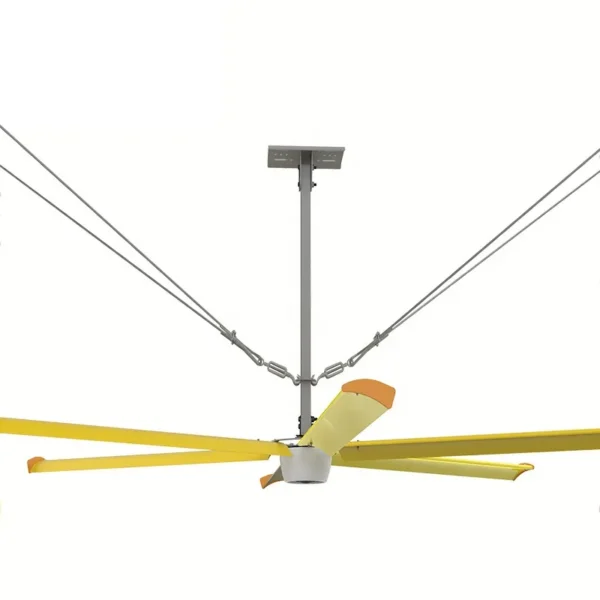

Key Features of This Ceiling Fan
- Model Number: ADF45
- Power: 620W
- Voltage: 220 V
- Blade Material: Aluminum Alloy
- Noise Level: 35.0-39.0db
- Speed: 62rpm
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 220 V |
| Speed | 62rpm |
| Blade Material | Aluminum Alloy |
| Blade Diameter | 15ft |
| Noise Level | 35.0-39.0db |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM |
| Core Components | Motor |
| Place Of Origin | Shanghai, China |
| Brand Name | Aipukeji |
| Model Number | ADF45 |
| Certification | ce |
| Fan Diameter | 4.5m/15FT |
| Amount Of Blade | 6 pcs |
| Power | 620W |
| Frequency | 50HZ/60HZ |
| Color | Silver |
| Weight | 90kg |
| Total Height | >=600mm |
| Selling Units | Single item |
Product Details
Specification Parameter | ||
Model No. | ADF-5-45 | |
Voltage | 220V/380V | |
Power | 620W | |
Color | Sliver | |
DIAMATER | 4.5m/15FT | |
Noise level | 38db | |
WEIGHT | 90KG | |
Warranty | 3 years | |
Motor Details
PMSM allows large overload current, so the reliability is significantly improved. Commercial permanent magnet ceiling fan motor adopts outer rotor structure, direct drive linkage and drive impeller rotation principle. Permanent magnet motor is built-in high insulation enamel coil, super magnetic steel body, high temperature resistance bearing, upper and lower end caps.
Controller Details
With high-performance non-inductive identification BD-DSP drive,
Long-distance application
High precision of speed control, convenient to control speed
Blade Details
Aluminium magnesium alloy material, which has good tensile adn cracking resistance;
Surface carbon fluorocarbon coating;
Package Details
Standard non-fumigation export woodencases
Solid packaging

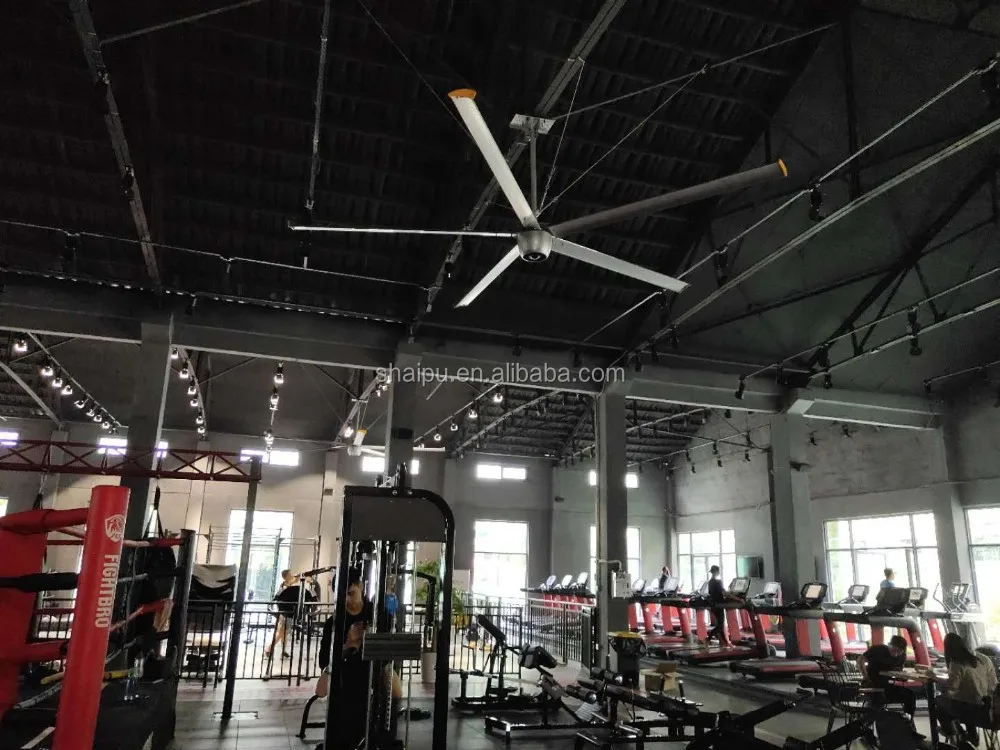

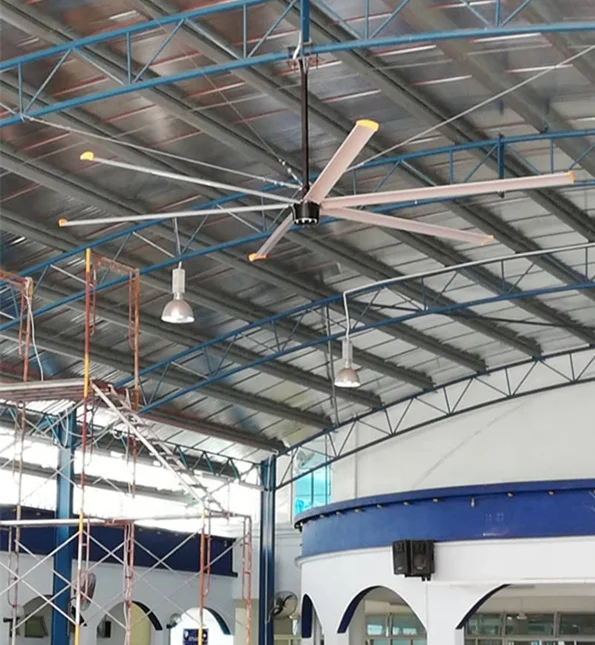

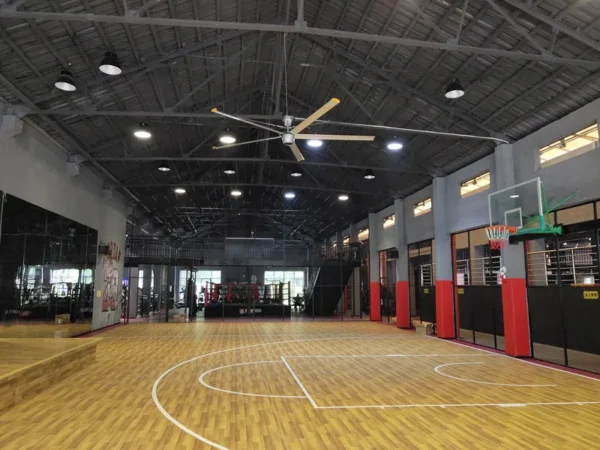

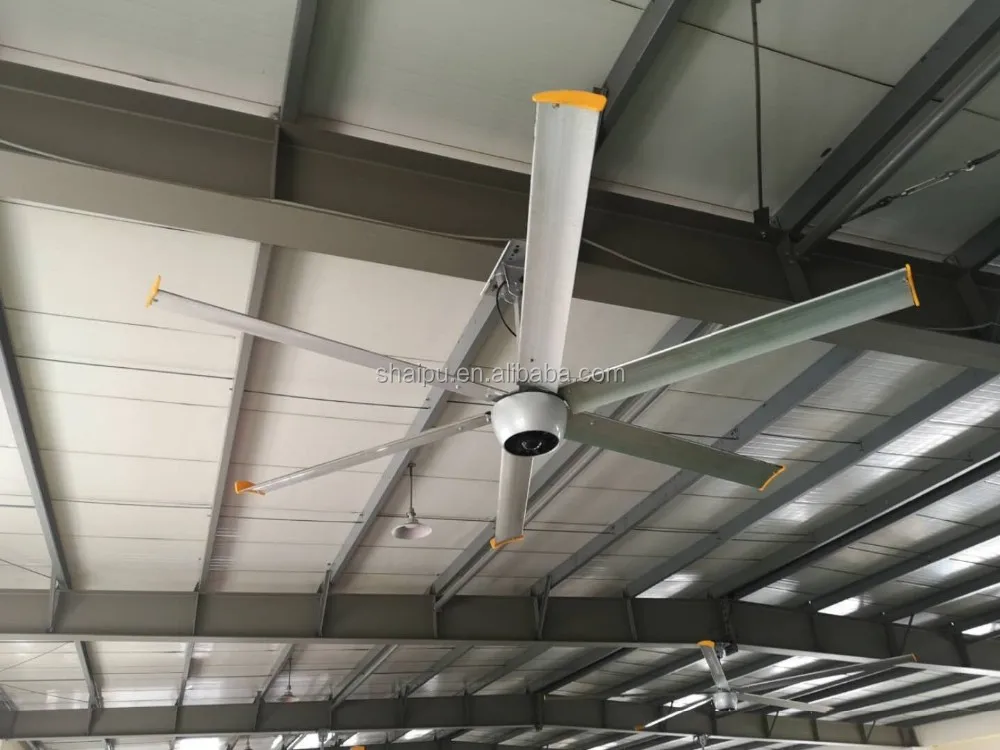

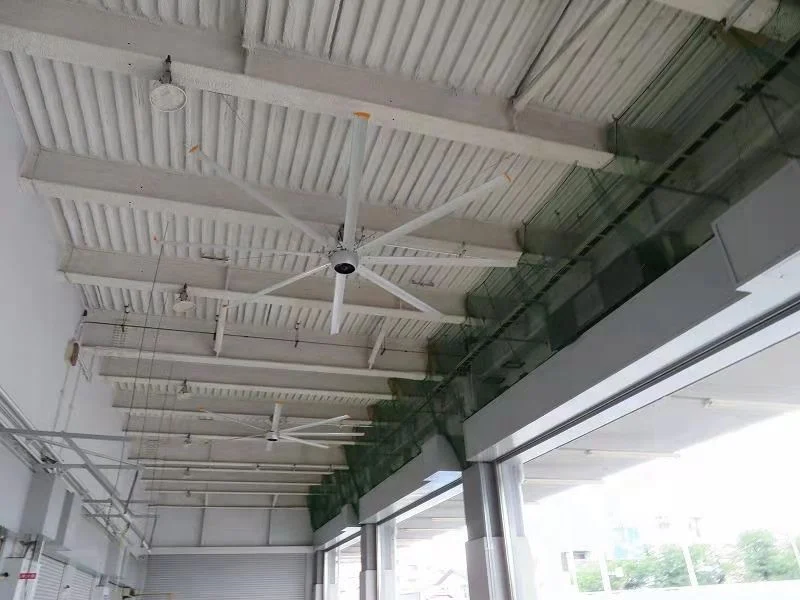

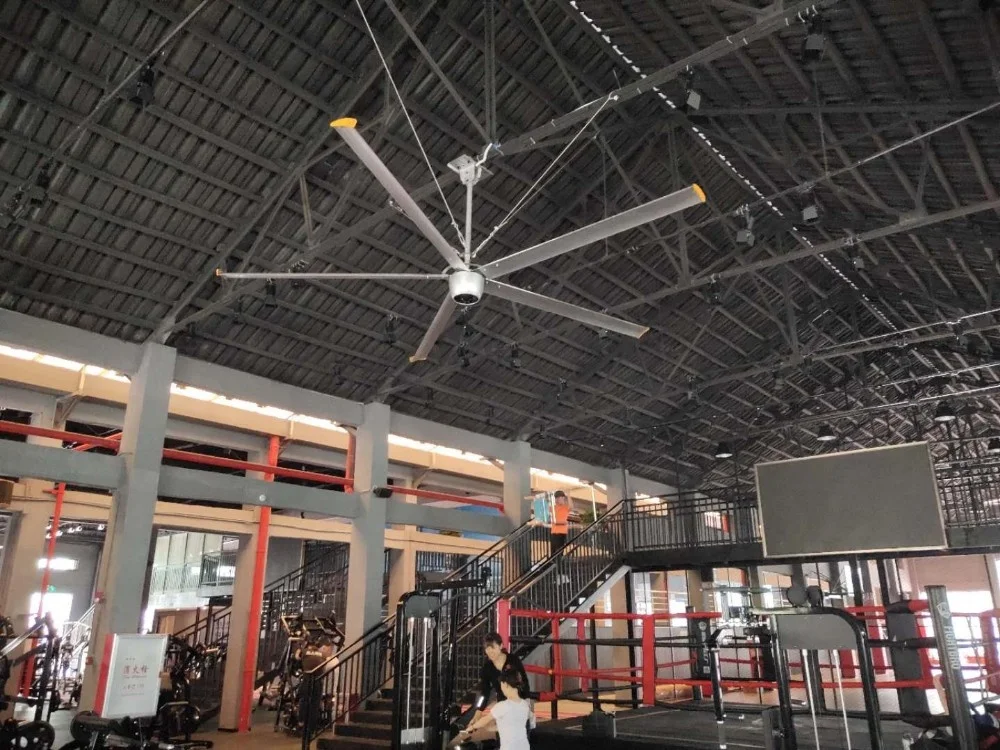

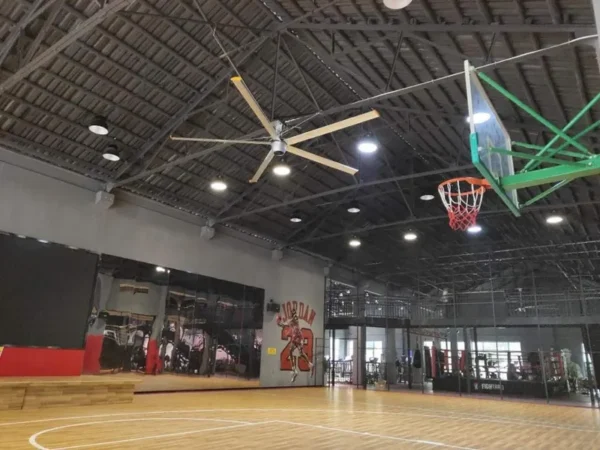

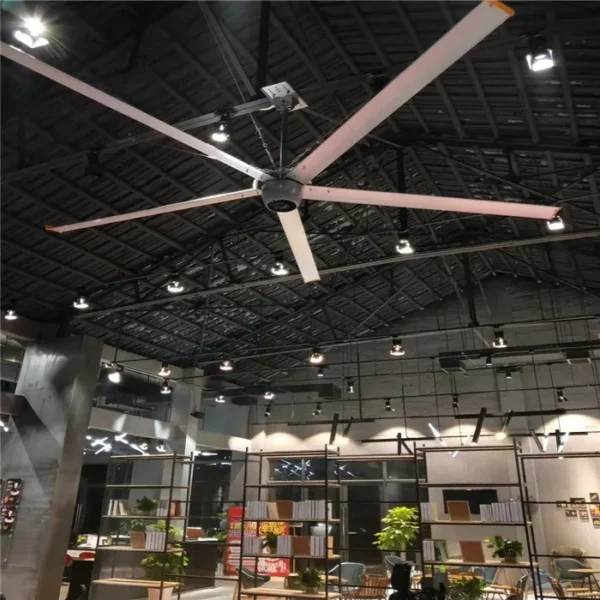

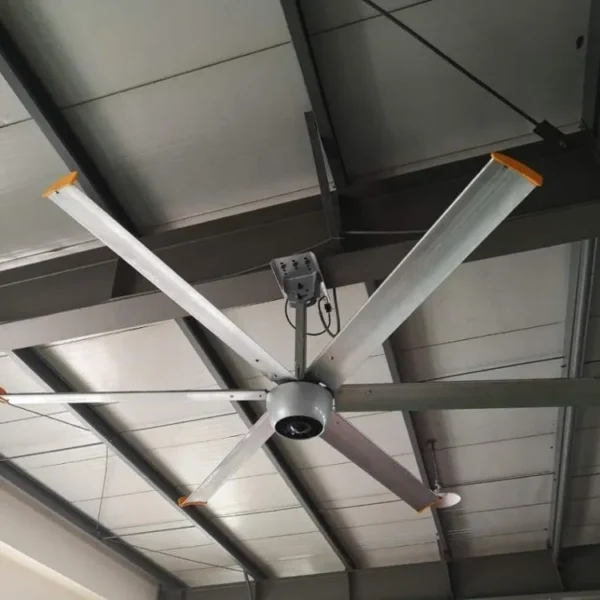

HVLS means High Air Volume, Low Rotating Speed. The HVLS Air Fan is the new solution of Energy Saving to solve the ventilation & cooling problem of large space.
High Efficiency
1)High efficient air flow
2)Strengthen the air cycle effectively
3)Low cost and free maintenance
4)Provide cool air flow in summer and hot air cycle in winter
5)Large application area
6)Propeller blades guarantee safety
Environmental Protection
1)Very low enery consumption
2)Provide natural ventilation and lower the temperature effectively
3)Refresh the air continuosly
Q1. Are you the factory?
A: Of course, we are large ceiling fan manufacturer in Shanghai with many years' experience.
Q2. What about the lead time?
A: It can be within 3-5 days after receive the payment if the order is less than 20 sets.
Q3. Do you have any MOQ limit for HVLS CEILING FAN?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order for HVLS CEILING FAN?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the specification parameter and places deposit for formal order.
Fourthly We arrange the production.
Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $546 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ceiling fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Aipu Fans Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shanghai Aipu Fans Co., Ltd. range on HVACR Nexus.
