Centrifugal fan — voltage 380, airflow direction Centrifugation. The complete factory specification follows. Made by GO GO AUTOMATIC COMPANY LIMITED (1 year on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Voltage: 380
- Airflow Direction: Centrifugation
- Material: Carbon Steel
- Turbine Head Material: iron
- Types Of Ventilation Fans: Centrifugal fan
- Unit Weight: 70.0.kg
Technical Specifications
| Voltage | 380 |
|---|---|
| Material | Carbon Steel |
| Types Of Ventilation Fans | Centrifugal fan |
| Unit Weight | 70.0.kg |
| Noise | 80-90 |
| Airflow Direction | Centrifugation |
| Turbine Head Material | iron |
| Blade Angle | 45 |
| Brand | Qiba |
| Number Of Leaves | 12 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

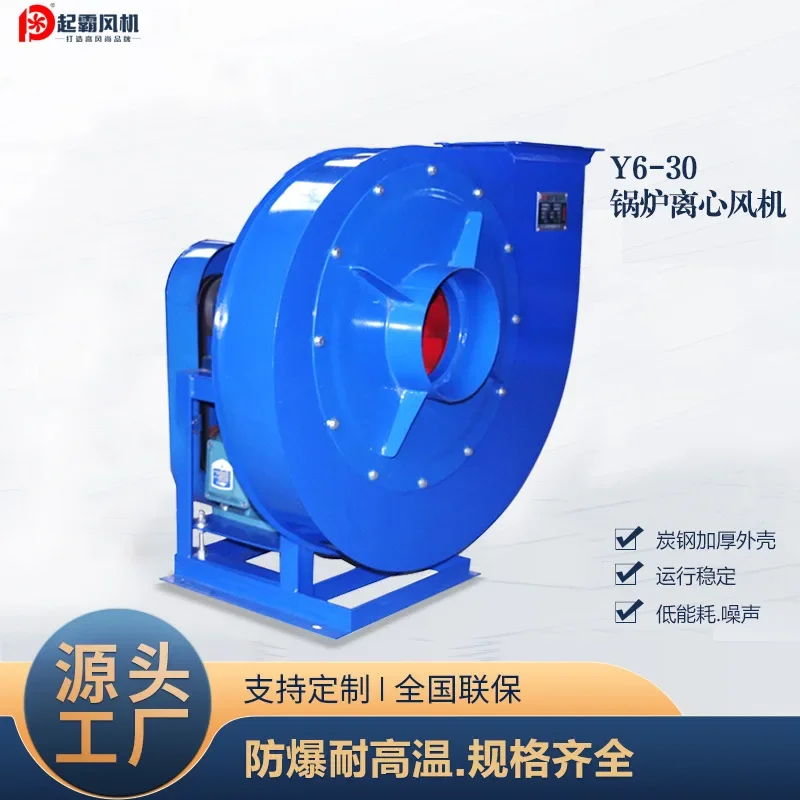

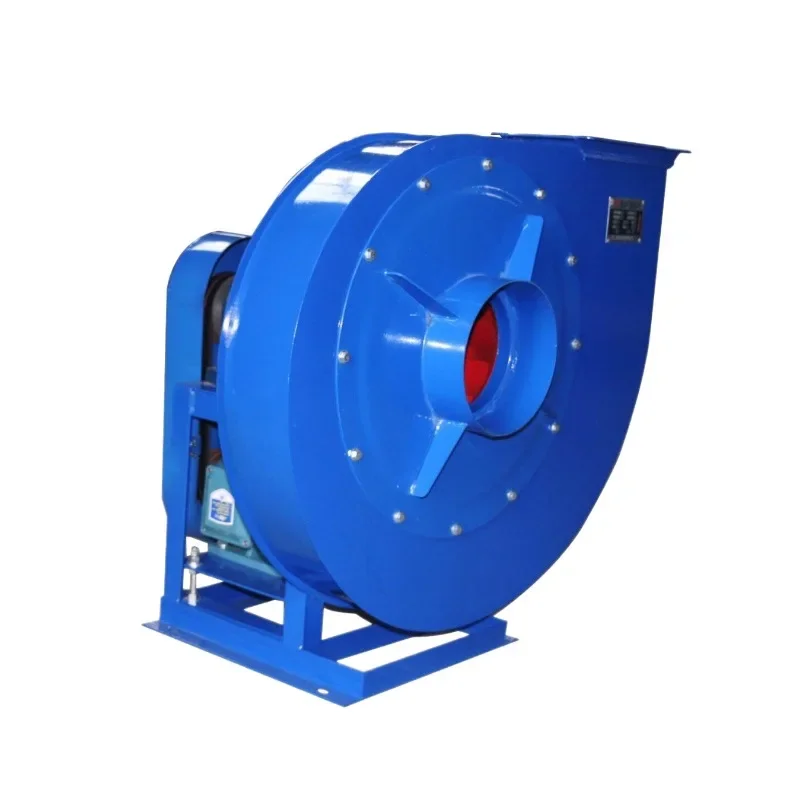

Y6-30 Centrifugal Fan, Industrial High-Power Blower, Explosion-Proof, High-Temperature Resistant, Large Air Volume Boiler Exhaust Fan
Y6-30 Centrifugal Fan – Industrial High-Power Blower for Heavy-Duty Applications
Product Introduction:
The Y6-30 Centrifugal Fan is a high-performance industrial blower engineered for demanding environments such as boiler exhaust systems, high-temperature ventilation, and explosion-prone areas. Manufactured by Qiba, this fan delivers reliable airflow with excellent durability, making it ideal for use in power plants, metallurgy, chemical processing, and other industrial sectors requiring robust air handling solutions.
Core Features:
- Explosion-Proof & High-Temperature Resistant: Designed to operate safely in hazardous and high-temperature conditions, ensuring continuous performance under extreme stress.
- Centrifugal Design with Iron Turbine Head: Constructed from durable carbon steel and iron components, offering strong structural integrity and long service life.
- High Airflow Capacity: Available in multiple models with air volumes ranging from655 to8771 m³/h, suitable for large-scale ventilation needs.
- Multiple Motor Options: Compatible with motor powers from0.75kW to11kW (2P), providing flexibility for various operational requirements.
- Medium Pressure Performance: Optimized for medium-pressure applications with shaft power options up to11,000W.
- Efficient Blade Design: Features12 blades at a45° angle, enhancing aerodynamic efficiency and reducing vibration during operation.
- Low Noise Operation: Operates within a noise range of80–90 dB(A), balancing performance with operational comfort.
Why Choose This Product:
- Industrial-Grade Reliability: Built for continuous duty in harsh environments with minimal maintenance.
- Versatile Application: Suitable for exhaust, ventilation, and gas transfer in industrial boilers and furnaces.
- Customizable Specifications: Offers a wide range of sizes, speeds, and power ratings to match specific system demands.
- Energy-Efficient Design: Optimized for energy conservation while maintaining high output performance.
| brand | Qiba |
| airflow direction | Centrifugation |
| Turbine head material | iron |
| Material | Carbon Steel |
| Number of leaves | 12 |
| Unit weight | 70.0.kg |
| Voltage | 380 |
| Types of ventilation fans | Centrifugal fan |
| noise | 80-90 |
| blade angle | 45 |
| type | Exhaust fan |
| Fan pressure | medium pressure fan |
| Shaft power | 7500,11000,4000 ,750 ,5500,1500 ,2200,3000 |
| performance | High temperature resistance |
| Matching motor power | 7.5kw-2P,11kw-2P,4kw-2P,0.75kw-2P,5.5kw-2P,1.5kw-2P,2.2kw-2P,3kw-2P |
| air volume | 5216-7349,8060-8771,2926-4000,655-1992,4263-4945,1169-2125,1619-2944,2202-3963 |
| fan blade diameter | 750 ,650,350,430 ,480,540 |
| rotational speed | 1900,2150,2350,2260,2250,2300 |
| Specifications and Models | 7.5C 7.5-2P,7.5C 11-2P,6.5C 4-2P,3.5C 0.75-2P,6.5C 5.5-2P,4.3C 1.5-2P,4.8C 2.2-2P,5.4C 3-2P |
| Company Name | GO GO AUTOMATIC COMPANY LIMITED |
| Company Address | Room S116, 2/F., The Capital, 61-65 Chatham Road South, Tsim Sha Tsui, Kowloon |
| Company Country | HK |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
