The centrifugal fan listed here carries voltage 220/380/440V, air flow 565-23000m³/h, documented exactly as the manufacturer publishes it. Made by Qingdao Pengsheng Electric Appliance Co., Ltd. (12 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: YN5-47
- Voltage: 220/380/440V
- Air Flow: 565-23000m³/h
- Blade Material: Cast Iron
- Speed: 2800rpm
- Warranty: 1 Year
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220/380/440V |
| Blade Material | Cast Iron |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | PengSheng |
| Model Number | YN5-47 |
| Air Flow | 565-23000m³/h |
| Type | centrifugal fan |
| Certification | CE, ISO9001 |
| Centrifugal Ventilation Fan | centrifugal exhaust fan |
| MOQ | 1 set |
| Product Name | Industrial Centrifugal Fans |
| Motor | Copper Motor |
| Keyword | Extractor Fan |
| Application | Industrial Ventilation |
| Speed | 2800rpm |
| Selling Units | Single item |
| Single Package Size | 50X50X50 cm |
| Single Gross Weight | 66.0 kg |
Product Details

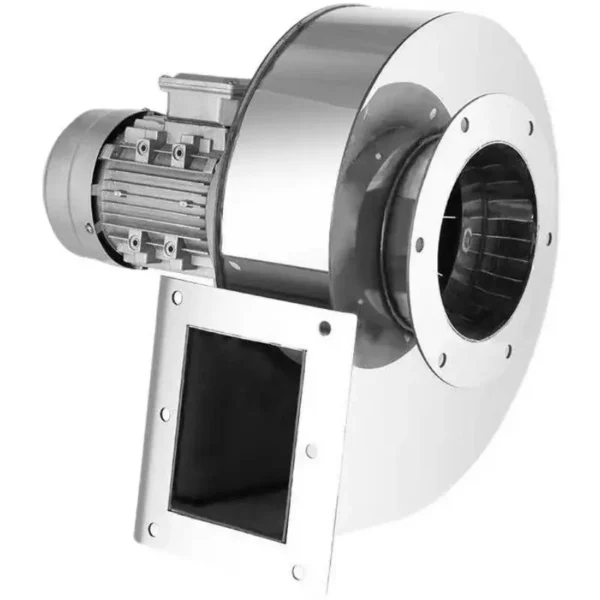

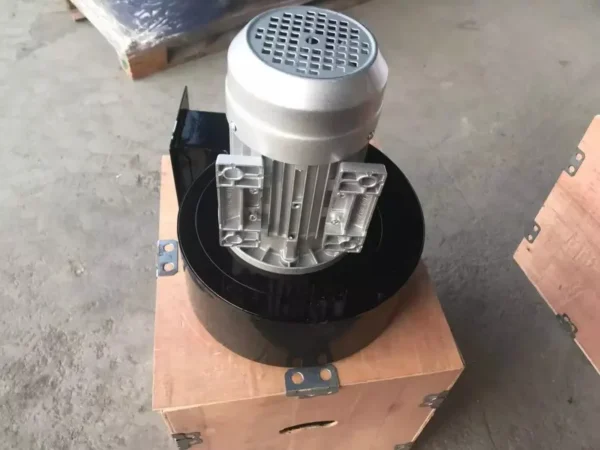

High temperature proof YN5-47 centrifugal fan
YN5-47 series centrifugal fan can be used in the places which need ventilation, widely used in heating furnace, hot air stove, numerical control boiler, steam boiler, drying,chemical industry, food, grain machinery. And other related industries. The motor is cooled by connecting the heat insulating connecting seat (with internal cooling vanes) with the wind housing to ensure the normal operation of the motor at high temperature.Normal operating temperature of fan: 180C-200C.
Beautiful shape
Power W | Voltage V | Speed rpm | Air volume m³/h | Pressure Pa |
60w | 220/380 | 2800 | 240 | 310 |
90w | 220/380 | 2800 | 350 | 360 |
120w | 220/380 | 2800 | 500 | 450 |

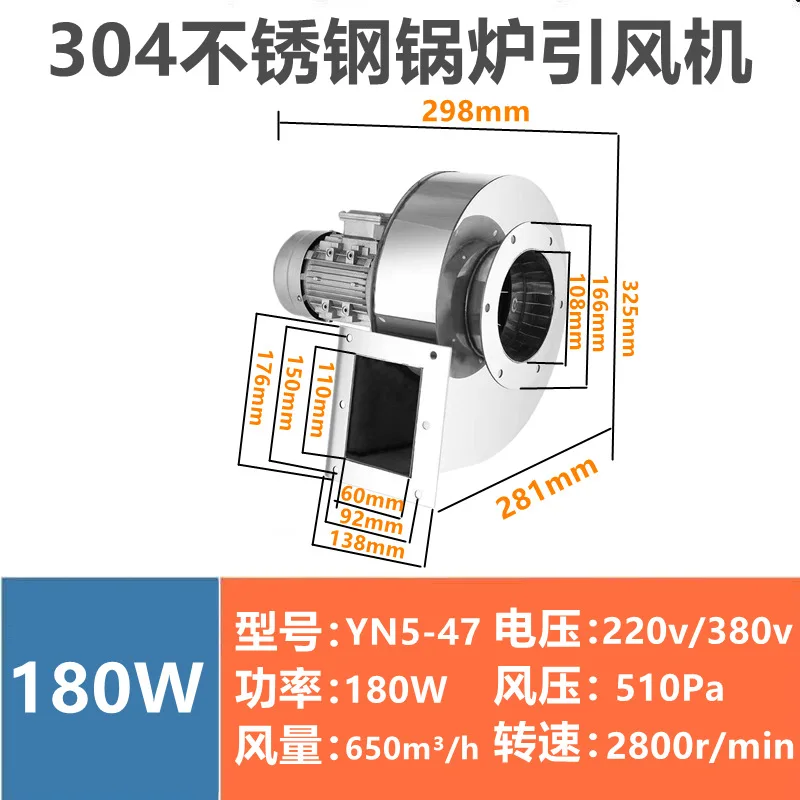

180w | 220/380 | 2800 | 650 | 510 |

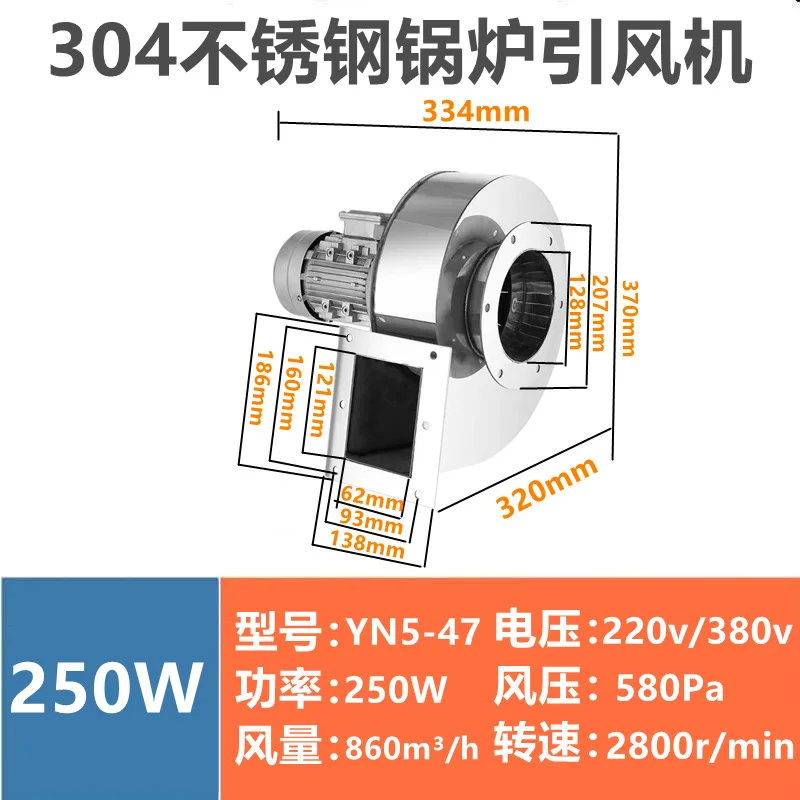

250w | 220/380 | 2800 | 860 | 580 |
370w | 220/380 | 2800 | 1100 | 650 |
550w | 220/380 | 2800 | 1450 | 680 |
750w | 220/380 | 2800 | 1810 | 790 |
1.1kw | 220/380 | 2800 | 2250 | 940 |
1.5kw | 380 | 2800 | 2800 | 1140 |
2.2kw | 380 | 2800 | 3100 | 1280 |
3.0kw | 380 | 2800 | 3800 | 1580 |
We have advanced processing equipments (Laser cuttings, CNC lathers & bendings, Rolling. Dynamic balance) and experienced workers, they ensure the fans with high quality. And the fans be test by airway system so their technicalparameters are truth & reliable.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–99 set: US $159 / set
- 100+ set: US $139 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CE, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220/380/440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Pengsheng Electric Appliance Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingdao Pengsheng Electric Appliance Co., Ltd. range on HVACR Nexus.
