Key specification for this centrifugal fans: 380v. Everything below is reproduced from the factory data sheet. Made by Qinyang Shengfeng Paper Making Machinery Co., Ltd. (9 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of These Centrifugal Fans
- Voltage: 380v
- Production Capacity: 10-260 tpd
- Body Material: SS304 + Ceramic Liner / Polyurethane
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Stock Preparation (After Pulper / Before Headbox)
Technical Specifications
| Product Type | pulping equipment |
|---|---|
| Production Capacity | 10-260 tpd |
| Voltage | 380v |
| Processing Type | Pulp Molding Machine |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 600 |
| Place Of Origin | Henan, China |
| Brand Name | Shengfeng |
| Dimension(L*W*H) | up to each model |
| Product Name | high consistency cleaner |
| Body Material | SS304 + Ceramic Liner / Polyurethane |
| Output | Cleaning paper pulp |
| Consistency Range | 2-5% |
| Pressure Difference: MPa | 0.12–0.15 |
| Inlet Concentration: MPa | 0.3-0.35 |
| Feature | Low Fiber Loss, Wear Resistant, Automatic Discharge |
| Function | Remove sand or impurity in puling system |
| Application | Stock Preparation (After Pulper / Before Headbox) |
| After-Sales Service | Online Support, Engineers available |
| Selling Units | Single item |
Product Details

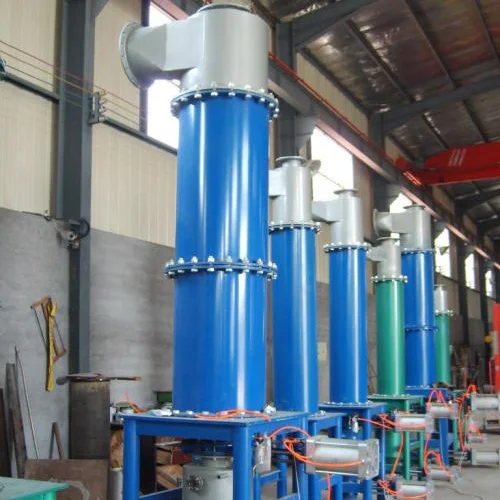

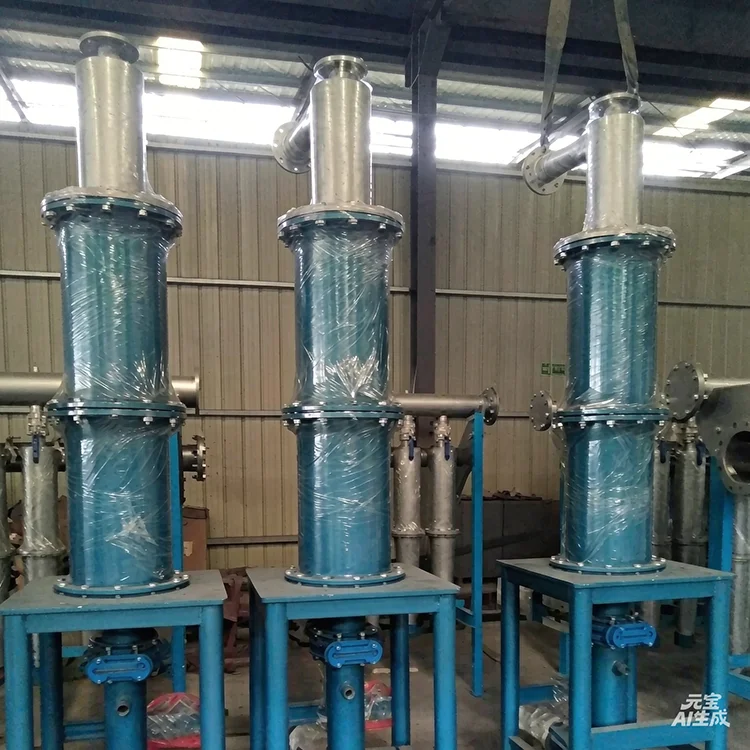

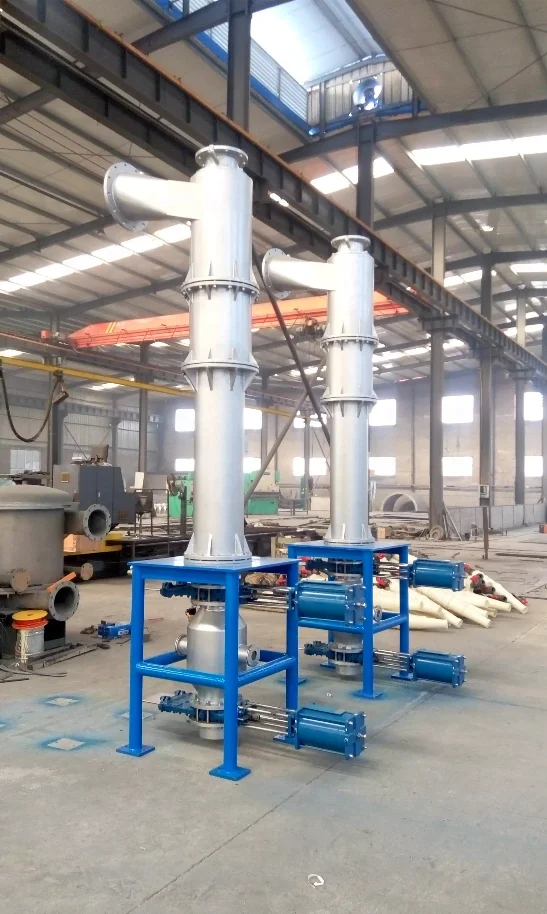

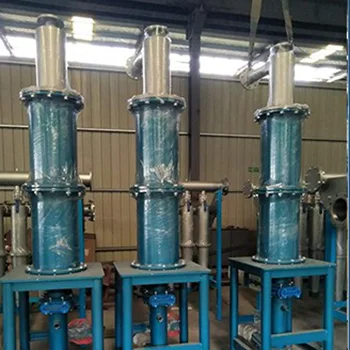

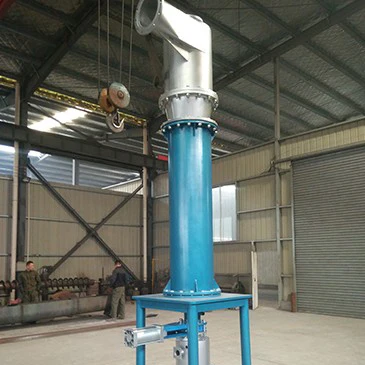

It is a kind of machine separating heavy incidental from paper pulp using the different proportion between fiber and incidental to achieve the purpose of pulp paper purification.
2. Precision Separation: . This ensures that only clean pulp is sent to the papermaking machines, reducing the risk of equipment damage and improving the quality of the final product.
3. Durability and Reliability: Constructed with high-quality materials, this device is built to withstand the rigorous conditions
of pulp processing. Its robust design ensures long-lasting performance, minimizing downtime and maintenance costs.
4. Customizable Solutions: Recognizing that different pulp and paper mills have unique requirements, the High-Consistency Sand Removal Device can be customized to meet specific needs.
5. Enhanced Paper Quality: By removing sand and other impurities, this device helps in producing paper with fewer defects,.
6. Cost-Effective: By reducing the amount of sand and impurities in the pulp, it minimizes the wear and tear on paper making equipment, extends the life of the machinery, and reduces the need for frequent maintenance and repairs.
Model | Capacity (t/d) | Consistency (%) | Inlet pressure (mpa) | Outlet pressure (mpa) | Rinse water pressure(mpa) | Capacity (m3/min) | Inlet diameter (mm) | Outlet diameter (mm) |
HD-1A | 10-20 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 0.8-0.9 | φ150 | φ80 |
HD-2A | 20-30 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 1.0-1.2 | φ175 | φ100 |
HD-3A | 30-45 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 1.3-1.5 | φ200 | φ125 |
HD-4A | 45-60 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 1.5-2.0 | φ225 | φ150 |
HD-5A | 69-75 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 2.0-2.5 | φ250 | φ150 |
HD-6A | 75-110 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 2.5-3.0 | φ250 | φ165 |
HD-7A | 100-140 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 3.0-3.5 | φ250 | φ180 |
HD-8A | 140-260 | 0.8-6 | 0.15-0.35 | 0.1-0.3 | Inlet pressure+0.2 | 3.5-4.0 | φ250 | φ200 |
* Pulp Mills: Essential for removing sand and other impurities from wood pulp before it is sent to the paper making process.
* Paper And Pulp Molding Mills: Helps in maintaining the quality of the paper by ensuring that the pulp used is free from sand and other contaminants.
* Recycling Facilities: Plays a crucial role in the processing of recycled paper, where the removal of impurities is vital for
producing high-quality recycled paper products.
(usually <1%) and the single-unit processing capacity is small, multiple units must be used in parallel. It mainly removes fine
sand particles, dust, and light impurities, protecting subsequent pre-screening and pressure screens.

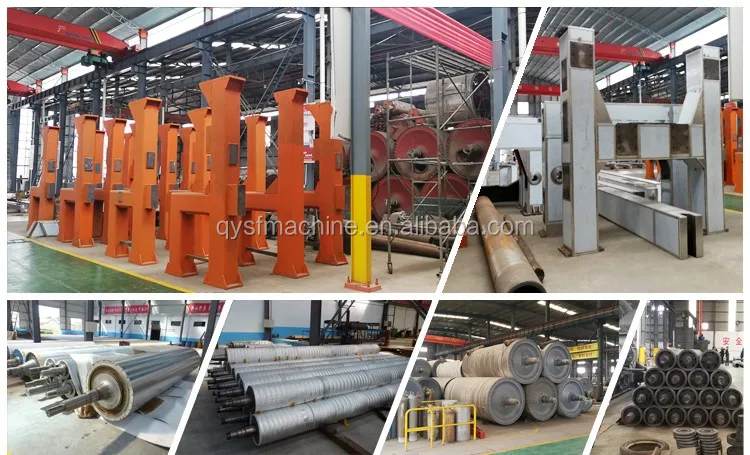

ShengFeng Paper Making Machinery Co., Ltd is specialized in the paper making machines and pulp making equipments. The main items as below: high speed Toilet paper machine, Napkin paper machine, Culture paper machine, corrugated paper machine, Kraft paper machine, A4 paper machine and so on.During the past thirty years production and sales, we have owned one excellent R&D department, as well as the good pre-sale service, after-sale technical support and strictly quality control system.Our products has been sold in the most of the China, as well as the foreign country, such as, Vietnam, Mongolia, West Africa, South Africa, Brazil, Uzbekistan, etc.Any questions, please feel free to contact us.
Packaging
2. We also respect your demands in packing terms and details. Additional sea & air worthy export packaging will be available if required, at additional costs.
Delivery
2. The delivery time is decided by your needed machines or machine parts. But it also follows your needs.
Q1: What's the difference between High Density and Low Density Cleaners?

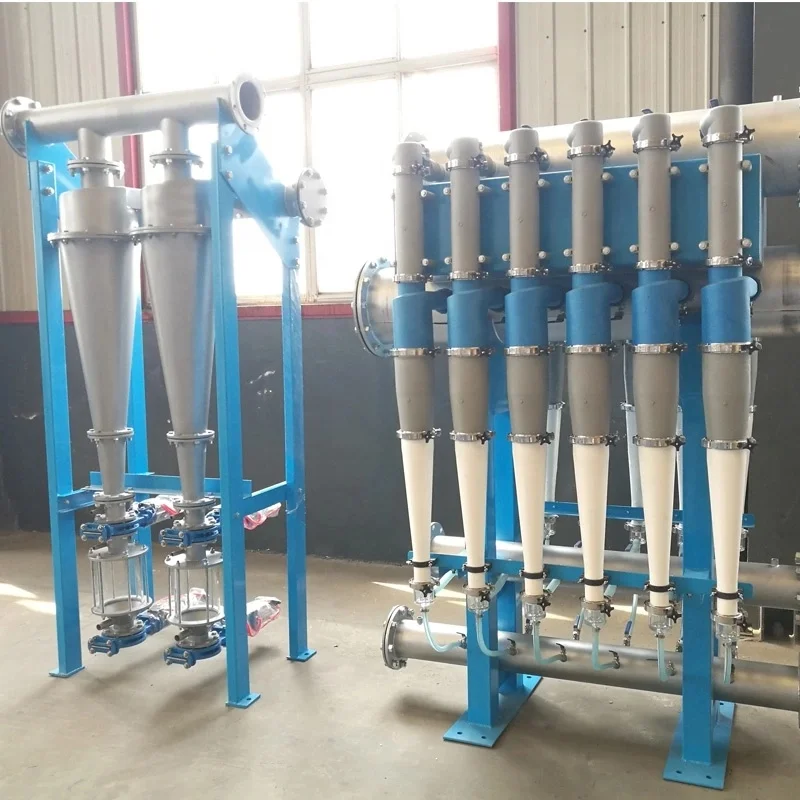

A: High Density Cleaners are installed right after the hydrapulper (2-5% consistency) to remove large heavy rejects like stones, nails, and glass. Low Density Cleaners are used before the headbox (0.4-1.2% consistency) as the final step to remove fine sand and tiny impurities. Most complete paper mills require both stages.

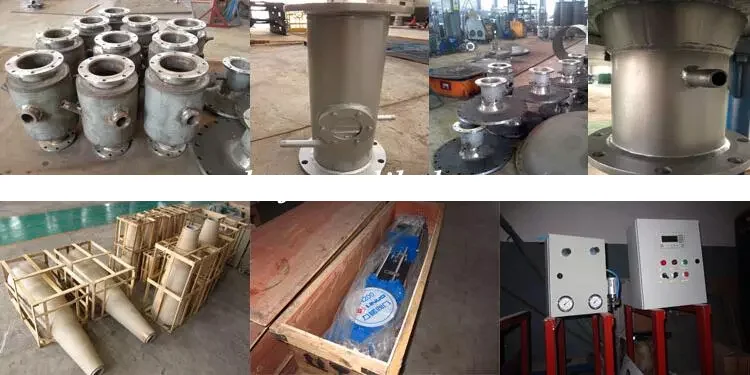

A: We supply both. We offer single units (High/Low density cleaners) and multi-unit banks, as well as wear parts only: ceramic cones, polyurethane liners, rotors, and reject valves. Perfect for OEM replacement or upgrading old stock prep lines.
A: Please share these 3 points: 1. Your paper type (Tissue/Kraft/OCC); 2. Daily capacity (TPD); 3. Pulp consistency (%) at the cleaner inlet. Our engineers will calculate the optimal diameter, quantity, and configuration for you within 24 hours.
A: Standard single cleaners: 7-15 days. Customized cleaner banks: 20-30 days. MOQ is 1 set for testing or trial orders. We keep ceramic liners in stock for fast shipment.
A: Yes. Motors, control cabinets, and reject valves can be customized to 220V/380V/440V/480V and 50Hz/60Hz. We provide foundation drawings, PID diagrams, and online video guidance for installation.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–1 piece: US $6200 / piece
- 2+ piece: US $6100 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fans be supplied for my local voltage?
The standard configuration is 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qinyang Shengfeng Paper Making Machinery Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qinyang Shengfeng Paper Making Machinery Co., Ltd. range on HVACR Nexus.
