Forward impeller — blade material Aluminum, type Centrifugal Fan. The complete factory specification follows. Made by Shenzhen Minxin Industry Co., Ltd. (5 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Forward Impeller
- Model Number: AC92-F160
- Voltage: Other
- Blade Material: Aluminum
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: cooling digital, EV charging stations, telecom equipment,dehumidifier
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | Other |
| Blade Material | Aluminum |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | SZMINXIN |
| Model Number | AC92-F160 |
| Motor Type | High Efficiency AC Motor |
| Application | cooling digital, EV charging stations, telecom equipment,dehumidifier |
| Fan Type | forward inlined Impeller Centrifugal Fan |
| Fan Features | Silent, high cfm |
| Fan Dimensions | diameter 92mm x 160mm |
| Fan Bearing Type | Ball Bearing, sleeve bearing |
| Fan Life Span | over 50,000 hours |
| Installation | Screw fixing, vertical or horizontal |
| Functions | 3 speed control Etc. |
| IP Rating | moisture protection, salt spray protection, IP54, IP65, IP67, IP68 |
| Type | Centrifugal Fan |
| Applicable Industries | Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Energy & Mining, Advertising Company, Automation,Cabinet,Data Center |
| Packaging Details | each 92x160mm Axial Flow AC Air Cooling Fan Silent Computer Fan packed in corrugated cartons |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Package Size | 92X92X19 cm |
| Single Gross Weight | 10.600 kg |
Product Details

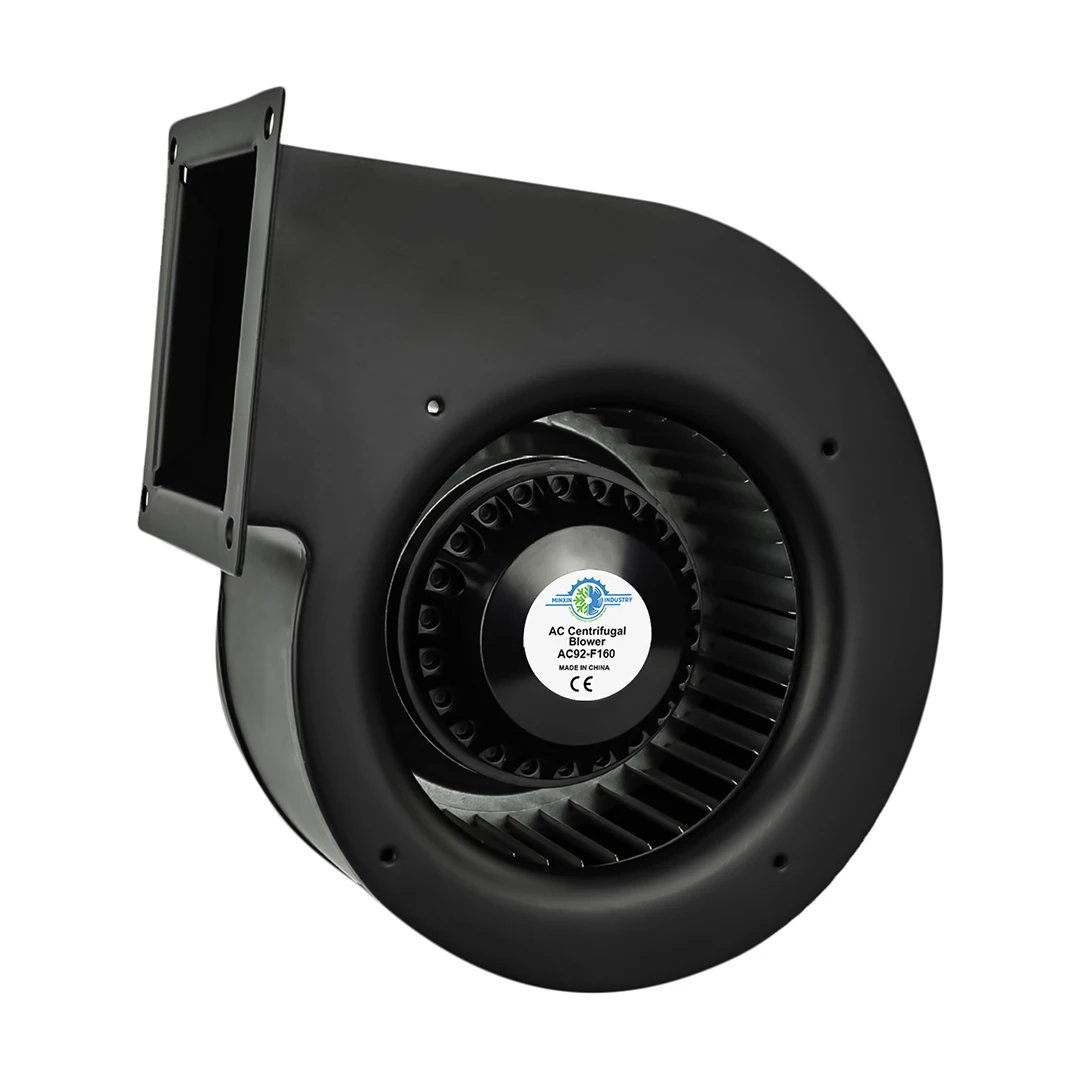

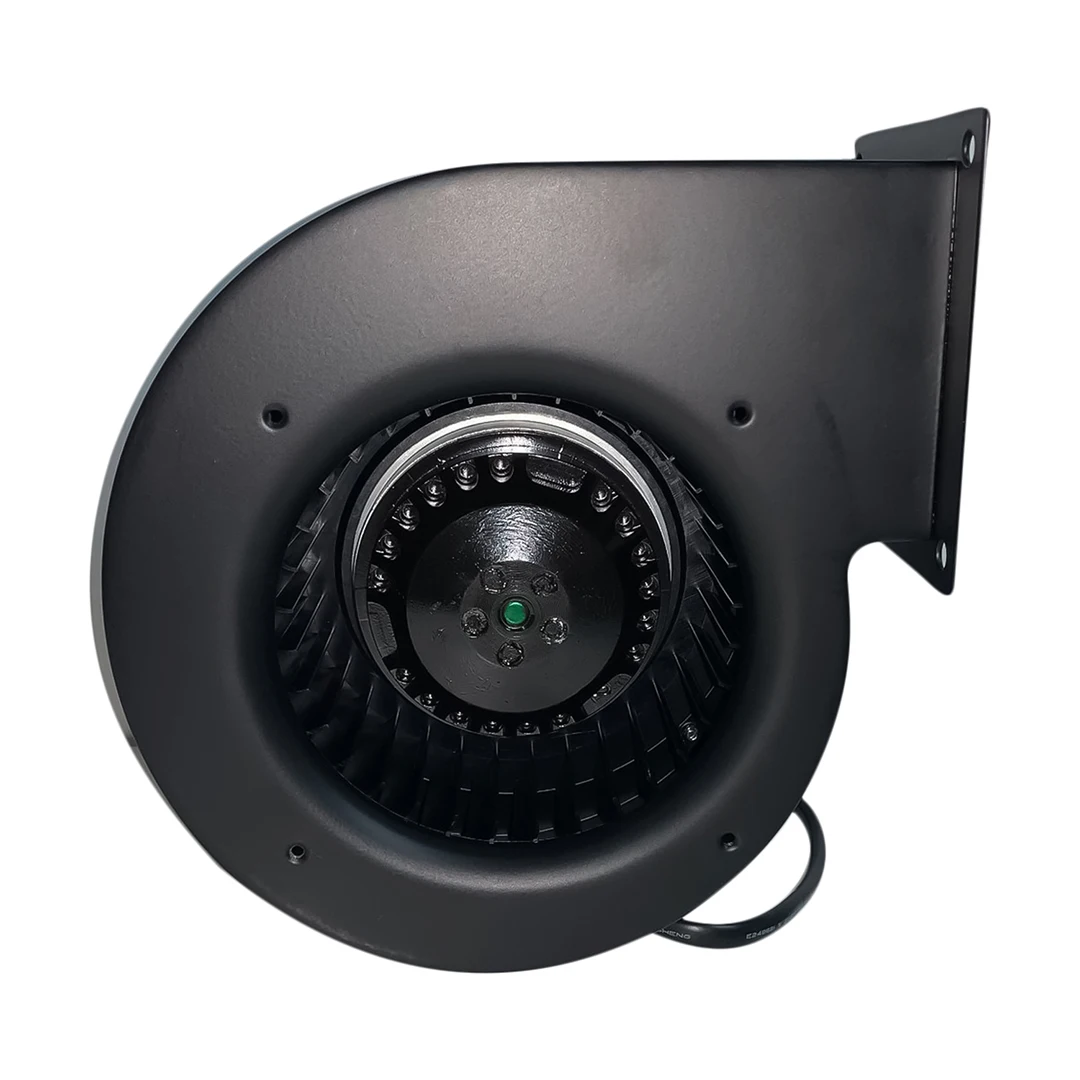

Product Name | 160mm Forward Impeller Curved Blades Industry Micro Centrifugal Cooling Blower Fan 185 W |
Fan Size | diameter 160mm |
Fan Frame Material | Metal |
Fan Impeller Material | Aluminum |
Wire | 2 leads |
Voltage | AC 230V 50/60Hz AC 110V 60HZ |
Applications | Widely used for food processing, petrochemical, cement production, transportation and vehicular exhaust applications |
Product Features
3. The frame and blades are constructed of PBT plastic have a high resistance to flammability.
4. Operating Temperature: 14℉ to 167 ℉
Q: What connector does the cooling fan come with?
A: It can come with any type of connectors you require, be it a multi-pin connector, or a USB connector, or a plug, just let us know your requirements and we will customize for you.
Q: I am looking for this fan size but with higher static pressure or airflow, can you make it?
A: Of course we can! Just let us know your desired static pressure, airflow or noise level for your application, and we will customize the fan as close to your requirements as possible.
Q：Is there a thermostat or temperature control available for the cooling fan?
A: Yes it can come with built-in thermostat or temperature control sensor, it is also recommended that you use a external thermostat and controller for easier and more flexible control
Q: Can this cooling fan withstand high humidity?
A: It is IP53 rating by default, but if you are using it in a high humidity environment, we will have to add a procedure in production of this cooling fan to make it weatherproof, IP67 rating or even IP68 rating, you name it.
Q: Do you have an alternative that runs on 230V?
A: Besides those voltages which are states on the product description, these cooling fans can be built for 5V DC & 12V DC & 24V DC & 48V DC & 117VAC & 220V AC & 240V AC, just let us know the voltage you use and we shall be happy to customize for you.
Q: Can it come with a variable speed control?
A: Yes it can be custom made with speed control functions with a speed controller ,even the controller with on/off switch.
Q: Can I order just one or several fans?
A: well, we don’t really do retail at the moment, we are mainly focused on OEM and ODM. But if you are looking for samples for your project, we shall be happy to customize the samples for you, the sampling normally takes no more than 5 workdays.
Q: Can it run almost constantly?
A: Yes the cooling fans are supposed to work 24/7, however, The temp and cleanliness will make a big difference.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $2 / piece
- 100–999 piece: US $1.8 / piece
- 1000–9999 piece: US $1.6 / piece
- 10000+ piece: US $1.4 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this forward impeller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the forward impeller be supplied for my local voltage?
The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
