Key specification for this centrifugal fans: power supply 380/220, power 0.37~2.2kw. Everything below is reproduced from the factory data sheet. Made by Kwlid (jiangsu) Intelligent Equipment Manufacturing Co., Ltd. (3 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Centrifugal Fans
- Power: 0.37~2.2kw
- Power Supply: 380/220
- Material: Corrosion protection metal
- Warranty: 1 Year
- After Warranty Service: 1 YEAR
- Place Of Origin: Jiangsu, China
Technical Specifications
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Place Of Origin | Jiangsu, China |
| Brand Name | KWLID |
| Weight (Kg) | 50 |
| Product Name | Oil mist collector |
| Type | Customizable |
| Application | Purify environment |
| Power | 0.37~2.2kw |
| Keyword | Oil filter /mist collector |
| Size | 1000*420*580mm |
| Noise | 50/60 Hz |
| Material | Corrosion protection metal |
| After Warranty Service | 1 YEAR |
| Power Supply | 380/220 |
| Selling Units | Single item |
| Single Package Size | 30X30X20 cm |
| Single Gross Weight | 60.000 kg |
Product Details
Product Overview

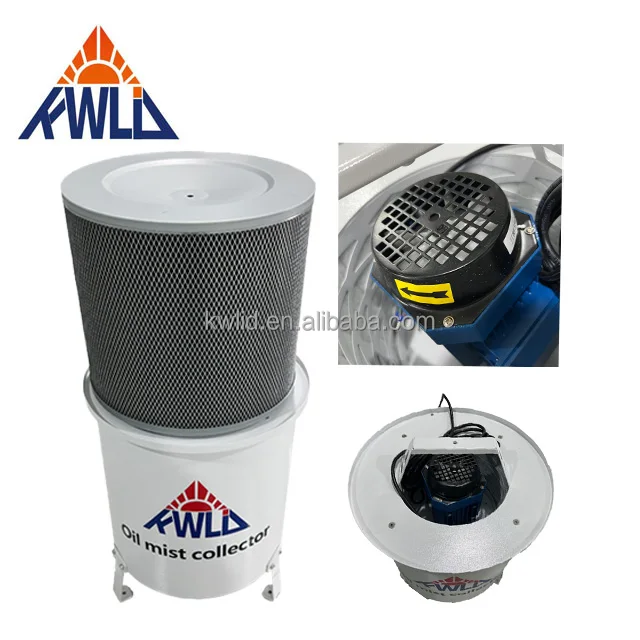

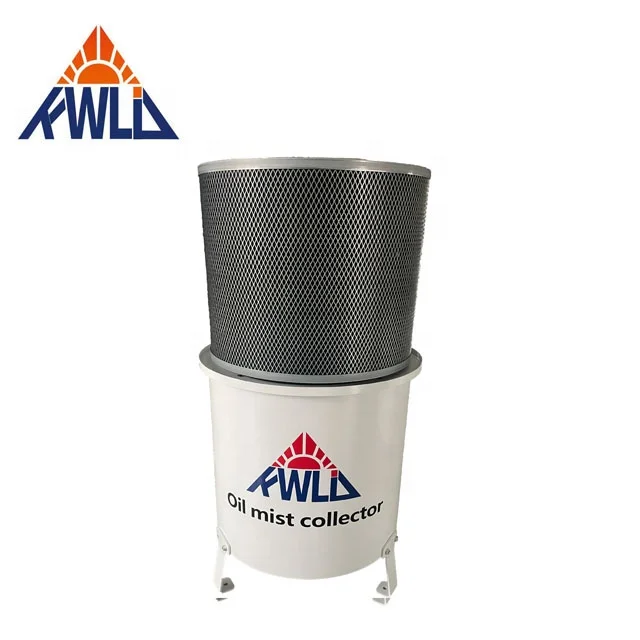

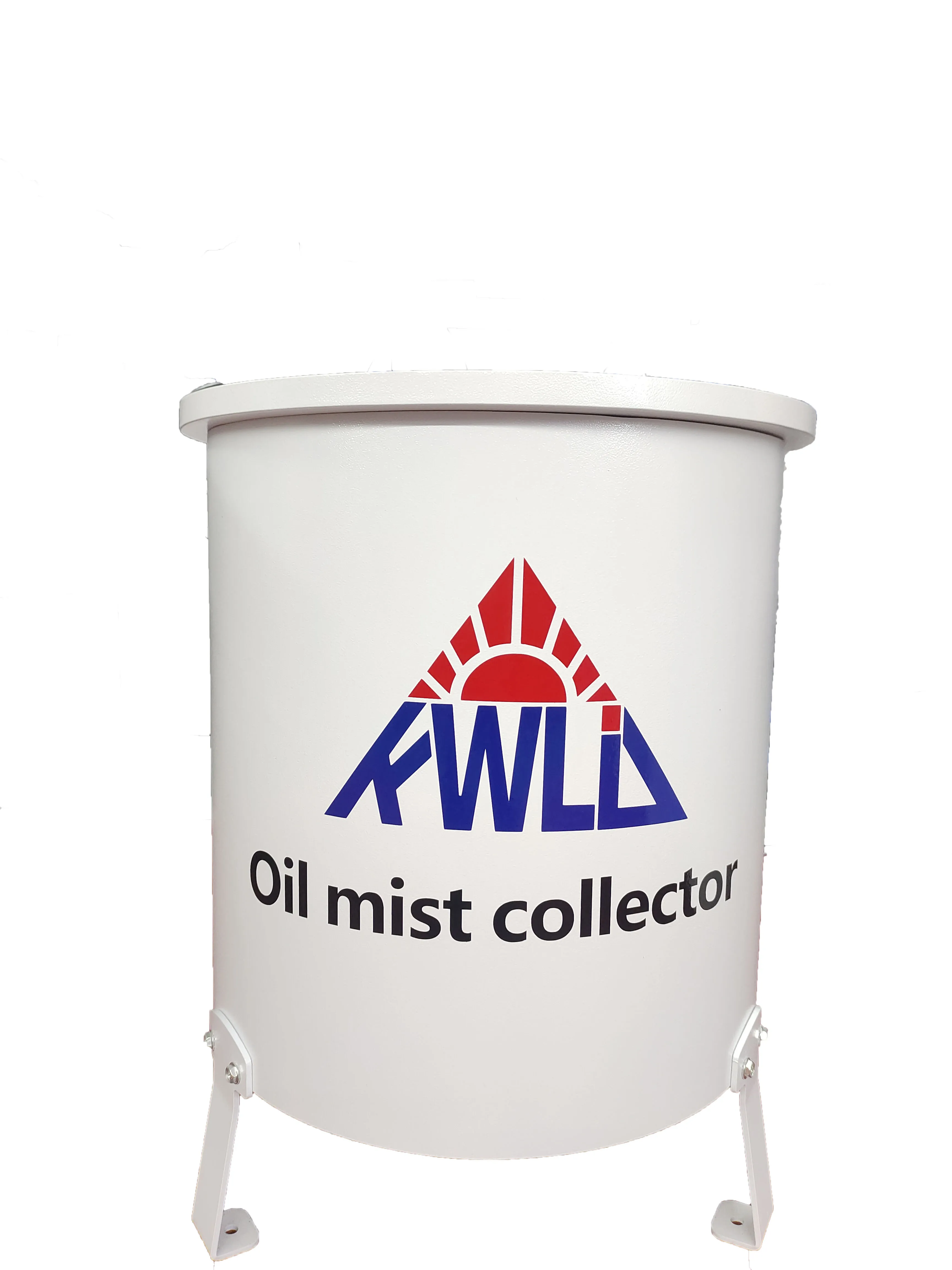

Centrifugal vertical oil mist collector
It is suitable for collecting and purifying water-soluble oil mist of various machine tools. The product features are small size, large air volume, high purification efficiency; low noise, long life of consumables, and low replacement cost. For high-concentration oil fume working conditions, a high-efficiency post filter can be selected, and the filtering accuracy can reach 0.3 micron level for effective purification. lt is an effective tool for you to save energy and reduce emissions,improve the workshop environment. and recycle resources!
FEATURES AT A GLANCE

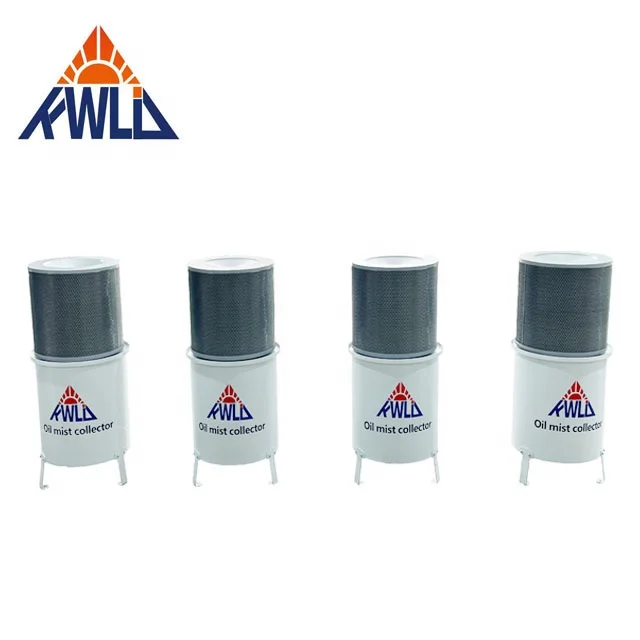

1. Small size, low energy consumption, and large air volume. The centrifugal structure design makes the product appearance small and saves installation space. The low resistance of the oil mist machine makes the air volume achieved under the same power larger, energy-saving and efficient;2. High filtration efficiency. The product is equipped with filter cotton and high efficiency filter at the back end of the centrifugal structure to ensure the filtration accuracy and efficiency. Because the centrifugal structure is designed as a pretreatment, a higher purification efficiency can be achieved by matching with filter cotton later. Compared with the traditional filter cotton oil mist collector, the filter cotton required is less and the cost is lower. Model: LJ-250, LJ-370, LJ-750 Series, LJ-1100 Material: High efficiency oil filter cotton + imported air filter material.e
Type: Pre filtration and post purification. Usage: Effective treatment of dust, oil mist, water mist, smoke, odor, and harmful gas. The post processing can absorb more than 0.02um particles, the filtration effect is 99%. Advantages: Simple installation, low maintenance cost, long service life.
PRODUCT SPECIFICATIONS
Model | LJ-250 | LJ-370 | LJ-750 | LJ-750L | LJ-1100 |
Power | 0.25kw | 0.37kw | 0.75kw | 0.75kw | 1.1kw |
Voltage | 380V/220/3P | 380V/220/3P | 380V/220/3P | 380V/220/3P | 380V/220/3P |
Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
Air volume | 680m³/h | 1080m³/h | 1380m³/h | 2300m³/h | 3000m³/h |
RPM | 2800 | 2800 | 2800 | 2800 | 2800 |
Inlet diameter | 125 | 150 | 150 | 150 | 150 |
Weight | 21kg | 30kg | 35kg | 37kg | 39kg |
Dimension | 380 x 800 | 430 x 900 | 470 x 900 | 470 x 1150 | 470 x 1150 |
Lead Time
Quantity (pieces) | 1-2 | 3-50 | 51-100 | >100 |
Lead time (days) | 7 | 10 | 20 | To be negotiated |
PRODUCT CONFIGURATION

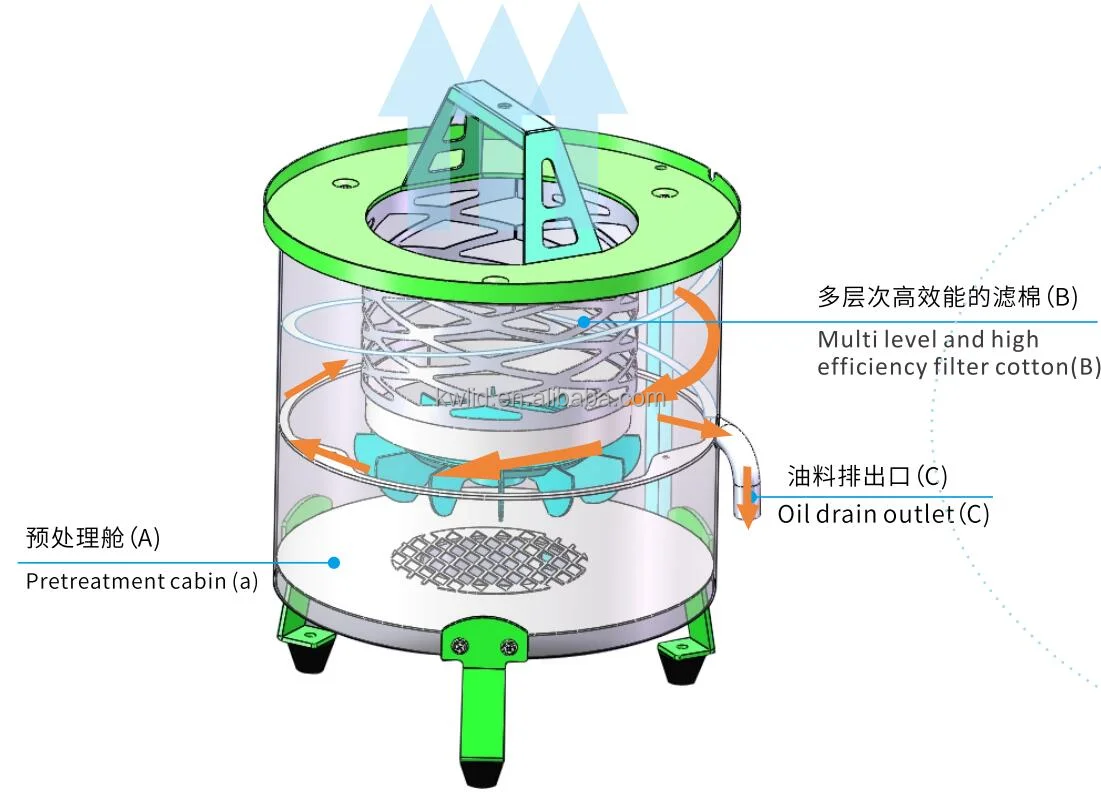

Product principle

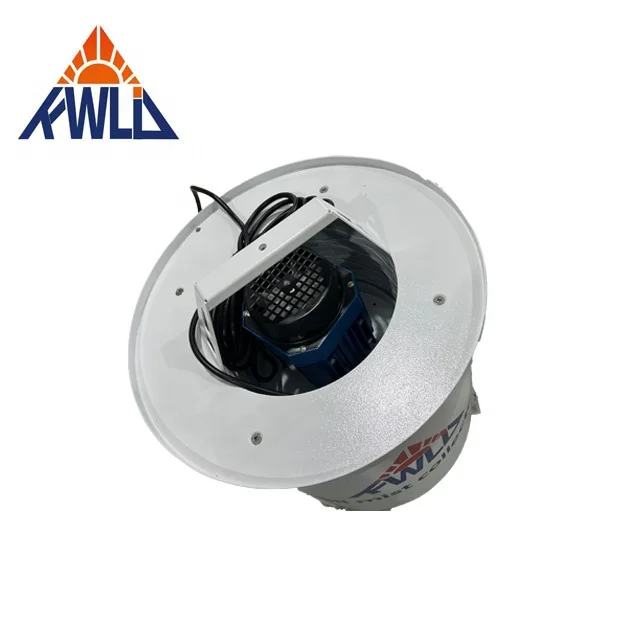

(A) The polluted air around the machine tool will be sucked into the pretreatment chamber at the bottom of the product.By the centrifugal force produced by the rotating turbine and the accelerating effect of coalescence principle, the oil mist can be easily combined and transformed into liquid state.
(B)The multi-level and high-efficiency filter cotton can intercept and capture even the smallest particulate pollutants, and prevent the release and diffusion of pollutants in the factory workshop again.
(C)The special oil drain pipe is designed to return the oil to the machine tool for reuse.

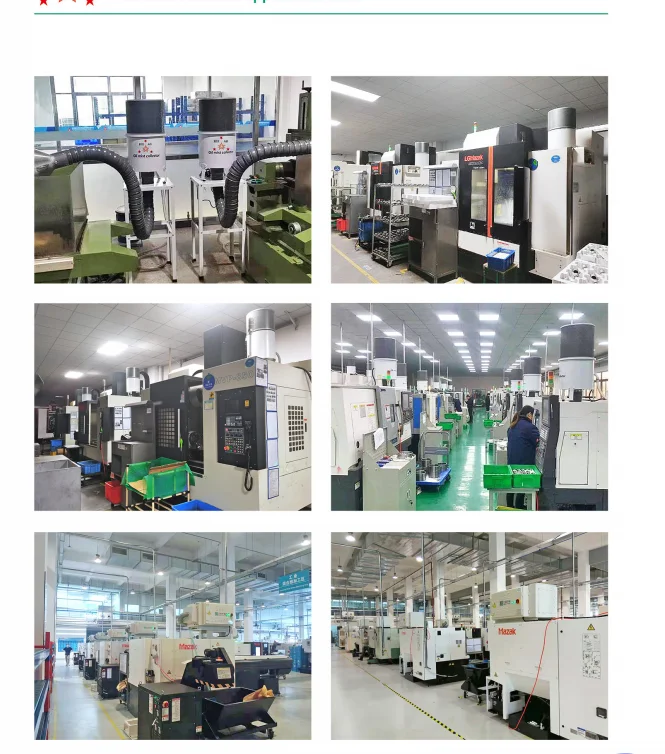

APPLICATION

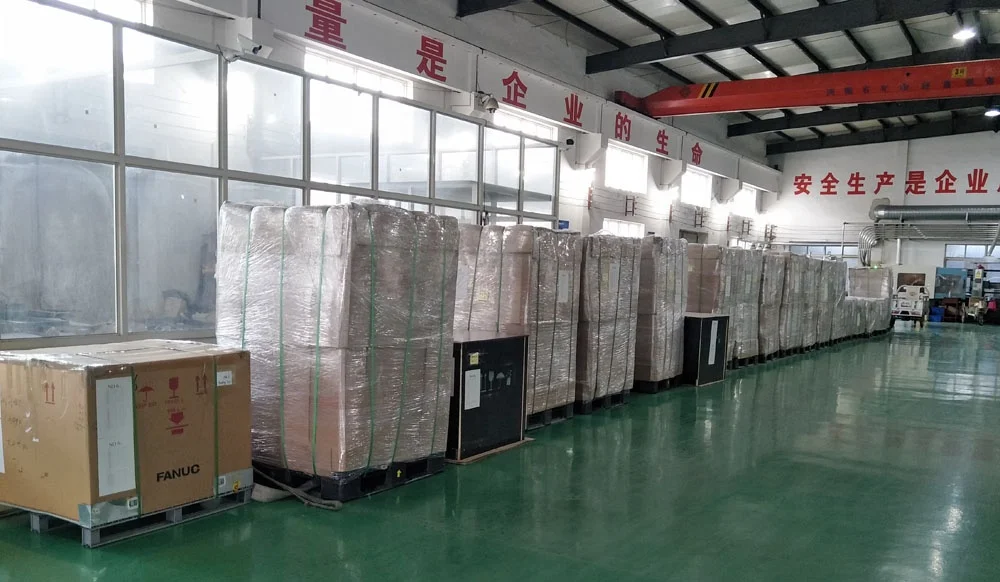

Packing
Company Information
Kwlid (jiangsu) intelligent Equipment Manufacturing Co., Ltd is a Sino-German cooperative enterprise.and
specializing in the production of high-quality drag chain series, protective cover series, cantilever box series, oil mist dust purification equipment series, chip conveyor series and other products, The company is located in Shenzhou intelligent. Manufacturing industrial Park, Changshu City, Jiangsu Province. The company integrates research and development , production and sales, it is a large-scale supplier of mechanized equipment accessories in the domestic industry, The company has advanced production technology and equipment and an excellent design and R&D team. ts series of products are widely used in CNC machine tools, welding equipment, automation equipment, Glass machinery, stone equipment and many other industries. Kwlid company provides users with satisfactory services with first-class quality and good reputation. And we sincerely cooperate with colleagues at home and abroad to contribute to the development of CNC supporting products.
specializing in the production of high-quality drag chain series, protective cover series, cantilever box series, oil mist dust purification equipment series, chip conveyor series and other products, The company is located in Shenzhou intelligent. Manufacturing industrial Park, Changshu City, Jiangsu Province. The company integrates research and development , production and sales, it is a large-scale supplier of mechanized equipment accessories in the domestic industry, The company has advanced production technology and equipment and an excellent design and R&D team. ts series of products are widely used in CNC machine tools, welding equipment, automation equipment, Glass machinery, stone equipment and many other industries. Kwlid company provides users with satisfactory services with first-class quality and good reputation. And we sincerely cooperate with colleagues at home and abroad to contribute to the development of CNC supporting products.
FAQ
Q1. Are you manufacturer or trader ?
A: We are manfacturing factory.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cable Drag Chain / Bellows Cover / Chip Conveyors and Chains / Support Arms Systems / Oil Mist Collector
4. Why should you buy from us not from other suppliers?
We are the most professinal manufacturer.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T,L/C,D/P D/A, Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese, German.
A: We are manfacturing factory.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Cable Drag Chain / Bellows Cover / Chip Conveyors and Chains / Support Arms Systems / Oil Mist Collector
4. Why should you buy from us not from other suppliers?
We are the most professinal manufacturer.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency: USD, EUR;
Accepted Payment Type: T/T,L/C,D/P D/A, Money Gram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese, German.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $720 / set
- 10+ set: US $500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fans be supplied for my local voltage?
The standard configuration is 380/220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
