Centrifugal Fans, Portable, CNC, 220V, LML2230HD, 10000mm

Key specification for this centrifugal fans: 220V / 380V, model number LML2230HD. Everything below is reproduced from the factory data sheet. Made by Jinan Bob Cnc Equipment Co., Ltd. (4 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of These Centrifugal Fans

• Model Number: LML2230HD
• Voltage: 220V / 380V
• Cutting Material: All metal sheet,Mild/High Carbon steel
• Max Travel Speed: 10000mm/min
• Warranty: 1 Year
• Place Of Origin: Shandong, China

Technical Specifications

Product Details

MODEL	FX-LML2230HD
BASIC INFORMATION	Cutting method	Plasma	Flame
		Machine size	2700*3500mm
		Cutting material	All metal sheet	Mild/High Carbon steel
		Cutting size	2200*3000mm
		Cutting thickness	According to Plasma source	6-200mm
		Lifting travel	≤130mm
		Max travel speed	10000mm/min
		Running accuracy	≤0.03mm

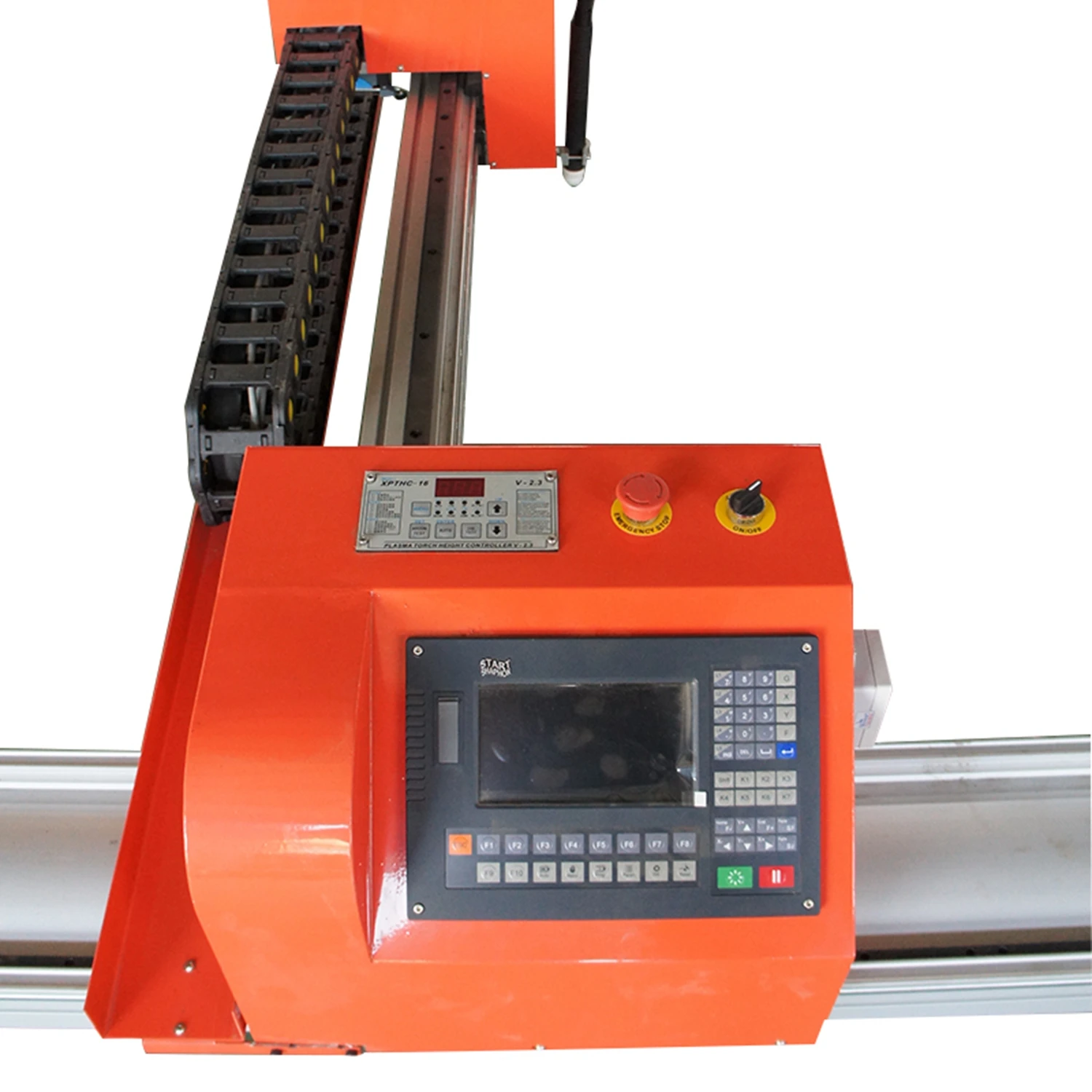

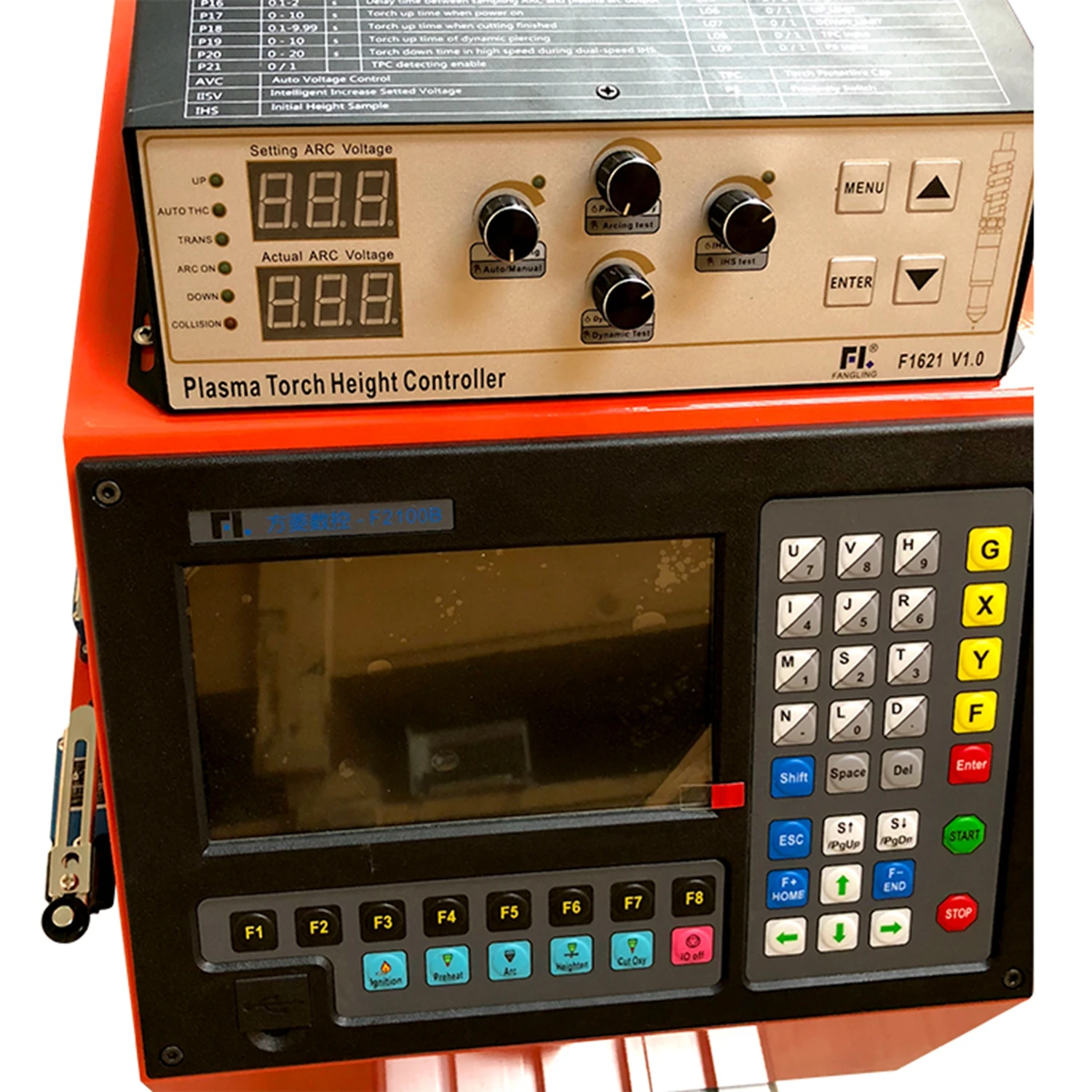

CONFIGURATION LIST	CNC controller	FangLing F2100B
		Remote control	Yes
		Auto Height control	Fangling F1621	Lifter
		Motor drive mode	Stepper motor
		Drive system	Dual drive
		Reducer	X axis: Gear box Y axis: Direct drive
		Transmission method	Rack and pinion drive
		Linear guide	Linear axis
		X,Y Axis beam	Heavy duty aviation aluminum-alloy
EXTERNAL SUPPLY	Power	220V(Plasma Power source is 380V)
		Cutting gas	Compressed air	Oxygen + Ethyne(Propane)
		Gas pressure	0.4-0.7MPa	Oxygen:0.5MPa Fuel gas:0.1MPa
SOFTWARE	Graphic import method	USB
		Programming software	AutoCAD(all dxf,dwg,CAM,NC files)
		Nesting software	FastCAM

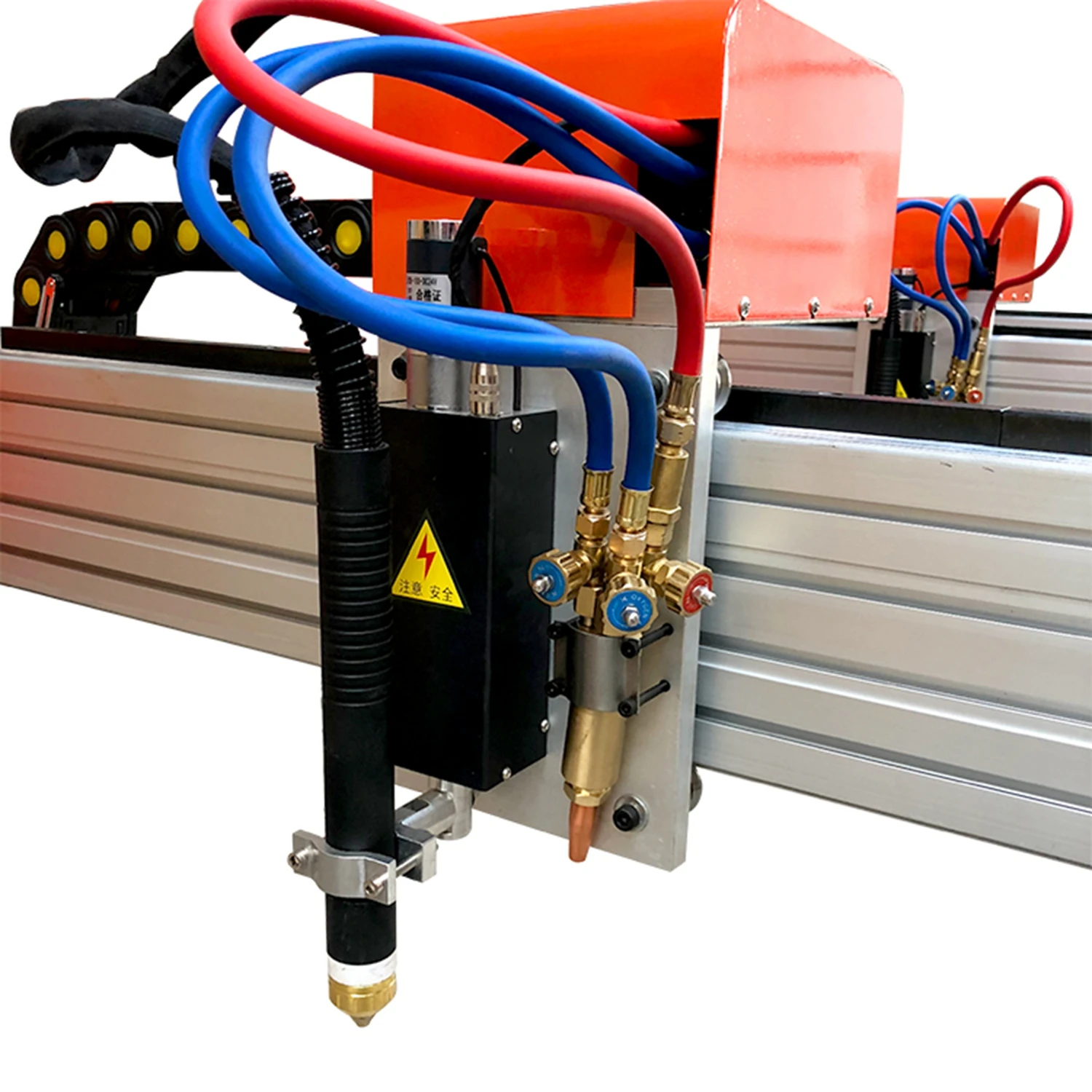

ACCESSORIES	Torch	One set of Plasma torch	One set of Flame torch
		Consumables	10 sets of nozzles (need to order power source)	3 Flame nozzles
PACKING INFORMATION	Dimension	3600*680*720mm+power source
		Weight	340kg

Q1: I knew nothing about this machine, what kind of machine I should choose? Very easy to choose. Just tell us what you want to do by using laser machine or plasma machine, then let us give you perfect solutions and suggestions. Q2: When I got this machine, but I don’t know how to use it. What should I do? We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or whatsapp and e-mail. Q3: If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions. Q4: Before sending me an inquiry on our plasma, it is better for you to provide me the following information? Your cutting size. Because in our factory, we have different models according to working area.Your materials: Carbon steel, stainless steel , aluminum, or other materails.

Q5:what’s your cutting thickness? We will recommend suitable machine to you according to your cutting thickness.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $1800 / set
  • 5–9 set: US $1600 / set
  • 10+ set: US $1450 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fans?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal fans be supplied for my local voltage?

The standard configuration is 220V / 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan Bob Cnc Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jinan Bob Cnc Equipment Co., Ltd. range on HVACR Nexus.
