Circulating Drying Tower, Hour

This circulating drying tower is published with the manufacturer’s full specification — capacity Hour, type Agricultural Grain drying tower. Made by Henan Foodline Machinery Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Circulating Drying Tower

• Capacity: Hour
• Warranty: 1 Year
• Place Of Origin: Henan, China
• Application: Cereal Grains
• Type: Agricultural Grain drying tower
• Weight (Kg): 1000

Technical Specifications

Product Details

Product Description

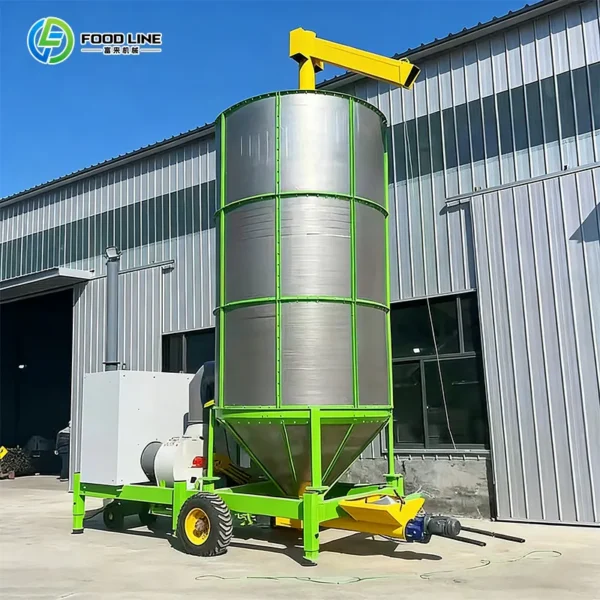

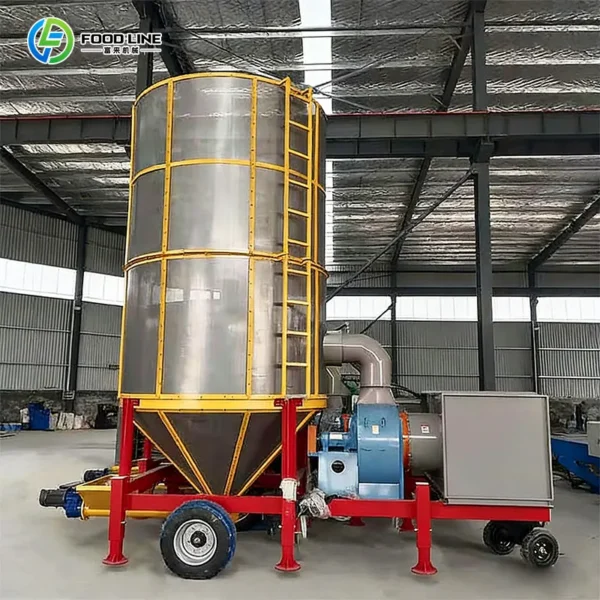

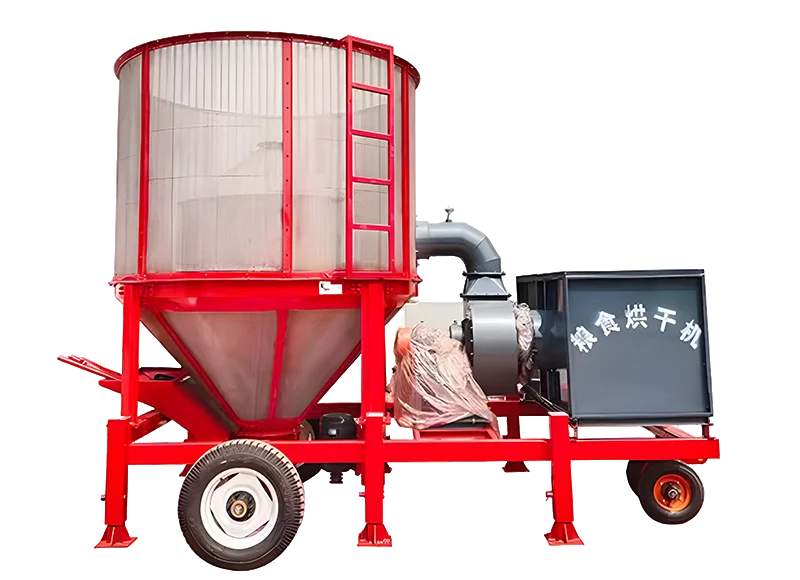

Rice, soybean, corn, sorghum, and wheat fully automatic mobile grain dryer with core engine components

The new type of grain drying equipment adopts a vertical structure. The grain to be dried enters the drying host through the elevator, and after starting up, the circulation mechanism is activated. The grain is evenly distributed in the drying host for circulating motion and is heated by the hot air provided by the fan, so that the moisture of the grain is discharged for drying.The automatic temperature and humidity measurement devices designed inside the equipment can detect changes in internal temperature and humidity at any time and automatically complete the drying requirements.

Specification

Model	Size	Daily processing volume	Drying motor total power
FL-2.5	4700×2250×4250mm	15T	11.7KW
FL-2.5 bucket	4700×2250×5600mm	15T	14.7KW
FL-5	5250×2450×4900mm	30T	17.2KW
FL-5 bucket	5250×2450×6050mm	30T	20.2KW
FL-10 Two warehouses	5550×2450×6100mm	60T	18.7KW
FL-10 Three warehouses	5550×2450×7650mm	60T	18.7KW
FL-10 bucket	5300×2450×7250mm	60T	20.2KW
FL-20 bucket	6800×3000×9650mm	120T	31.2KW

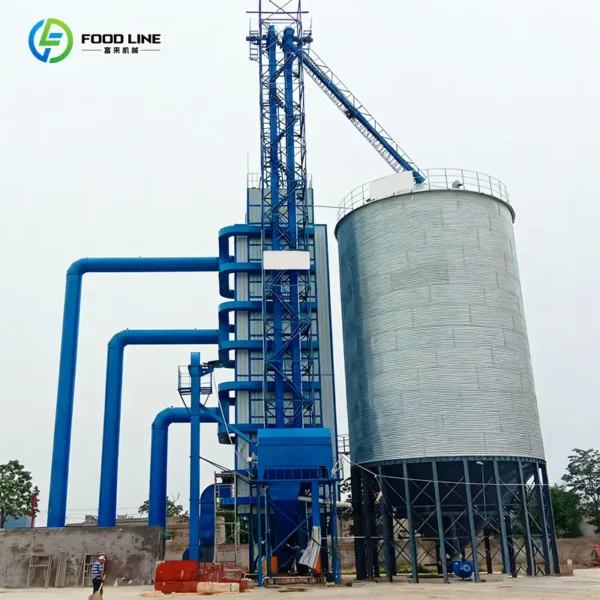

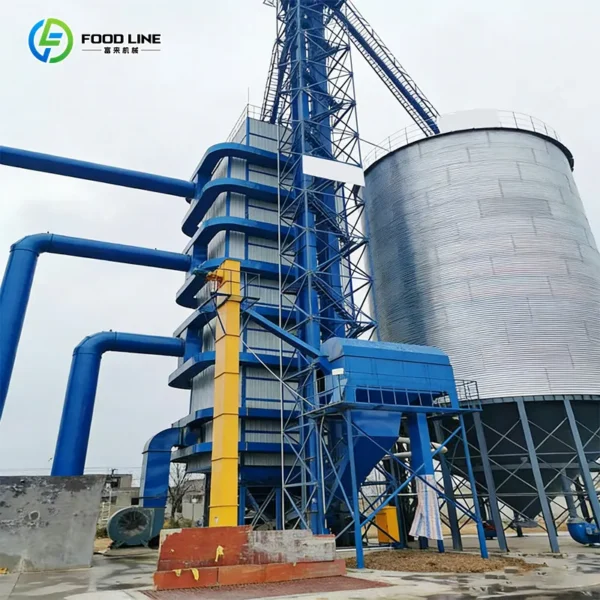

Grain dryers, also known as tower dryers, are ideal equipment for drying grains and oilseeds. Processed materials are fed into the tower from the top via a feeding device, ensuring the equipment operates at full capacity throughout the process. Materials pass through multiple drying zones to achieve continuous, gentle, and uniform heat and moisture exchange. Featuring automated control, the residence time of materials within the tower can be freely adjusted. Through airflow regulation and product movement, the material achieves uniform and thorough drying. The dried material then passes through the discharge device into the finished product silo. Simultaneously, the fan directs the used air into the collector for purification. Most of the dry air is recycled through the inlet and outlet channels, resulting in minimal fuel consumption.

Related Products

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–2 set: US $8999 / set
  • 3–4 set: US $8899 / set
  • 5+ set: US $8599 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this circulating drying tower?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Foodline Machinery Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Henan Foodline Machinery Co., Ltd. range on HVACR Nexus.
