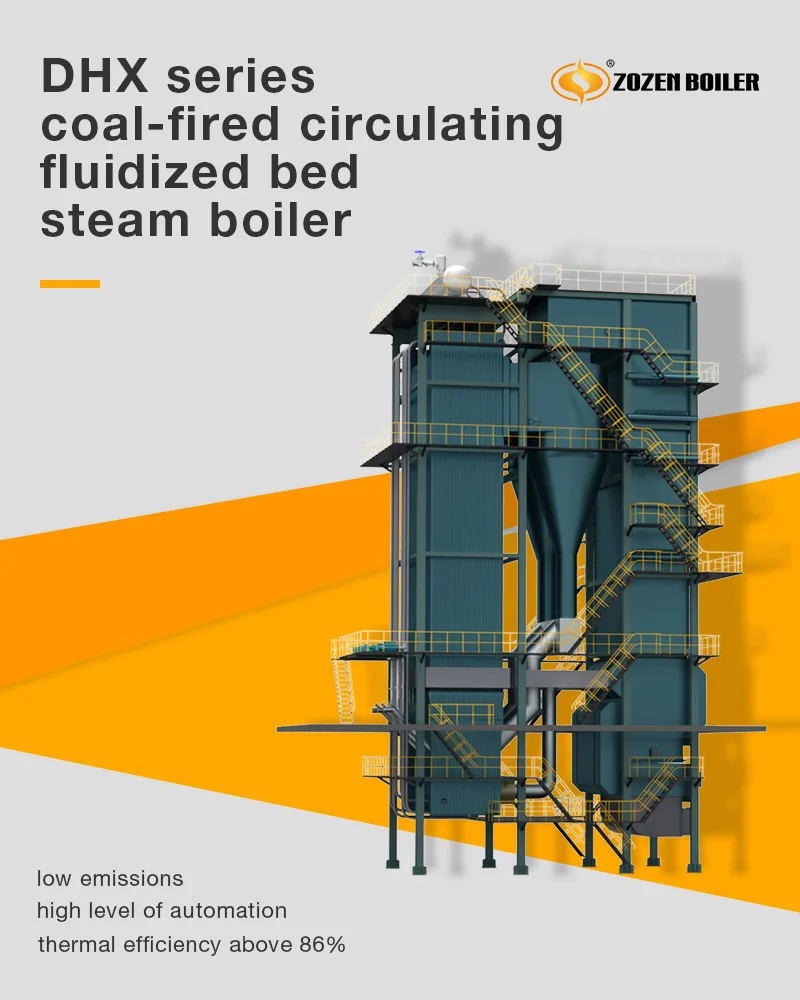

Circulating fluidized bed boiler — type Natural Circulation, certification ASME ,PED GB. The complete factory specification follows. Made by Wuxi Zozen Boilers Co., Ltd. (21 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Circulating Fluidized Bed Boiler
- Product Thermal Capacity: 30-75 t/h
- Warranty: 1 Year
- After Warranty Service: Video Technical Support, Online support, Spare parts, Field Maintenance and Repair Service
- Warranty Of Core Components: 1 Year
- Certification: ASME ,PED GB
- Place Of Origin: Jiangsu, China
Technical Specifications
| Output | Steam |
|---|---|
| Usage | Industrial |
| Steam Production | Max. 75t/h |
| Fuel | Coal,biomass |
| Pressure | 1.25-5.3 MPA |
| Structure | Water Tube |
| Type | Natural Circulation |
| Core Components | water tube |
| Key Selling Points | Energy Saving |
| Style | Horizontal |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Jiangsu, China |
| Brand Name | ZOZEN |
| Dimension(L*W*H) | denpends |
| Product Name | Circulating Fluidized Bed |
| Product Thermal Capacity | 30-75 t/h |
| Outlet Temperature | 194-485 ℃ |
| Thermal Efficiency | 86% |
| Available Fuel | Coal, gangue, biomass, waste, sludge |
| Operation | Automatic Feeding Fuel |
| Advantages | Centralized heating |
| Manufacturer | 30 Years History |

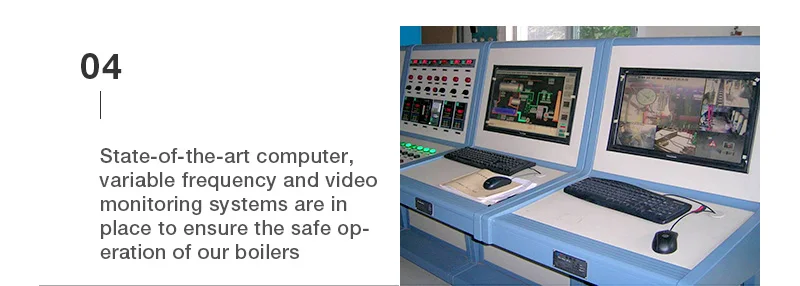

| Control System | PLC+Touch Screen |
| Quality | 100% Tested |
| Applicable Industries | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Food & Beverage Shops, Advertising Company |
| After Warranty Service | Video Technical Support, Online support, Spare parts, Field Maintenance and Repair Service |
| Local Service Location | Vietnam, Philippines, Indonesia, Pakistan, Mexico, Russia, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan |
| Showroom Location | Turkey, Vietnam, Philippines, Indonesia, Pakistan, Mexico, Russia, Thailand, Morocco, Argentina, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Malaysia, Australia |
| Marketing Type | Ordinary Product |
| Warranty Of Core Components | 1 Year |
| Condition | New |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Certification | ASME ,PED GB |
| Weight | depends |
| Packaging Details | Boiler proper is in bulk, accessories are packed according to customer’s requirements |
| Port Of Dispatch | SHANGHAI NINGBO DALIAN |
| Selling Units | Single item |
| Supply Ability | 100 sets per Year |
Product Details

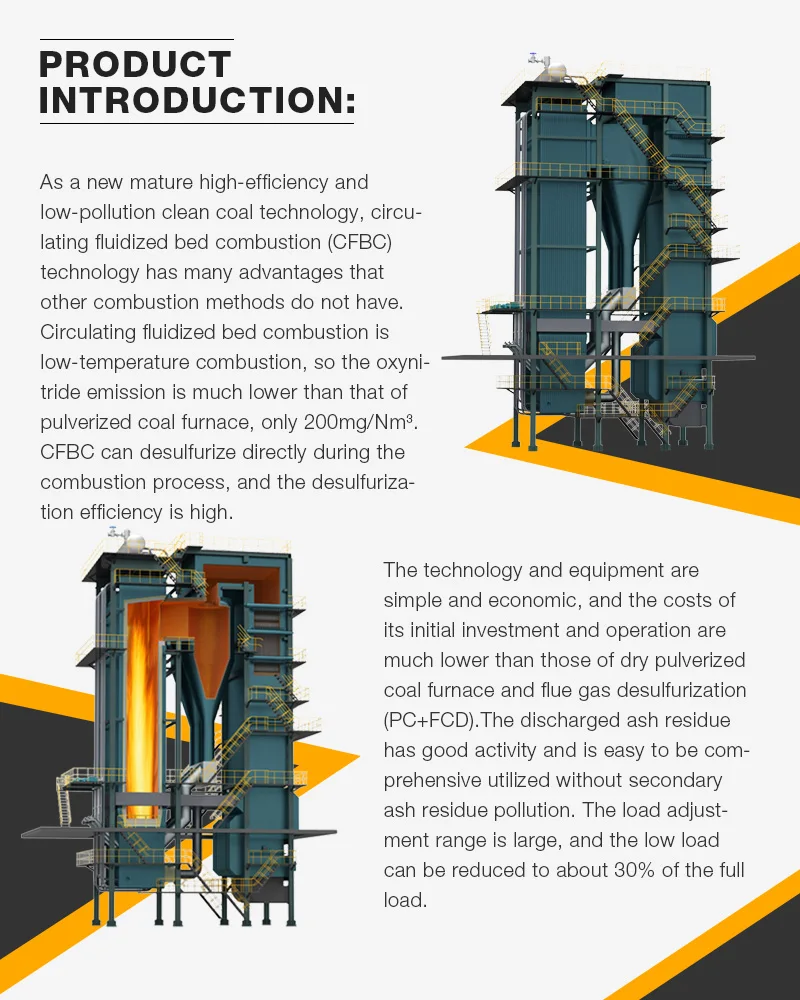

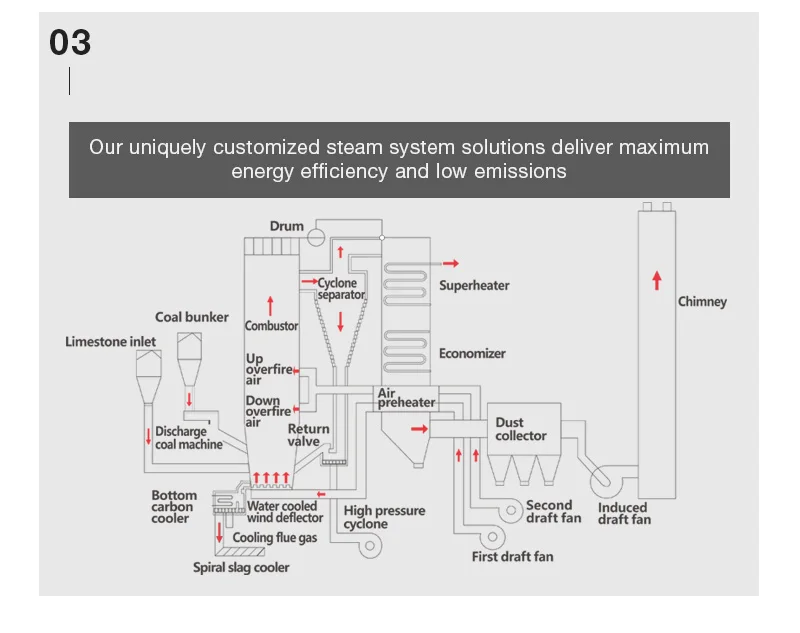

As a new mature high-efficiency and low-pollution clean coal technology, circulating fluidized bed combustion (CFBC) technology has many advantages that other combustion methods do not have. Circulating fluidized bed combustion is low-temperature combustion, so the NOx emission is much lower than that of pulverized coal furnace, only 200ppm. CFBC can desulfurize directly during the combustion process, and the desulfurization efficiency is high. The technology and equipment are simple and economic, and the costs of its initial investment and operation are much lower than those of dry pulverized coal furnace and flue gas desulfurization (PC+FCD). The discharged ash residue has good activity and is easy to be comprehensive utilized without secondary ash residue pollution. The load adjustment range is large, and the low load can be reduced to about 30% of the full load.
Outlet temperature:194-485 ℃

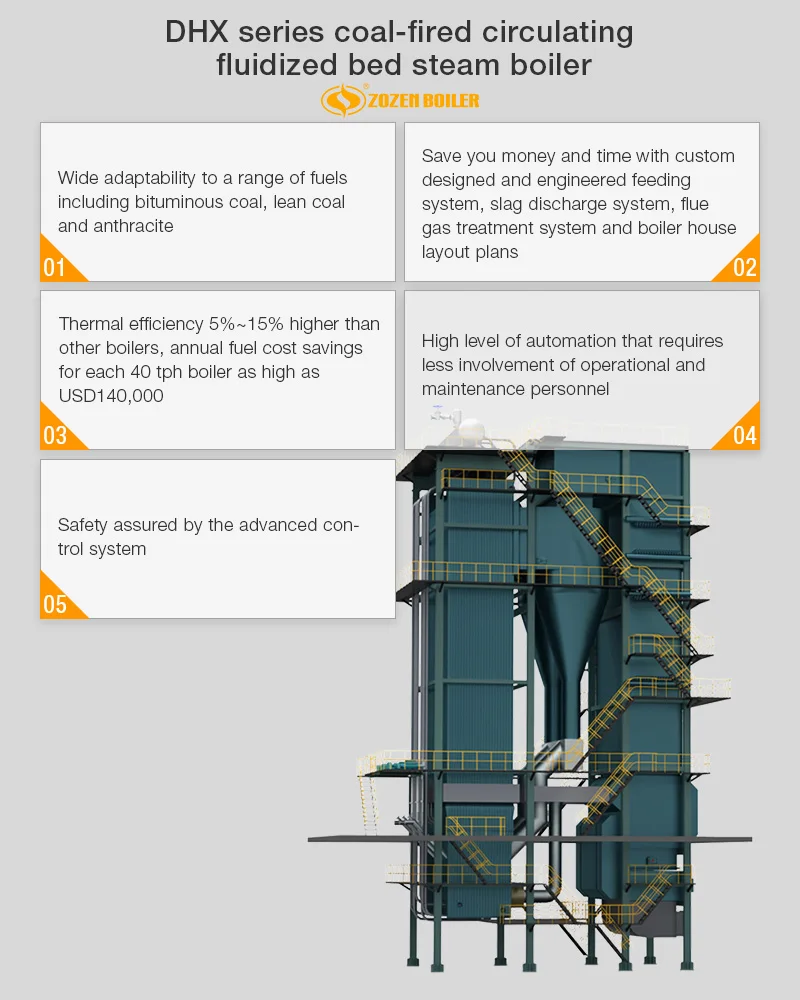

Available fuel:Bituminous coal,
anthracite, meagre coal, lignite, gangue, waste, sludge
Available industries:Chemical, food, tobacco, textile, printing and dyeing,
feed, medicine, building material, wine, rubber, hospital
Model | Rated evaporation | Rated working pressure(MPa) | Rated steam temperature | Thermal efficiency(%) |
DHX35-1.25-M | 35 | 1.25 | 194 | 89 |
DHX50-1.25-M | 50 | 1.25 | 194 | 89 |
DHX75-1.25-M | 75 | 1.25 | 194 | 89 |
ZZ-35/3.82-M | 35 | 3.82 | 450 | 89 |
ZZ-50/3.82-M | 50 | 3.82 | 450 | 89 |
ZZ-65/3.82-M | 65 | 3.82 | 450 | 91 |
ZZ-75/3.82-M | 75 | 3.82 | 450 | 91 |
ZZ-75/5.3-M | 75 | 5.3 | 485 | 91 |
1. How can you get the best price quickly?
(1) We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
(2) Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
2. Why should you believe our boiler quality?
(1).Strength calculation report with applied materials information;
(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;
(3).100% X-ray inspection( (Longitudinal, transversal safety inspection)): ensure the quality of entire boiler;
(4).Hydrostatic test: ensure the standard working pressure and safety;
(5).Third-party inspection report:By Jiangsu Boiler Inspection Institute;
(6).Passed ISO:9001 ,ISO14001,OHASA18001 and ASME(S and U) and A-class boiler certificate.
3. Quality warrantee
The seller guarantee quality of the machines for a period of 12 months from the date of trial run finish, but not to exceed 18 months from date on which the goods leave factory. If any parts (excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost.
4. Quality warrantee
The seller guarantee quality of the machines for a period of 12 months from the date of trial run finish, but not to exceed 18 months from date on which the goods leave factory. If any parts (excluding easily damaging parts) are found defective in quality in the first year, the seller should replace free-of-cost.
5.Terms of payment
T/T 30% of total contract value as down payment;
T/T or L/C 70% of total contract value before delivery.
6.Claim
Any claims by the buyers regarding the machines shipped should be filed within 30 days after arrival of machines at the destination specified in the relative B/L and supported by a survey report issued by a surveyor approved by the sellers, otherwise the sellers shall refuse to consider. Claims in respect of matters within responsibility of insurance company and/or shipping company will not be considered by the seller.
7. What is the using life of your boiler?
A:Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this circulating fluidized bed boiler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this circulating fluidized bed boiler carry?
It is supplied with ASME ,PED GB documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wuxi Zozen Boilers Co., Ltd., based in China. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Wuxi Zozen Boilers Co., Ltd. range on HVACR Nexus.
