Steam Boiler, 20-110, Natural Circulation

Steam boiler — type Natural Circulation. The complete factory specification follows. Made by Wuxi Zozen Boilers Co., Ltd. (21 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steam Boiler

• Product Thermal Capacity: 20-110 t/h
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Type: Natural Circulation
• Dimension(L*W*H): 8.9*3.9*4m (maximum transportation)
• Output: Steam

Technical Specifications

Product Details

Product Description

Automatic 20-110 ton Industrial Oil Gas Fired Steam Boiler for Dyeing/Rubber Factory

SZS series boiler is designed with longitudinal double drums and " D " type chamber structure. Furnace is placed on the right and convection tube bank is on the left, super heater is arranged at convection tube bank. The body is fixed on the basement by middle and both end flexible supports and make the boiler expand horizontally sideways. Around the furnace is membrane water cooling tube wall. Furnace and tube bank are totally separated by the membrane water tube cooling wall at the left side of the furnace. The back part of bundle is sparse shift structure, front part is aligned structure. Smoke from furnace outlet enters re-burning chamber, convection tube bank area and then from left front part enters spiral fine coil economizer and condenser, and finally is discharged to atmosphere through chimney.

SZS Boiler Manufacturing Process Features:

1. Manholes&Check door:

The manholes are arranged at the two ends of upper and lower drums, and check door is set a rear part of boiler. These openings make users easy for entering inside doing maintenance and cleaning work; prevent vaporization;

2. Safety devices:

There are explosion door and flame sensor in the boiler arrangement and so operation is safe and reliable;

3. Combustion chamber:

Due to combustion chamber applying whole membrane water cooling structure, and adopted micro-positive pressure combustion, there is no smoke leakage, and there is no pollution in operation environment;

4. Boiler circulation:

The boiler water circulation adopts enforced circulation to secure each heat absorbing part can get efficient cooling and prevent vaporization;

5. Furnace insulation:

Adopt high-class aluminium silicate fiber. Use refractory mortar to keep the furnace temperature under 45℃ and control heat loss efficiently;

6. Membrane type structure:

(1)Whole membrane wall structure D-type arrangement;

(2)Convention tubes of upper and lower drum form the convention heating surface and ensure the whole boiler expand towards the two ends;

(3)The combustion chamber adopts narrow pitch membrane wall which has good gas tightness and reduce heat loss and improve boiler heat efficiency;

(4)The rear part of convention tubes is rare shifted structure which highly improve the working life of front and rear wall up to more than 20 years;

(5)The sealing of both sides of membrane wall and drums adopt comb plate to avoid to reveal of condensate water and fuel gas caused by sealing with refractory concrete.

Available industries:Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc

Product thermal capacity:10-110 t/h

Working pressure:2.5-9.8 Mpa

Outlet temperature:194-540 °C

Available fuel:Nature gas, coke oven
gas, blast furnace gas, carbon black off-gas, biogas, methanol, LPG, diesel, heavy oil, light oil, crude oil, etc

Model	Rated evaporation（t/h）	Rated working pressure（MPa）	Rated steam temperature（℃）	Thermal efficiency（%）
SZS20-1.25-Q.Y	20	1.25	194	>98
SZS20-1.6-Q.Y	20	1.6	204	>98
SZS20-2.5-Q.Y	20	2.5	225	>98
SZS25-1.25-Q.Y	25	1.25	194	>98
SZS25-1.6-Q.Y	25	1.6	204	>98
SZS25-2.5-Q.Y	25	2.5	225	>98
SZS30-1.25-Q.Y	30	1.25	194	>98
SZS30-1.6-Q.Y	30	1.6	204	>98
SZS30-2.5-Q.Y	30	2.5	225	>98
SZS35-1.25-Q.Y	35	1.25	194	>98
SZS35-1.6-Q.Y	35	1.6	204	>98
SZS35-2.5-Q.Y	35	2.5	225	>98
SZS40-1.25-Q.Y	40	1.25	194	>98
SZS40-1.6-Q.Y	40	1.6	204	>98
SZS40-2.5-Q.Y	40	2.5	225	>98
SZS50-1.25-Q.Y	50	1.25	194	>98
SZS50-1.6-Q.Y	50	1.6	204	>98
SZS50-2.5-Q.Y	50	2.5	225	>98
SZS65-1.25-Q.Y	65	1.25	194	>98
SZS65-1.6-Q.Y	65	1.6	204	>98
SZS65-2.5-Q.Y	65	2.5	225	>98
SZS75-1.25-Q.Y	75	1.25	194	>98
SZS75-1.6-Q.Y	75	1.6	204	>98
SZS75-2.5-Q.Y	75	2.5	225	>98
SZS100-1.25-Q.Y	100	1.25	194	>98
SZS100-1.6-Q.Y	100	1.6	204	>98
SZS100-2.5-Q.Y	100	2.5	225	>98

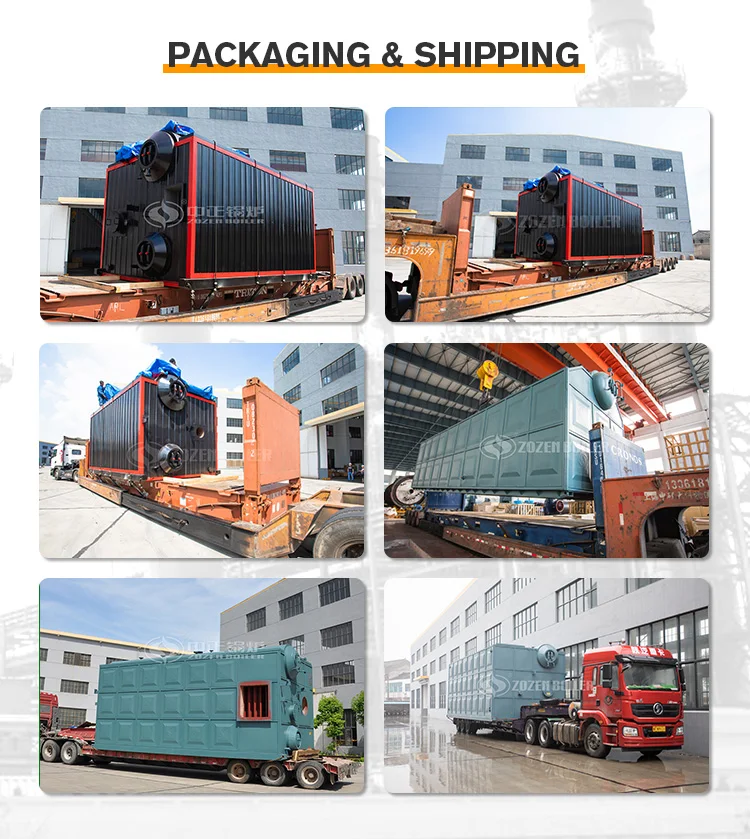

Product packaging
