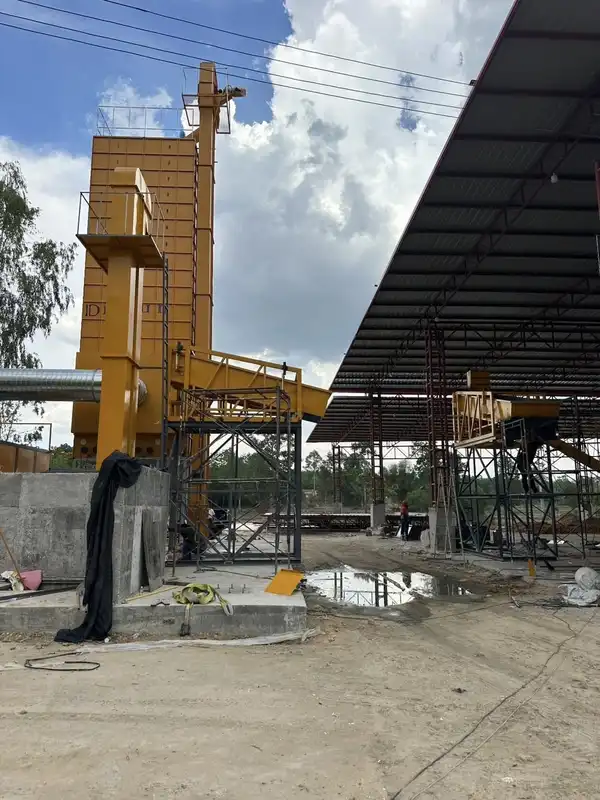

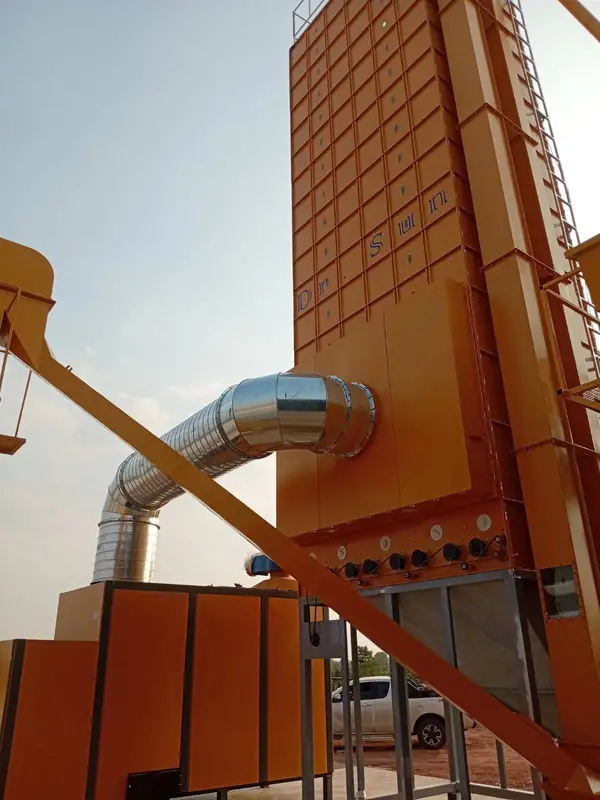

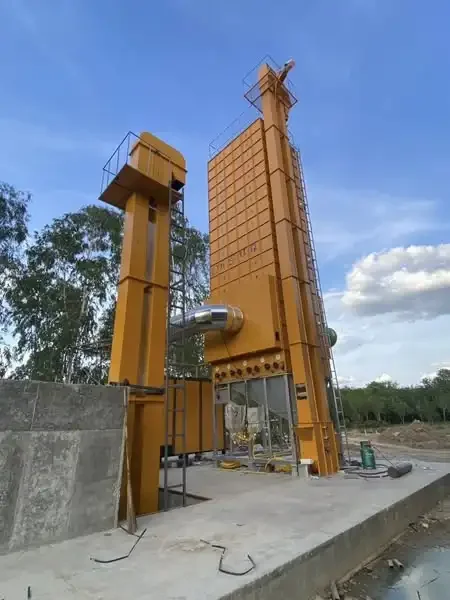

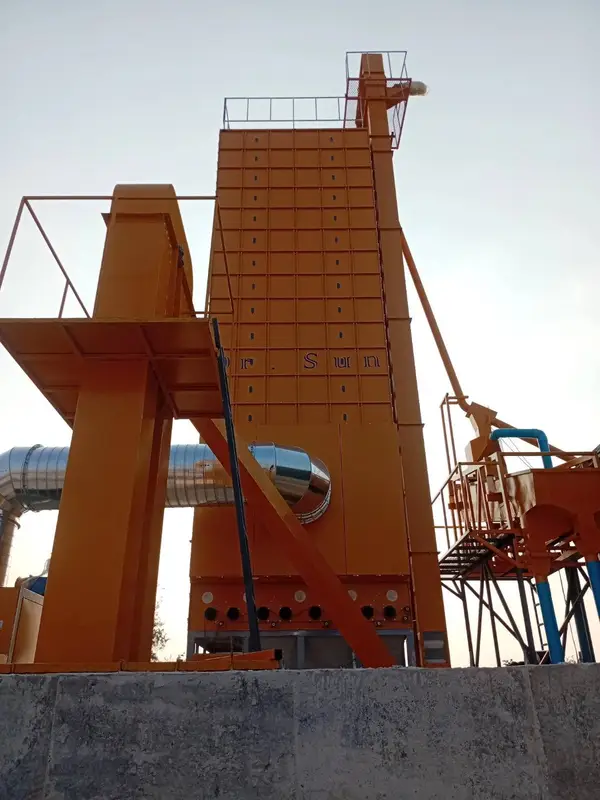

Circulating tower — 380 V, capacity 15 20 25 30 35T per batch. The complete factory specification follows. Made by AGNIX (HK) LIMITED (1 year on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Circulating Tower
- Voltage: 380 V
- Capacity: 15 20 25 30 35T per batch
- Raw Material: carbon steel stainless steel
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Application: Food Processing
Technical Specifications
| Type | Batch Drying equipment |
|---|---|
| Voltage | 380 V |
| Application | Food Processing |
| Warranty | 1 Year |
| Place Of Origin | Henan, China |
| Weight (Kg) | 5000 |
| Product Name | Corn dryer paddy dryer batch dryer coffee bean dryer |
| Function | Low temperature batch drying |
| Raw Material | carbon steel stainless steel |
| After-Sales Service Provided | One year |
| Heating Source | Clean hot air |
| Capacity | 15 20 25 30 35T per batch |
| Color | can be customized |
| MOQ | 1 set |
| Installation | can be provided |

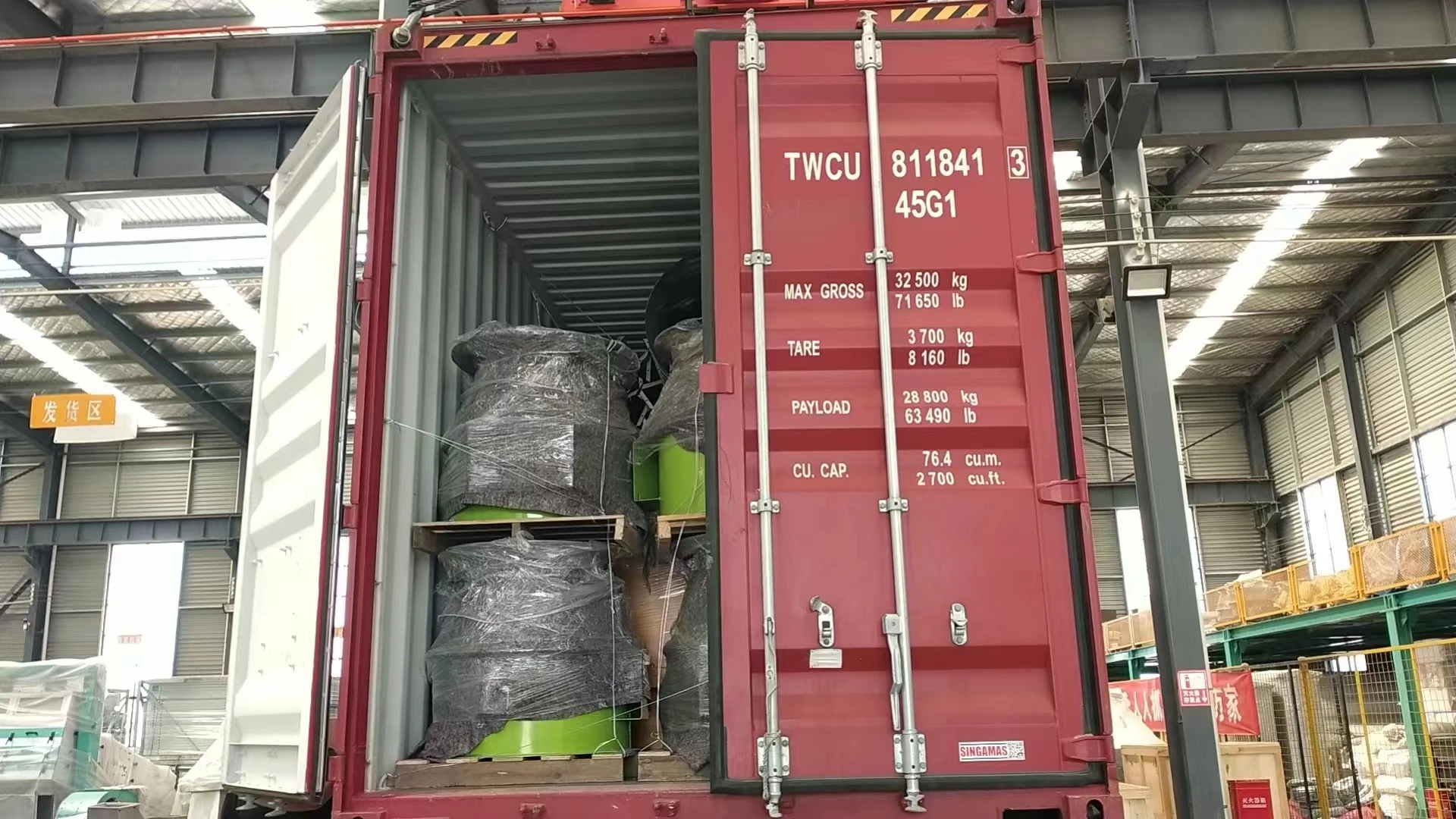

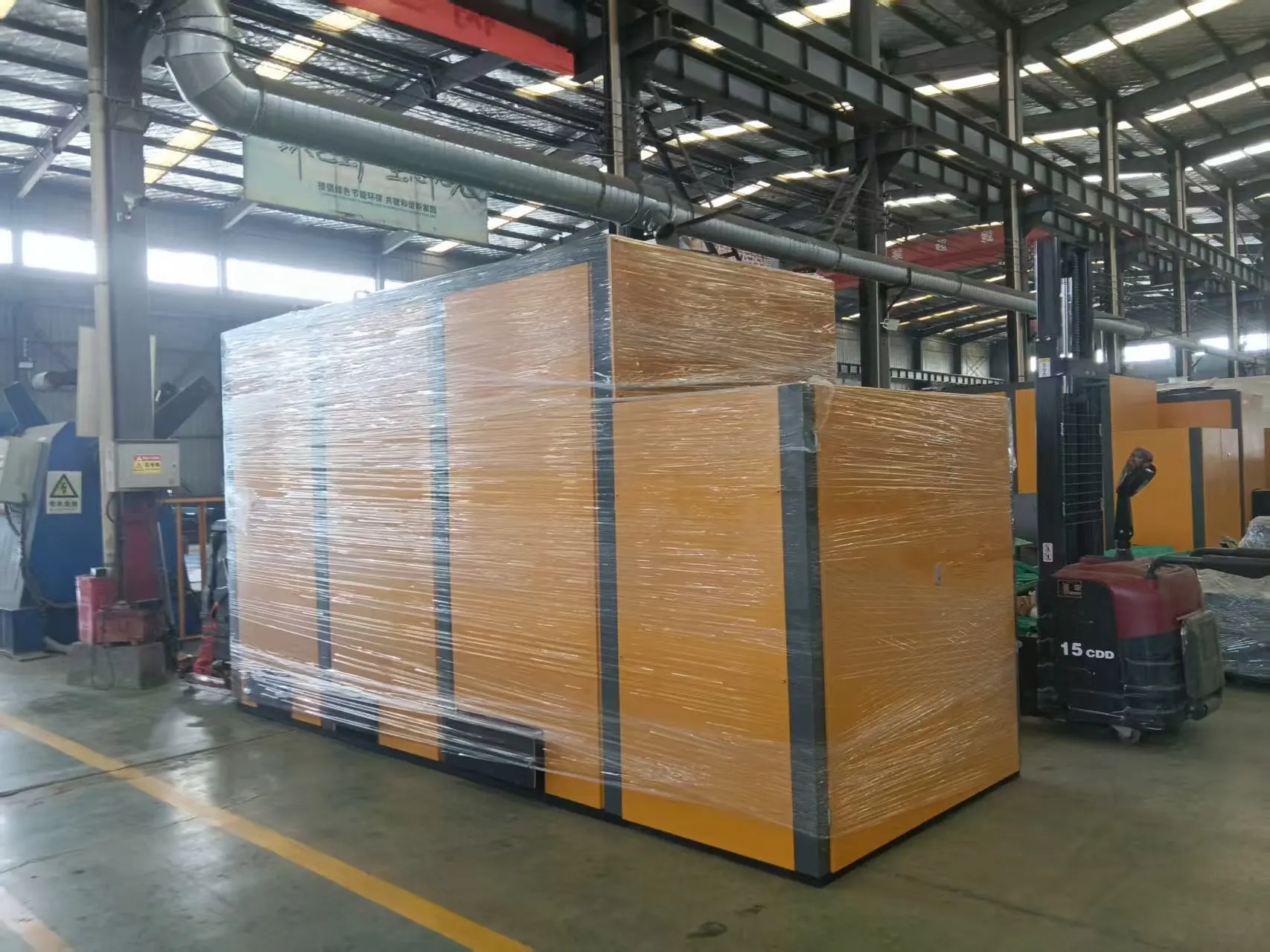

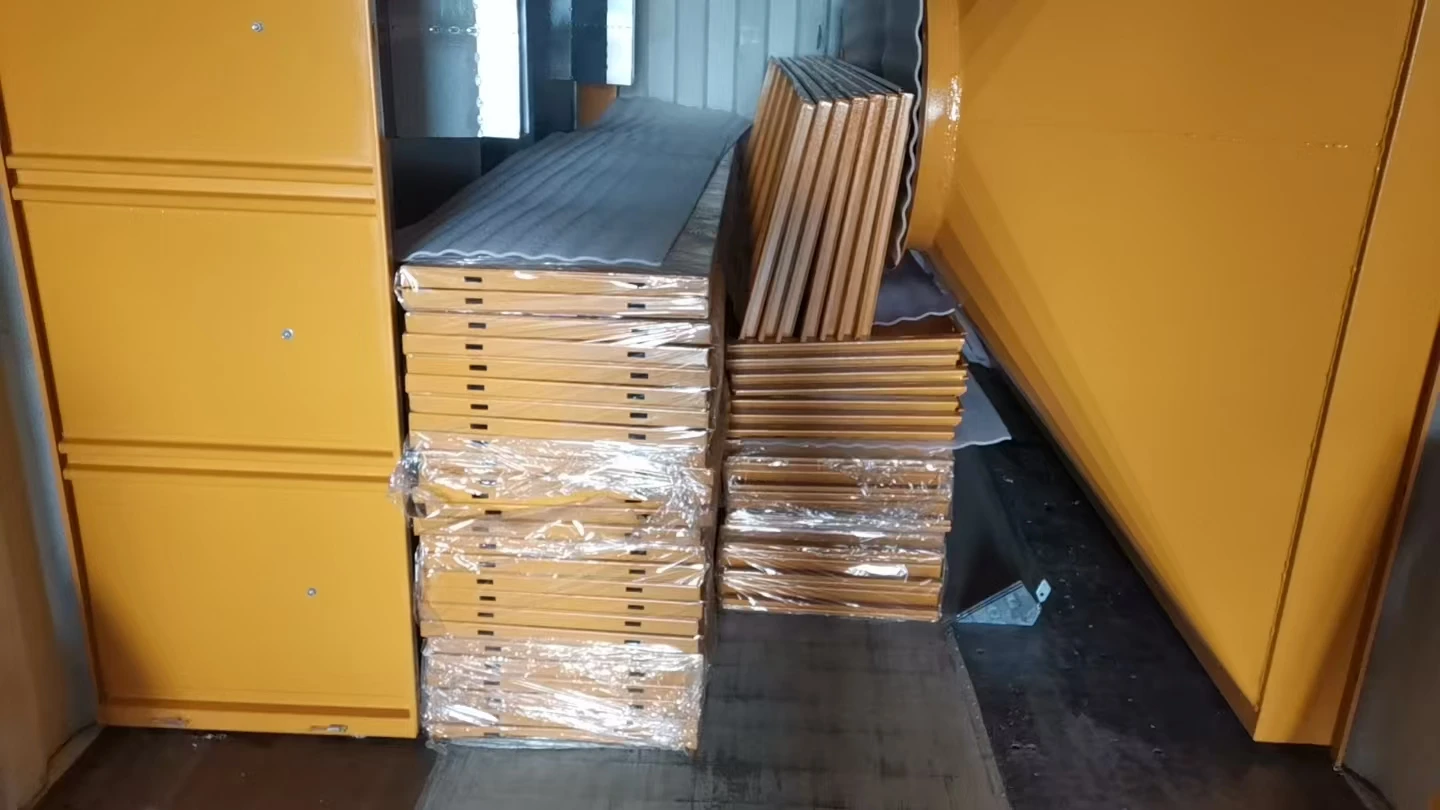

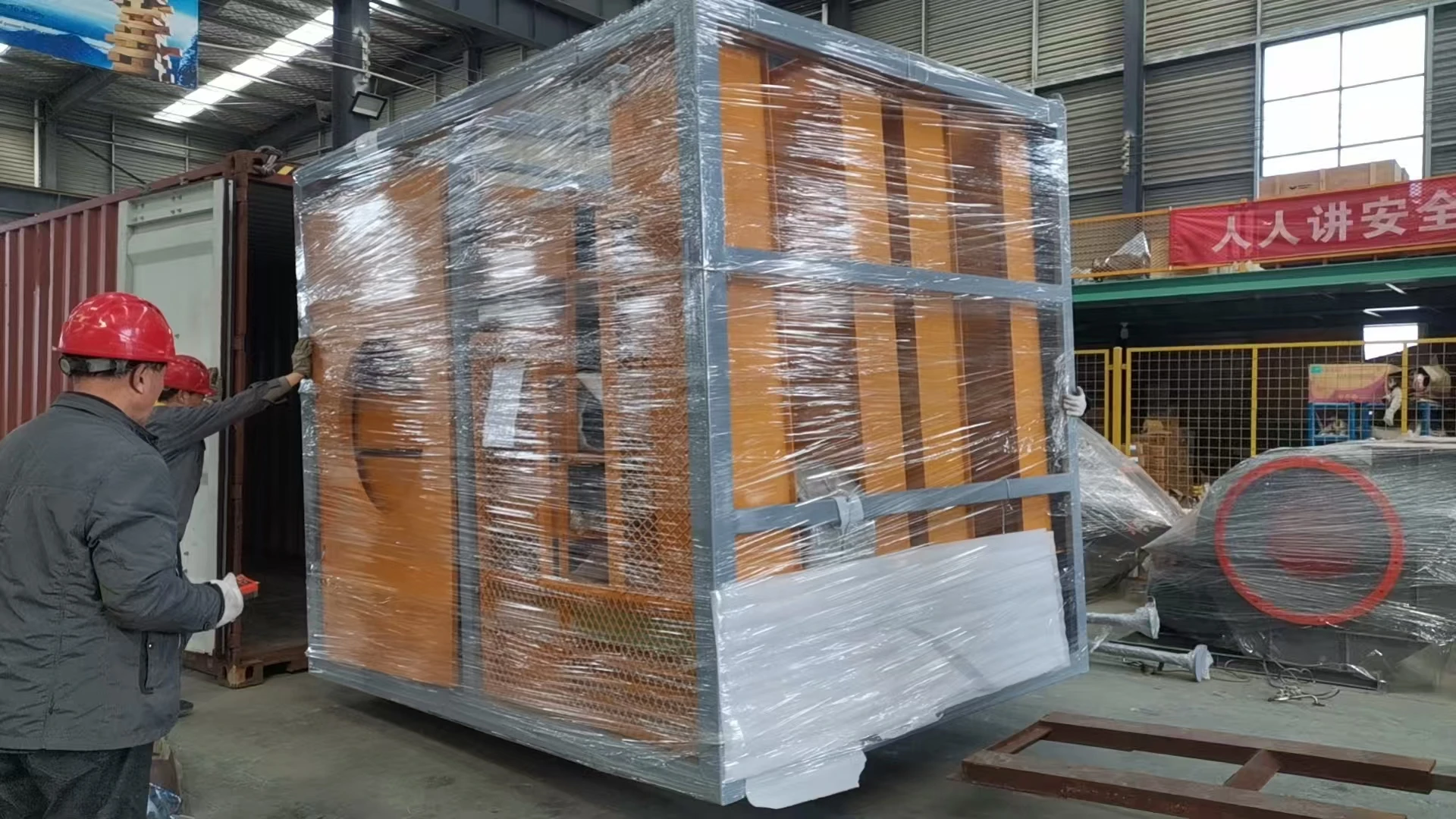

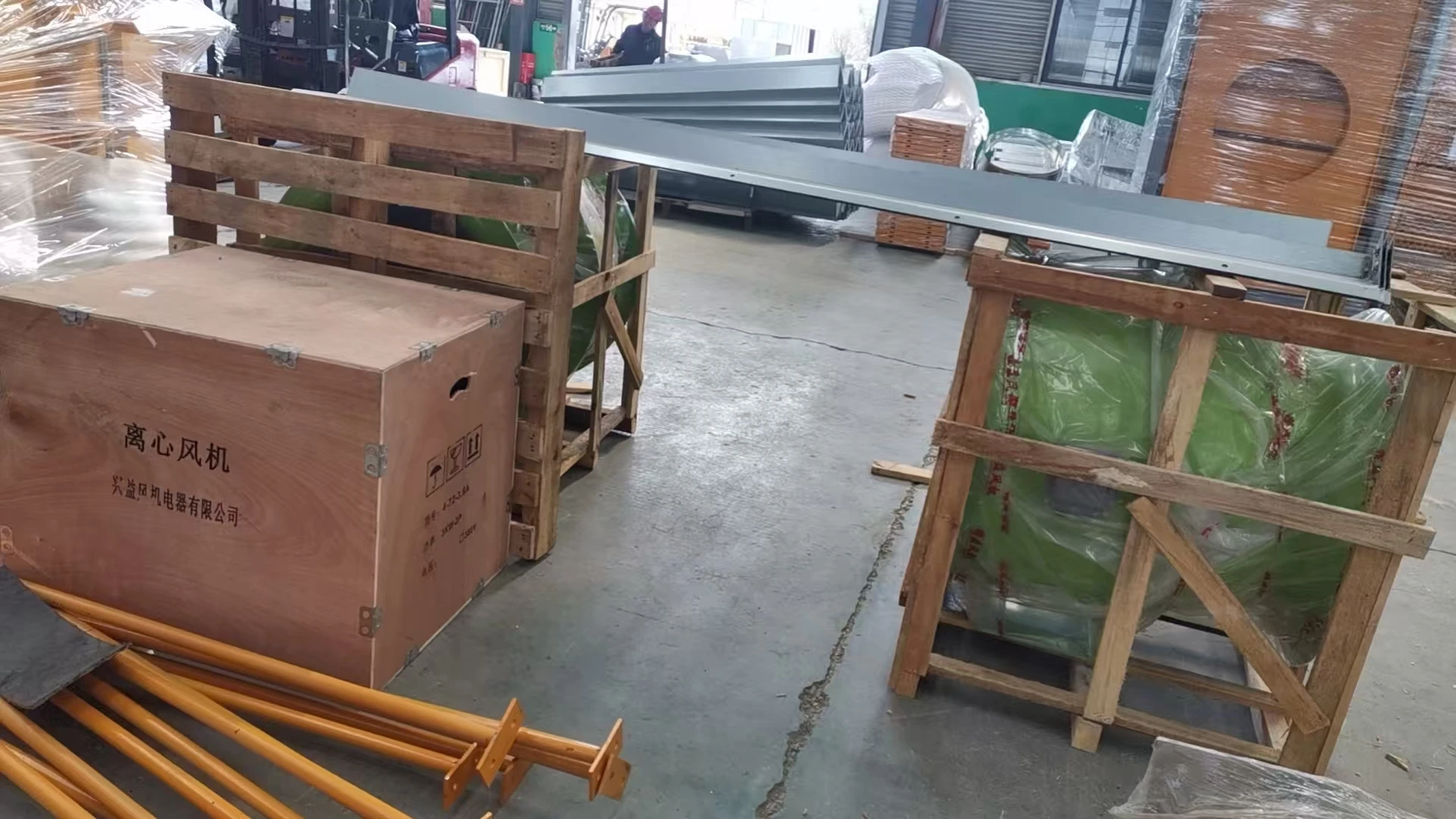

| Package | wrapped with protective film wooden case |
| Fuel | coal wood gas diesel husk biomass |
| Selling Units | Single item |
Product Details
Dryer description
Number | Items | Unit | Specification | Specification | Specification | Specification | Specification |
1 | Model type | / | 5HKB-15 | 5HKB-20 | 5HKB-25 | 5HKB-30 | 5HKB-35 |
2 | Drying method | / | Indirect heating | Indirect heating | Indirect heating | Indirect heating | Indirect heating |
3 | Dimension | mm | 2900*4050*11500 | 2900*4050*12200 | 2200*4100*13500 | 3500*4400*12200 | 3500*4400*13330 |
4 | Batch processing | T | 15 | 20 | 25 | 30 | 35 |
5 | Drying rate | %/h | 0.5-1.2 | 0.5-1.2 | 0.5-1.2 | 0.5-1.2 | 0.5-1.2 |
6 | Hot air temperature | ℃ | 45 ~ 120 | 45 ~ 120 | 45 ~ 120 | 45 ~ 120 | 45 ~ 120 |
7 | Total power | KW | 8.7 | 8.7 | 9.4 | 15.4 | 15.4 |
8 | Weight | T | 5 | 6 | 6.6 | 8.7 | 9.5 |

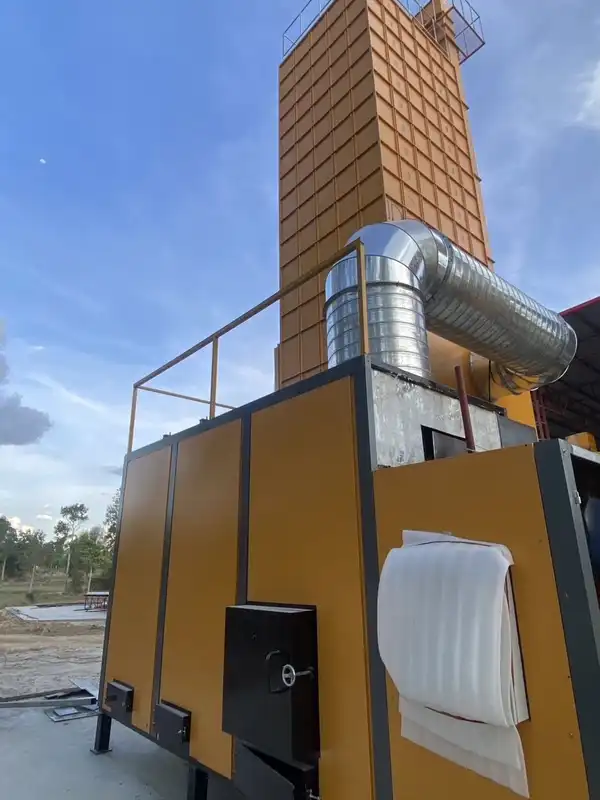

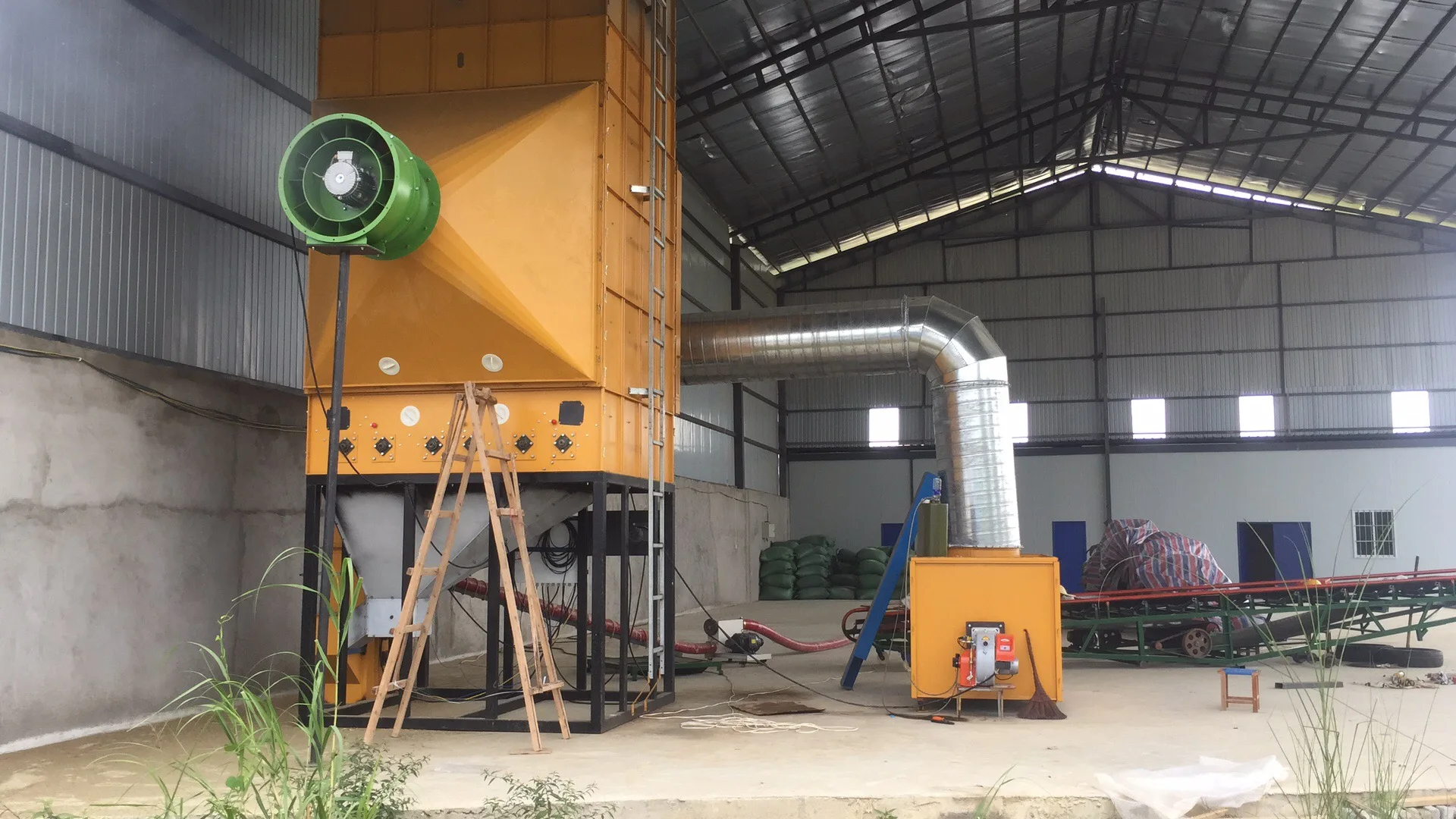

Hot air furnace
Oil burner; Gas burner
Yes. We provide customized solutions based on customers requirements,For example color of dryer,Voltage,Raw material
We provide professional technical support, installation team and long-term after-sales service to ensure smooth equipment operation
A:Advance 30% T/T deposit and 70% balance before shipment. B:100% irrevocable L/C at sight
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $14925 / set
- 2+ set: US $14500 / set
- Ships from: HK
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this circulating tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the circulating tower be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by AGNIX (HK) LIMITED. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full AGNIX (HK) LIMITED range on HVACR Nexus.
