The cmh fan listed here carries 220V/50Hz, air flow From 600 to 1200 CMH, documented exactly as the manufacturer publishes it. Made by Guangzhou Klc Cleantech Co., Ltd. (22 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cmh Fan
- Model Number: KLC-FFU/ fan filter unit
- Power Supply: 220V/50Hz
- Air Flow: From 600 to 1200 CMH
- Material: Stainless steel 304 or galvanized steel
- Wind Speed: 0.45m/s
- Warranty: 1 Year
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Place Of Origin | China |
| Brand Name | KLC |
| Weight (Kg) | 30 |
| After-Sales Service Provided | Overseas service center available |
| Model Number | KLC-FFU/ fan filter unit |
| Air Flow | From 600 to 1200 CMH |
| Function | Purifying equipment |
| Wind Speed | 0.45m/s |
| Material | Stainless steel 304 or galvanized steel |
| HEPA Efficiency | H13, 99.99% at 0.3μm |
| Power Supply | 220V/50Hz |
| Brand | KLC |
| Packaging Details | inner package: carton outer package:standard export package in plywood for pharmaceutical air flow 1000 CMH fan filter unit. |
| Port Of Dispatch | Guangzhou |
| Selling Units | Single item |
| Supply Ability | 300 sets per Day |
Product Details
All sizes and styles can be customized | ||||||||||
Model | FUAC-1 | FUAC-2 | FUAC-3 | FUAC-4 | ||||||
Size (WxLxHmm) | 575x875x375 | 575x1175x375 | 615x1225x375 | 875x1175x375 | ||||||
Air chamber material | Galvalume / aluminum / stainless steel | |||||||||
Air Flow (m³/h) | 800~900 | 1000~1100 | 1100~1200 | 1600~1700 | ||||||
Air velocity (m/s) | 0.35~0.55 | 0.35~0.55 | 0.35~0.55 | 0.35~0.55 | ||||||
Total pressure (Pa) | 175 | 185 | 195 | 255 | ||||||
Power (W) | 85 | 95 | 115 | 235 | ||||||
Weight (kg) | 27 | 37 | 40 | 42 | ||||||
Noise dB (1m below the HEPA filter) | 55~63 | |||||||||
Vibration (mm/s) | 0.2~0.7 | |||||||||
Power supply | 220V 1PH 50/60Hz (330V 3PH 50/60Hz 110V 1PH 50/60Hz) | |||||||||
Control mode | 3 levels adjustable manually or group control by computer | |||||||||
Options | DOP inject port / DOP sample port / differential pressure drop test port / differential pressure drop alarm device | |||||||||

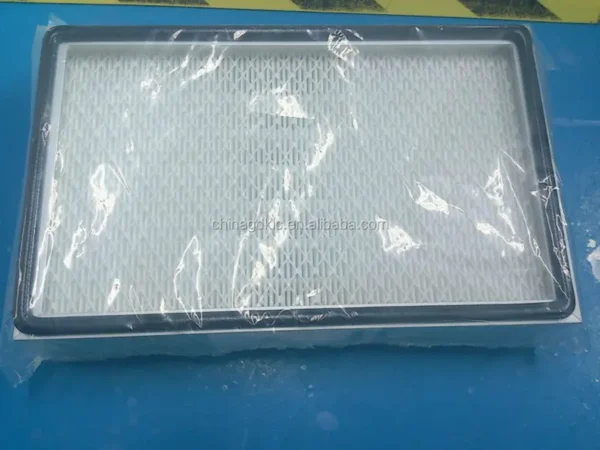

HEPA filter | Size (WxHxDmm) | 570x870x69 | 570x1170x69 | 610x1220x69 | 870x1170x69 | |||||
Efficiency | 99.99% 0.3μm | |||||||||
Frame | High quality anodized aluminum | |||||||||
Initial pressure drop | 110Pa@0.45m/s±15% | |||||||||
Trait | PU foam endless gasket | |||||||||
A: We are manufacturer with professional designers and engineers. Our factory is located in Guangzhou city.
2. Q: How long is your warranty? Can we extend?
A: 12 months after installation and commissioning. Warranty can be extended with extra charge.
A: Yes, we have engineer team for ODM and OEM services
4. Q: What documents will you provide?
A: Usually we will provide DQ, IQ, PQ, OQ, FAT, SAT, operation manual, maintenance instruction, layout drawing etc.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $200 / set
- 20–49 set: US $160 / set
- 50–99 set: US $120 / set
- 100+ set: US $100 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cmh fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cmh fan be supplied for my local voltage?
The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Klc Cleantech Co., Ltd., based in China. The company 22 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Klc Cleantech Co., Ltd. range on HVACR Nexus.
