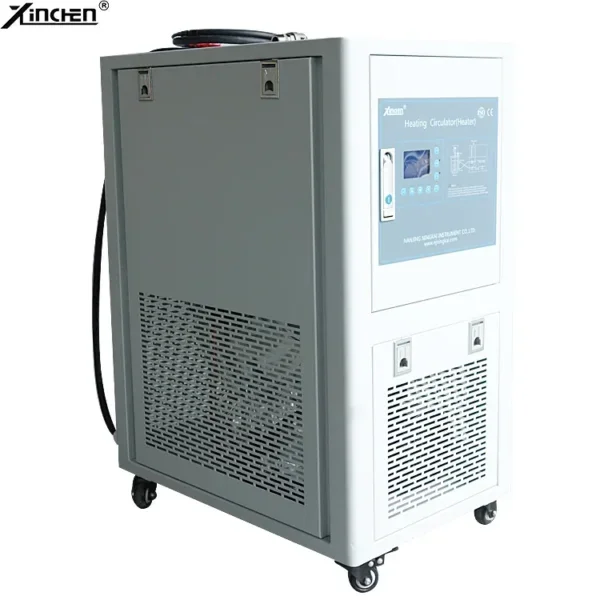

Combo Systems Circulation Heaterchiller, 250, 480V, 13KW

This combo systems circulation heaterchiller is published with the manufacturer’s full specification — 480V/60Hz, 13KW. Made by Nanjing Ningkai Instrument Co., Ltd. (7 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Combo Systems Circulation Heaterchiller

• Power(W): 13KW
• Power Supply: 380V/50Hz 600V/60Hz
• Heating Power: 5KW@200C/4KW@100C/0.8KW@50C
• Voltage: 480V/60Hz
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Product Description

Laboratory Low Temperature Cooling Machine Chiller Application

◎ Rotary Evaportor

◎ Fermentation tank

◎ Pilot systems

◎ Mini plant systems

◎ Molecular Distillation systems

◎ Material testing

◎ Vacuum chambers

◎ Combinational chemistry

◎ Semiconductor industry

◎ Scale up for operational development

We have different models of laboratory cooling circulator, cooling capacity is big, cooling speed is high, greatly imporve work efficiency and meet the actual needs of different users.

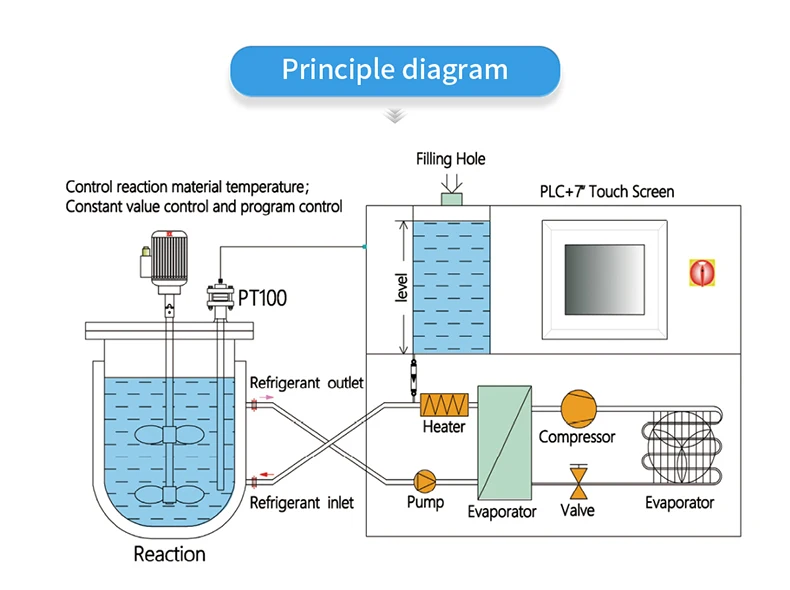

1. Circulating cooling medium: HTF, industrial alcohol or water-glycol mixture for circulating , conservation of resources.

2. Tight loop piping design, prevent cooling medium pollution, extending the cycle time of the use of cooling medium.

3. Multiple safety protection, more reliable.

4. Imported compressor, cold cascade refrigeration technology.

5. Using cold technology to ensure the stability of low temperatures.

6. It can be set to turn on the compressor and turn off the compressor temperature difference.

7. Ambient temperature detection function to prevent the system operating environment temperature is too high.

8. A variety of fault alarm( over-temperature alarm, sensor alarm, high pressure alarm, compressor overheating alarm, level alarm)

9. A fully enclosed design, low temperature process without water absorbtion, to ensure the purity of the cooling medium, to prevent ice crystals, prelong cooling medium life.

10. High-performance circulating pump, can ensure continuous operation 24 hours a day.

11. Using cold plate heat exchanger to provide heat transfer efficiency.

Specification

Model

LX-0250

LX-0400

LX-0700

LX-1000

LX-1450

LX-2000

LX-2600

Temp.Range

-25℃~30℃

Temp control and display

ASET multi-function controller, optional color touch screen operation and display

Temperature control selection

Control the temperature of cooling medium outlet

Communication protocol

MODBUS RTU protocol RS485 interface

Temperature feedback

The built-in cooling medium PT100 feedback

Cooling  capacity

0℃

1.5KW

2.4KW

4KW

7.5KW

10KW

15KW

20KW

-10℃

1KW

1.5KW

2.7KW

6.3KW

8KW

12KW

15KW

-20℃

0.55KW

0.8KW

1.5KW

3.5KW

5KW

7.3KW

10KW

Circulating pump flow rate / Pressure

Max 20L/min; 1.5bar

Max 20L/min; 1.5bar

Max 35L/min; 2.5bar

Max 35L/min; 2.5bar

Max 75L/min; 2.5bar

Max 75L/min; 2.5bar

Max 110L/min; 2.5bar

Storage tank volume

15L

15L

25L

25L

40L

60L

80L

Compressor

Copeland or Dorin

Evaporator

Kaori Plate heat exchanger

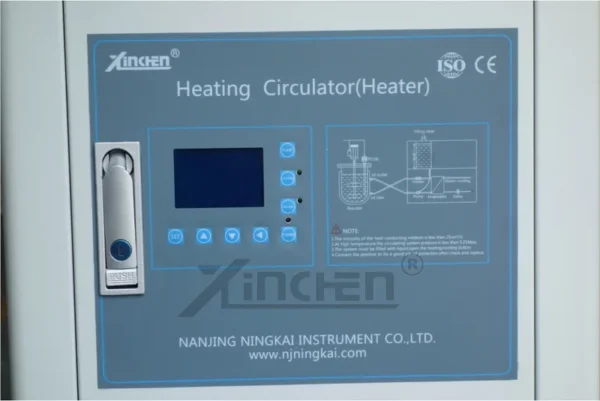

Operation panel

Touch button, LCD screen display

Safety protection

Equipped with overload protection of refrigeration unit, high pressure switch, overload relay, thermel protection device, and other safety protection functions.

Refrigerant

R404A

Interface connector

DN15

DN20

DN20

DN20

DN20

DN20

DN25

Power supply

Single phase AC220V/50Hz

3 Phase AC380V/50HZ

Total power(Max)

1.5KW

2KW

2.5KW

3.5KW

5KW

6.5KW

8.5KW

Dimension

400*600* 1150mm

400*600* 1150mm

500*680* 1350mm

500*680*1350mm

680*700*1650mm

750*750*1800mm

850*850*1850mm

Shell material

Cold rolled plate spray (optional SUS304 shell)

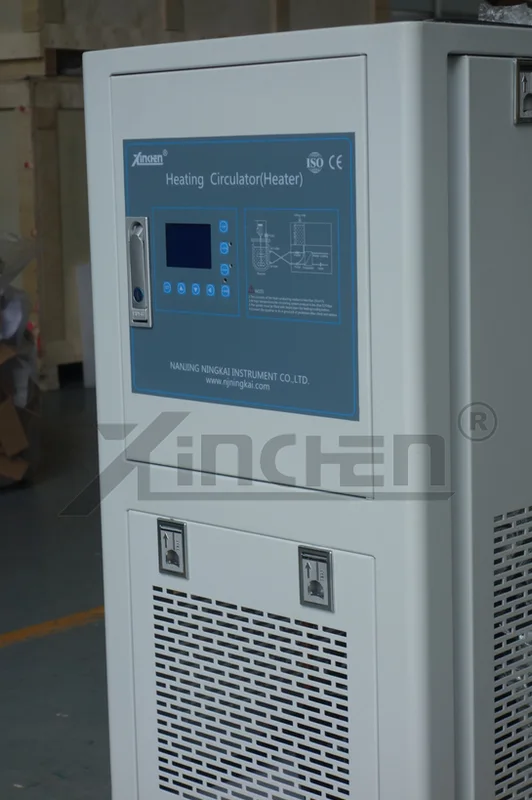

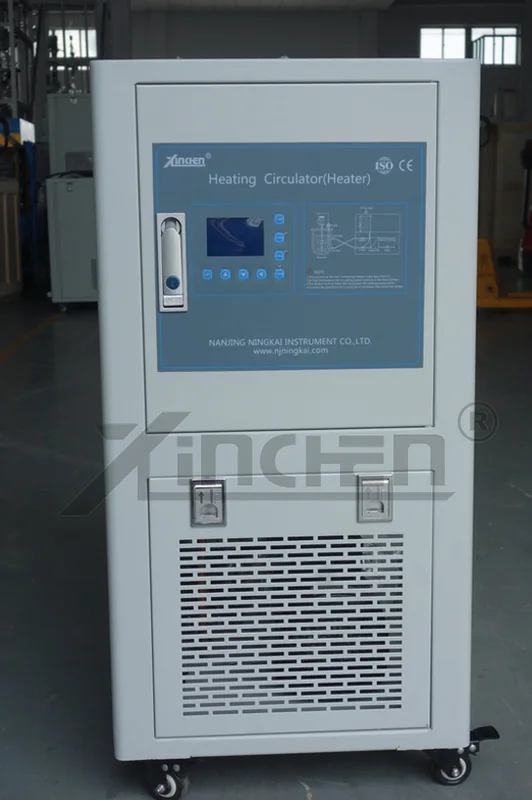

Details Images

About Us

Company introduction

Nanjing Ningkai Instrument Co., Ltd. is a source factory with 10 years of experience in the equipment manufacturing industry. It specializes in the production of glass (metal) reactors and supporting heating, cooling and temperature control systems, ultrasonic cell disruptors, short-path molecular distillation equipment, rotary evaporators, tubular reactors and other scientific research and pilot-scale equipment. Our products are exported to 58 countries, including Russia, the United States, Denmark, Poland, Israel, South Korea, Japan, Spain, Mexico, India and so on.

Exhibition

Our company actively participates in various world exhibitions. During these exhibitions, we get to know customers from different countries. When they visit our products, our professionals explain these devices to them in detail. The customers show great fondness for our products and have pleasant photo -taking sessions for memory.

Customers visit factory

Here are some photos documenting the scene of our customers visiting our factory. They actively participated in the on-site Q&A sessions and product testing, and we also provided them with detailed on-site introductions. Our customers spoke highly of our products, and pleasant cooperation was reached right on the spot.

Our Advantage

1.Price Advantage: We own a modern factory and bypass the distributor link. The cost savings are directly passed on to customers, allowing you to purchase high – quality products at affordable prices, with extremely high cost – effectiveness.

2.R & D Strength: Our R & D team brings together elites from multiple fields such as materials science and electronic engineering. Senior experts and young backbones collaborate. With their profound professional knowledge, they utilize advanced technology and equipment to strictly test and optimize products, strictly controlling every quality detail.
3. Quality and After – sales Guarantee: Relying on our own factory and R & D team, we have established an unbreakable guarantee system. From raw material procurement to finished product delivery, each link follows high standards, and there are dedicated personnel to check. If there are any problems with the products, our R & D team can respond quickly and solve them, leaving you with no worries.
4.Business Philosophy and Prospect: We adhere to the business philosophy of operating with heart. In the future, we will continue to provide high – quality products and attentive services as always. We look forward to establishing a closer connection with you and becoming your trusted partner.

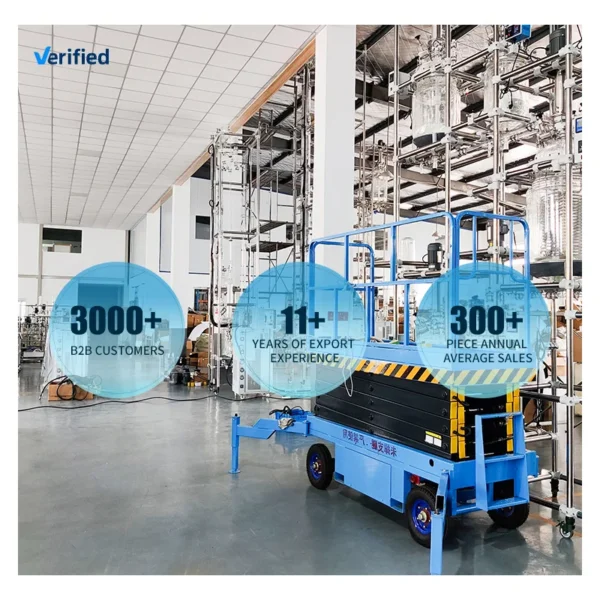

Our factory

Daily work of staff

At Ningkai Instruments' workshop, a dedicated team works hard to craft top – notch research equipment, quietly driving industry progress. They carefully choose raw materials, test sheet metal multiple times for compliance. Their skilled operation cuts, welds, and assembles. Instruments undergo meticulous debugging with parameter recalibration. With supervisors and inspectors overseeing, products pass comprehensive checks and long – term running tests. Their dedication ensures Ningkai's globally -trusted quality, fueling scientific research advancement.

Packing & Delivery

1.Packing method: Standard export wooden box or base on your requests.

2. Shipping method: By Express door to door, or by ship, based on your choice.
1) If delivery goods by Express, door to door service , generally about 5-7 working days reach.
2) If by air, deliver goods to your destination airport, about 5 working days reach.
3) If by sea, deliver goods to your local seaport, specific days and cost is based on different shipping line.
3. Warranty: Any broken or damages of equipment caused by delivery, will be afforded by Nanjing Ningkai company.
4.Our expectations: Every item in the process of transportation carries our sincere intentions. We deeply understand that logistics serves as a crucial link connecting you with the products you desire. Whether you are in a remote area or a bustling city, and whether facing adverse weather conditions or complex customs formalities, we will spare no effort to overcome difficulties, deliver the goods promptly, and bring you a convenient and worry-free shopping experience.
Shipping: By sea or by air as you wishes .( TNT , UPS , FedEx , EMS , DHL , SF or other logistics )

Certifications

FAQ

1.How long is the customization lead – time?
The delivery time is determined according to the complexity of the process. Under the condition of a simple process, delivery is generally made within two weeks.

2.How much is the customized price?
Our customized prices are mainly determined by the cost of raw materials, the complexity of the production process, and the uniqueness of your customization requirements. Since we are a factory at the source, we're open to price negotiations.

3.Do you have any certification certificates?
We have obtained the CE certification.

4.Will you provide operation training after purchase? And what are the training methods?
We offer user manuals and installation videos. Moreover, we can also provide on-site installation and testing services.

5.What's the warranty period of the equipment?
We offer a one-year free warranty.

6.What safety protection devices does the equipment have and what dangerous situations can they prevent?
Multiple safety protections are in place: automatic protection against over – temperature and over – pressure to prevent thermal run away and bursting; timely alarm and shutdown in case of leakage detection; an emergency stop button is provided; and there is also an explosion – proof device to ensure safe operation.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–1 set: US $6000 / set
  • 2–2 set: US $5500 / set
  • 3+ set: US $5000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this combo systems circulation heaterchiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the combo systems circulation heaterchiller be supplied for my local voltage?

The standard configuration is 480V/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
