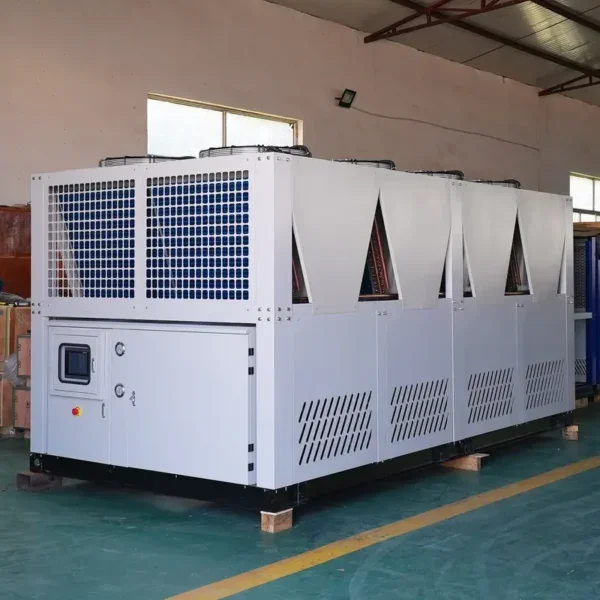

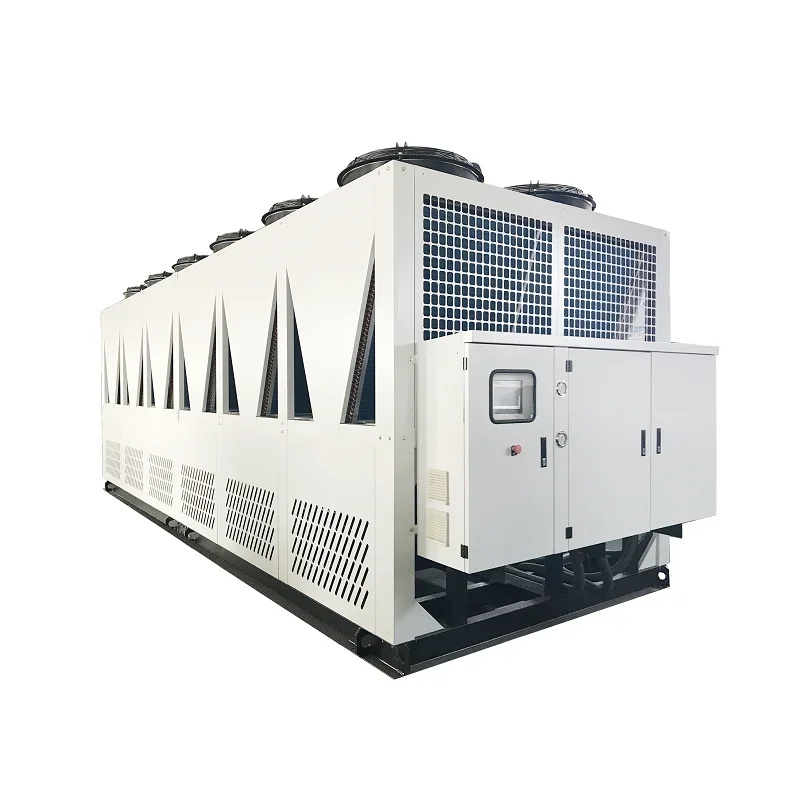

Cooled Screw Water Chiller, 200kw, 300kw, 400kw

The cooled screw water chiller listed here carries 380V/50HZ, 440V/60HZ, air flow rate 120000m³/h, documented exactly as the manufacturer publishes it. For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cooled Screw Water Chiller

• Model Number: 50Ton, 60Ton, 70Ton, 80Ton, 100Ton, 120Ton, 150Ton
• Power: 200kw(268.20hp), 300kw(402.31hp), 400kw(536.41hp)
• Compressor Power: 200kw
• Pump Power: 5.5KW
• Voltage: 380V/50HZ, 440V/60HZ
• Air Flow Rate: 120000m³/h

Technical Specifications

Product Details

Products Description

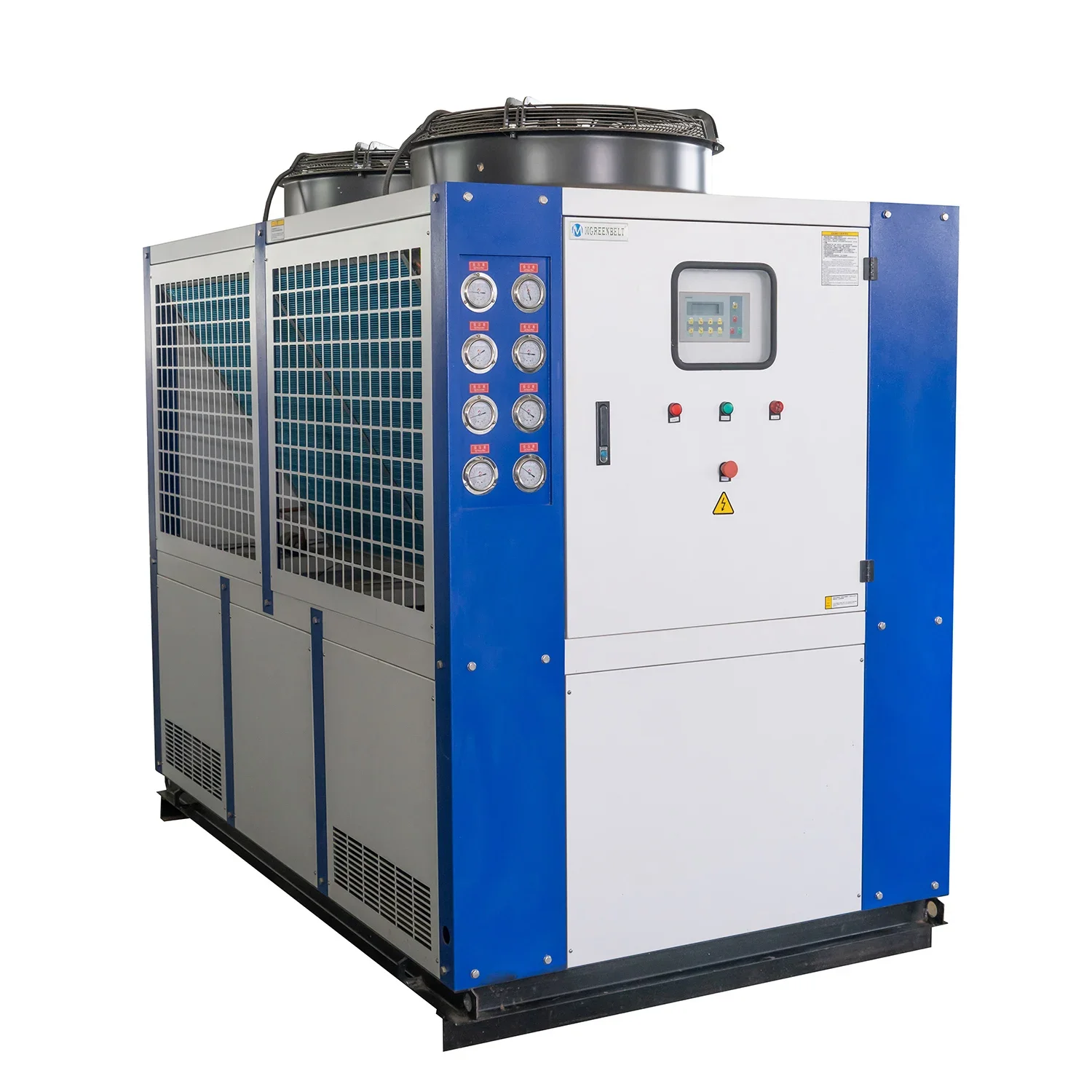

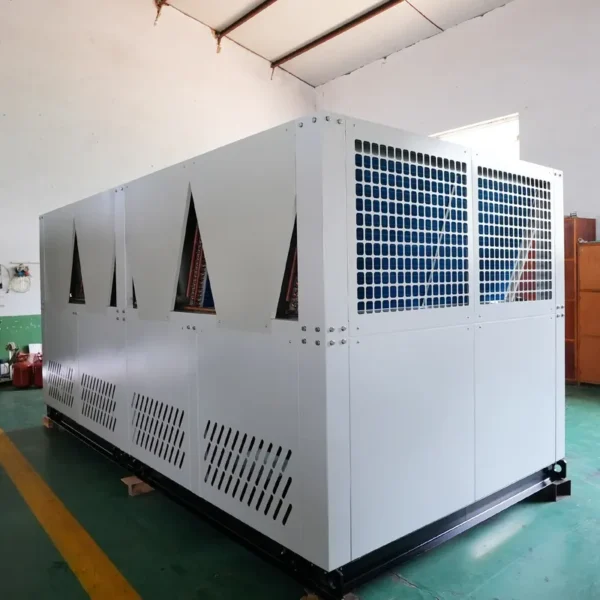

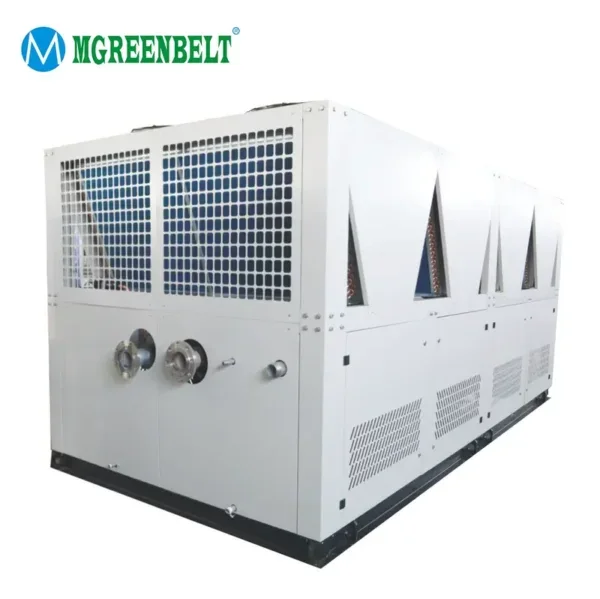

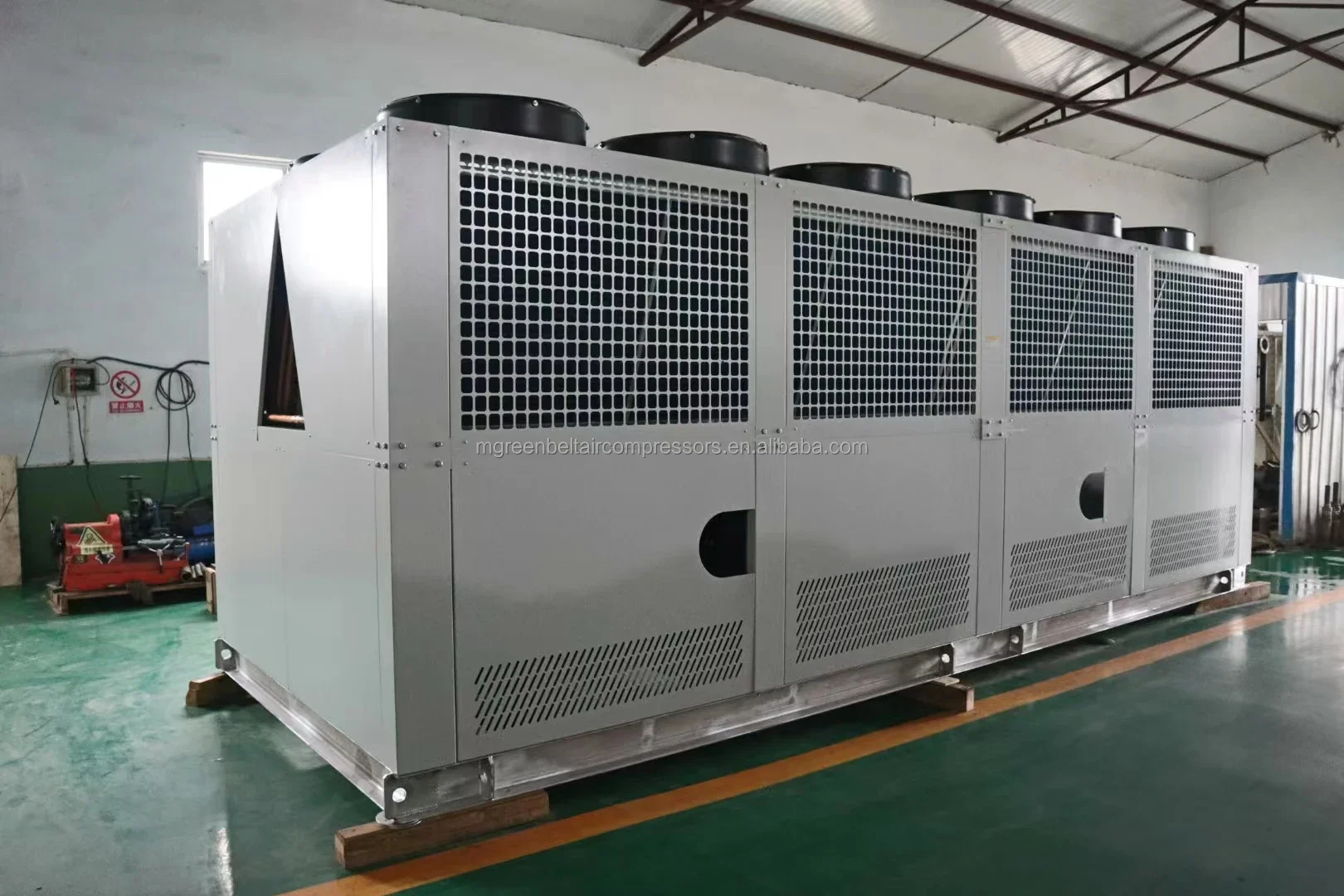

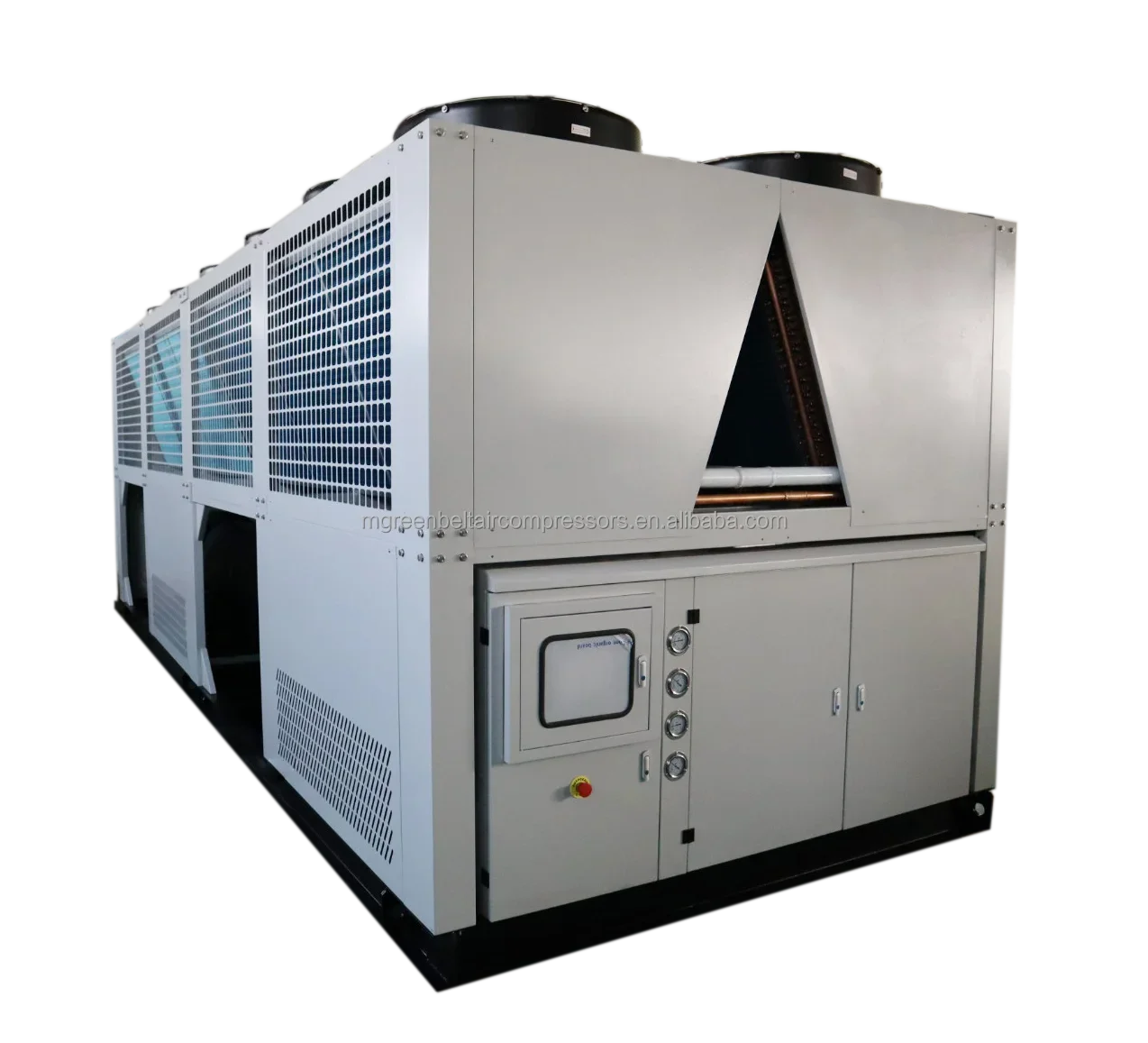

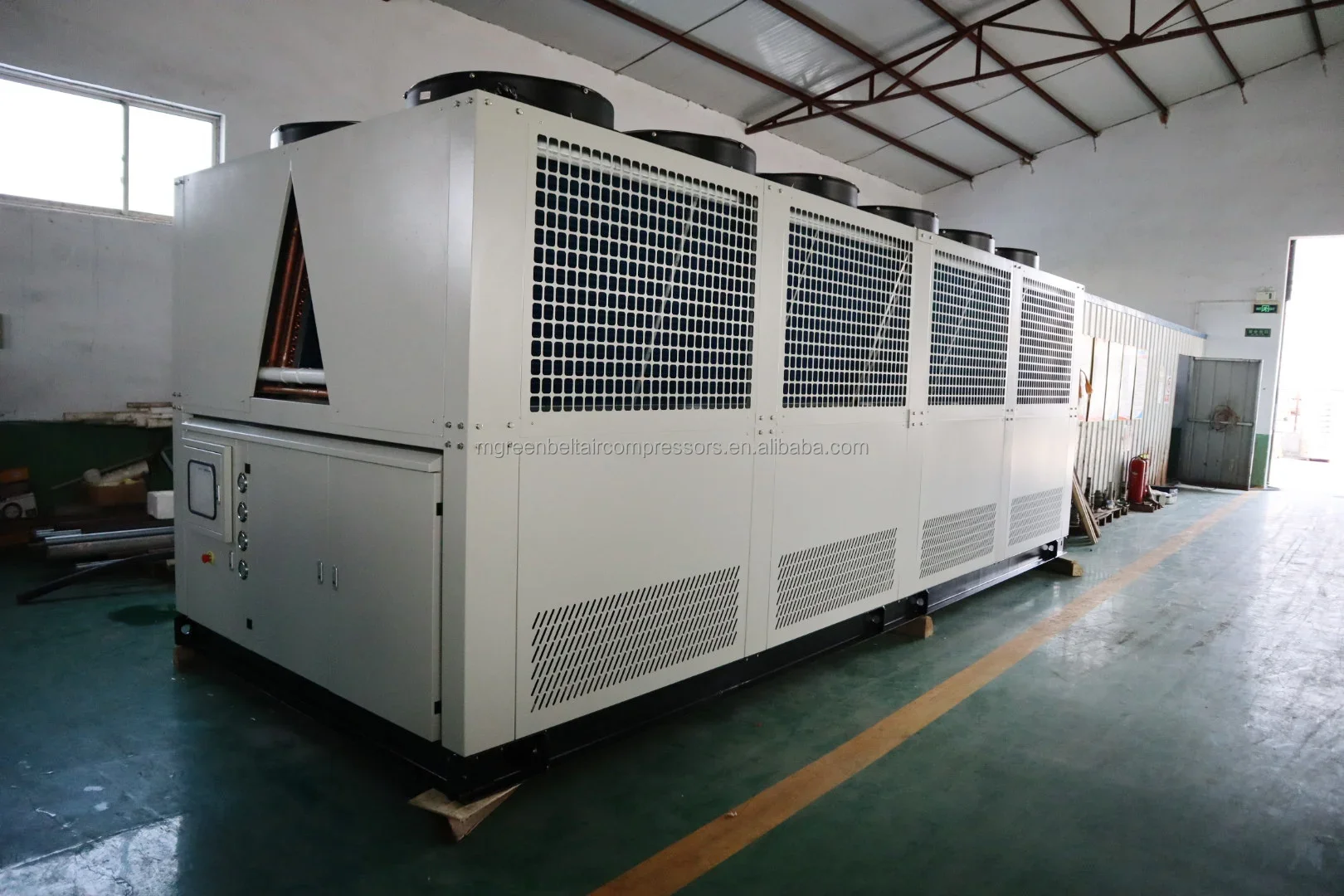

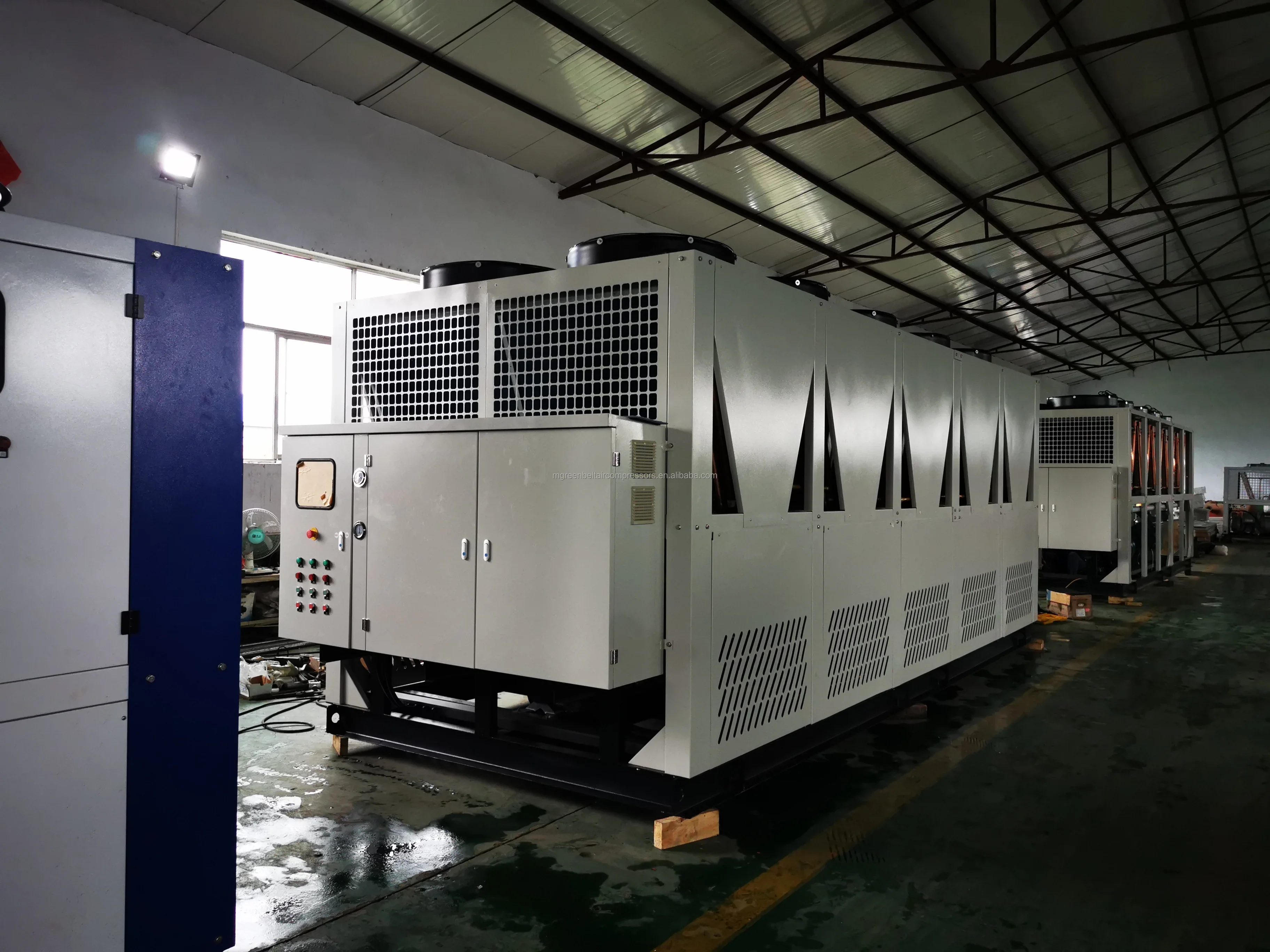

Air Cooled Water Chiller——-Screw Type

Plastic Molding Processing Cooling Air-cooled Screw Chiller

Design of air cooled water chiller
As industrial cooling solutions provider, Mgreenbelt offers full ranges of screw type chillers for variety of industries. Air
cooled screw chillers are equipped with effective capacity control. These line of industrial screw chillers can provide excellent cooling capacity so usually used for large capacity applications and industrial processing cooling , such as plastic injection, plastic extrusion, plastic bottle blowing and film blowing, concrete, chemicals. food and beverages,

ice rink, brewing,etc.

Model	Cooling Capacity	Compressor Power	Pump Power	Water Flow Rate
MG-80C	80 KW / 22.5 Ton/ 30HP	28 KW	3 KW	15 m3/h
MG-110C	110 KW / 31 Ton/ 40HP	37 KW	3 KW	20 m3/h
MG-140C	145 KW / 41 Ton/ 50HP	46 KW	4 KW	25 m3/h
MG-155C	155 Kw/ 44 Ton/ 60HP	51 KW	4 Kw	26 m3/h
MG-200C	210 KW /60 Ton/ 80HP	66 KW	4 KW	35 m3/h
MG-260C	260 KW /74 Ton/ 100HP	79 KW	4 KW	45 m3/h
MG-300C	310 KW/ 87 Ton/ 120HP	94 KW	5.5 KW	55 m3/h
MG-420C	425 KW/ 120Ton/ 160HP	127 KW	7.5 KW	75 m3/h
MG-420C	530 KW/ 150Ton/ 200HP	160 KW	11 KW	90 m3/h
MG-420C	615KW/ 175Ton/ 240HP	182 KW	11 KW	105 m3/h

Technical Specifications

Main Features of Air Cooled Chiller

(1). Outlet water temperature : 7 deg C~30 C

(2). Cooling capacity: 80-600kW
(3). Electric power supply available : 3phase-208v/220v/380v/415v/440v/460v-50Hz/60Hz

(4). Gas optional R407C / R134a / R22/R404A
(5). Compressor can be 1 or 2 units for one chiller

(6). Brand screw type compressor: Hanbell, ,Bitzer, Fusheng for options

Technical Parameter

Model			MG-140C	MG-155C	MG-200C	MG-260C	MG-300C	MG-420C
Cooling capacity	KW	143	153	206	256	307	424
Outlet water temp control			+7~+35 degree C Adjustable
Power Input			3Phase-380v,50hz 3phase-220v,60hz 3Phase-440v,60hz
Refrigerant	Type	R22/R407c/R404a/R134a/R507/R513A
		Control	Thermostatic expansion valve
compressor	Type	Semi-closed screw type
		kw	46	51	66	79	94	127
		start	Y-△
		Capacity	33%-66%-100%	25%-50%-75%-100%
Evaporator	Type	High efficiency copper tube shell and tube type
		m³/h Flow	25	26	35	44	53	73
		Inlet/Outlet	DN80	DN80	DN80	DN80	DN80	DN100
Condenser	Type	High efficiency hydrophilic aluminum foil finned type
		m³/h Flow	50000	60000	80000	100000	120000	160000
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L	2380	3250	4050	4050	4950	4680
		W	1900	1950	1950	1950	1950	2250
		H	1950	2000	2000	2100	2100	2460
Weight (KG)			2300	2480	3000	3100	3600	5000

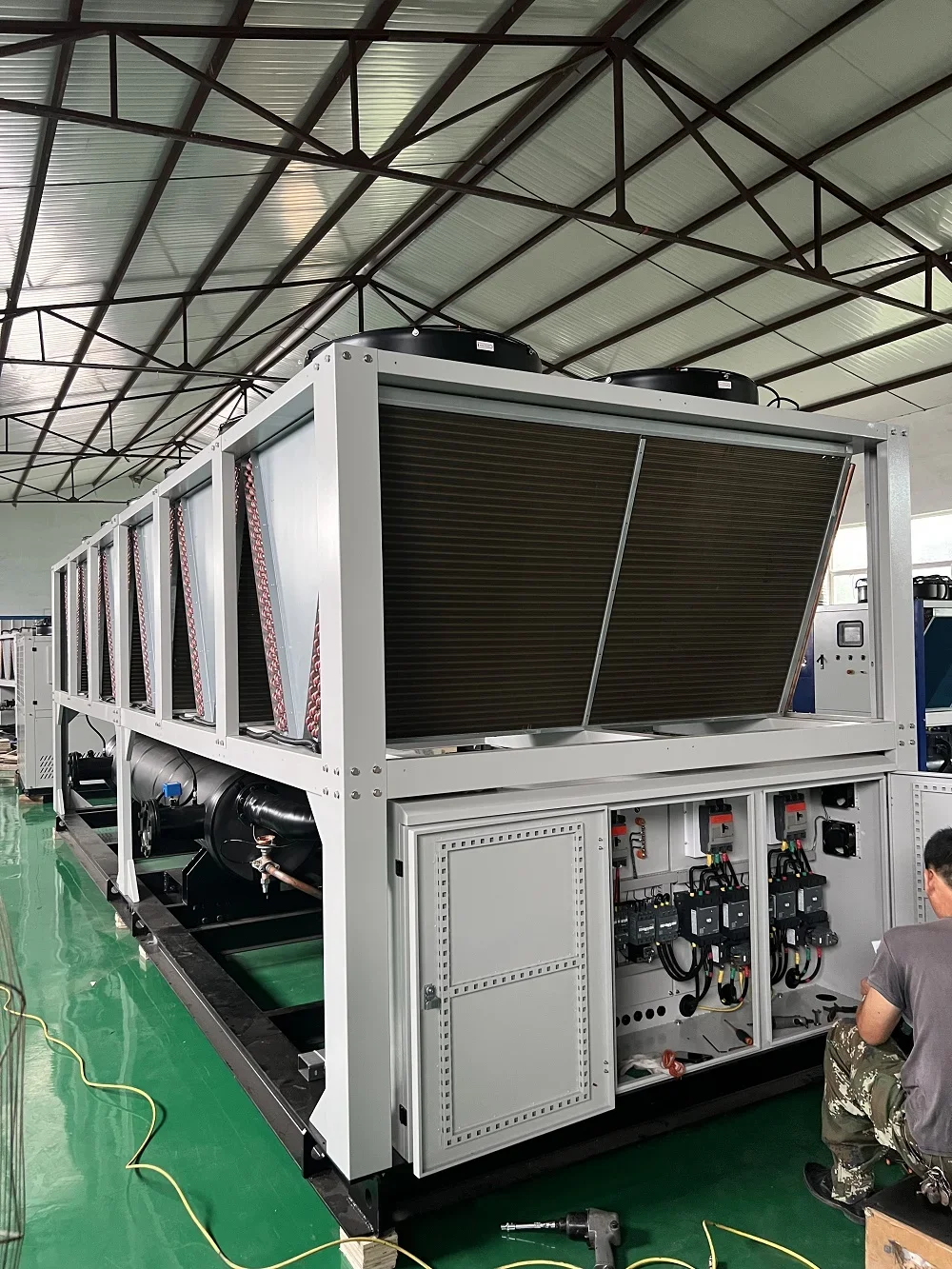

PRODUCT CONFIGURATION

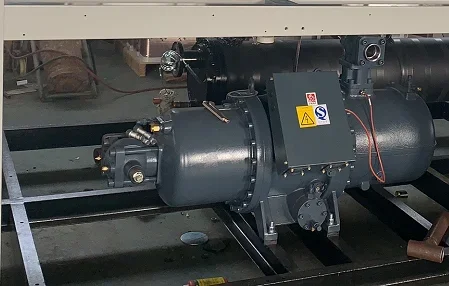

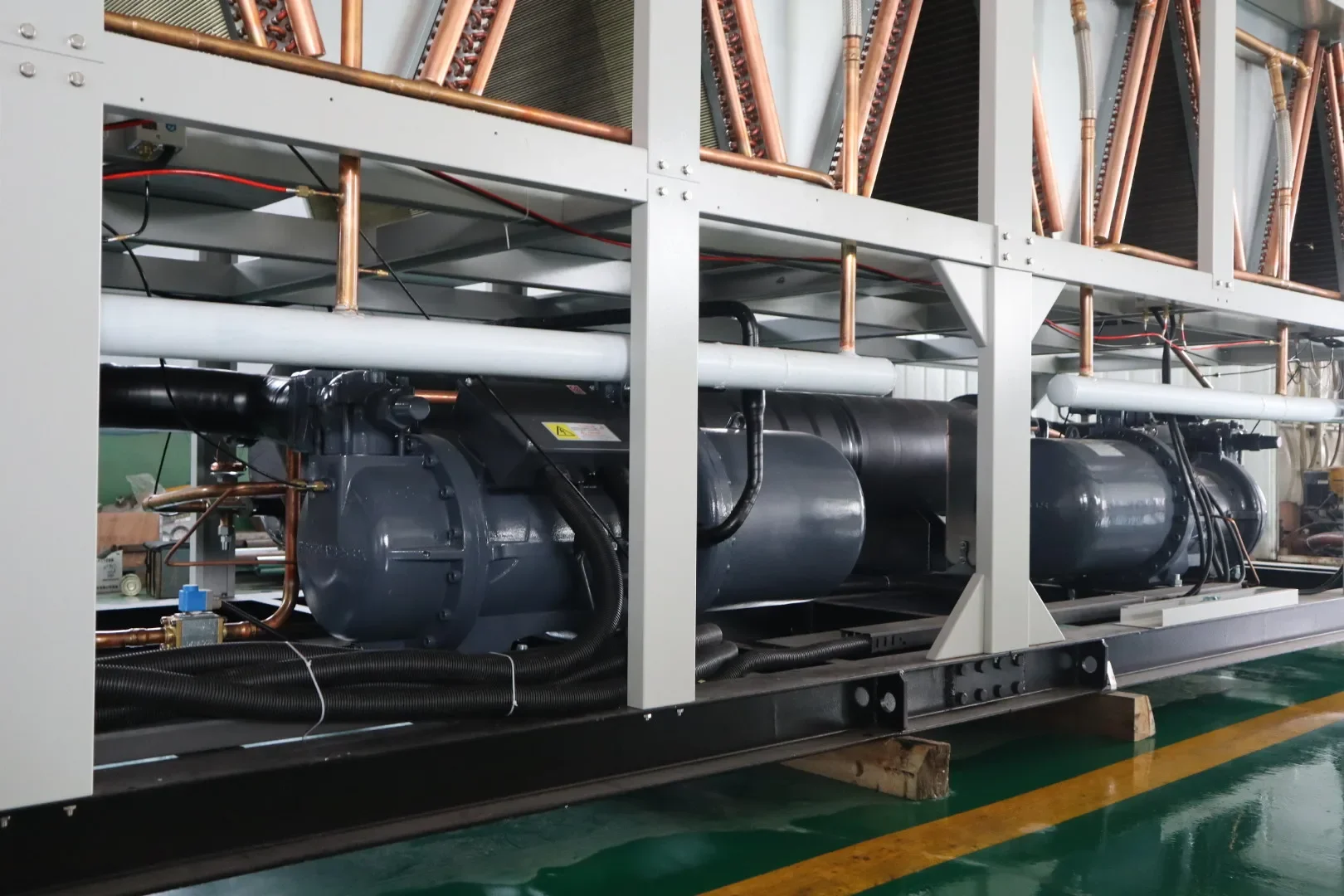

HANBELL / BITZER COMPRESSOR

Compressor can be 1 or 2 units for one chiller

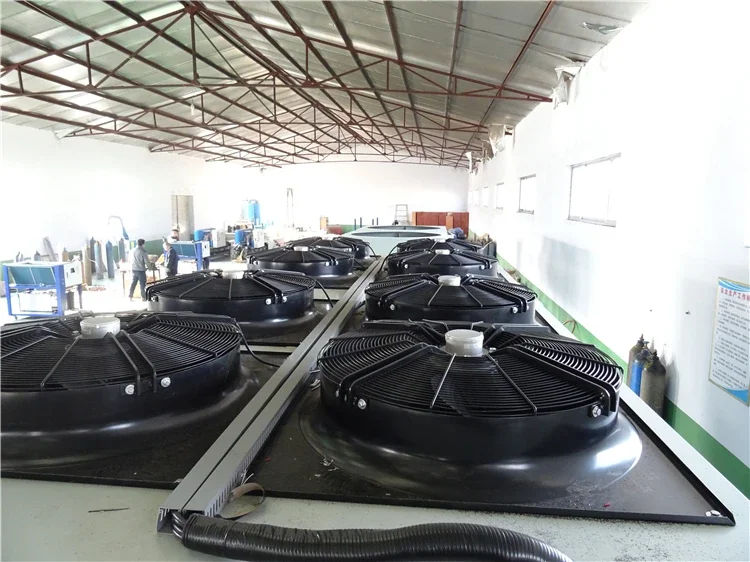

MAER FAN

1). Low noise ,high efficiency motor,

2). large air volume, small vibration,

3). good heat dissipation effect

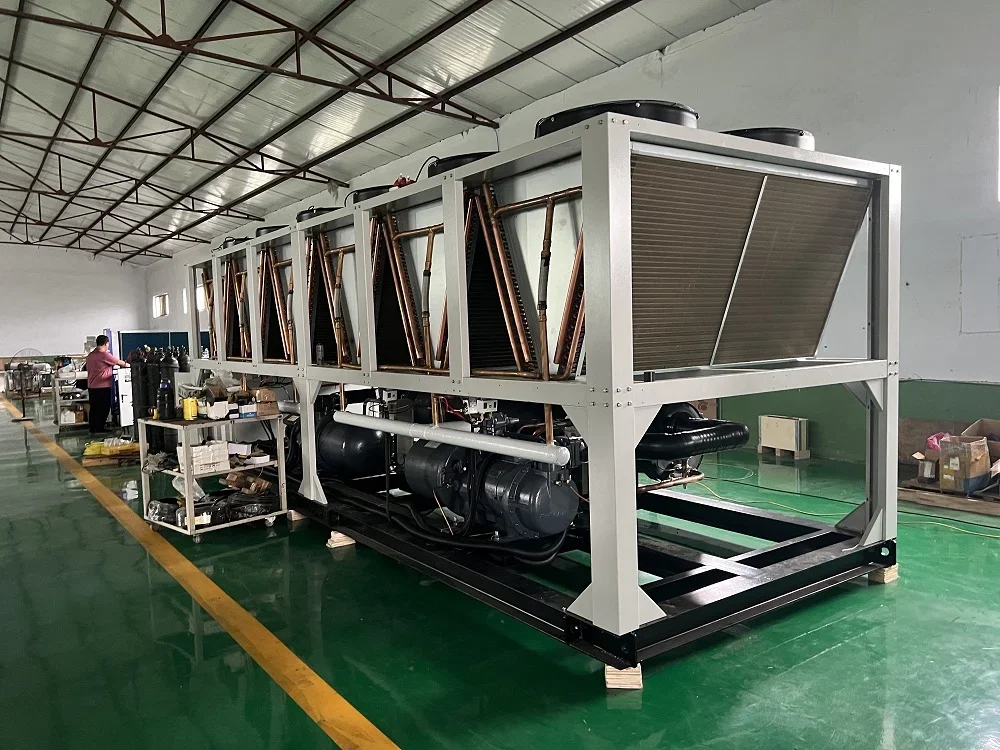

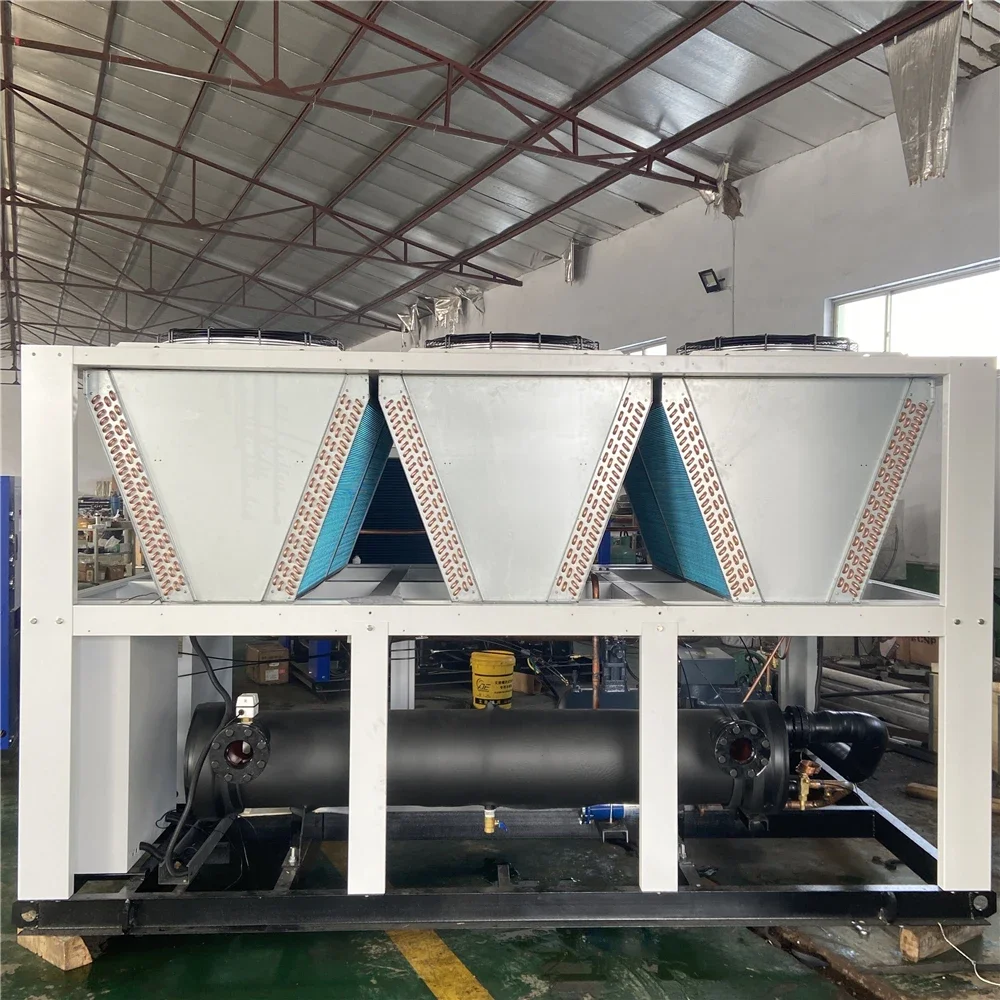

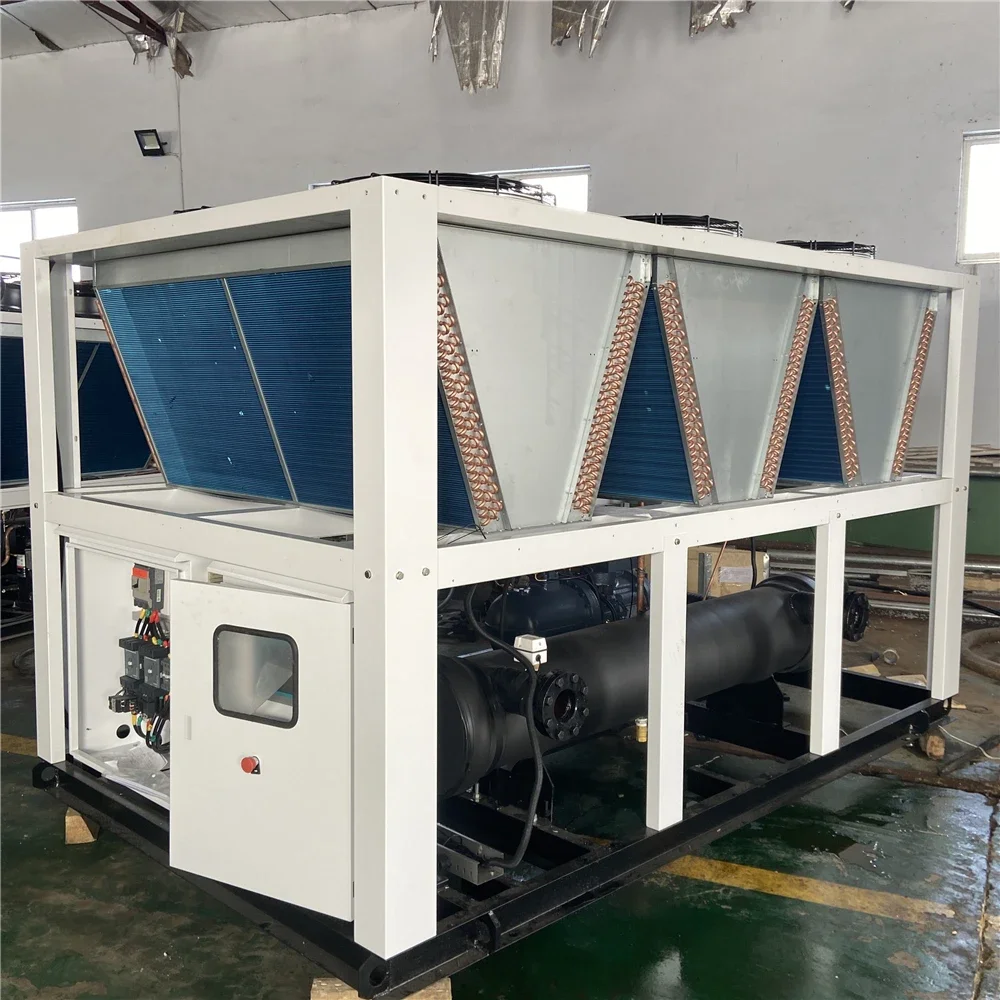

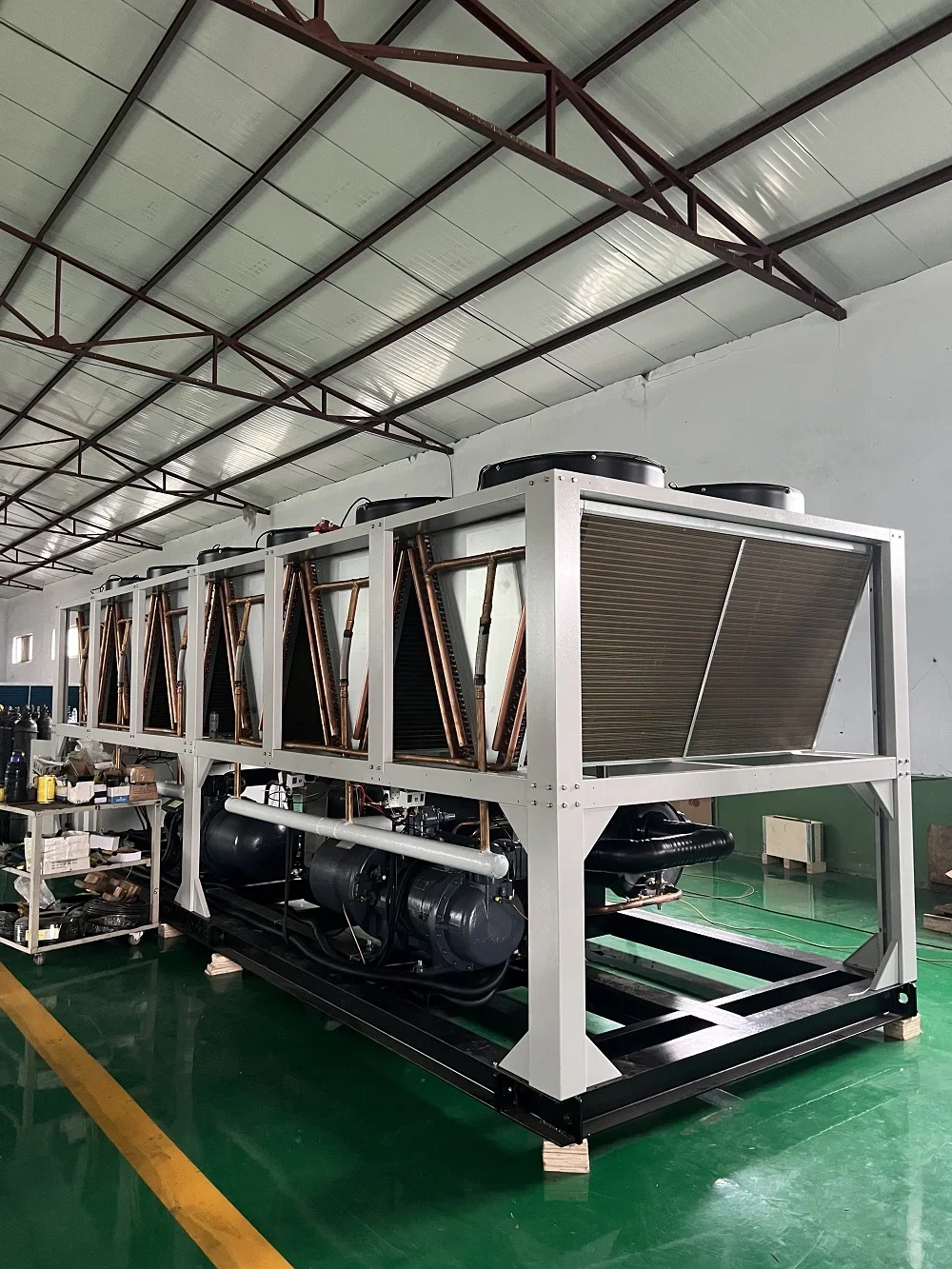

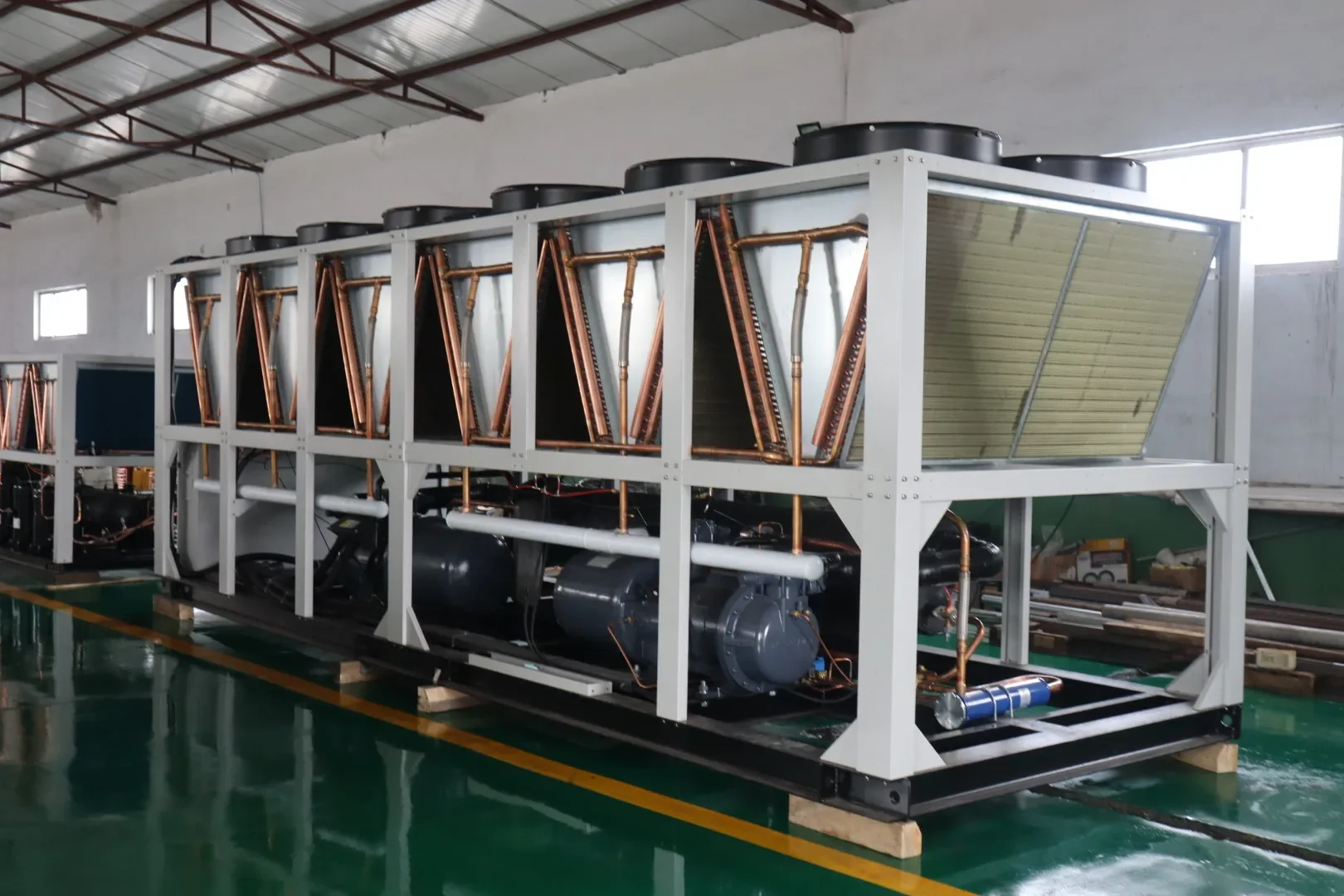

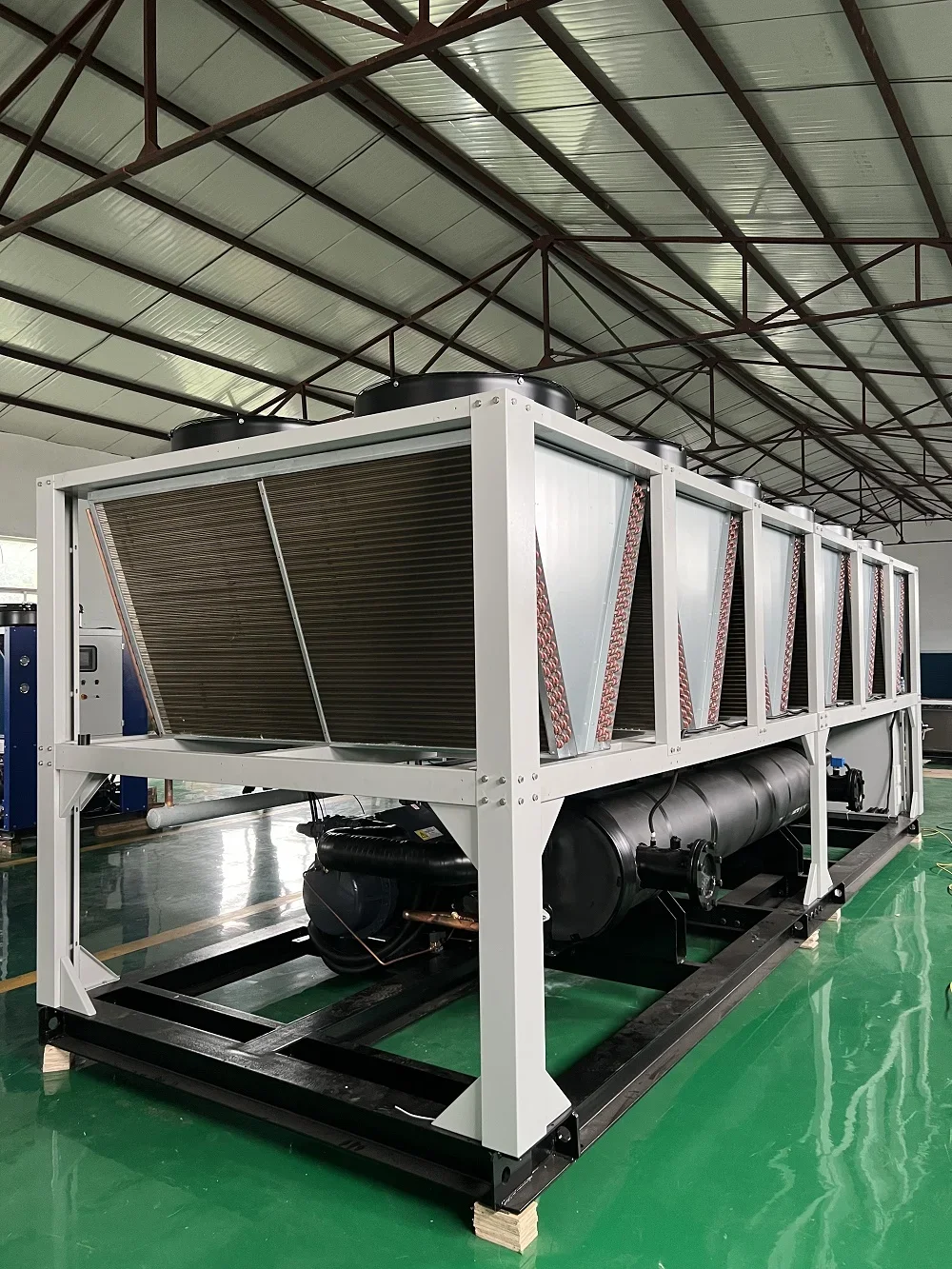

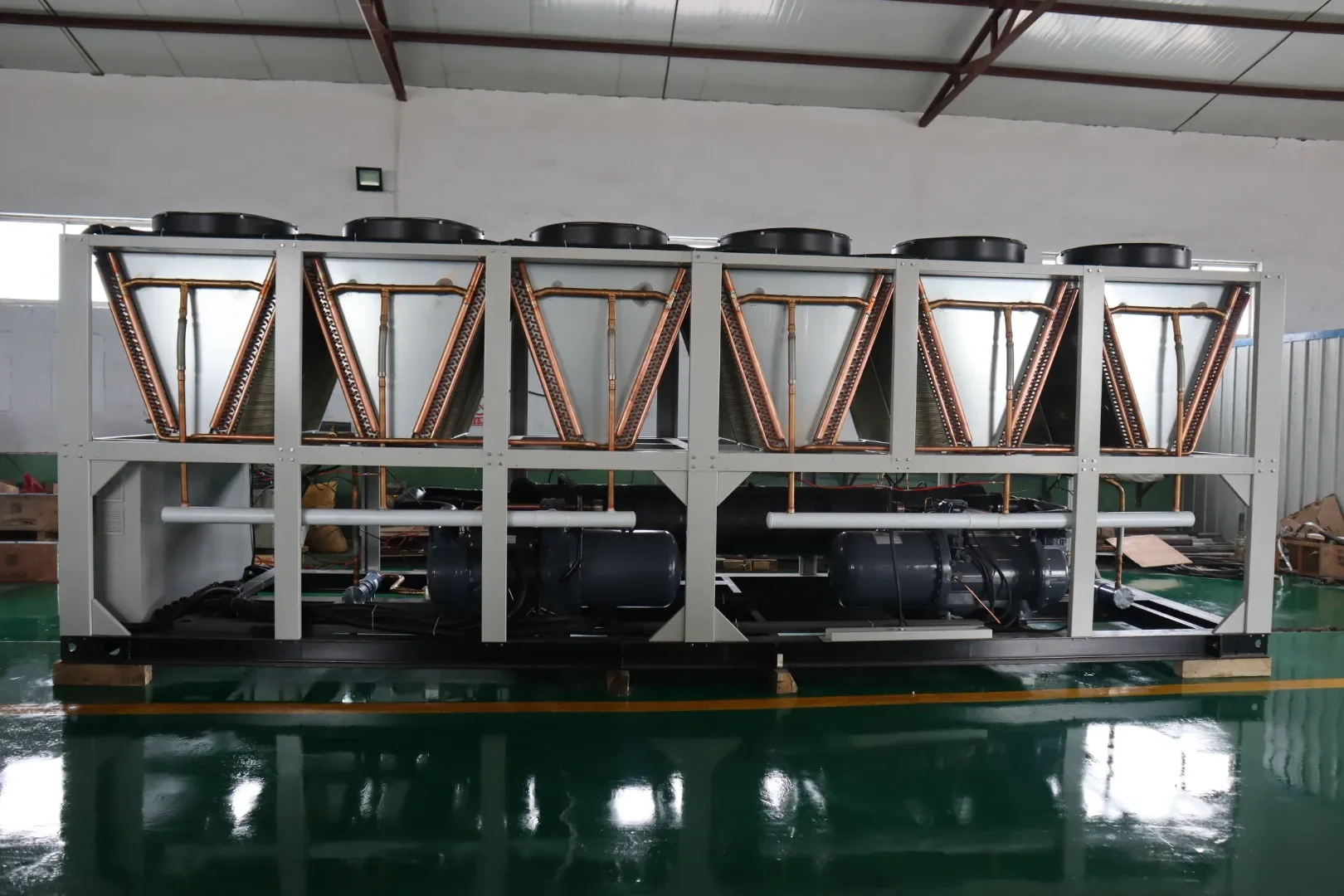

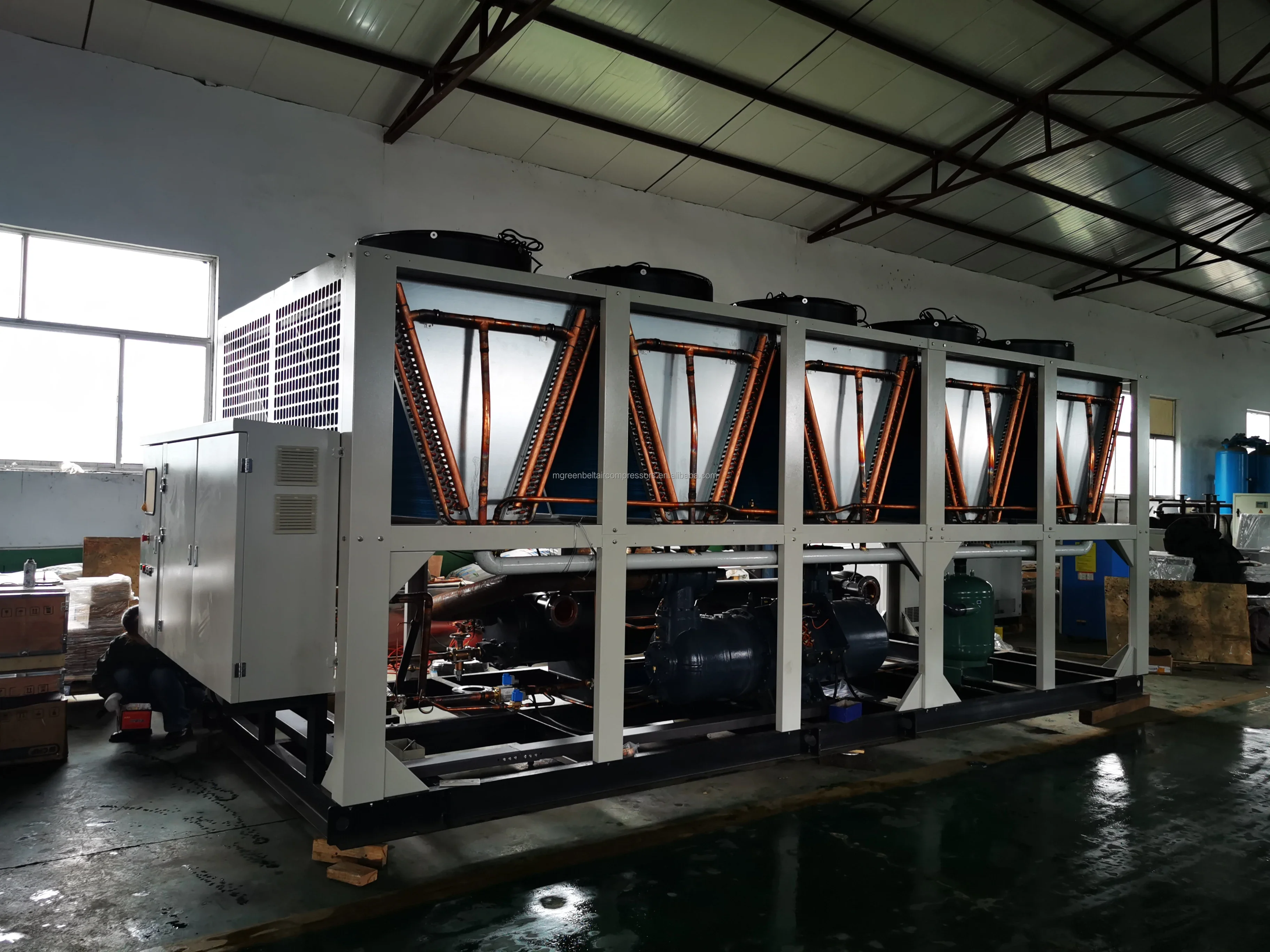

“V" Type Condeser

1). High efficient V type condenser.

2). Screw copper tube covered aluminum fins

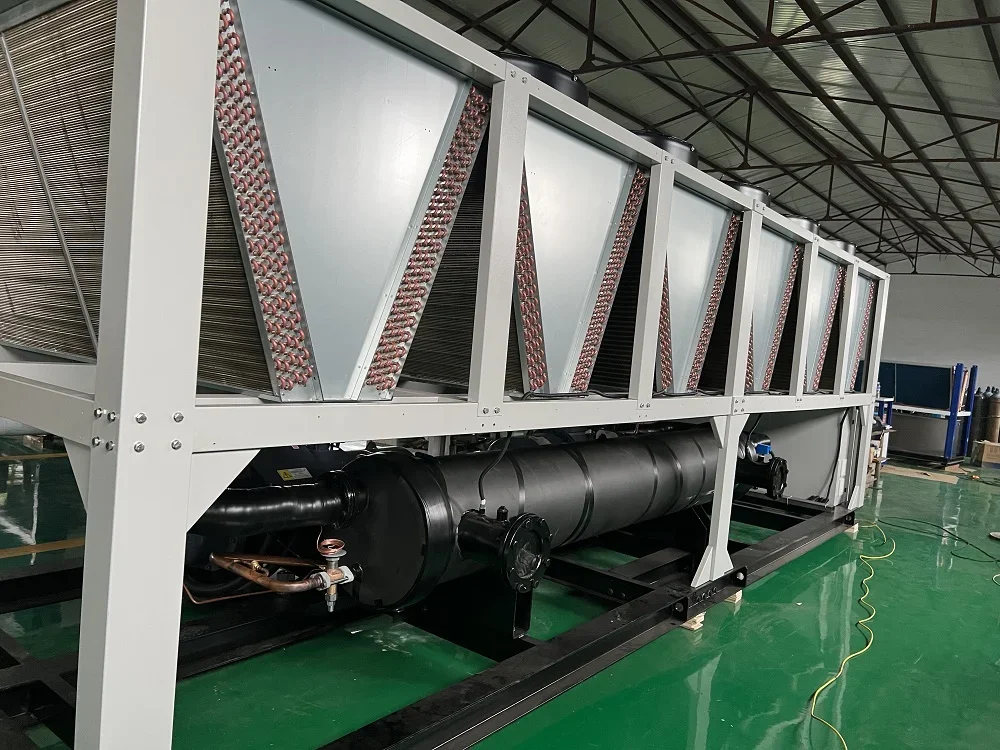

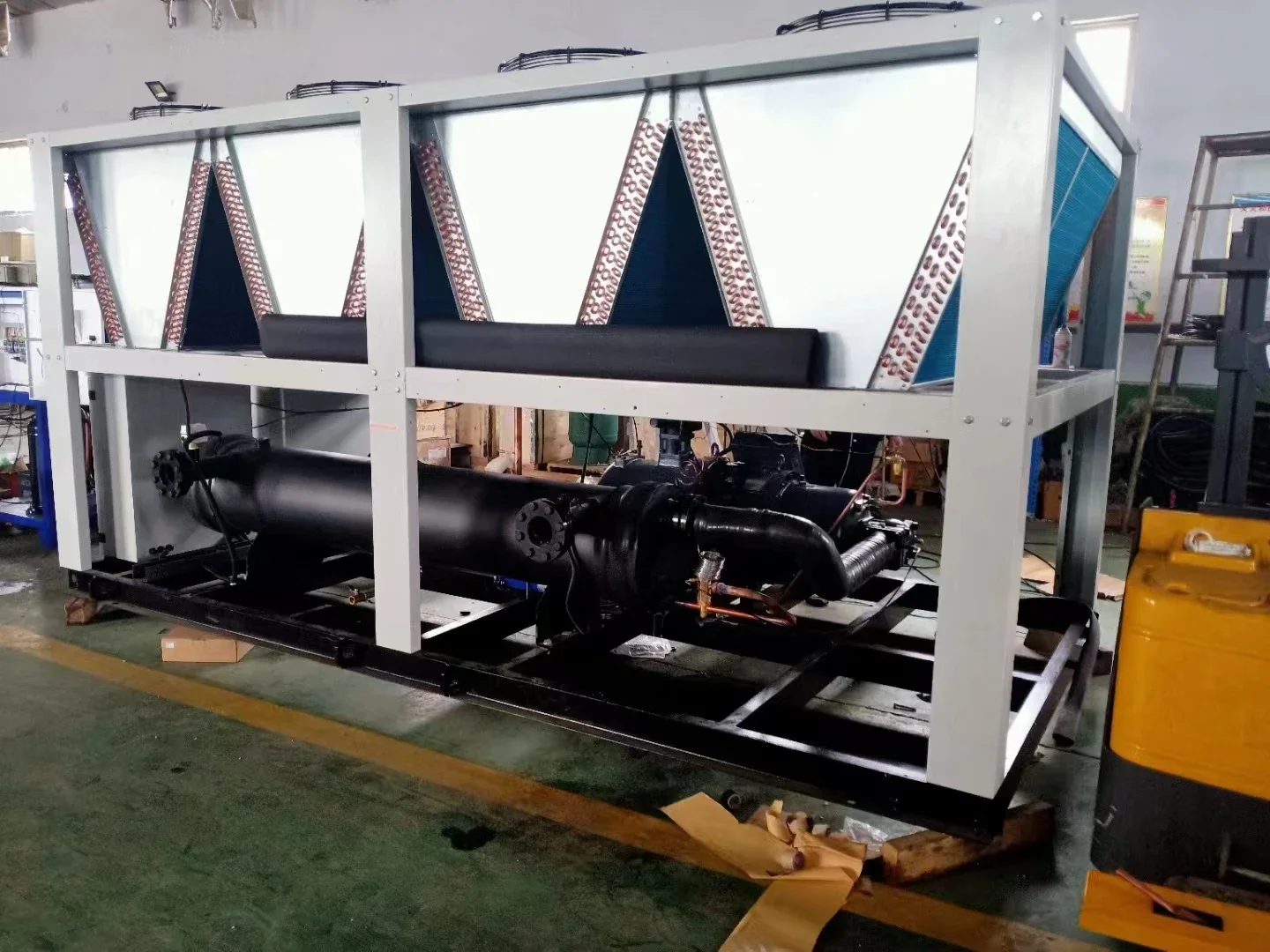

Shell and tube evaporator

1). Closed circuit shell and tube type.

2). with 30mm PE insulation , no condensation and less cooling loss.

Controller Micro-computer intelligent control system; SIEMENS PLC option.

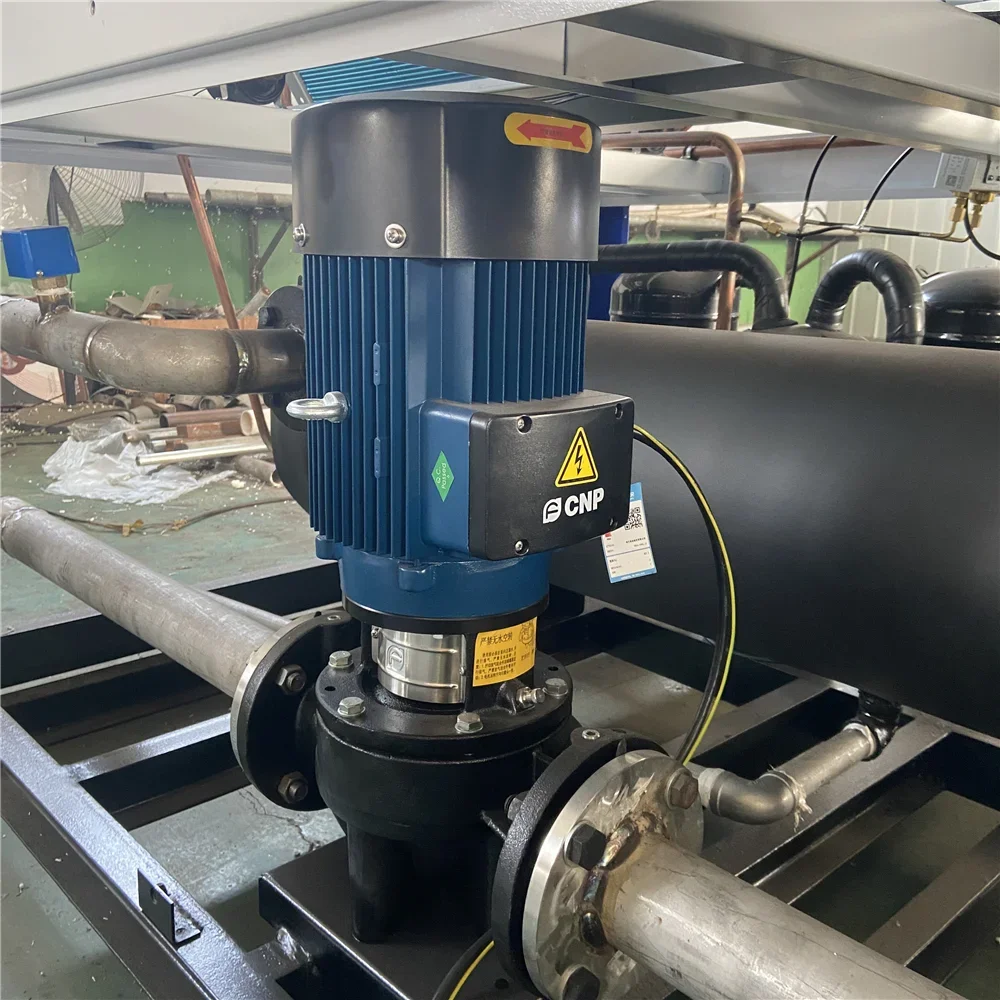

Centrifugal pipe pump

Features and Advantages

1. Screw water chiller is designed to produce a cooling effect by temperature controlling configured by an energy-efficient compressor, and recirculation pump working on compression principle to regulate the temperature of plastic machining.

2. Screw water chiller is used in injection molding, producing instant cooling to a heated mold for getting a specific product shape,saving energy and power consumption.

3. MGREENBELT brand Plastic Chiller prevents plastic molded products from deforming by releasing plastic internal stress and grain mark, ensuring steadfast and durable product manufacturing.

4. Screw water chiller supports different plastic processing as drying, humidity removal, cooling production, and temperature control configured by its auxiliary design featured with versatile components to perform different operations.

5. Screw water chiller manufactured by MGREENBELT has a variety of benefits for all types of plastic processing

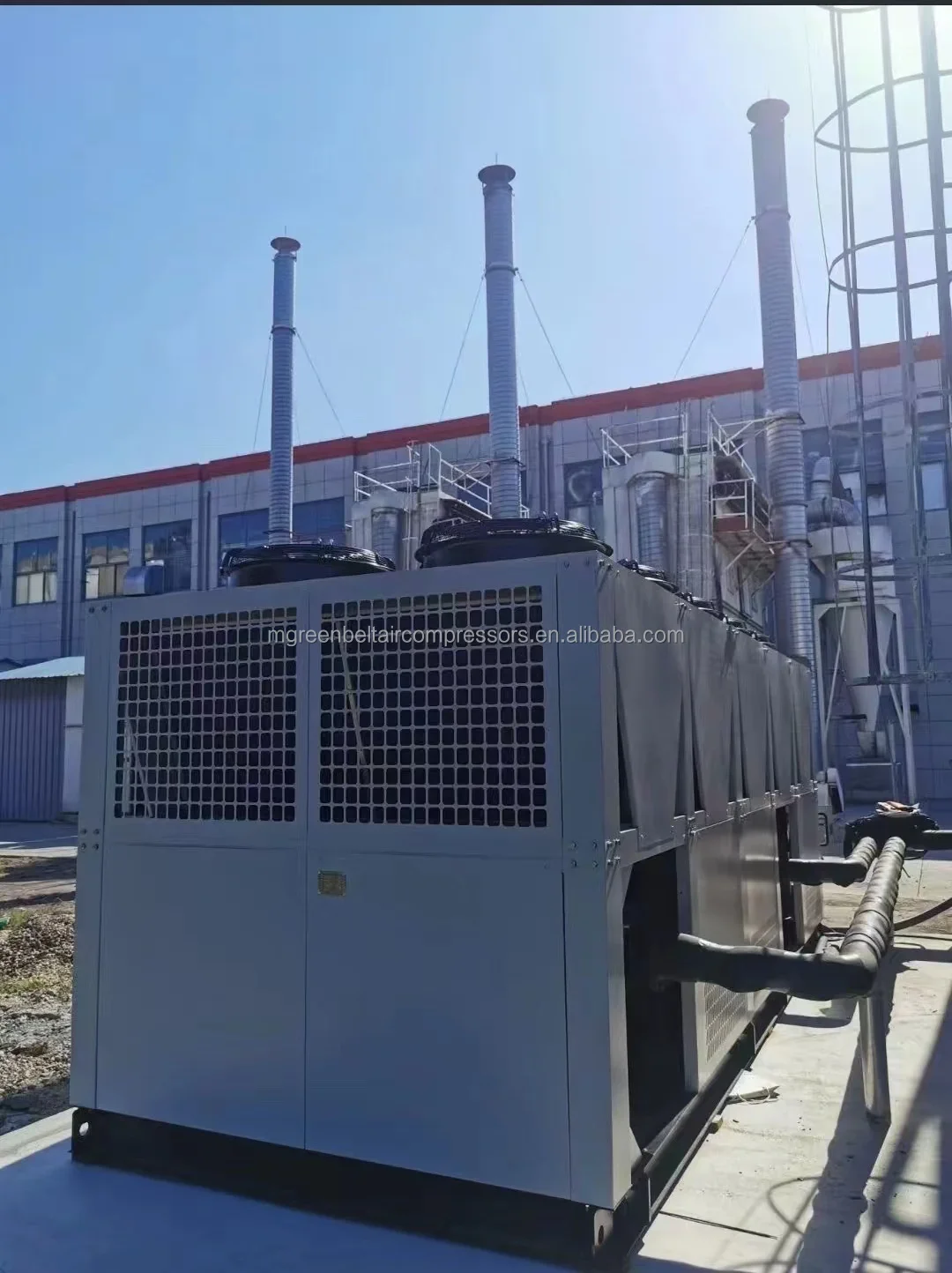

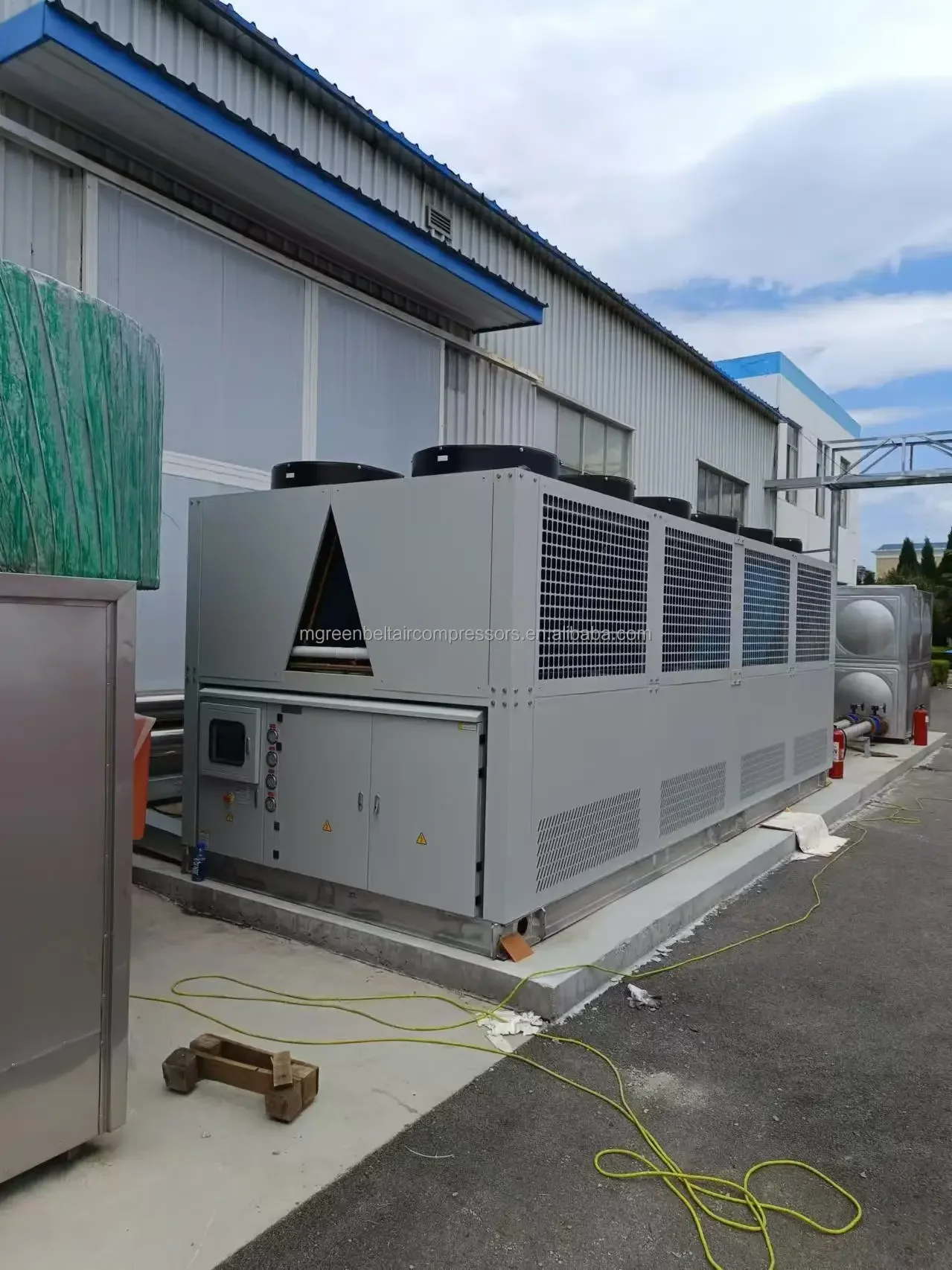

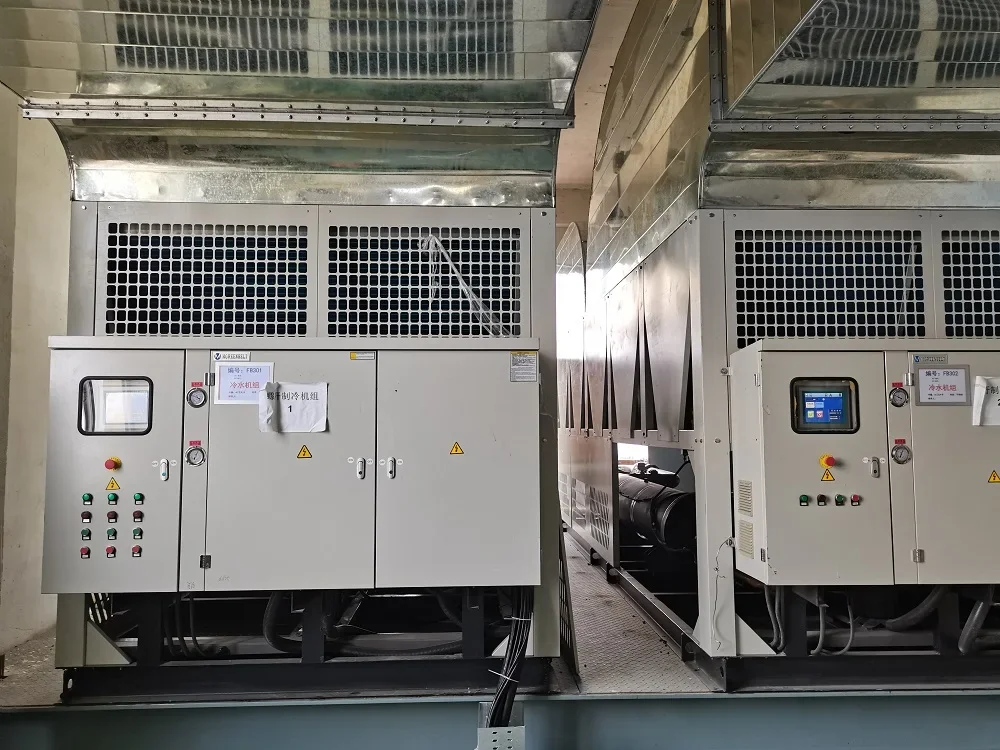

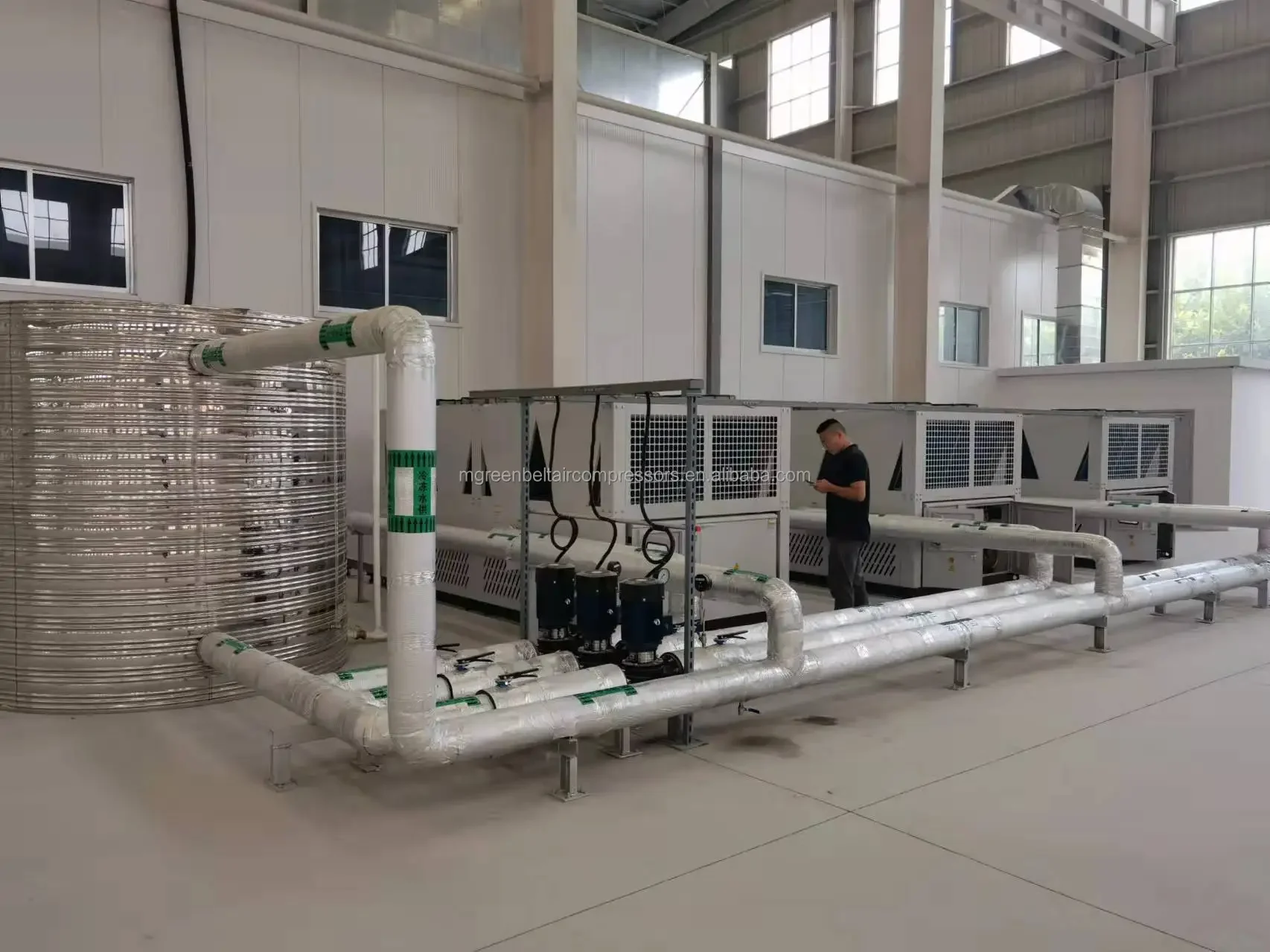

Successful Project

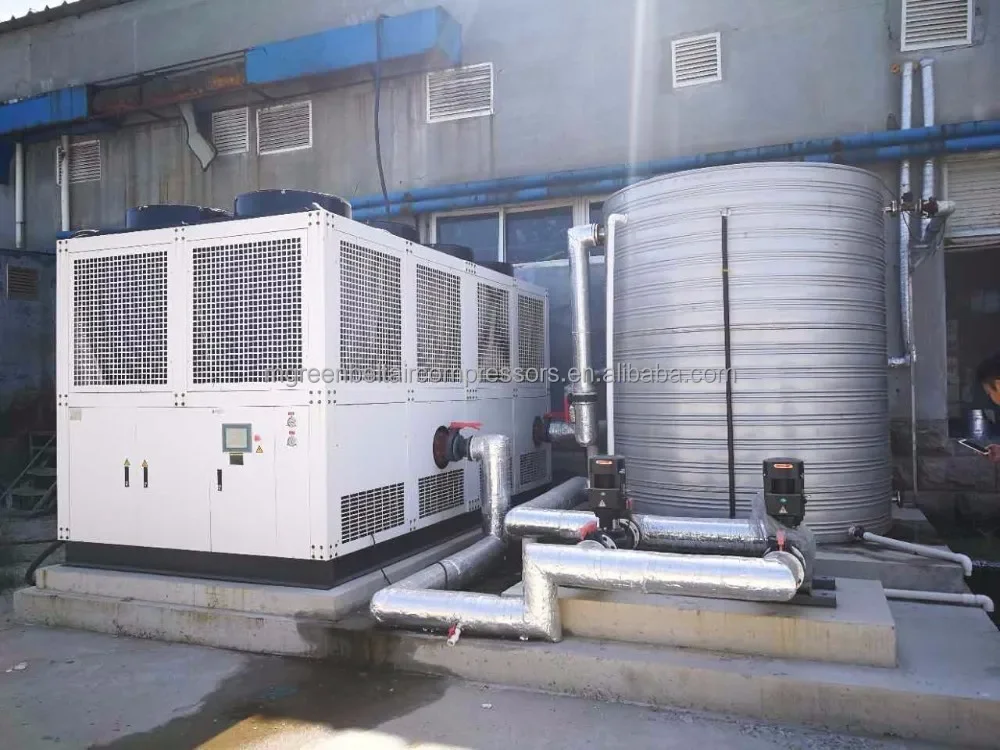

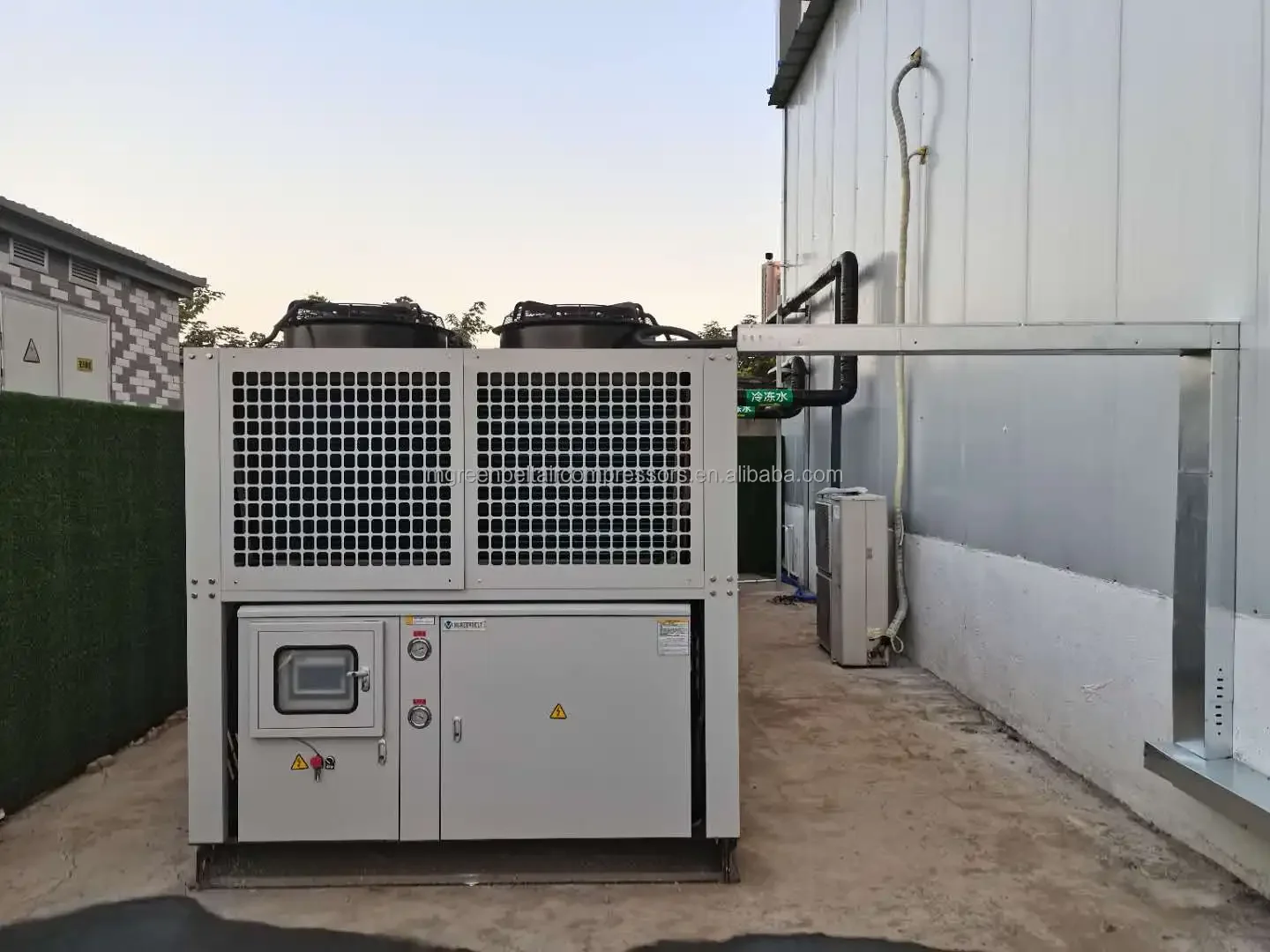

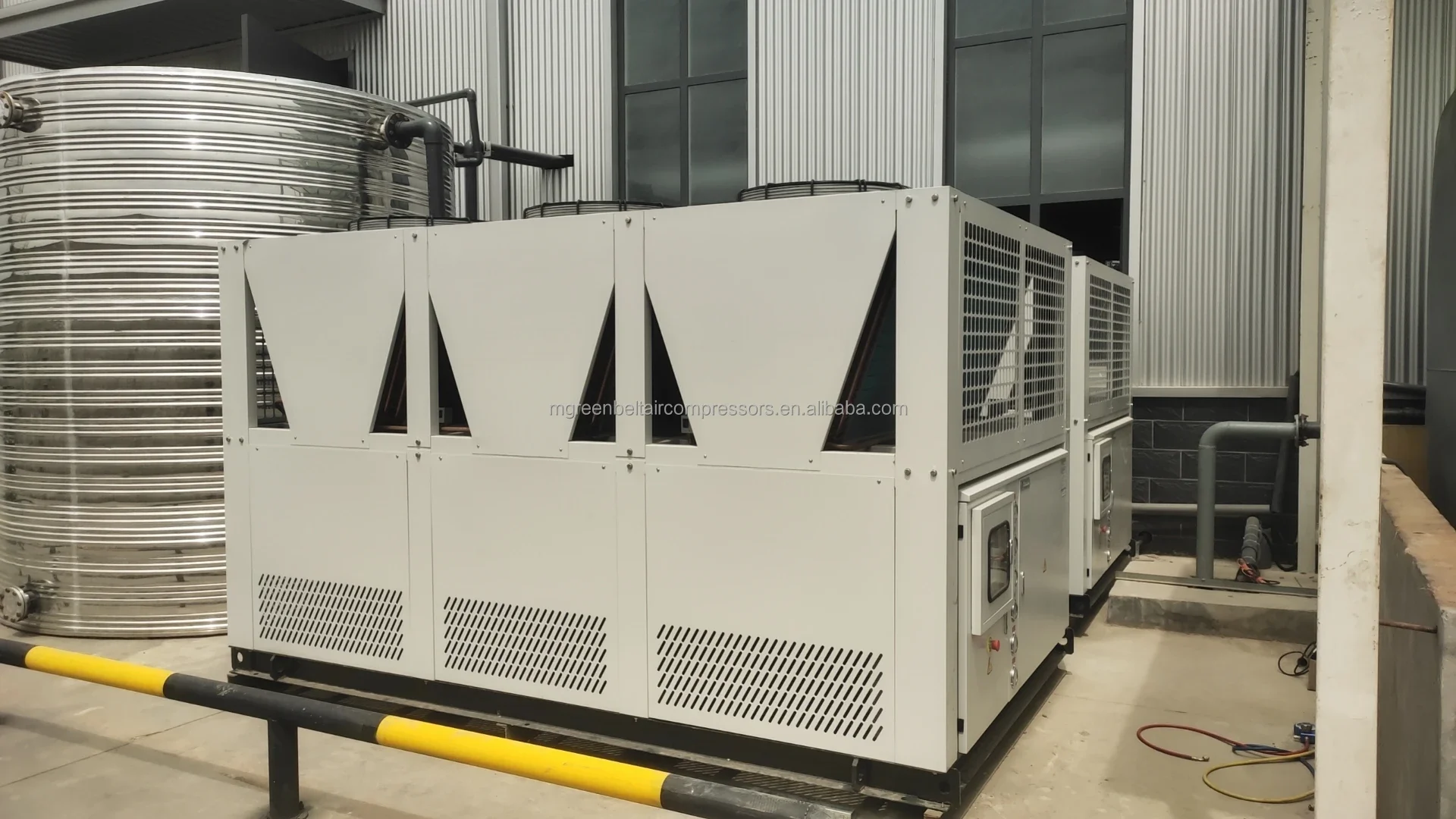

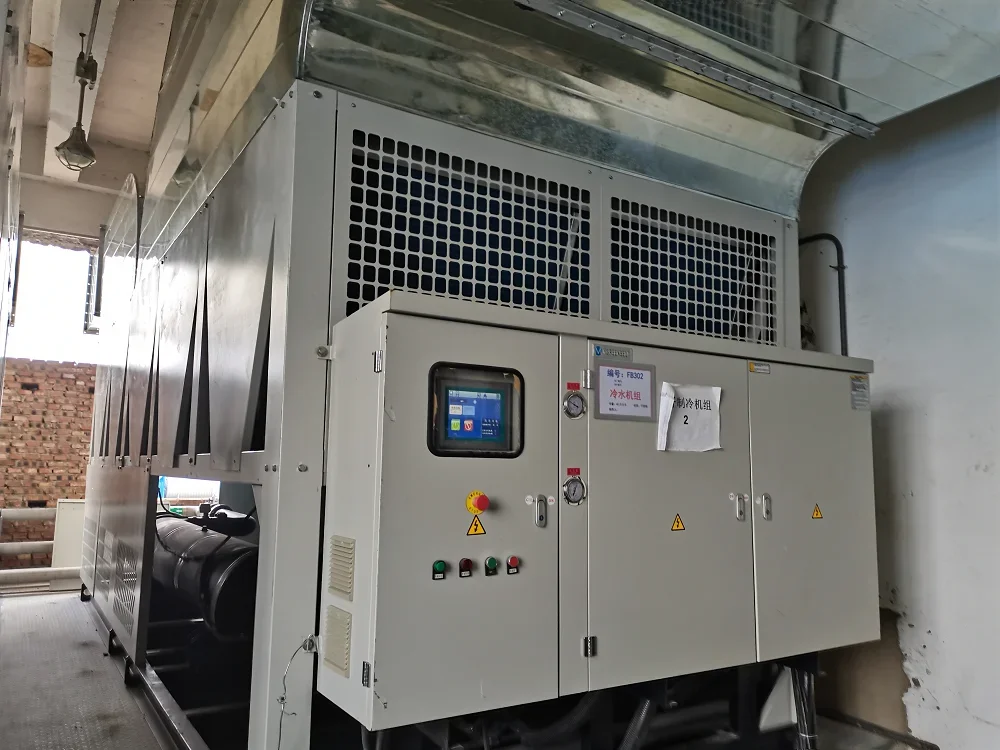

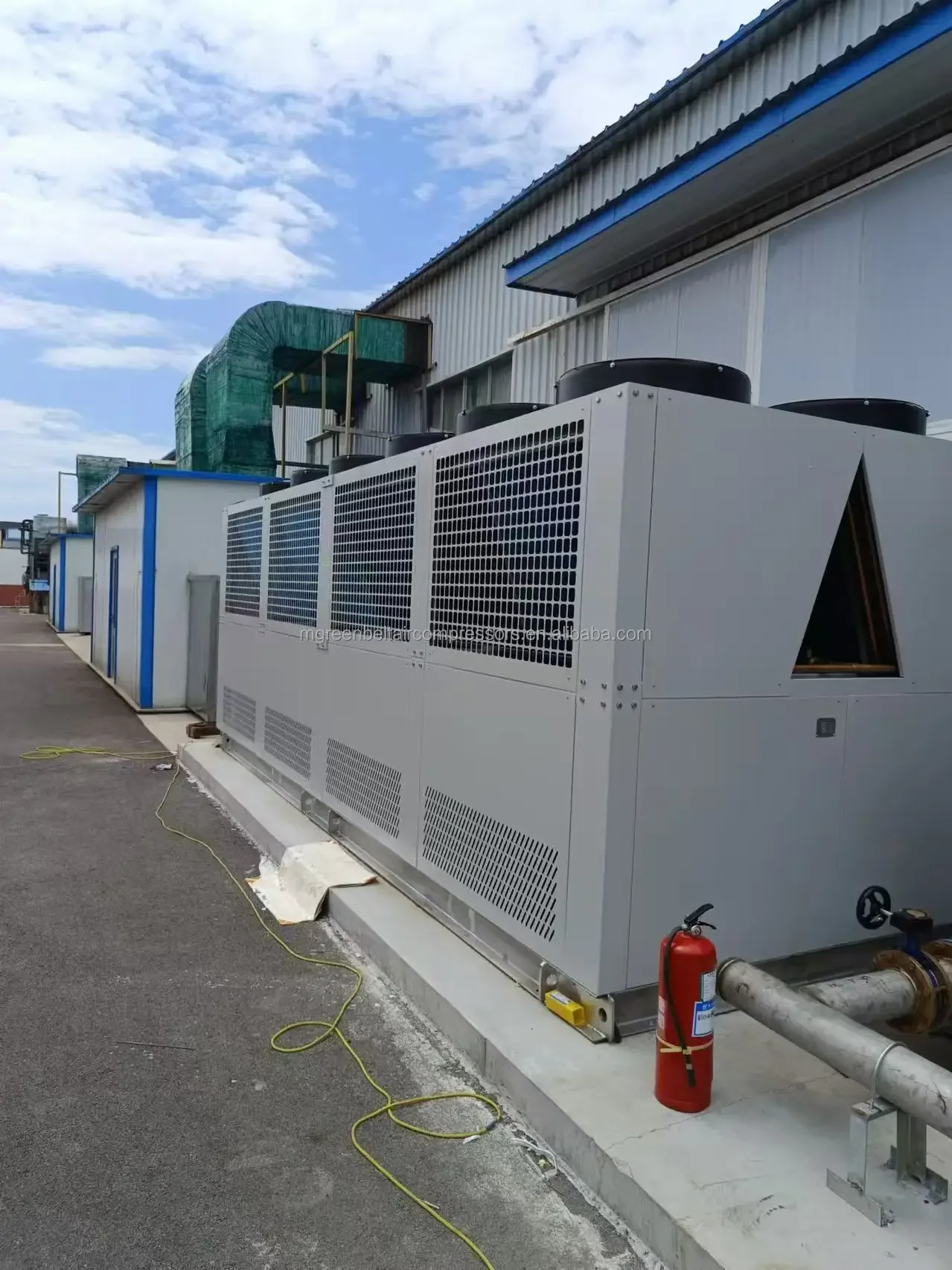

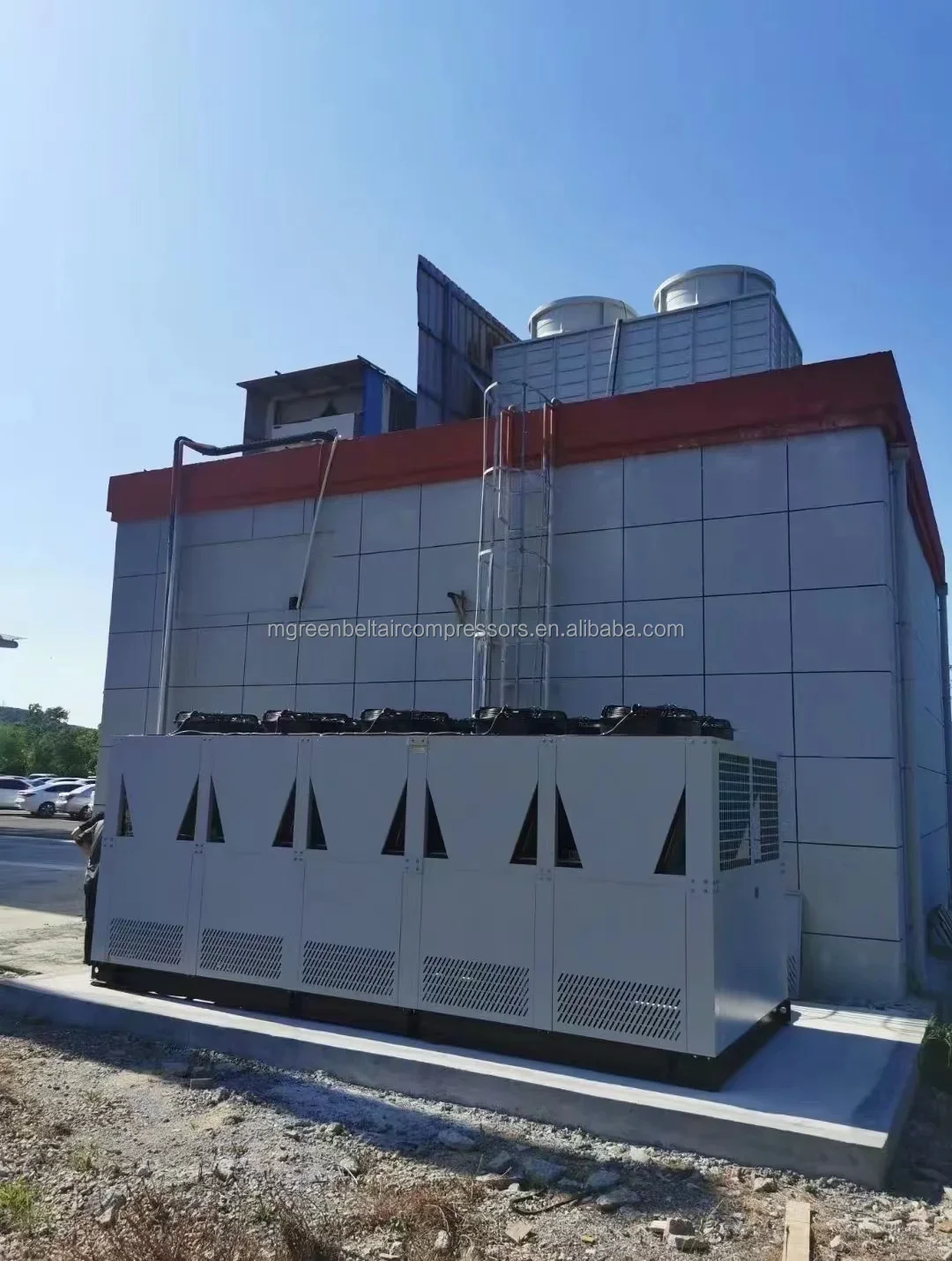

Chiller Installation Place

1). Installed at good air circulation place
2). Chiller design waterproof, put outside without roof
3). Pipe connection design smooth

SIMILAR PRODUCTS

Large Capacity Screw Chiller

130kw-400kw

Air cooled Screw Chiller

Widely used for large plastic processing factories.
Air cooled condenser, with low noise and low vibration air fans.
Shell and tube type evaporator
Outlet chilled temperature can be from -10C to +30C

Smaller chiller for plastic molding

3 Ton ~40 Ton.

Air cooled scroll chiller

One chiller can cool one or 2 injection molding machines, chiller with tank and pump installed.
Smaller cooling capacity, temperature control can be from -15C to +30C. Each chiller can be produced with 1 to 4 compressors, each
circuit is working independently.

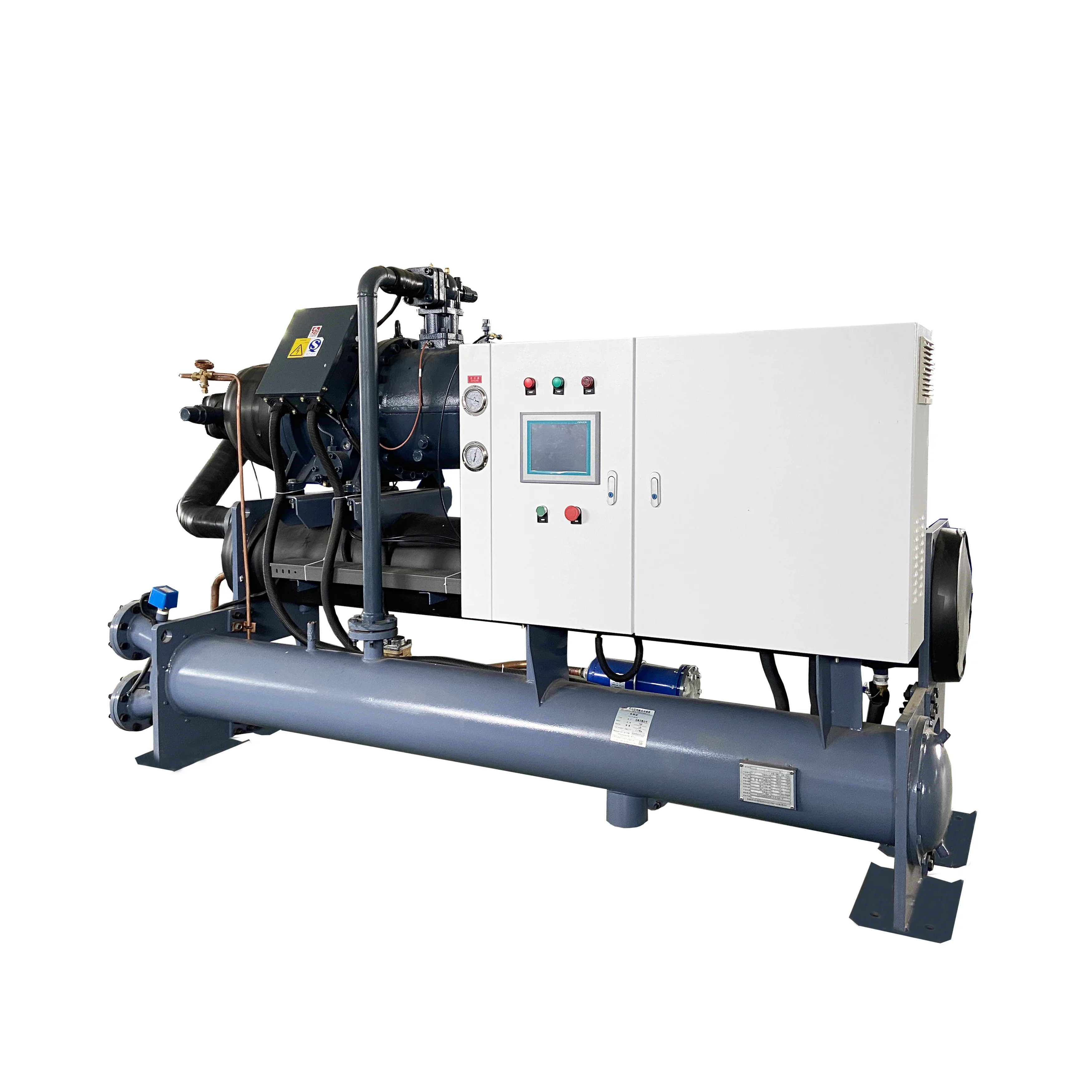

Water Cooled Chiller Solution

High Cooling Efficient

Screw industrial chiller

water cooled chiller Used for plastic factories, where little hot and large scale places.
Better cooling efficiency with cooling tower, use water to cool condenser instead of fan.
Temperature control can be from -30C to +30C depends on variety industry requirement

Company Information

If you want know more about MGREENBELT Company

Established in 2003, MGREENBELT Specialized in manufacture chiller and chiller system including: air chiller, water chiller, industrial chiller, oil chiller, glycol chiller, process chiller, screw chiller, mold temperature controller, cold room project for over 20 years experience. MGREENBELT promise offers the best chiller&chiller system solution with competitive price to clients worldwide. 11605 Square meters factory area; Within over 1000 chiller units produce every year, we thrive on providing high-quality water chiller; 20 Years Refrigeration experience, and 13 years industrial chiller manufacture experience. MGREENBELT is one of the top brand with a goods reputation in China market since 2003. We have a strong and united engineering team with rich work experience in industrial chiller filed; Chillers manufactured from MGREENBELT are installed over 100 countries worldwide.

Our Service

A. Order service

Inquiry-Quotation-Agreement-Order Confirm-Proforma Invoice-Deposit Payment-Production-Testing –Balance Payment- Packing&Delivery–Documents Dispature- Assist of custom-cleaing –Instruction of Installation&Operation-Feedback
B. Technical service
1, We calculate the capacity and recommend the best models.
2, We design and develop the new products according to your requirement besides our standard products.
3, We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4, We supply the spare parts and technical support in & after the warranty time.
5, We supply the training course to your workers at our factory if you need.
C. After sale service
1. One-Year guarantee for whole unit and all parts free
2. Life time maintenance
3. Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4. Supply the professional refrigeration technical support and electronic technical support for your installation, debugging,operation and maintenance.
5. Supply free training course to your workers at our factory if you need.
6. Supply the spare parts and technical support in & after the warranty time.
7. Spare parts and technical support at most economic prices after the warranty.
8. 24 hours on line service each day by telephone.

FAQ

1. Are you manufacturer or Trade Company?
We are OEM professional factory, founded in 2003.
2. What's the order process?
.Inquiry—provide us all clear requirements.
.Quotation—quotation form with all clear specifications.
.Contract confirmation—provide correct contract details.
.Payment terms— T/T 30% in advanced, balanced before shipment.
.Production—mass production
.Testing: to ensure the quality of the machine
.Shipping— by sea, train, air. Detailed picture of package will be provided.
.After sales support
3.What terms of payment you use?
T/T, L/C,e-checking, Credit card,etc.
4. How to get a prompt quotation?
When you send the inquiry to us, pls kindly send it with below technical information.
1)water chiller type: Air cooled or water cooled
2)Cooling capacity: _____ Kcal/hr or _____KW _____Tons
3)Refrigerant: R22 or others
4) Voltages and Frequency : ______V/PH/HZ
5) Inlet and outlet temperature to chiller
5. Can I use our own brand logo on the products?
Yes. We provide OEM/ODM service to our customers. Our professional engineers having rich experience in water chiller design and manufacture. Just tell us your ideas or provide the drawing, we can help you to carry out your ideas.

How to get a water chiller proposal and price?
1. You can click " Chat Now" Talk with our sale directly, we will reply you in immediately.

2. You can click " Contact" send inquiry to us, we will reply you within 1 hour.
3. You can send us message by whatsapp: +86-18615589083, or email by amanda@mgreenbelt.com , we can reply you in immediately.

Contact Us

We have more different size chiller, if these models above not workable for your project, please do not hesitate to contact with us.

Please feel free to contact me,if you have any questions:
Amanda Wu | Manager
Jinan Mgreenbelt Machinery Co.,ltd.
Professional water chiller & refrigeration equipment Manufacturer/Supplier
Email: amanda@mgreenbelt.com | Wechat/Whatsapp/cell:0086-18615589083
Main products: Industrial chiller, water chiller, air cooled water chiller, water cooled chiller, glycol chiller
NOTE: You can add wechat or whatsapp to get quick answer.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $2560 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooled screw water chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooled screw water chiller be supplied for my local voltage?

The standard configuration is 380V/50HZ, 440V/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan Mgreenbelt Machinery Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jinan Mgreenbelt Machinery Co., Ltd. range on HVACR Nexus.
