This commercial ahu replacement coilsaluminium is published with the manufacturer’s full specification — material Aluminium, heat exchanger type Tube-Fin Heat Exchanger. Made by Hubei Aesima Heat Exchange Equipment Co., Ltd. (1 year on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Commercial Ahu Replacement Coilsaluminium
- Material: Aluminium
- Tube Material: Copper, SS304, Aluminium, Galvanized Steel
- Warranty: 1.5 year
- Certification: TUV, CE
- Place Of Origin: Hubei, China
- Application: AHU, HVAC, Commercial Building, Cold Storage
Technical Specifications
| Heat Exchanger Type | Tube-Fin Heat Exchanger |
|---|---|
| Fluid Compatibility | Chilled Water, Hot Water, Steam, Glycol Solution |
| Material | Aluminium |
| Maximum Operating Temperature | -20°C to +180°C |
| Core Components | leakproof |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Large Capacity, AHU Replacement Ready, CE/TUV Cert |
| Working Temperature Range | Customize on request |
| Place Of Origin | Hubei, China |
| Weight (Kg) | 80 |
| Brand Name | AESIMA |
| Liquid Flow Rate | Customized |
| Maximum Pressure Rating | 3.0 MPa |
| Dimension(L*W*H) | Dimensions are customizable. |
| Tube Material | Copper, SS304, Aluminium, Galvanized Steel |
| Function | Heating & Cooling Coil for AHU / HVAC System |
| Certification | TUV, CE |
| Whether To Accept Small Orders | Yes |
| Tube Diameter | 7mm – 25.4mm |
| Fin Pitch | 2.0mm – 10.0mm |
| Flow Arrangement | Counter Flow, Cross Flow, Multi-Pass |
| Application | AHU, HVAC, Commercial Building, Cold Storage |
| Selling Units | Single item |
Product Details
01. Product Series: Evaporator & Condenser
High-Efficiency Solutions for Global Industry
02. Core Technology: Advanced Tube Engineering
Precision Heat Transfer Technology Our heat exchangers are powered by industry-leading tube technology.
uD83DuDCD0 Premium Tube Specifications
* Diverse Materials: Available in Copper, Stainless Steel, Aluminum, Hot-dip Galvanized Carbon Steel, and Titanium.
* Versatile Sizing: Diameters ranging from 7mm up to 25mm (including 5/16", 3/8", 1/2", 5/8").
⚙️ Surface Enhancement Options
* Smooth: Cost-effective solution designed for standard performance requirements.
* Inner Grooved: Expanded internal surface area maximizes refrigerant turbulence for superior efficiency.
* Super Grooved: Deep-groove geometry designed to deliver the ultimate heat transfer coefficient.
* Diverse Materials: Available in Copper, Stainless Steel, Aluminum, Hot-dip Galvanized Carbon Steel, and Titanium.
* Versatile Sizing: Diameters ranging from 7mm up to 25mm (including 5/16", 3/8", 1/2", 5/8").
⚙️ Surface Enhancement Options
* Smooth: Cost-effective solution designed for standard performance requirements.
* Inner Grooved: Expanded internal surface area maximizes refrigerant turbulence for superior efficiency.
* Super Grooved: Deep-groove geometry designed to deliver the ultimate heat transfer coefficient.
03. Working Principle & Structural Design

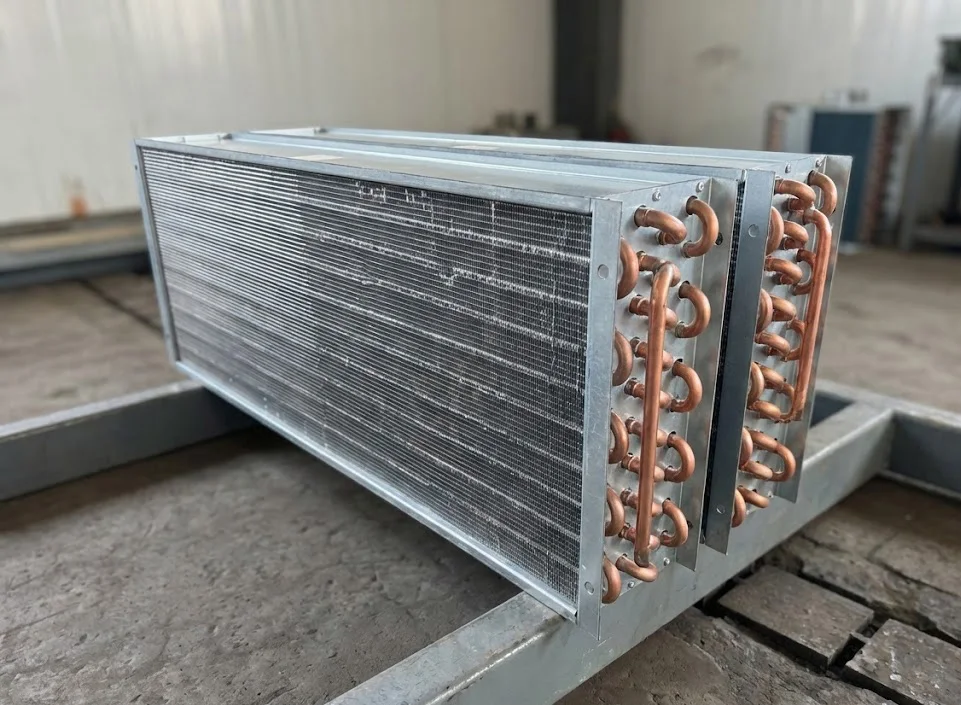

Evaporators: Facilitate the phase change of liquid refrigerants into gas by absorbing heat from the environment (air or liquid). Condensers: Reject heat to condense high-pressure gas refrigerants back into liquid form using ambient air or water. Structural Integrity Our units feature a rigid frame design with precision headers and U-bends. The high-strength construction ensures durability during transport and long-term operation. Space Optimization: Utilizing extended secondary heat transfer surfaces, our tube-fin exchangers achieve an ultra-compact structure. Heat transfer area density can reach up to $1000 m^2$ per cubic meter, ensuring maximum capacity in minimal space.
04. Key Advantages & Performance
Energy Efficiency: 30-50% gain via precision tube-fin expansion technology.
Compact Design: Small footprint tailored for limited mechanical spaces.
Stable Performance: Consistent operation under continuous peak loads.
Lightweight: Aluminum alloy build reduces weight, freight costs, and installation time
Compact Design: Small footprint tailored for limited mechanical spaces.
Stable Performance: Consistent operation under continuous peak loads.
Lightweight: Aluminum alloy build reduces weight, freight costs, and installation time
05. Materials & Industry Applications
Versatile Material Selection
We offer a wide range of materials to suit different corrosive environments and thermal requirements.
Material Class | Typical Applications & Standards |
Carbon Steel | Industrial shells, moderate temperatures (<300°C). |
Stainless Steel | Chemical, Food, HVAC. Resistant to chloride (<1000 ppm Cl⁻). |
Copper Alloys | Condensers with non-corrosive water. |
Titanium | Critical seawater/marine applications (ASTM B338 Gr.2). |
Coatings | Hydrophilic (Blue Fin), Epoxy Coated (Black/Gold), E-coating. |
Professional Applications
· Chemical Reactors & Petrochemical Processing
· Industrial Hydraulic & Turbine Lube Oil Cooling
· Food & Beverage Pasteurization
· Waste Heat Recovery Systems.
· Waste Heat Recovery Systems.
06. Configuration Options (Customization)
AESIMA provides fully customized configurations engineered to meet specific application requirements.
Flow Design: Supports Counter Flow, Cross Flow, and Multi-Pass flow arrangements for complex thermal conditions. Casing Options: Available in Galvanized Steel, Aluminum, Stainless Steel, Copper, and Brass.
07. Integrated Manufacturing & Quality Assurance

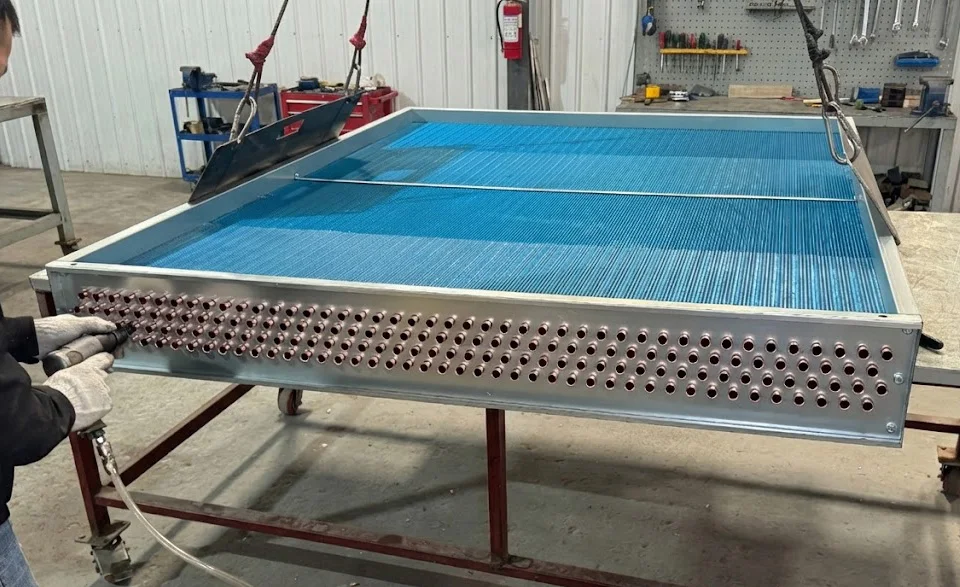

Copper Tube Processing | Precision Fin Stamping | Core Stacking & Lacing | Mechanical Expansion |
Manifold Assembly & Brazing | Pressure & Leak Testing | Cleaning & Drying | Packaging & Shipping |
Design Excellence: We utilize industry-leading design software, including Aspen EDR, SW6, and PV Elite, to ensure that actual cooling performance aligns precisely with theoretical values.
Global Standards: Backed by 15 years of manufacturing and export experience, our Extended Surface Heat Exchangers are shipped to over 32 countries,including Vietnam, South Korea, France, and the UAE…
Quality Commitment:
* Manufacturing: Precision brazing and rigorous leak testing guarantee long-term reliability.
* Support: We provide comprehensive technical drawings and performance calculations with every order.
* Feedback: Customer testimonials consistently confirm our design accuracy and product durability.
Quality Commitment:
* Manufacturing: Precision brazing and rigorous leak testing guarantee long-term reliability.
* Support: We provide comprehensive technical drawings and performance calculations with every order.
* Feedback: Customer testimonials consistently confirm our design accuracy and product durability.
↑Production Equipment | ↓Certifications |
All manufacturing processes are conducted in our affiliated facilities under AESIMA’s strict quality management system (QMS).
08. FAQ & Service Commitment
Q1: Can we order via Alibaba Trade Assurance for safety?
A: Yes, we highly encourage it. Trade Assurance provides 100% payment protection. Combined with our 15-year manufacturing track record, you can place your initial order with complete confidence.
A: We are a manufacturer with 15 years of experience and own production bases in Hubei and Guangdong provinces. However, we offer integrated global solutions: while we manufacture the core units, we utilize our supply chain to source specialized components (like high-end imported motors) to meet your specific project requirements.
Q3: I don't have a drawing. Can you design for me?
A: Yes. Our engineering team uses professional thermal design software. Simply provide your process parameters (temperatures,flow rates, etc.), and we will calculate and design the optimal thermal solution for you.
Q4: What is the MOQ? Can I place a small order?
A: Yes, small orders are welcome. We are happy to support pilot tests or single-unit replacements to establish a long-term partnership.
Q5: What is the typical delivery time?
A: Delivery times vary by project scope:
* Standard Models: Shipped quickly based on factory stock.
* Custom Units with Imported Components: Projects requiring specific imported motors typically need a minimum of 60 days due to international logistics.
———————————————————————————————————————————-
Our Service Promise
* Warranty: Standard warranty valid for 15 months from the date of order.
* Custom Units with Imported Components: Projects requiring specific imported motors typically need a minimum of 60 days due to international logistics.
———————————————————————————————————————————-
Our Service Promise
* Warranty: Standard warranty valid for 15 months from the date of order.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $499 / piece
- 50+ piece: US $399 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this commercial ahu replacement coilsaluminium?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this commercial ahu replacement coilsaluminium carry?
It is supplied with TUV, CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hubei Aesima Heat Exchange Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hubei Aesima Heat Exchange Equipment Co., Ltd. range on HVACR Nexus.
