The condenser listed here carries voltage 1~230V, 220/230V, 3~380V, 380/400V, blade material PP Plastic, documented exactly as the manufacturer publishes it. Made by Zhongshan Pengfei Electrical Appliance Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Condenser
- Voltage: 1~230V, 220/230V, 3~380V, 380/400V
- Blade Material: PP Plastic
- Rotor Material: Aluminum Casting
- Impeller Material: PP Plastic
- Speed: 700-1500RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 1~230V, 220/230V, 3~380V, 380/400V |
|---|---|
| Blade Material | PP Plastic |
| Electric Current Type | AC/EC |
| Mounting Type | Wall Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Guangdong, China |
| Brand Name | Dailor |
| Model Number | YWF.A4S-500S-5BIA00, YWF.A4S-500S-5CIA00, YWF.A4S-500S-5DIA00, YWF.A4S-500S-5GIA00, YWF.A4S-500S-5FIA00, YWF.A4S-500S-5EIA00, YWF.A4S-500S-7DIAT0, YWF.A4S-500S-7FIAT1, EC137-A500 |
| Rotor Material | Aluminum Casting |
| Impeller Material | PP Plastic |
| Protection Class | IP54 |
| Insulation Class | F |
| Bearing | Maintenance Free ball bearing |
| Impeller Diameter | 500mm |
| Frequency | 50/60Hz |
| Speed | 700-1500RPM |
| Noise | 56-70dB |
| Applicable Temp | -30~+60 ℃ |
| Packaging Details | 1. 10-20pcs per carton, it’s based on the model you need. 2. Foam packing or with inner box, it’s based on customers requirement. |
| Port Of Dispatch | Xiaolan Port or Zhongshan Port |
| Selling Units | Single item |
| Single Package Size | 57X57X20.6 cm |
| Single Gross Weight | 5.0 kg |
| Supply Ability | 200000 pieces per Month |
Product Details

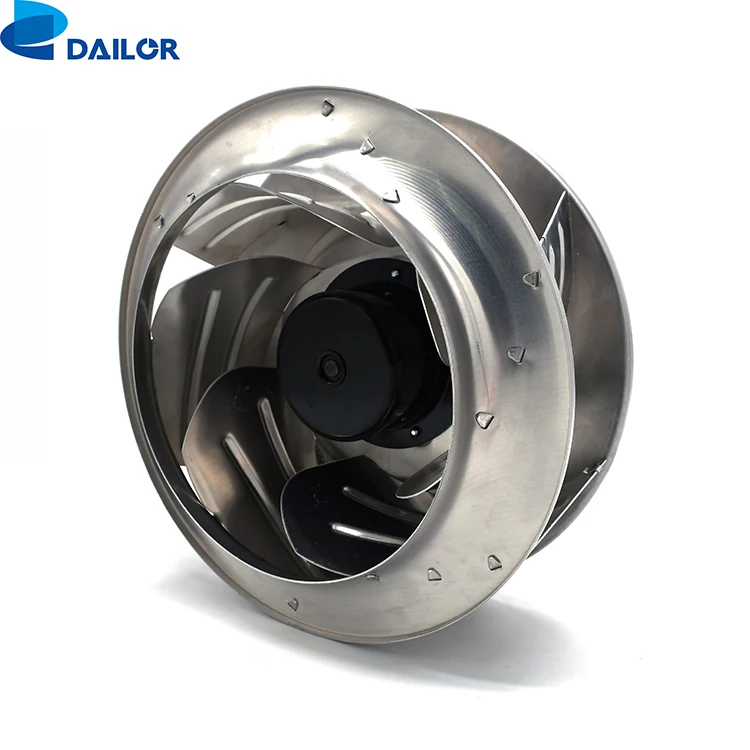

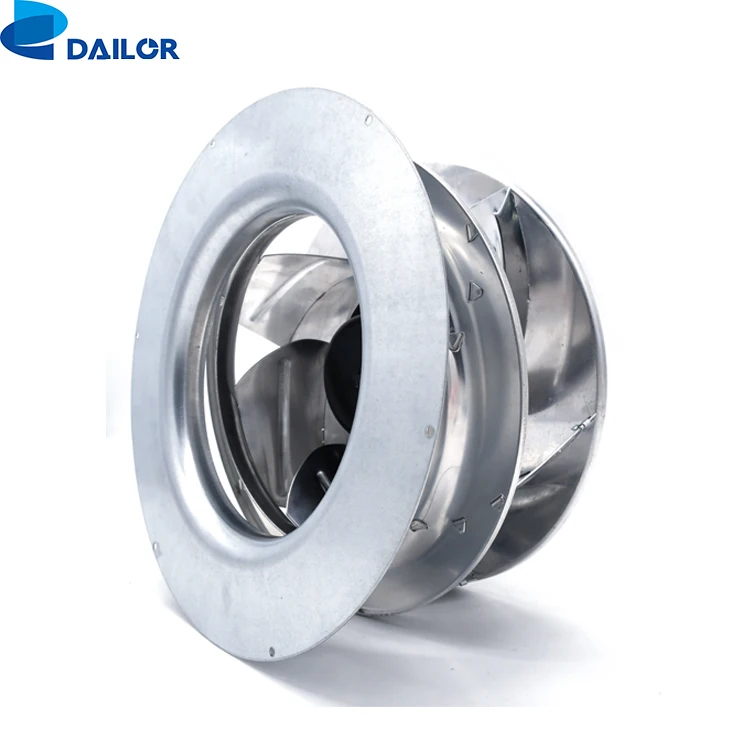

| Backward Centrifugal Fan Sizes | 133mm ~ 560mm |
| Forward Centrifugal Fan Sizes | 120mm ~ 250mm |
| Single Inlet Blower Fan Sizes | 120mm ~ 200mm |
| Double Inlet Blower Fan Sizes | 120mm ~ 146mm |
| Axial Fan Sizes | 200mm ~ 710mm |

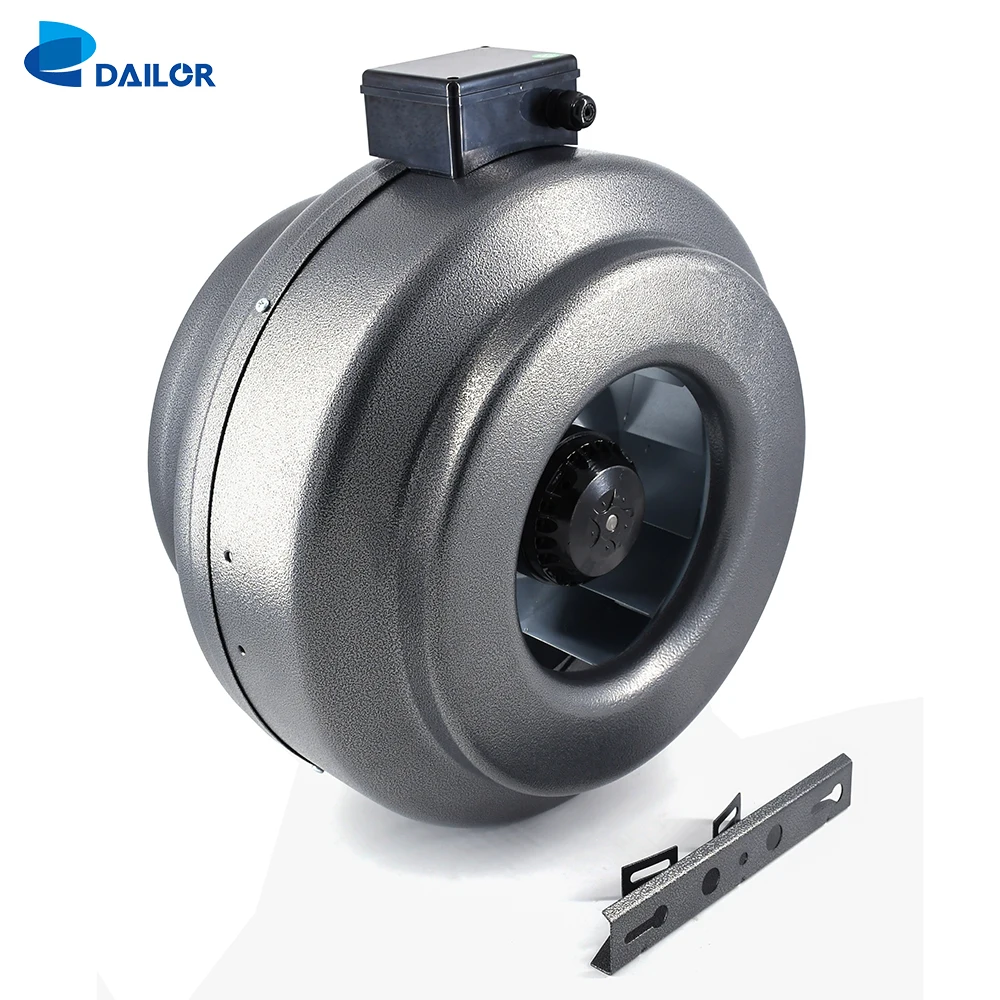

| Inline Duct Fan Sizes | 100mm ~ 315mm |
| Voltage | AC Input: 115V, 120V, 220V, 230V, 380V, 400V |
| DC Input: 12V, 24V, 48V | |
| EC Input: 220V, 230V, 380V, 400V | |
| Power | Up to 2300W |
| Speed | Up to 4528RPM |
| Airflow | Up to 24000m3/h |
| Speed Control | Speed controller (AC) or 0-10V/PWM Input (DC&EC) |
| Approvals | CCC, CE, RoHs, UL, CUL |

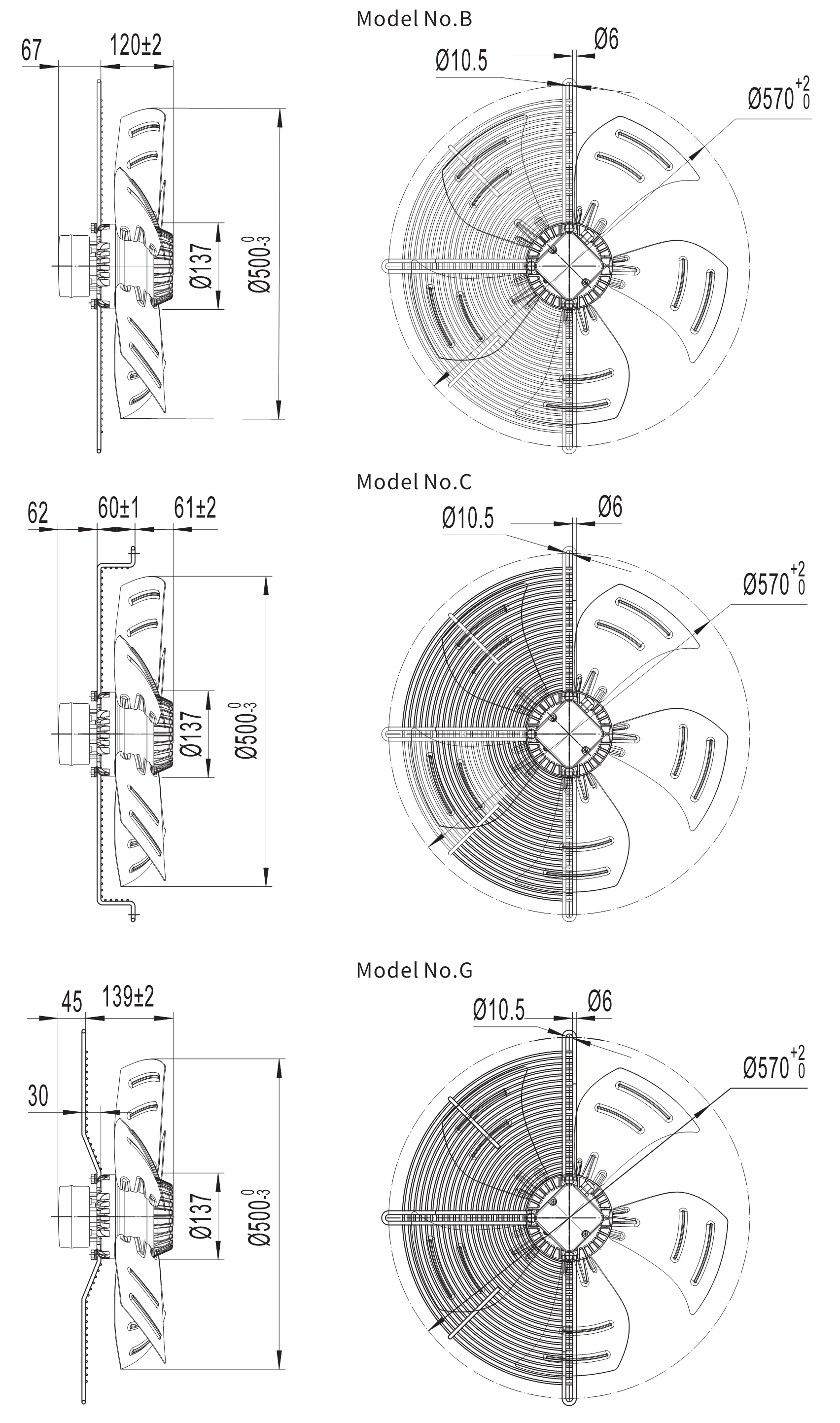

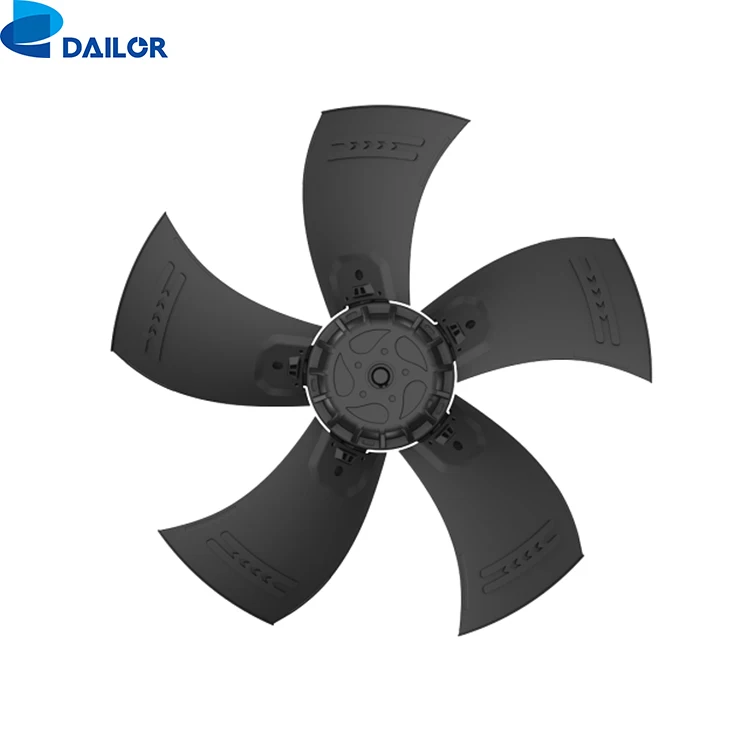

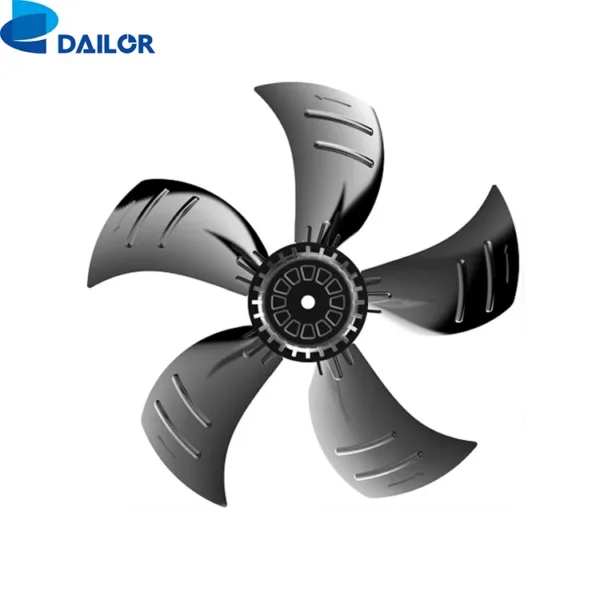

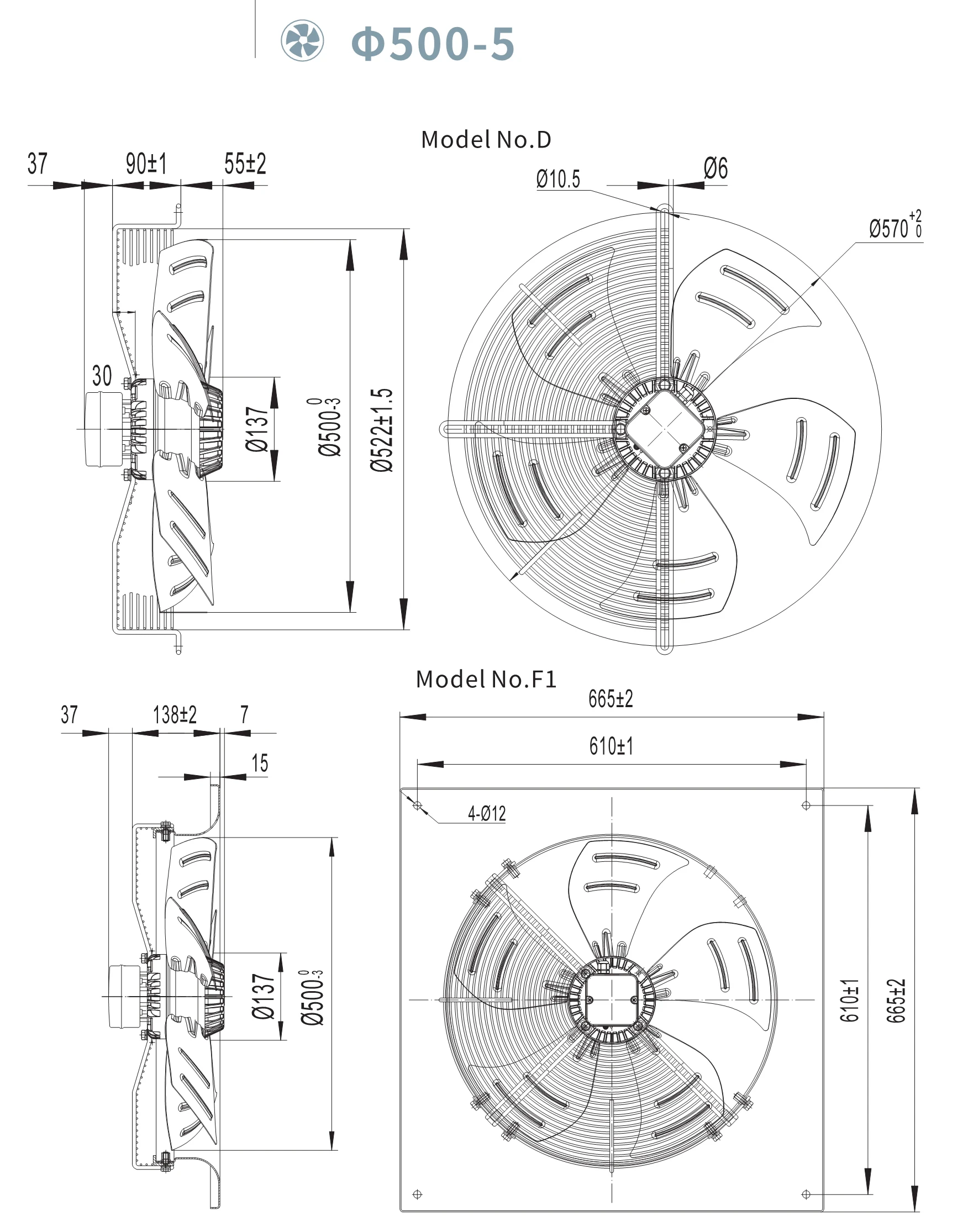

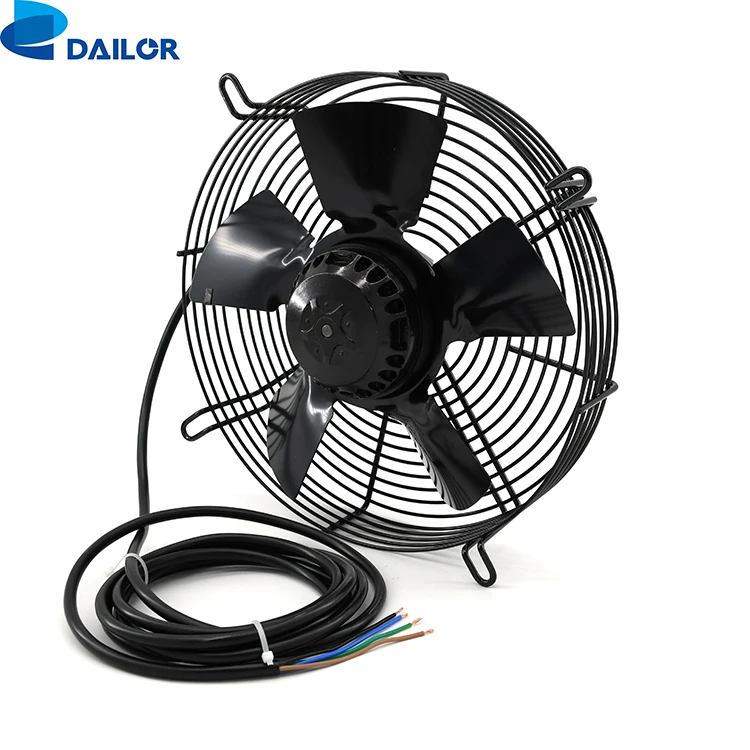

AC 500mm-5 blades
This series of products is our series of products with traditional advantages. The specifications of diameter range from A200 to A900, and the volume flow rate is up to 25000m^3/h. This series of products has been tested by the market for many years, the structural reliability, materials and blade desigh have developed into a third-generation brand-new high-reliability series product according to continuous optimization design and continuous innovation in manufacturing technology. The third-generation brand-new high-reliability series product has independent intellectual property rights and is dedicated by the our R&D team, they’re appearance, aerodynamic performance and structural reliability have been improved in different degrees compared with public mold products. External rotor fan products have the main features of compact structure, reliable operation, energy saving and high efficiency, low operating noise, long design life and easy installation.

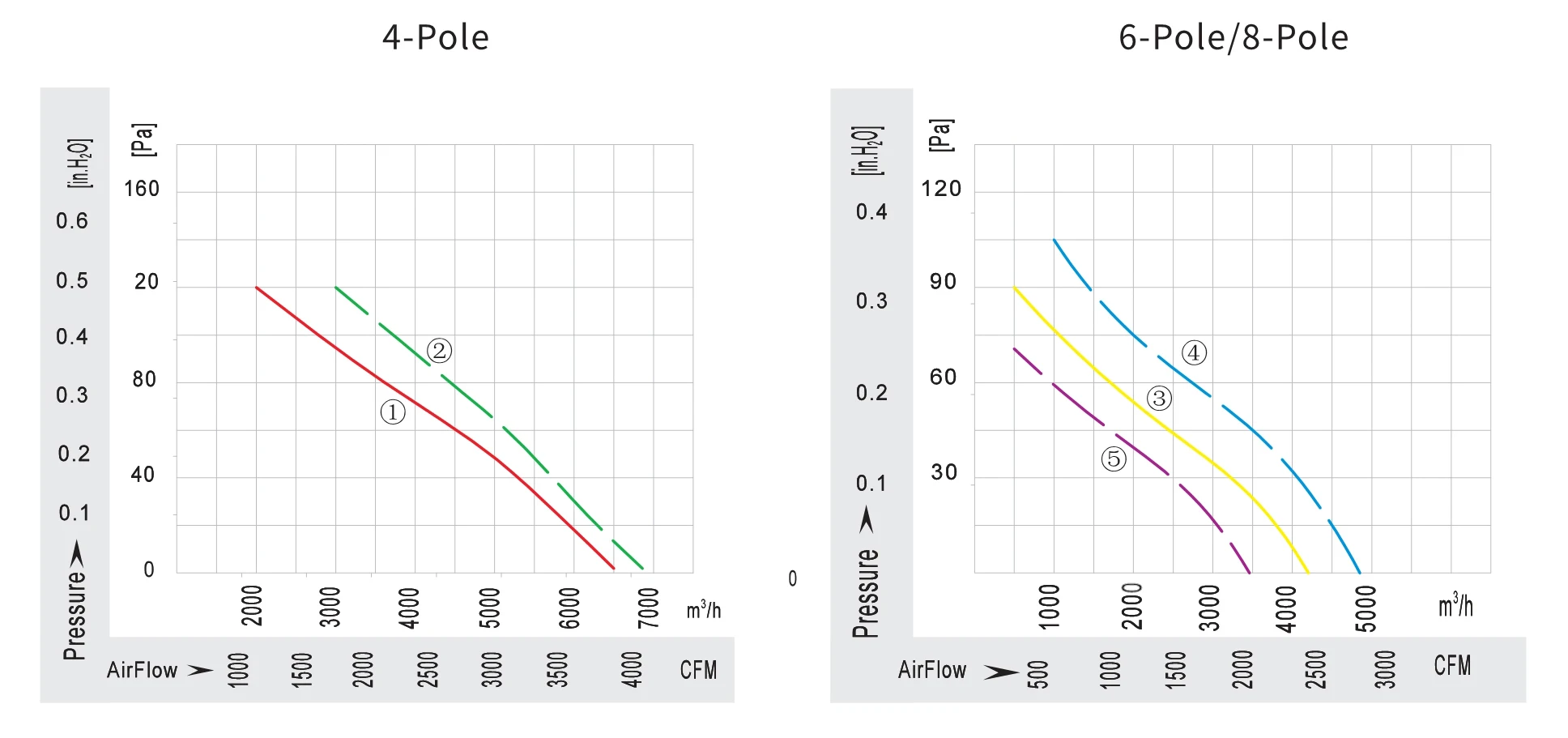

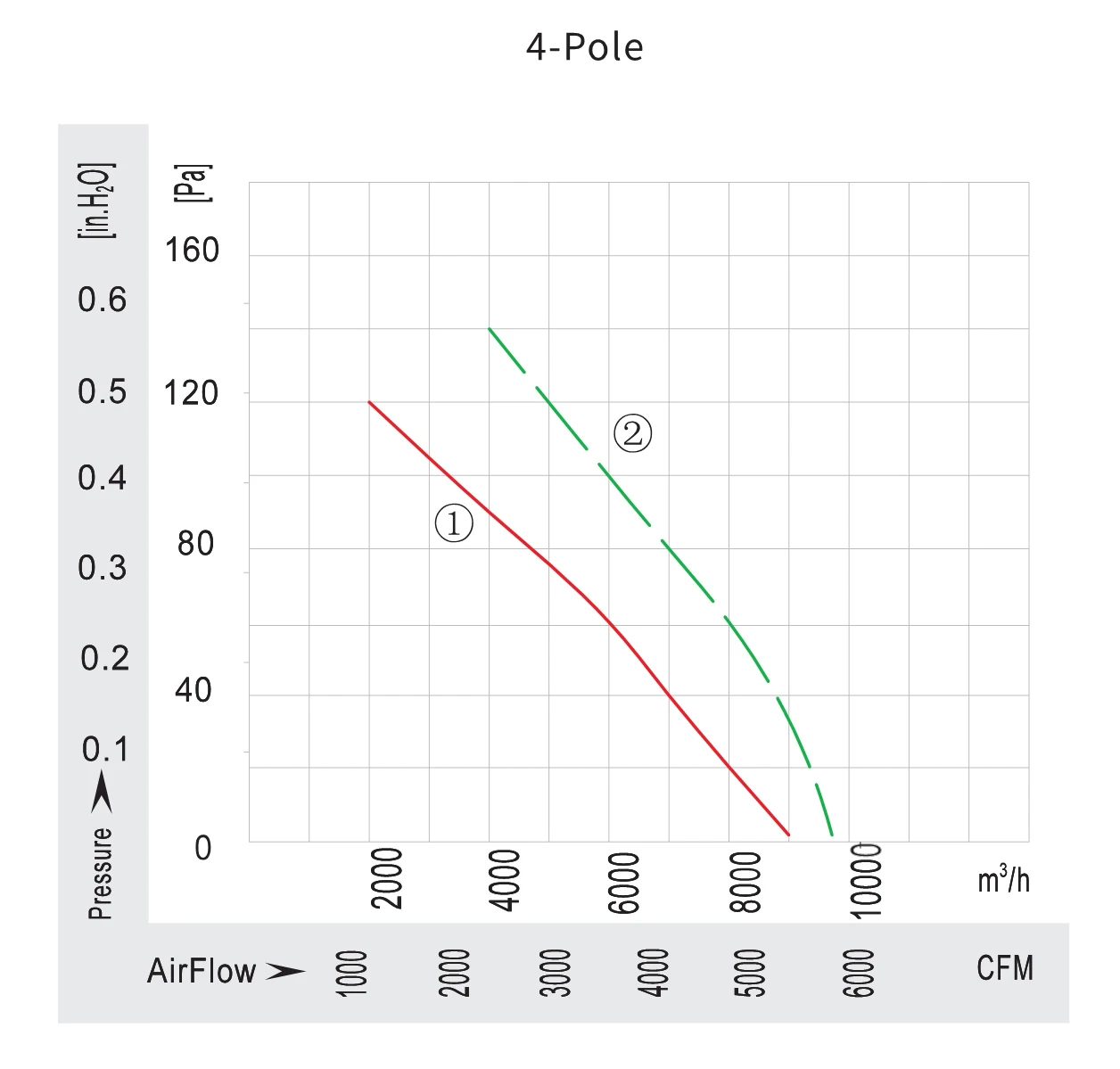

| Volatge | Frequency | Current | Input Power | Speed | Capacitor | Air Flow | Noise | Curve No. | Operating Temp | |
| Model No. | V | Hz | A | W | RPM | μF | m³/h/CFM | dB(A) | # | ℃ |
| YWF.A4S-500S-5DIA00 | 220/230 | 50 | 2 | 420 | 1320 | 10 | 6500/3835 | 69 | (1) | -30~+60 |
| 60 | 2.5 | 500 | 1450 | 6800/4012 | 70 | (2) | ||||
| YWF.A4T-500S-5DIA00 | 380/400 | 50 | 0.95 | 420 | 1350 | / | 6500/3835 | 69 | (1) | |
| 60 | 0.9 | 500 | 1500 | 6800/4012 | 70 | (2) | ||||
| YWF.A6S-500S-5DIA00 | 220/230 | 50 | 1.1 | 220 | 920 | 4 | 4320/2548 | 65 | (3) | |
| 60 | 1.38 | 275 | 1020 | 4800/3832 | 66 | (4) | ||||
| YWF.A6T-500S-5DIA00 | 380/400 | 50 | 0.62 | 220 | 920 | / | 4320/2548 | 65 | (3) | |
| 60 | 0.6 | 275 | 1100 | 2800/2832 | 66 | (4) | ||||
| YWF.A8T-500S-5DIA00 | 380/400 | 50 | 0.3 | 110 | 700 | / | 3400/2006 | 56 | (5) |

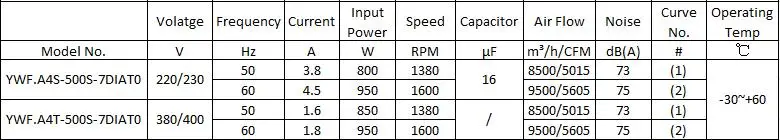

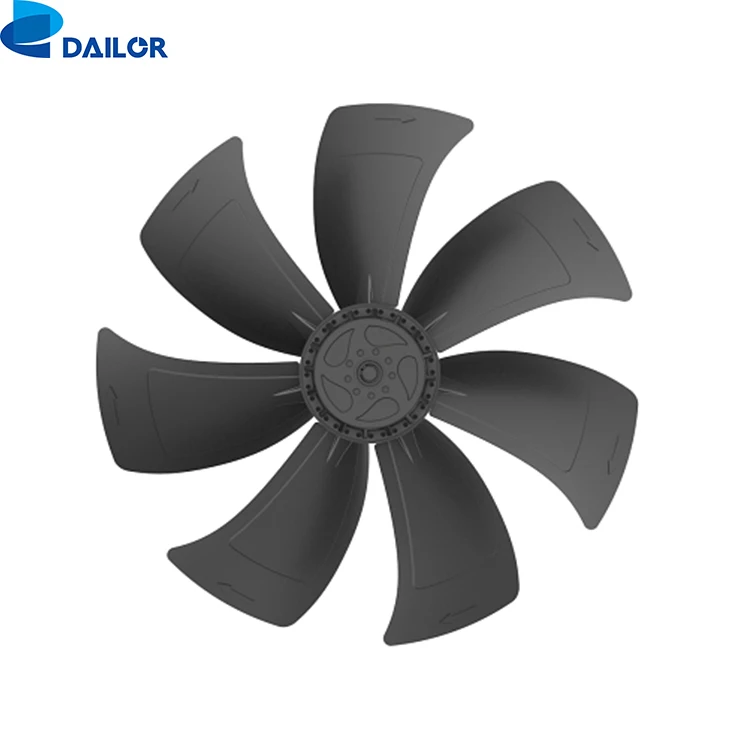

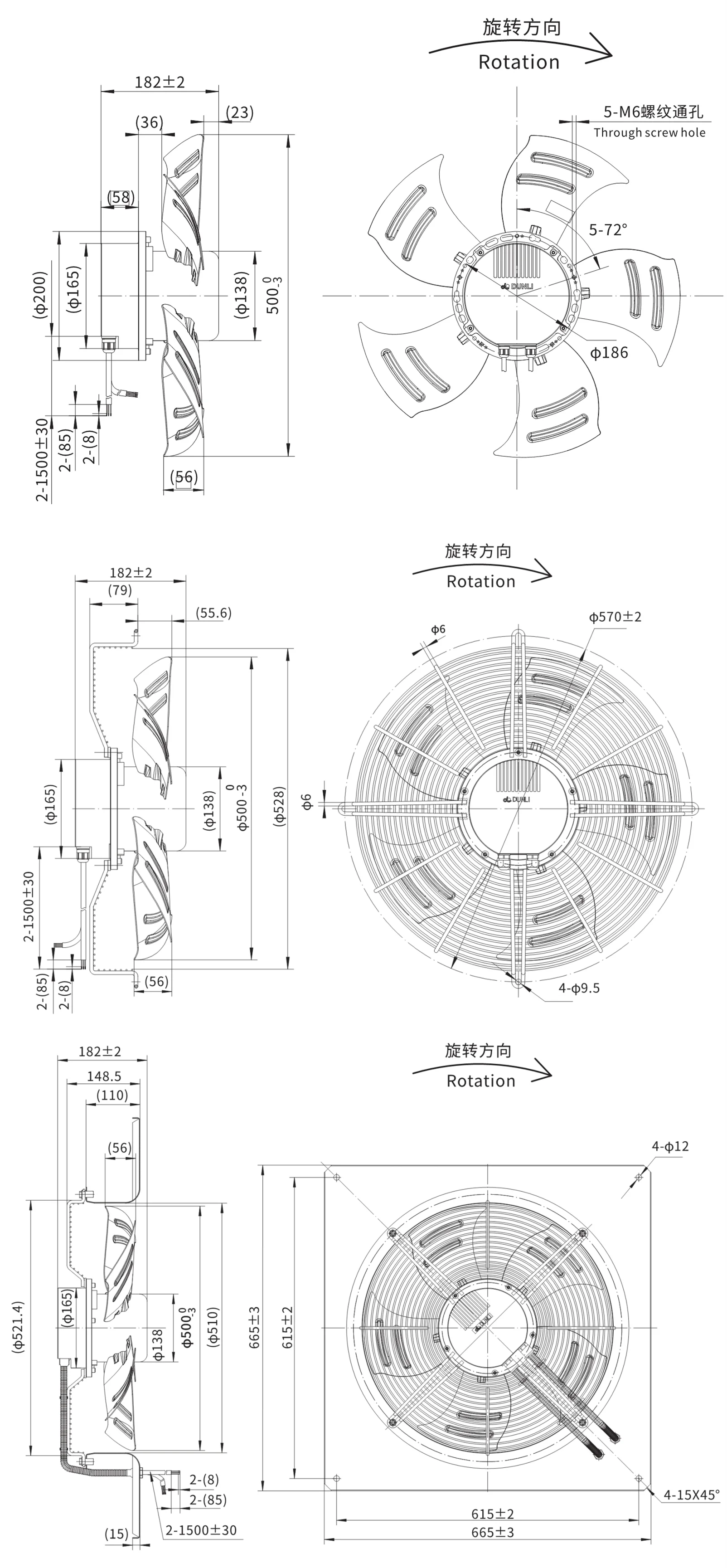

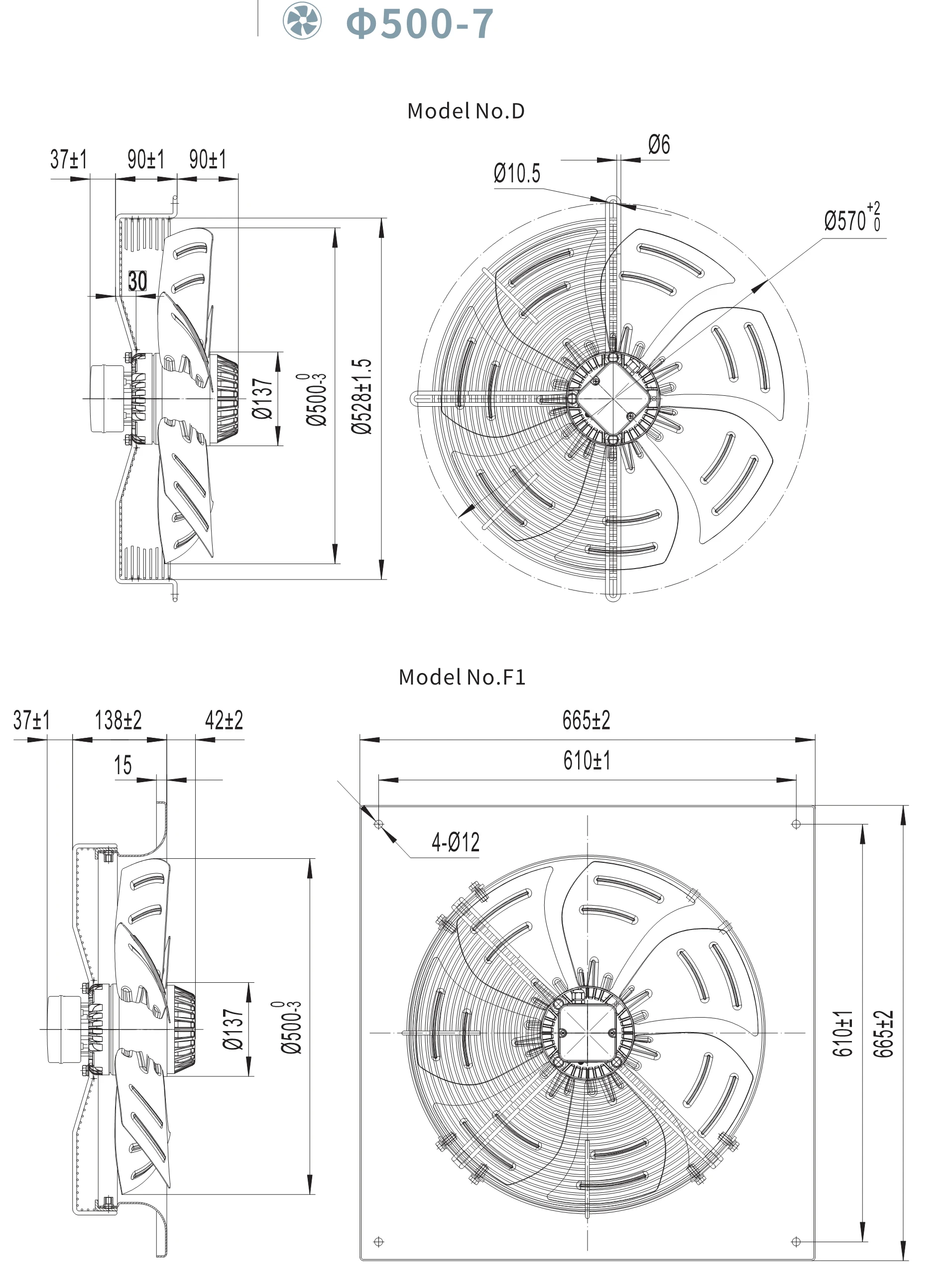

AC 500mm-7 blades

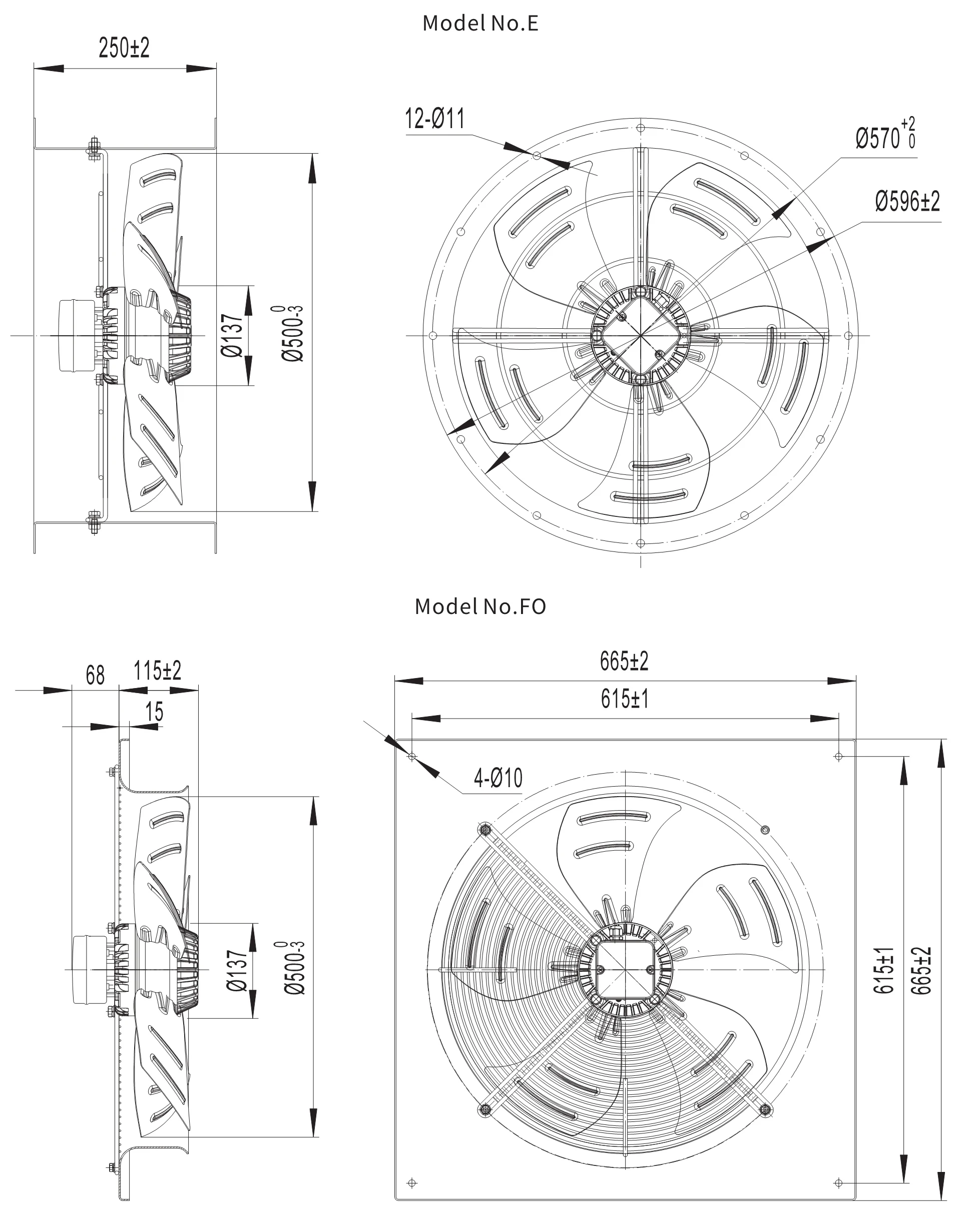

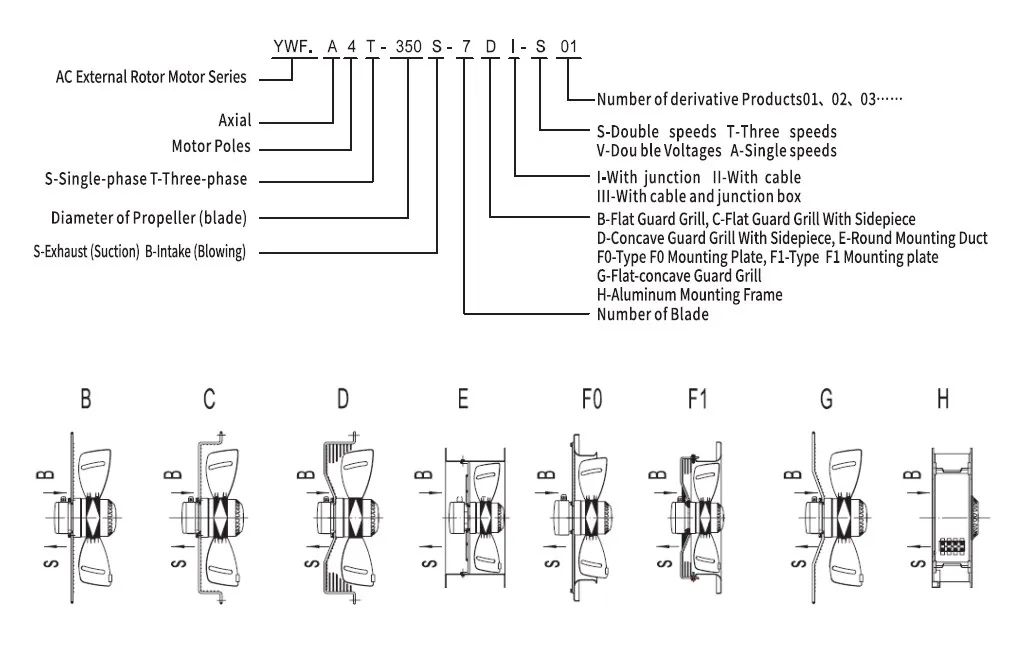

AC Nomenclature
EC 500mm
- Air conditioning terminal

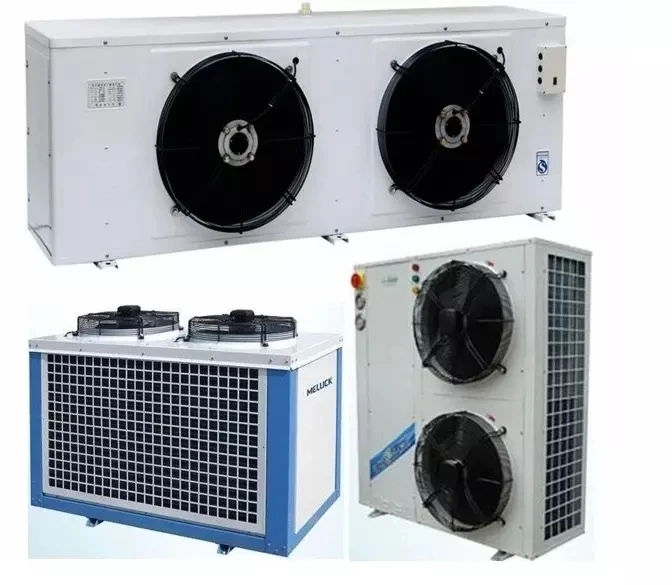

- Condenser
- Evaporator
- Air conditioning fan
- Exhaust ventilation
- Cold storage
- Equipment heat radiation
- HVAC industry
- Air handler
- CRAC&CRAH
- Data Room
- Other related industries
Please click on the model you want:

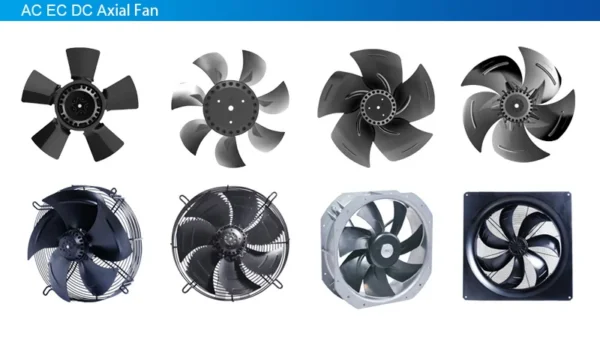

AC/EC/DC Axial flow fan with Airfoil Profiled:
250mm-7 300mm-5 350mm-5 400mm-5
450mm-5 500mm-5 560mm-5 630mm-5
630mm-5 710mm-5 800mm-5
AC/EC/DC Axial flow fan:
200mm-5/7 250mm-5/7 300mm-5 315mm-5
330mm-5 350mm-5/7 380mm-5 400mm-5/7
420mm-5 450mm-5 500mm-5/7 550mm-5
600mm-5 630mm-5/7 710mm-7 800mm-7
900mm-7

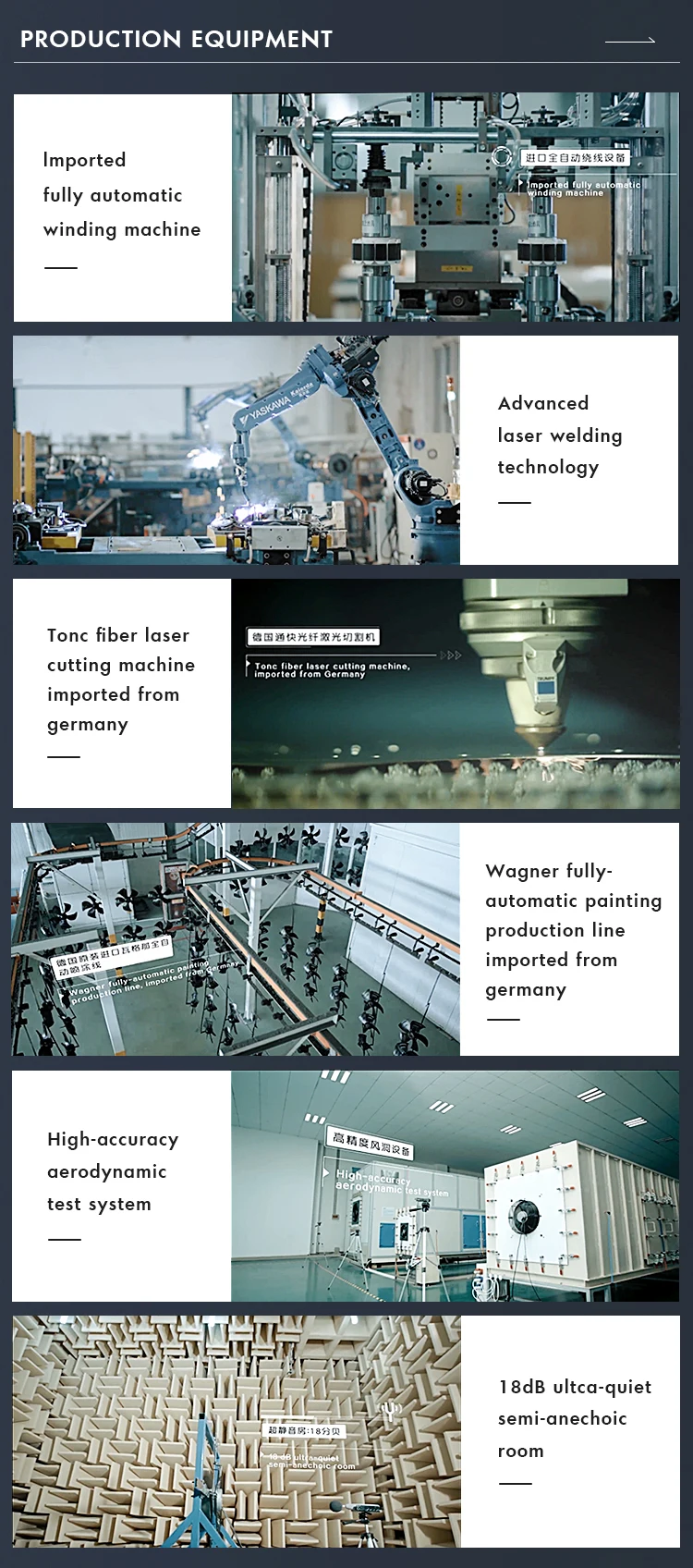

Quality Control
From selecting raw material, making motor parts, to assembling final product, Pengfei motor values every detail of the motor producing process. Full sets of equipments and skilled staffs also make the quality control more accurate. 100% test and inspection achieve good quality and satisfy our customers greatly.
FAQ
1. Are you a trade company or a manufacturer?
A: We are manufacturer in China. OEM&ODM services are available.
2. What is your MOQ?
A: MOQ is 30pcs.
3.What is your delivery date?
A: about 25-40 days after receipt of payment.
4. What is your payment terms?
A: T/T 30% deposit in advance, 70% balance before shipment.
Ordering and Pricing
- Minimum order quantity: 30 piece
- Volume pricing:
- 30–4999 piece: US $310 / piece
- 5000+ piece: US $220 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condenser?
The standard minimum order quantity is 30 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condenser be supplied for my local voltage?
The standard configuration is 1~230V, 220/230V, 3~380V, 380/400V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Pengfei Electrical Appliance Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhongshan Pengfei Electrical Appliance Co., Ltd. range on HVACR Nexus.
