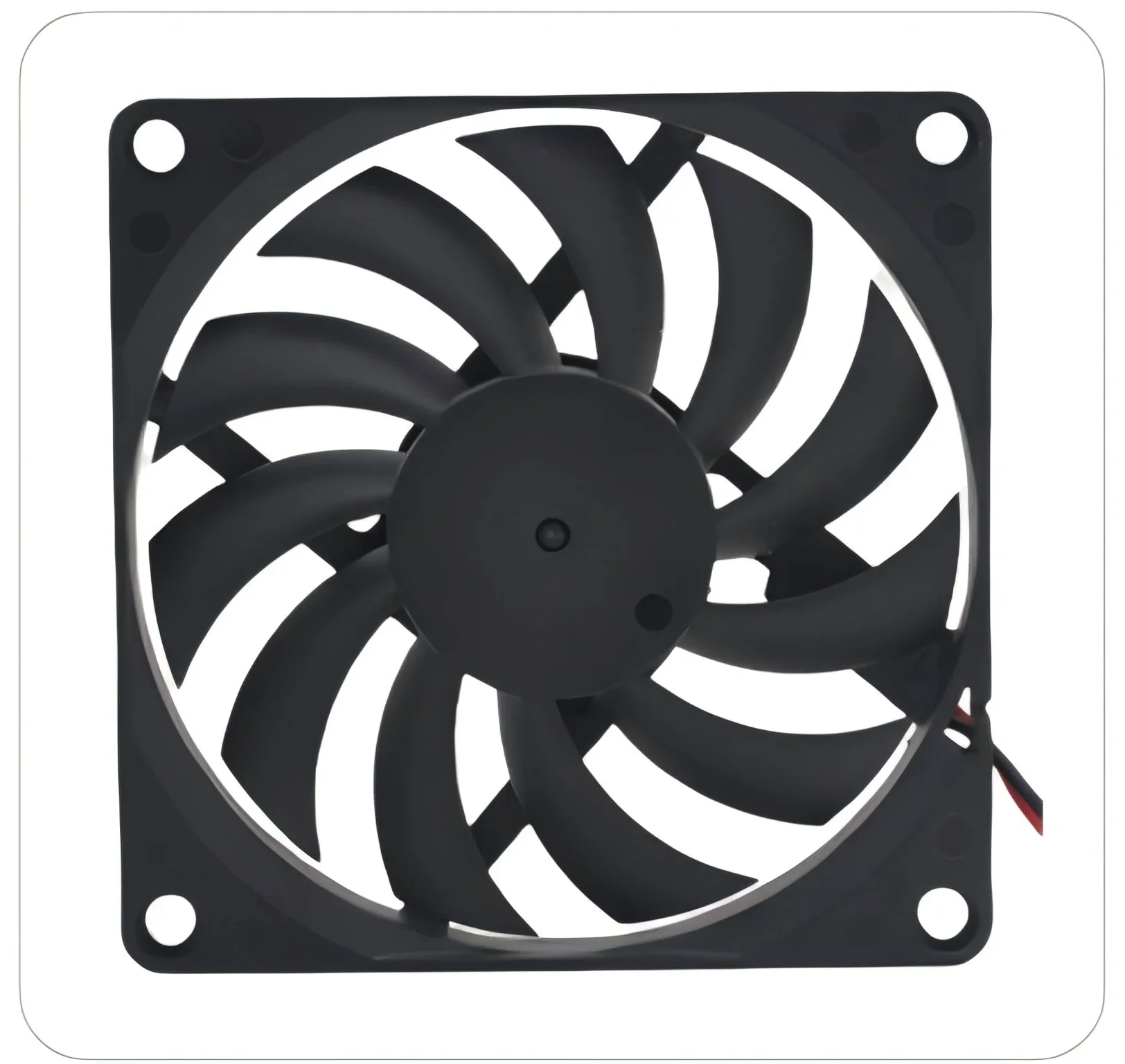

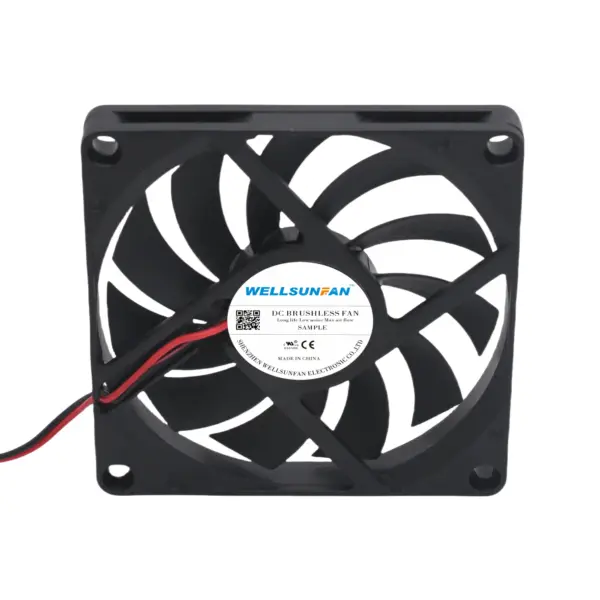

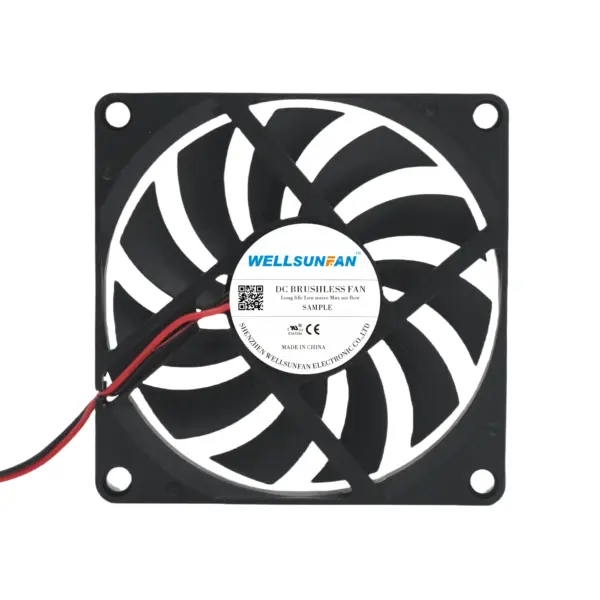

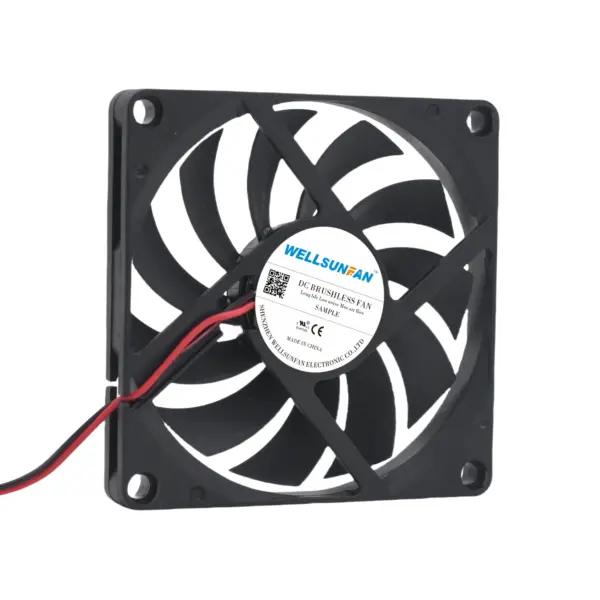

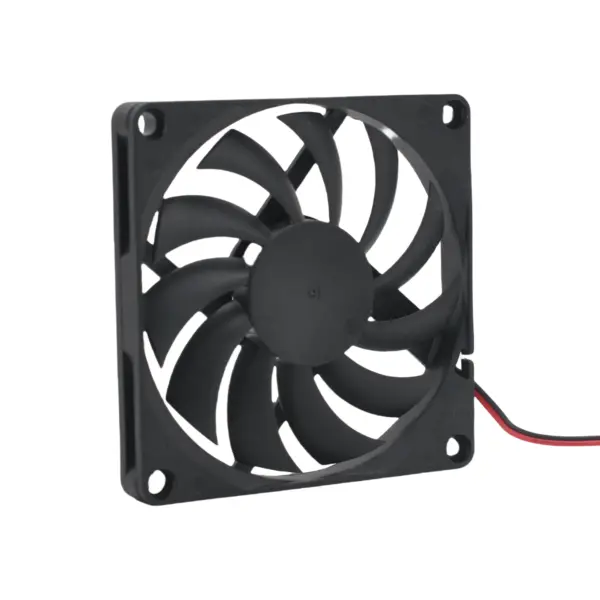

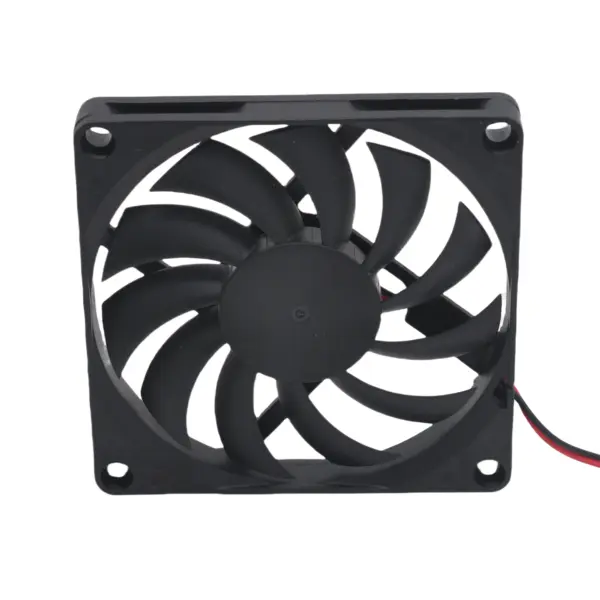

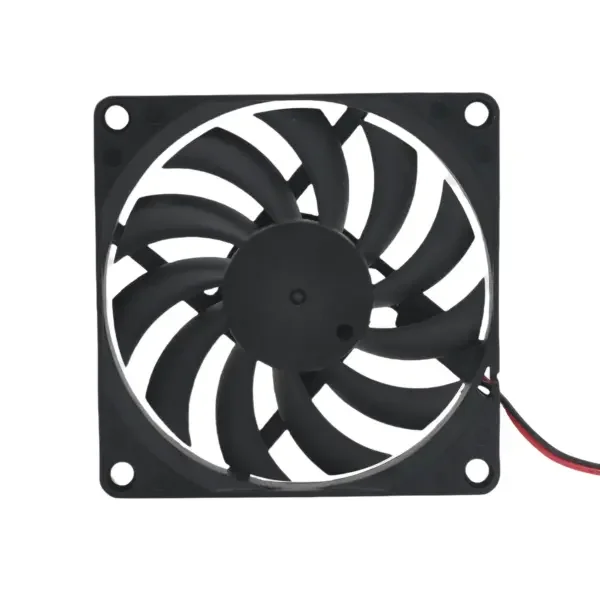

This volt cooling axial fan is listed with the manufacturer’s full published specification — power interface 2PIN, type Fan. It is produced by Shenzhen Weilishun Technology Limited. Pricing shown is indicative at standard quantities; send your target volume and destination market for a firm quotation with current lead times.
Key Features of This Volt Cooling Axial Fan
- Power Interface: 2PIN
- Power: 1.2W
- Heatsink Material: PBT
- Fan Speed Control: 2200rpm
- Place Of Origin: Guangdong, China
- Application: all kinds of electronic products
Technical Specifications
| Power Interface | 2PIN |
|---|---|

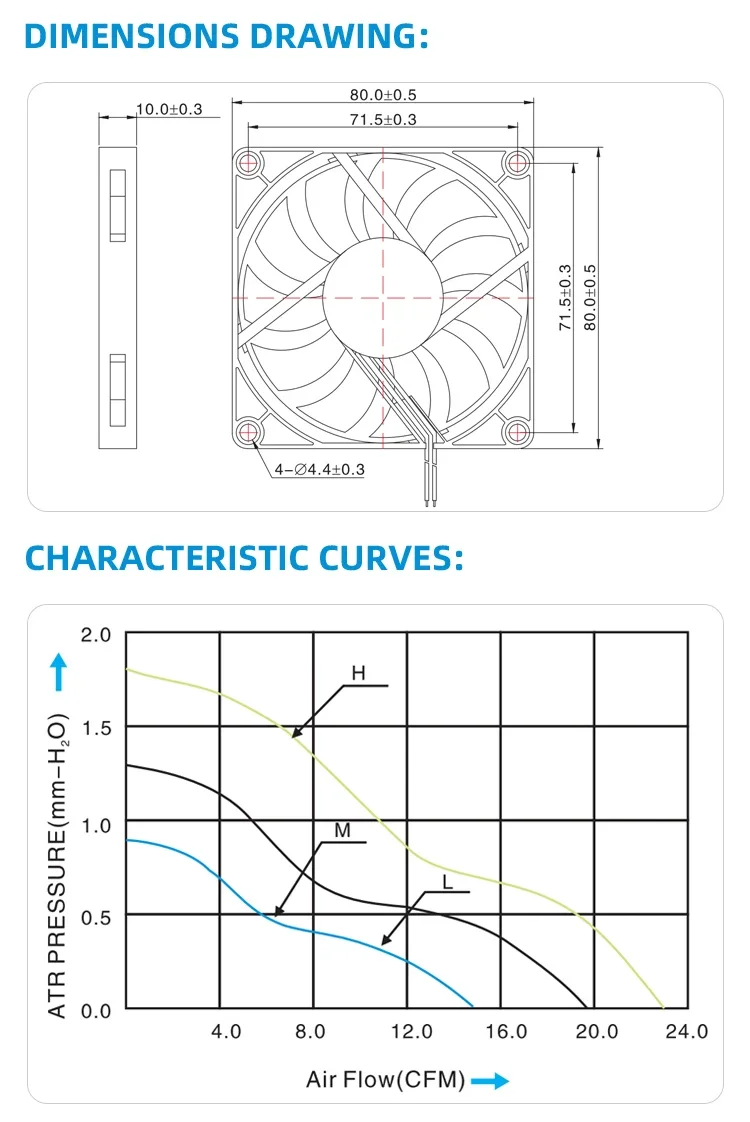

| Fan Size | 80x80x10mm |
| Noise | 28dBA |
| Power | 1.2W |
| Air Volume | 38CFM |
| Application | all kinds of electronic products |
| Type | Fan |
| Fan Life | 30000 Hrs |
| Heatsink Material | PBT |
| Bearing | Oil Bearing |
| Fan Speed Control | 2200rpm |
| Place Of Origin | Guangdong, China |
| Selling Units | Single item |
| Single Package Size | 8X8X1 cm |
| Single Gross Weight | 0.043 kg |
|
Model
|
Rated Voltage
|
Operating Voltage
|
Current
|
Input Power
|
Rated Speed
|
Air Flow
|
Air Pressure
|
Noise
|
Weight
|
|||||||||
|
Part No.
|
VDC
|
VDC
|
A
|
Watt
|
R.P.M
|
CFM
|
mm-H20
|
dBA
|
g
|
|||||||||
|
FD08010#5H
|
5
|
3.5~5.5
|
0.45
|
2.25
|
3500
|
30.25
|
2.31
|
33.9
|
43.0
|
|||||||||
|
FD08010#5M
|
5
|
3.5~5.5
|
0.35
|
1.75
|
3000
|
26.53
|
1.81
|
30.2
|
43.0
|
|||||||||
|
FD08010#5L
|
5
|
3.5~5.5
|
0.25
|
1.25
|
2500
|
21.73
|
1.30
|
26.5
|
43.0
|
|||||||||
|
FD08010#12H
|
12
|
7.0~13.8
|
0.26
|
3.12
|
3500
|
30.25
|
2.31
|
33.9
|
43.0
|
|||||||||
|
FD08010#12M
|
12
|
7.0~13.8
|
0.18
|
2.16
|
3000
|
26.53
|
1.81
|
30.2
|
43.0
|
|||||||||
|
FD08010#12L
|
12
|
7.0~13.8
|
0.11
|
1.32
|
2500
|
21.73
|
1.30
|
26.5
|
43.0
|
|||||||||
|
FD08010#24H
|
24
|
14.0~27.6
|
0.15
|
3.60
|
3500
|
30.25
|
2.31
|
33.9
|
43.0
|
|||||||||
|
FD08010#24M
|
24
|
14.0~27.6
|
0.11
|
2.64
|
3000
|
26.53
|
1.81
|
30.2
|
43.0
|
|||||||||
|
FD08010#24L
|
24
|
14.0~27.6
|
0.08
|
1.92
|
2500
|
21.73
|
1.30
|
26.5
|
43.0
|
|||||||||
|
All models could be customized on voltage or any other requirements to fit your need.
|
|
|
|
|
|
|
|
|
|
|||||||||
Frequently Asked Questions
What is the minimum order quantity for this volt cooling axial fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
