Condensing Unit, 2HP, 4hp, 5HP, 220 V, R22

The condensing unit listed here carries 220 V, 380 V, refrigerant R22/R404A/R410/R454B, documented exactly as the manufacturer publishes it. Made by Foshan Kitdoo Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Condensing Unit

• Model Number: 2-15hp
• Voltage: 220 V, 380 V
• Refrigerant: R22/R404A/R410/R454B
• Application Refrigerant: R22/R404A/R410/R454B
• Warranty: 1 Year
• Place Of Origin: Guangdong, China

Technical Specifications

Product Details

Product Description

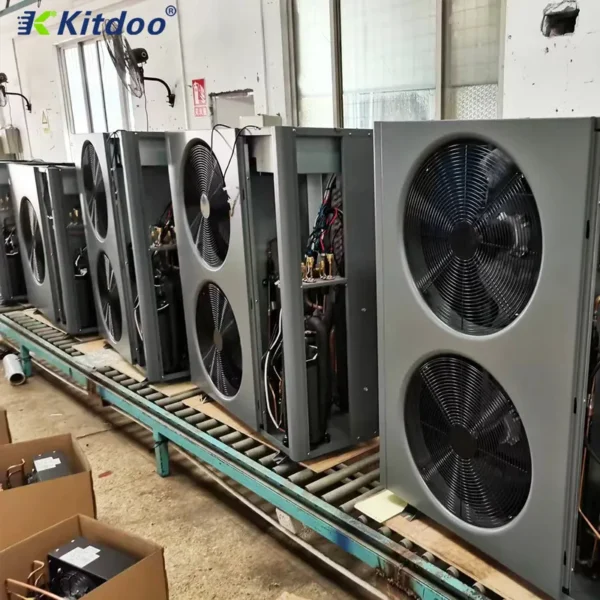

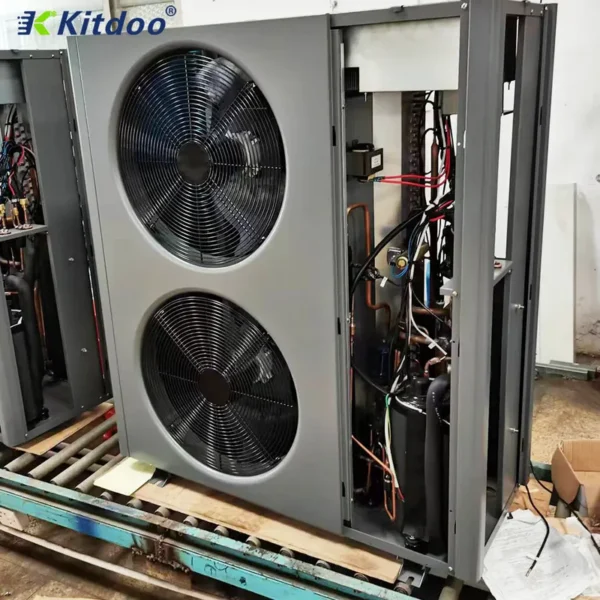

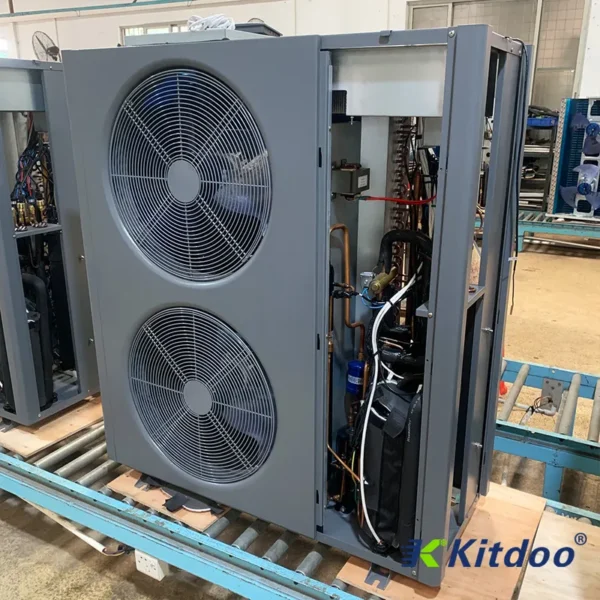

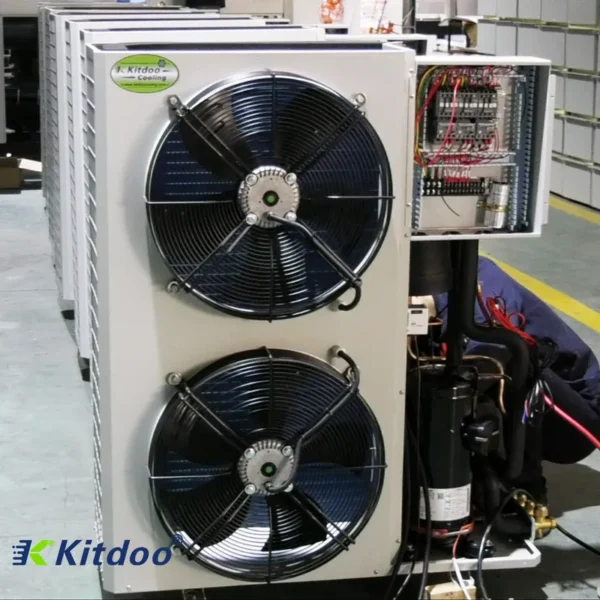

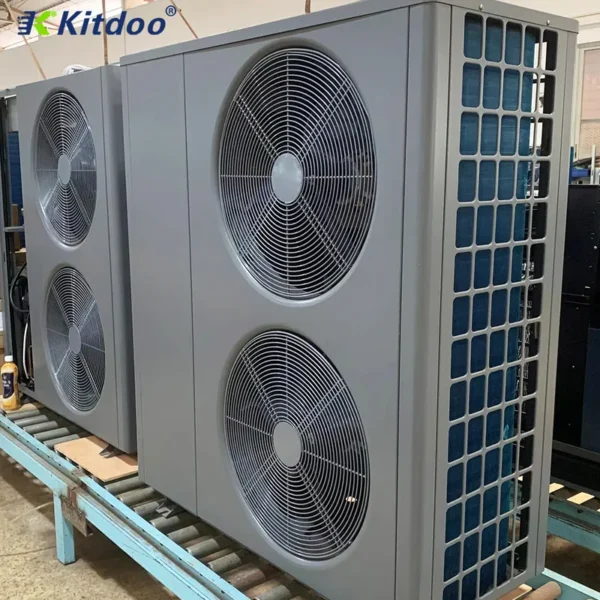

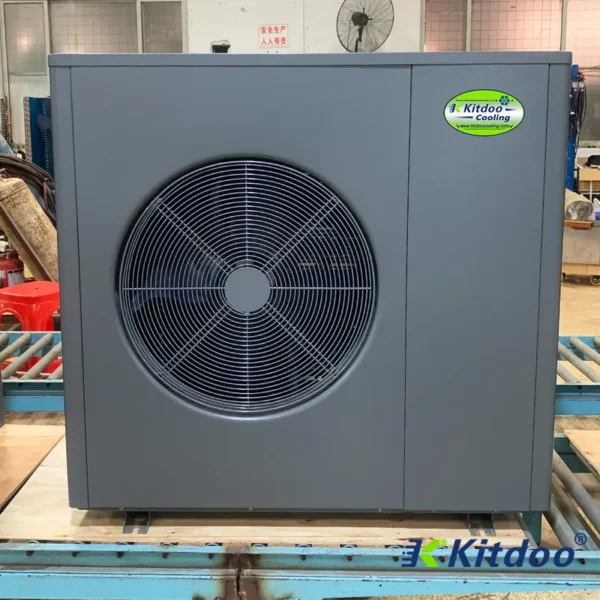

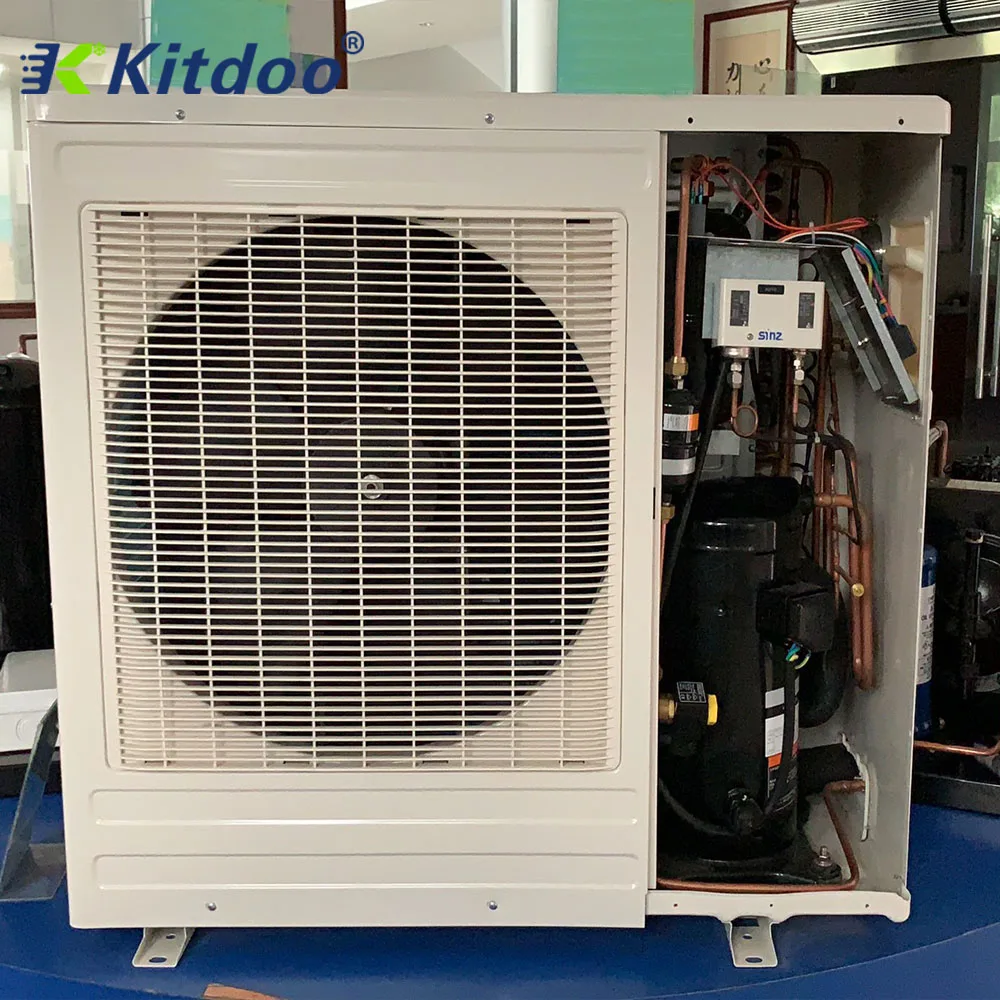

The Condensing Unit adopts an integral box-type structure with compact structure and beautiful appearance. The Condensing Unit structure is reasonable and the air flow is uniform, which can better improve the heat exchange capacity of the heat exchanger.
The Condenser Unit has undergone continuous design optimization, and the unit has a high energy efficiency ratio. The Air
Condenser Unit adopts high-quality large-brand motors with low noise during operation. The product panel is easy to disassembleand assemble, convenient for maintenance.
1.Condensing Unit Suitable for hotel kitchen, electronic chemicals, agriculture and other industries.
2.Design appearance, easy installation, high efficiency, low noise, more suitable for residential needs a more quiet place to use.
3.Using copper tubes and aluminum condenser, heat transfer efficiency, long life.
4.Products can choose common refrigerant R22, or choose environmentally friendly refrigerant R404A.

BOX-TYPE AIR OUTLET FROM SIDE SCOLL ZB SERIES
Unit model					KDC2SFM	KDC3SFM	KDC4SFM	KDC5SFM	KDC6SFM	KDC10SFM	KDC12SFM
Evaporating temp(℃)					(+10~-15℃)
Refrigerant					R22
Power source					380~415V/50Hz
Fan quantity					1	1	2	2	2	2	2
Air volume(m/h)					2600	3200	5200	6300	6300	2*5600	2*6300
Fan power(W)					40	90	2*40	2*90	2*90	2*250	2*250
Compressor unit data	E.T +5℃	Capacity	5700	8300	11000	13800	16800	29600	34000
				Power	1600	2400	3050	3800	4400	7600	8275
		E.T -5℃	Capacity	4100	5900	7600	9500	12000	21000	234500
				Power	1500	2200	2800	3500	4200	7100	7330
		E.T -12℃	Capacity	3100	4500	5680	7100	9200	16100	18140
				Power	1400	2100	2640	3300	4000	6700	7580
Outlet pipe(inch)					3/8"	3/8"	3/8"	1/2°	1/2°	5/8"	5/8°
Suction pipe(inch)					5/8°	5/8"	3/4°	3/4°	3/4°	1-3/8"	1-3/8”
Dimension(LxWxH)	L ( mm )			840	880	830	930	930	1500	1500
		W ( m m )			285	360	310	390	390	400	400
		H ( m m )			610	800	1260	1270	1270	1700	1700
BOX-TYPE AIR OUTLET FROM SIDE SCOLL ZB SERIES
Unit model					KDC2SFMY	KDC 3SFMY	KDC4SFMY	KDC 5SFMY		KDC6SFMY	KDC¹0SE
Evaporating temp(℃)					(+5~-20℃)
Refrigerant					R404A
Power source					380~420V/5OHz
Fan quantity					1	1	2	2		2	2
Air volume(m²/h)					2600	3200	5200	6300		6300	2*6300
Fan power(W)					40	90	2*40	2*90		2*90	2*250
Compressorunit data	E.T +5℃	Capacity	5600	8300	11360	14200		16600	29300
				Peower	1800	2600	3440	4300		4900	8600
		E.T 5℃	Capacity	3900	5900	8000	10000		11700	20800
				Power	1800	2500	3360	4200		4800	8200
		E.T -20℃	Capacity	2000	3200	4400	5500		6400	11400
				Power	1800	2400	3200	4000		4600	7700
Outlet pipe(inch)					3/8°	3/8°	3/8"	1/2"		1/2°	5/8°
Suction pipe(inch)					5/8°	5/8°	3/4"	3/4"		3/4°	1-3/8°
Dimension(LxMxH)	L ( mm )			840	880	830	930		930	1500
		M(mm)			285	360	310	390		390	400
		H ( m m )			610	800	1260	1270		1270	1700

Ordering and Pricing

• Minimum order quantity: 1 unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this condensing unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the condensing unit be supplied for my local voltage?

The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Kitdoo Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, Trading Company. Browse the full Foshan Kitdoo Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
