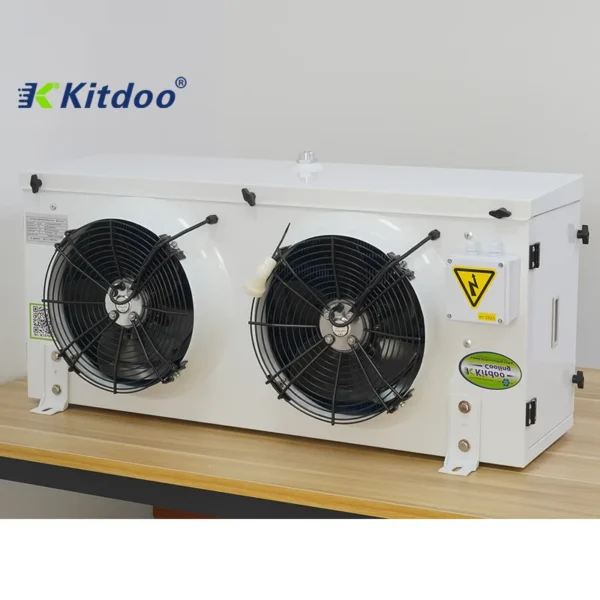

Wall Mounted Air Cooler, AC 220V~240V, > 1000W

This wall mounted air cooler is published with the manufacturer’s full specification — voltage AC 220V~240V, 380 V, power > 1000W. Made by Foshan Kitdoo Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Wall Mounted Air Cooler

• Model Number: DD/DL/DJ
• Power: > 1000W
• Voltage: AC 220V~240V, 380 V
• Material: Iron/aluminum/copper/stainless steel
• Refrigerant: R134a
• Application Refrigerant: R22/R404A/R134A/R410

Technical Specifications

Product Details

Scope of application:

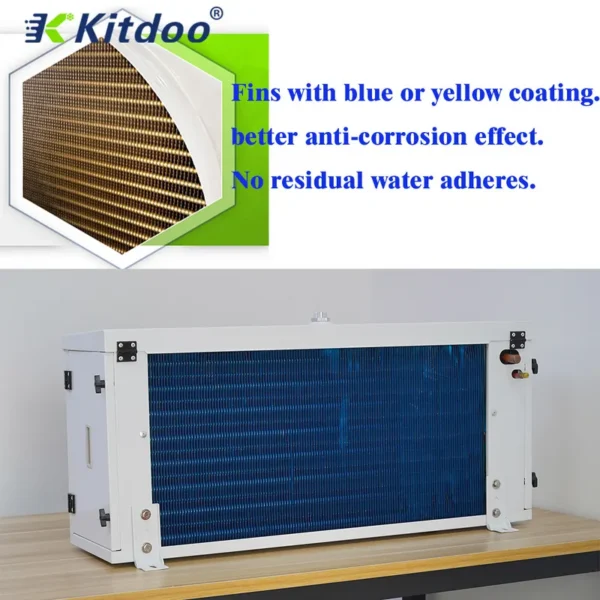

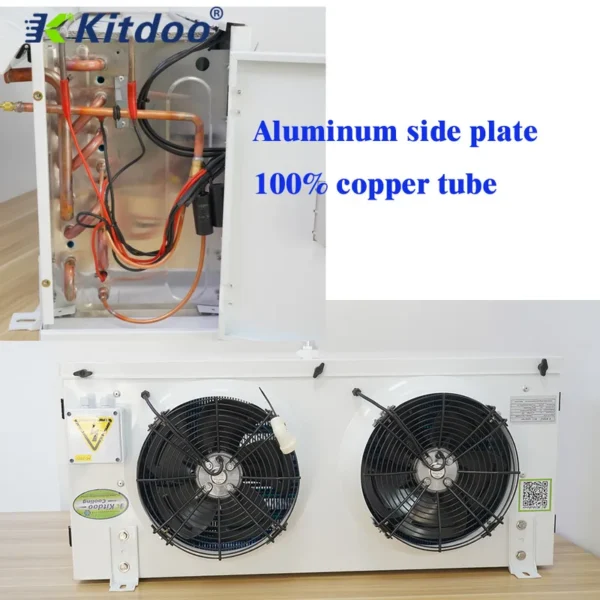

The shell of cold room evaporator is generally made of plastic-sprayed iron plate, food-grade stainless steel plate or embossed aluminum plate. The cold room evaporator has many advantages such as large heat exchange, convenient and simple, high corrosion resistance, and beautiful appearance. The heat exchange coil of the air cooler generally uses internal threads. The heat exchange copper tube is in close contact with the aluminum fin through a hydraulic tube expander, thereby reducing the contact distance and improving the heat transfer coefficient.
After the cold room evaporator is produced, it goes through a strict decontamination process to ensure the cleanliness of the quality system. The cold room evaporator uses a high-efficiency outer rotor motor. The motor of this structure has the advantages of large air volume, high wind speed, and long service life. The cold room evaporator should be able to Install explosion-proof motors according to different needs.

Scope of application:

DL high temperature type (room temperature 12 to -2 degrees Celsius) fan space 4.5mm
DD medium temperature type (cool temperature -2 to -18 degrees Celsius) fan space 6.0mm
DJ low temperature type (cool temperature -18 to -31 degrees Celsius) fan space 9.0mm

Model	Capacity	Cooling surface	Fin Space	Fan							HeaterVoltage
		(W)	(m2)	(mm)	Qty	Size(mm)	Air flow (m3/h)	Voltage(v)	(v)
DD SERISE
DD-1.3/7	1300	7	6	1	300	1700	380	220
DD-2.2/12	2200	12	6	2	300	3400	380	220
DD-2.8/15	2800	15	6	2	300	3400	380	220
DD-3.7/22	3700	22	6	3	300	5100	380	220
DD-5.6/30	5600	30	6	2	400	8000	380	220
DD-7.5/40	7500	40	6	2	400	8000	380	220
DD-11.2/60	11200	60	6	2	500	12000	380	220
DD-14.9/80	14900	80	6	2	500	12000	380	220
DD-18.7/100	18700	100	6	3	500	18000	380	220
DD-22.4/120	22400	120	6	3	500	18000	380	220
DD-26.4/140	26400	140	6	3	500	18000	380	220
DD-30.0/160	30000	160	6	4	500	24000	380	220
DD-35.0/180	35000	180	6	4	500	24000	380	220
DD-37.0/200	37000	200	6	4	500	24000	380	220
DD-40.0/220	40000	220	6	4	500	24000	380	220
DD-46.0/250	46000	250	6	4	500	24000	380	220
DD-50.0/275	50000	275	6	4	600	44000	380	220
DD-57.0/310	57000	310	6	5	600	44000	380	220
DD-67.0/360	67000	360	6	5	630	45000	380	220
DD-81.0/440	81000	440	6	5	630	45000	380	220
DL SERIES
DL-2.0/10	2000	10	4.5	1	300	1700	380	220
DL-3.0/15	3000	15	4.5	2	300	3400	380	220
DL-5.0/25	5000	25	4.5	3	400	5100	380	220
DL-8.0/40	8000	40	4.5	2	400	8000	380	220
DL-11.2/55	11200	55	4.5	2	500	8000	380	220
DL-16.2/80	16200	80	4.5	2	500	12000	380	220
DL-21.0/105	21000	105	4.5	2	500	12000	380	220
DL-25.0/135	25000	135	4.5	3	500	18000	380	220
DL-32.6/160	32600	160	4.5	3	500	18000	380	220
DL-37.6/185	37600	185	4.5	3	500	18000	380	220
DL-42.7/220	42700	220	4.5	4	500	24000	380	220
DL-50.0/250	50000	250	4.5	4	500	24000	380	220
DL-55.0/280	55000	280	4.5	4	500	24000	380	220
DL-60.0/300	60000	300	4.5	4	500	24000	380	220
DL-66.0/330	66000	330	4.5	4	500	24000	380	220
DL-70.0/375	70000	375	4.5	4	600	44000	380	220
DL-82.0/410	82000	410	4.5	4	600	44000	380	220
DL-94.0/470	94000	470	4.5	5	630	45000	380	220
DL-116.0/580	11600	580	4.5	5	630	45000	380	220
DJ SERIES
DJ-1.2/8	1200	8	9	2	300	3400	380	220
DJ-2.1/15	2100	15	9	3	300	5100	380	220
DJ-3.6/20	3600	20	9	2	400	8000	380	220
DJ-4.6/30	4600	30	9	2	400	8000	380	220
DJ-7.1/40	7100	40	9	2	500	12000	380	220
DJ-8.9/55	8900	55	9	2	500	12000	380	220
DJ-11.6/70	11600	70	9	3	500	18000	380	220
DJ-14.3/85	14300	85	9	3	500	18000	380	220
DJ-17.1/100	17100	100	9	3	500	18000	380	220
DJ-19.6/115	19600	115	9	4	500	24000	380	220
DJ-22/130	22000	130	9	4	500	24000	380	220
DJ-23/140	23000	140	9	4	500	24000	380	220
DJ-25/150	25000	150	9	4	500	24000	380	220
DJ-28/170	28000	170	9	4	500	24000	380	220
DJ-30/190	30000	190	9	4	600	44000	380	220
DJ-35/210	35000	210	9	4	600	44000	380	220
DJ-41/250	41000	250	9	5	630	45000	380	220
DJ-50/300	50000	300	9	5	630	45000	380	220

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1+ unit: US $98 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this wall mounted air cooler?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the wall mounted air cooler be supplied for my local voltage?

The standard configuration is AC 220V~240V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
