Condensing Unit, 30hp, 35hp, 40hp

Key specification for this condensing unit: 380 V, cooling capacity customization. Everything below is reproduced from the factory data sheet. Made by Jinan Seehigh Refrigerat Equipment Co., Ltd. (1 year on the platform, typical reply ≤13h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Condensing Unit

• Model Number: BITZER Low Temperature Screw Single Unit
• Compressor Model Number: HSK5356-40~HSK8591-180 HSN6451-40~HSN8591-160
• Voltage: 380 V
• Cooling Capacity: customization
• Refrigerant: R507
• Warranty: More Than 5 Years

Technical Specifications

Product Details

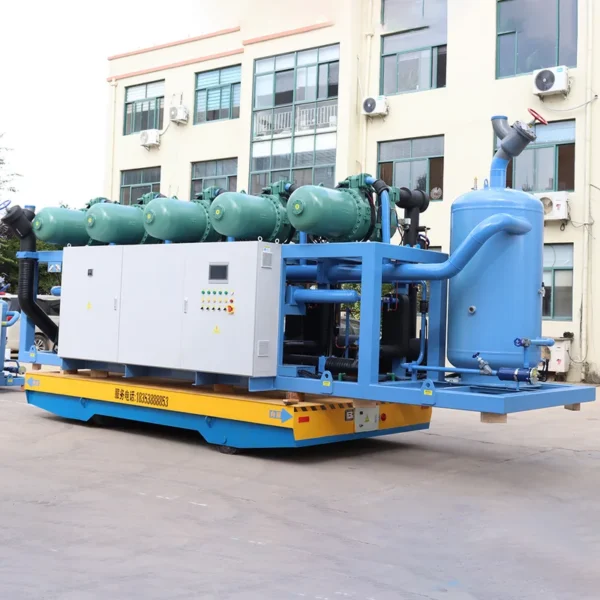

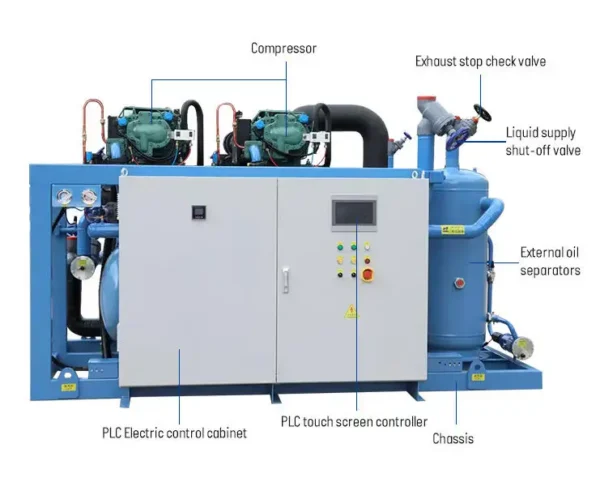

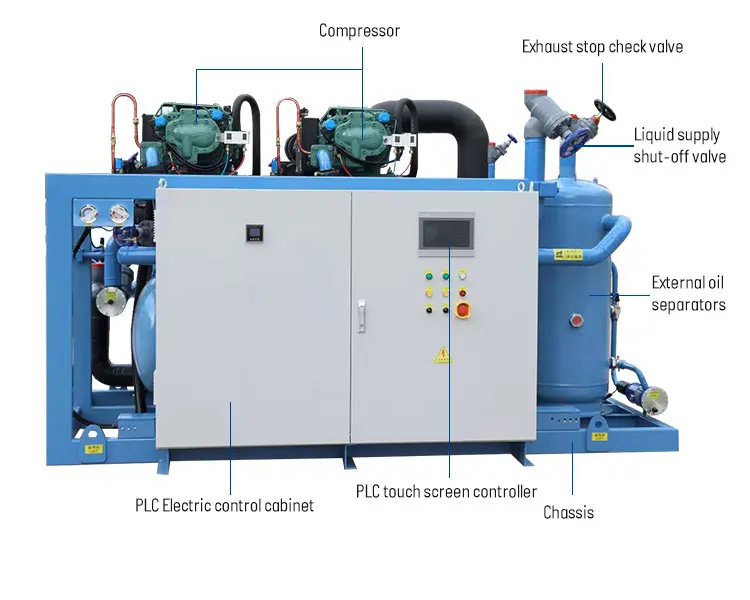

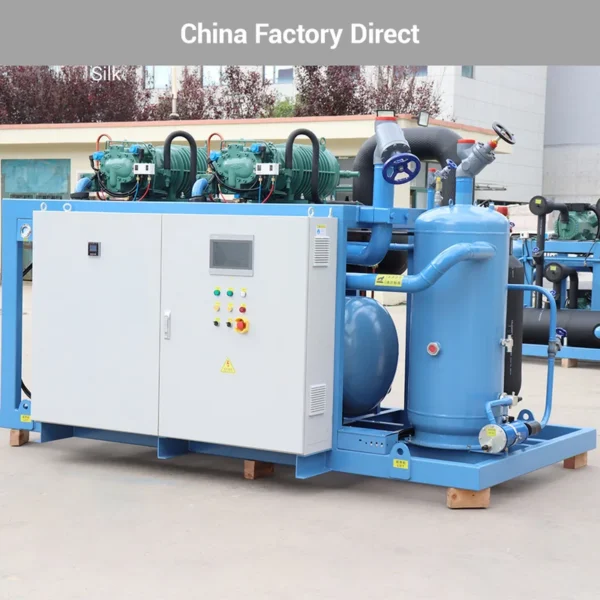

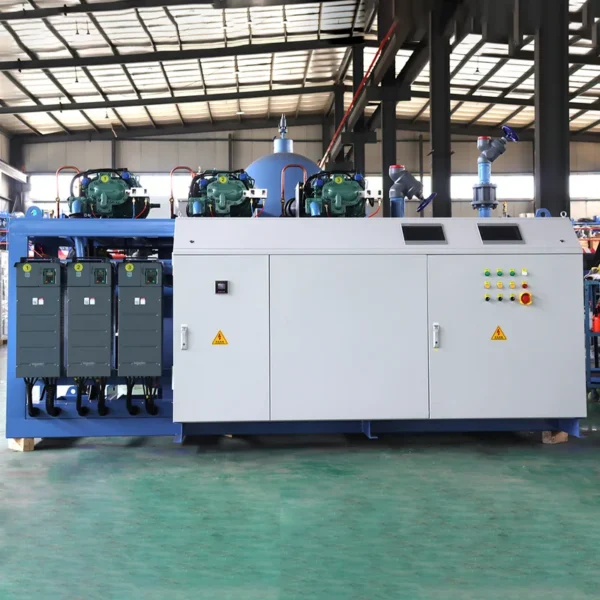

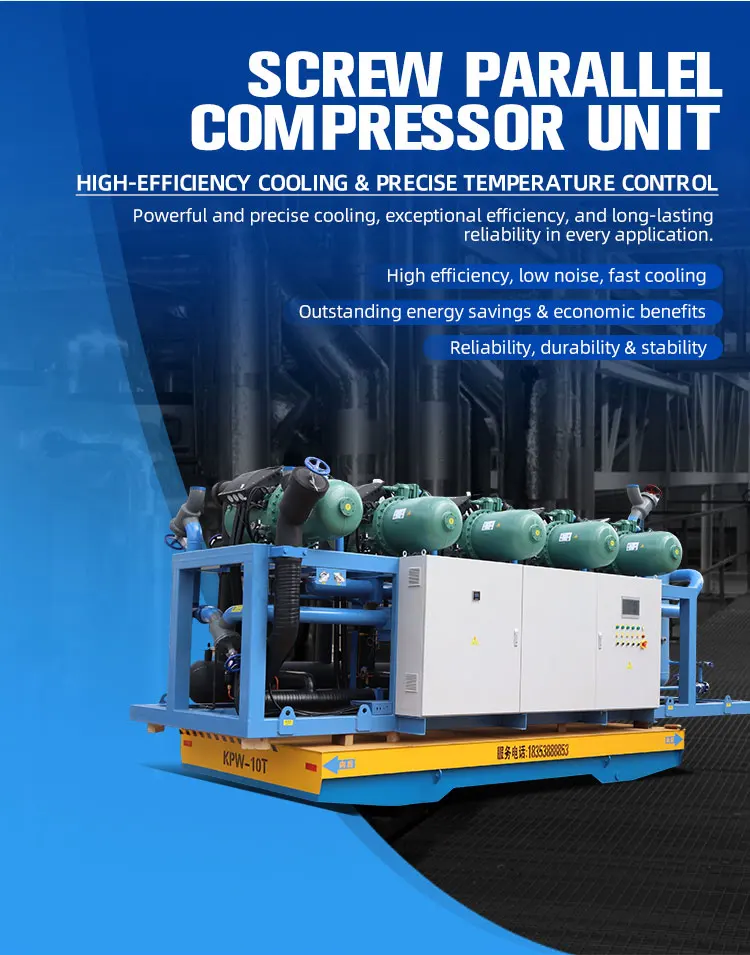

What is  Screw parallel compressor unit? The Screw parallel compressor unit is a vital part of industrial refrigeration and cold storage systems, designed to deliver efficient and reliable cooling. It integrates multiple screw compressors, economizer components, oil separator, oil-cooled plate, vertical siphon tank, liquid reservoir, and an electric control box into a single unit. By sharing discharge and suction pipes, as well as economizer connections among the compressors, the system achieves space savings, reduces maintenance costs, and optimizes energy consumption while ensuring stable and high-performance operation.

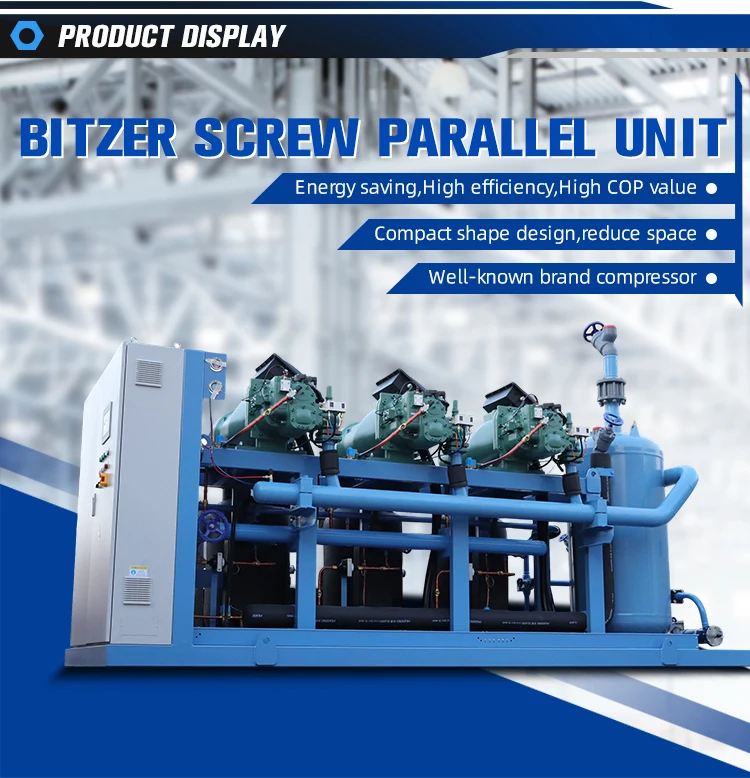

Parameters of Bitzer screw parallel unit(excerpt)：

Unit model

Compressor Model (Bitzel)

Quantity of compressor

Condensa-tion humidity

Evaporating Temperature

-20

-15

-10

-5

0

Refrigeration Capacity / Input Power

XHLBD2 – 50

HSN6461 – 50

2

35

81.8/69.8

101.2/73.2

123.4/76.6

148.6/79.8

177.4/83

XHLBD3 – 50

3

35

122.7/104.7

151.8/109.8

185.1/114.9

222.9/119.7

266.1/124.5

XHLBD4 – 50

4

35

163.6/139.6

202.4/146.4

246.8/153.2

297.2/159.6

354.8/166

XHLBD5 – 50

5

35

204.5/174.5

253/183

308.5/191.5

371.5/199.5

443.5/207.5

XHLBD2 – 60

HSN7451 – 60

2

35

97/88.2

121.6/90.4

148.8/92.4

182.2/94.8

219/97.6

XHLBD3 – 60

3

35

145.5/132.3

182.4/135.6

224.7/138.6

273.3/142.2

328.5/146.4

XHLBD4 – 60

4

35

194/176.4

243.2/180.8

299.6/184.8

364.4/189.6

438/195.2

XHLBD5 – 60

5

35

242.5/220.5

304/226

374.5/231

455.5/237

547.5/244

XHLBD2 – 70

HSN7461 – 70

2

35

111.4/92.4

138.6/96

170/99.4

205.8/102.8

246.8/106.4

XHLBD3 – 70

3

35

167.1/138.6

207.9/144

255/149.1

308.7/154.2

37012/159.6

XHLBD4 – 70

4

35

222.8/184.8

277.2/192

340/198.8

411.6/205.6

493.6/212.8

XHLBD5 – 70

5

35

278.5/231

346.5/240

425/248.5

5145/257

617/266

XHLBD2 – 125

HSN7461 – 125

2

35

199.4/158

246/165

299.6/173.2

361.4/182.4

432/193

XHLBD3 – 125

3

35

299.1/237

369/247.5

449.4/259.8

542.1/273.6

648/289.5

XHLBD4 – 125

4

35

398.8/316

492/330

599.2/346.6

632.8/364.8

864/386

XHLBD5 – 125

5

35

498.5/395

615/412.5

749/433

903.5/9456

1080/482.5

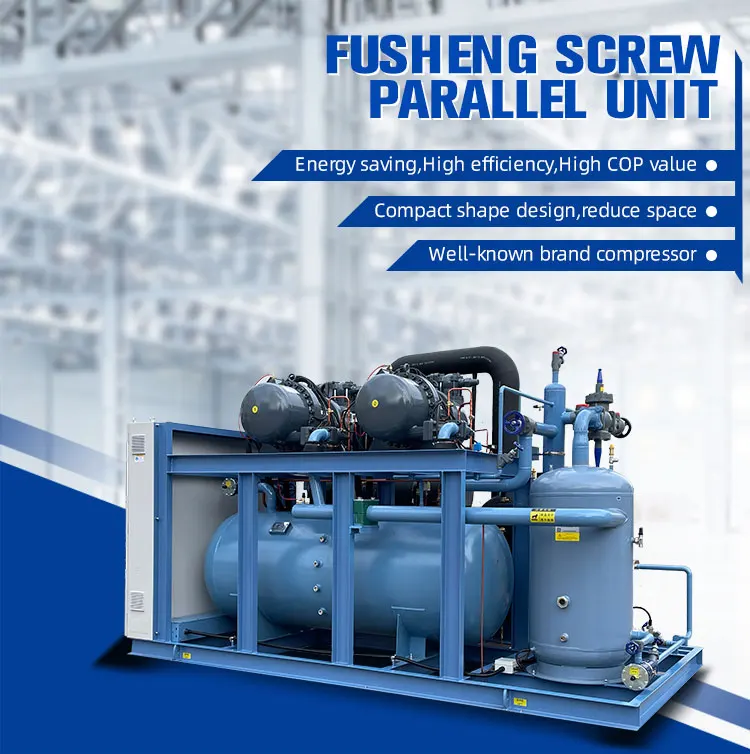

Parameters of FuSheng screw parallel unit(excerpt)：

Unit model

Compressor Model (Hanbell)

Quantity of compressor

Condensa-tion humidity

Evaporating Temperature

-20

-15

-10

-5

0

Refrigeration Capacity / Input Power

XHLFD2-50

SRL200E-DP

2

35

87/64.8

109.8/66.8

136.2/69.4

166.6/72.6

201.4/75.8

XHLFD3-50

3

35

130.5/97.2

164.7/100.2

204.3/104.1

218.9/108.9

302.1/113.7

XHLFD4-50

4

35

1741/129.6

219.6/133.6

272.4/128.8

333.2/145.2

402.8/151.6

XHLFD5-50

5

35

217.5/162

274.5/167

340.5/173.5

416.5/181.5

503.5/189.5

XHLFD2-60

SRL240E-DP

2

35

107/79.4

134.8/81.8

167.2/85

204.6/88.8

247.4/92.8

XHLFD3-60

3

35

160.5/119.1

202.2/122.7

250.8/127.5

306.9/133.2

371.1/139.2

XHLFD4-60

4

35

214/158.8

269.6/163.6

334.4/170

409.2/177.6

494.8/185.6

XHLFD5-60

5

35

267.5/198.5

337/204.5

418/212.5

511.5/222

618.5/232

XHLFD2-160

SRL580E-DP

2

35

270.4/189

340.6/195

422.4/202.6

516.6/211.6

624.8/221.6

XHLFD3-160

3

35

405.6/283.5

510.9/292.5

633.6/303.9

774.9/317.4

937.2/332.4

XHLFD4-160

4

35

501.8/378

681.2/390

844.8/405.2

1033/423.2

1256/443.2

XHLFD5-160

5

35

676/472.5

851.5/487.5

1056/506.5

1291/529

1562/554

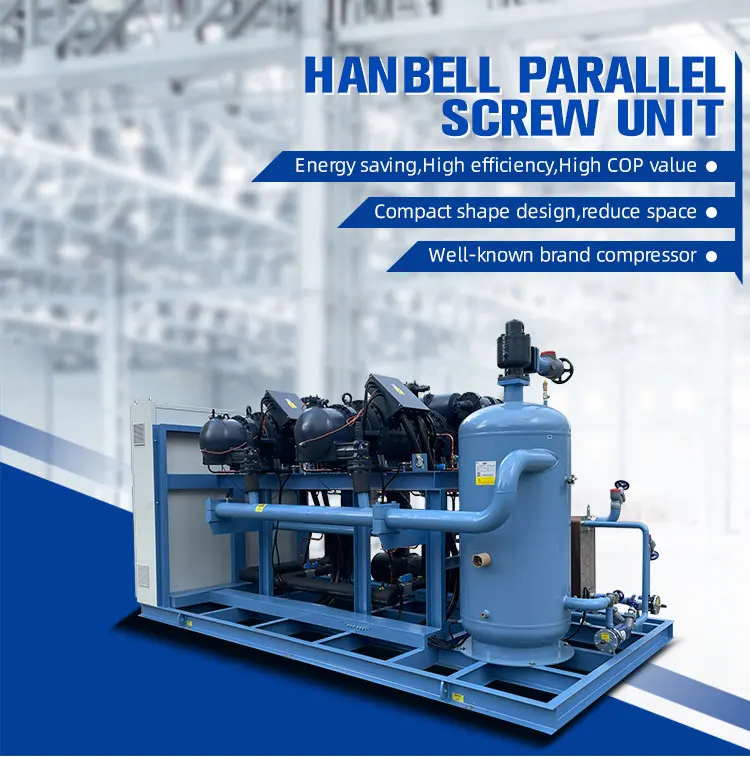

Parameters of Hanzhong parallel screw unit(excerpt)：

Unit model

Compressor Model (Hanbell)

Quantity of compressor

Condensa-tion humidity

Evaporating Temperature

-20

-15

-10

-5

0

Refrigeration Capacity / Input Power

XHLHG2-100

RC2-370B-ZP

2

35

323.2/149.6

402.4/157.6

495.8/165

605.4/171

732.6/175.6

XHLHG3-100

3

35

484.8/224.4

603.6/236.4

743.7/247.5

908.1/266.5

1098/263.4

XHLHG4-100

4

35

646.4/284.2

801.8/315.2

991.6/330

1210/342

1465/351.2

XHLHG5-100

5

35

808/374

1006/394

1239/412.5

1513/427.5

1831/439

XHLHG2-110

RC2-410B-ZP

2

35

349/167.2

434.4/176.2

535.2/184.4

653.4/191.2

790.8/196.2

XHLHG3-110

3

35

523.5/250.8

651.6/264.3

802.8/276.6

980.1/286.8

1186/294.3

XHLHG4-110

4

35

698/334.4

888.8/352.4

1070/368.8

1306/382.4

1581/392.4

XHLHG5-110

5

35

872.5/418

1086/440.5

1338/461

1633/478

1977/490.5

XHLHG2-125

RC2-470B-ZP

2

35

414.8/197.4

516.4/208

636.2/217.6

776.6/225.8

940/231.8

XHLHG3-125

3

35

622.2/296.1

774.6/312

594.3/326.4

1164/338.7

1410/347.7

XHLHG4-125

4

35

829.6/394.8

1032/416

1272/435.2

1553/451.6

1890/463.6

XHLHG5-125

5

35

1037/493.5

1291/520

1590/544

1941/564.5

2350/579.5

Customized more reasonable and efficient cold storage installation engineering solutions for customers

Regardless of what brand of compressor set is selected, the choice is based on the evaporating temperature of the active cold storage and the effective working volume of the cold storage, with additional reference to the condensing temperature of frozen or refrigerated items, the storage capacity, the frequency of goods in and out, and other relevant parameters.

Usually, the formula for calculating the cooling capacity of high-temperature active cold storage is: cold storage volume × 90 × 1.16 + positive deviation,where the amount of positive deviation is determined according to the condensing temperature of frozen or refrigerated items, the storage capacity, and the frequency of goods in and out, typically ranging between 100–400 W.

The formula for calculating the cooling capacity of medium-temperature active cold storage is: cold storage volume × 95 × 1.16 + positive deviation,with the positive deviation typically ranging between 200–600 W.

For low-temperature active cold storage, the compressor set cooling capacity calculation formula is:cold storage volume × 110 × 1.2 + positive deviation,with the positive deviation generally in the range of 300–800 W.

Jinan Seehigh Refrigerat Equipment Co.,Ltd is a company specialized in research, design, production, sales and services of refrigeration equipment. It has obtained ISO9001:2008 quality system certification and CE and other certificates.

Q1: Are you a manufacturer or a trading company? A1: We are a manufacturer and provide OEM and wholesale services. Q2: Where is your factory located? A2: Our factory is in Jinan, China. Visitors are welcome. Q3: Can products be customized? A3: Yes, we provide tailor-made products. Drawings will be sent for approval before sample production. Q4: What is the MOQ? A4: Usually 1 set. Q5: What are your payment terms? A5: T/T, Western Union, Alibaba Trade Assurance, or PayPal. Typically 30% deposit, 70% balance before shipment. Q6: What is the delivery time? A6: Usually 3–10 working days after payment, depending on order size. Q7: How do you ensure product quality and safe delivery? A7: We have a professional QC team, high-quality export packaging, and warranty period of 1 year.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this condensing unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this condensing unit carry?

It is supplied with CE, ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the condensing unit be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
