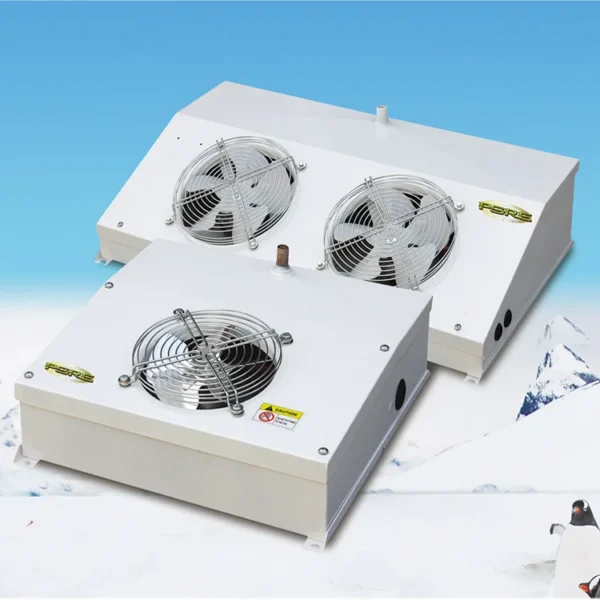

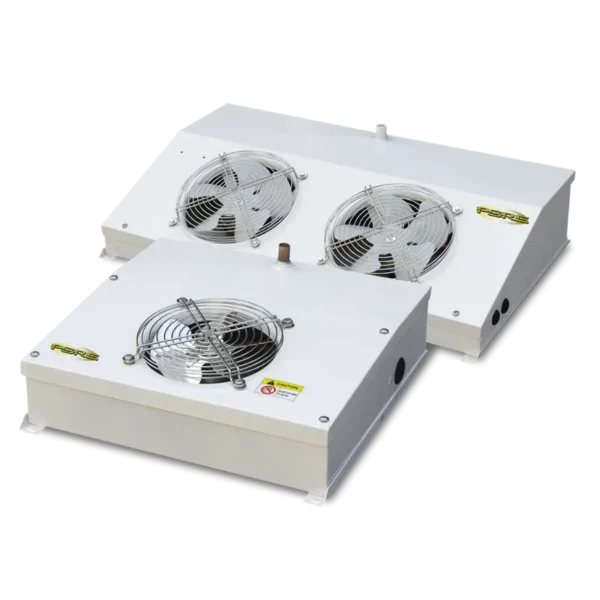

Unit Cooler, Ceiling, 400w-3000w, Electric

Unit cooler — 400w-3000w, power source Electric. The complete factory specification follows. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Unit Cooler

• Power Source: Electric
• Fan Motor Voltage: 220-240V/1/50Hz-60Hz
• Cooling Capacity: 400w-3000w
• Material: Stainless Steel
• Warranty: 1 Year
• Certification: ce

Technical Specifications

Product Details

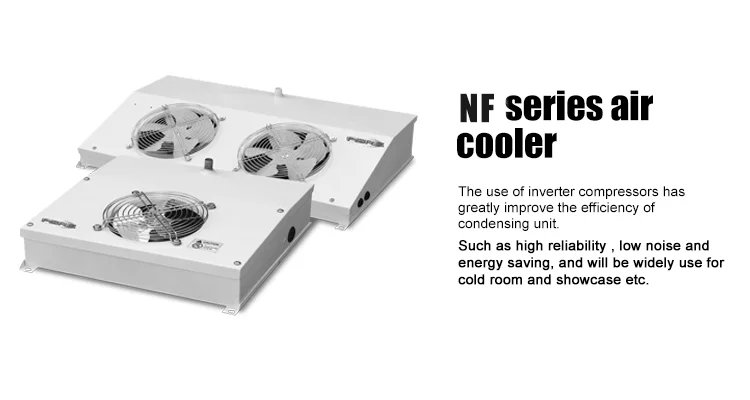

NF23 Series ceiling type air cooler Room temp.≥-20℃ Fin spacing 6.0 mm R404A

Main performance

型号 Model	制冷量 Capacity(W)	面 积Surface	风 机 Fan Motor											电热化霜defrost Heater
		Tc-18℃/7KTD	m2	数量Quantity	风叶直径Fan Diameter(mm)	风量 Air flow（ｍ3/h)	输入功率Input Power(W)	Power Source 50/60Hz	射程Air Throw(m)	240V/50Hz
NF2.1/231-6	400	2.1	1	230	700	38	220-240V	3.5	280W
NF2.5/231-6	500	2.5	1	230	700	38	220-240V	3.5	280W
NF3.3/231-6	650	3.3	1	230	700	38	220-240V	3.5	350W
NF4.0/232-6	800	4	2	230	1400	76	220-240V	3.5	500W
NF4.8/232-6	950	4.8	2	230	1400	76	220-240V	3.5	500W
NF6.1/233-6	1200	6.1	3	230	2100	114	220-240V	3.5	750W
NF7.3/233-6	1500	7.3	3	230	2100	114	220-240V	3.5	750W
NF9.8/233-6	2000	9.8	3	230	2100	114	220-240V	4	700W

型号 Model	接口尺寸Connection Dimension(inch)						安装尺寸 Installation Dimension (mm)			排水口尺寸Water Drain(inch)
		进口Inlet	出口Outlet	W	H	A	B
NF2.1/231-6	3/8	5/8	545	210	504	525	1/2
NF2.5/231-6	3/8	5/8	545	210	504	525	1/2
NF3.3/231-6	3/8	5/8	545	210	624	525	1/2
NF4.0/232-6	3/8	5/8	545	210	844	525	1/2
NF4.8/232-6	3/8	5/8	545	210	844	525	1/2
NF6.1/233-6	3/8	5/8	545	210	1224	525	1/2
NF7.3/233-6	3/8	5/8	545	210	1224	525	1/2
NF9.8/233-6	3/8	5/8	545	260	1224	525	1/2

Products Description

The use of inverter compressors combined together with refrigeration systems is nowadays subject of several studies conducted both from research institutes and refrigeration systems manufacturers worldwide leader in this field. When inverter compressor starts,the compressor is running at high frequency and cooling quickly;when room temperature reachs the setting temperature,the compressor runs at low frequency low speed and low energy,only needed power to maintain the setting temperature,low temperature fluctuation to avoid compressor frequently start to effect compressor life.

Main Feature

Reduce cooling speed faster,small temperature fluctuation range;

Efficient energy saving, reduce the system energy;

Increase in compressors reliability thanks to the significant decrease of compressors startups;

Low noise thanks to the extremely high system flexibility;

Extremely low vibration phenomena.

Certifications

The company has ISO9001:2000, ISO1400, CE, CB, RoHS and other quality, environmental protection system certification and national industrial product production license.

Company Introduction

Taizhou Nanfeng Cold-Chain limited company was set up in 1999, which specializes in the development, manufacture and sales of refrigeration equipment. The company’s core products are DC inverter condensing unit, Danfoss fully equipped condensing unit, High quality condensing unit and so on. The DC inverter condensing unit is very Super Energy Saving (40%-60%), Super Silent( as low as 45dB) and so on. Danfoss fully equipped condensing unit is high reliable, high efficiency, strong durability and other advantages.

The company has a professional R&D team and a group of dedicated employees. It has automated assembly lines, imported leak detection equipment, type labs, and production process management software systems to ensure the quality of all products of the company and also ensure the company’s new product development and production supply ability.

Exhibition

The company’s major markets are Europe, Australia and other developed countries and regions. It is positioned in the high-end refrigeration market and provides OEM and ODM services to customers in developed countries such as the United Kingdom and Australia. Since 2009, the company has settled in the Alibaba International Station platform. It has always upheld the business principles of honesty and trustworthiness in international trade and enjoyed a good reputation among its customers. In 2018, we began to enter the domestic market. We are committed to creating value for customers with truly high-quality refrigeration equipment.

FAQ

Q1: Are you a factory or a trading company?

A1: We are a factory.

Q2: Is a sample available?

A2: Yes, but the sample will be at your charge.

Q3: What is the main market for your products?

A3: Our main market is in North America, Europe and Australian.

Q4: What is your warranty?

A4: We can assure you one year against manufacturing defect.

Q5:Can you provide OEM/ODM service and make OEM logo for us?

A5:Yes,we can provide OEM service and make OEM logo for you.

Ordering and Pricing

• Minimum order quantity: 5 set
• Volume pricing:
  • 5–99 set: US $280 / set
  • 100+ set: US $120 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this unit cooler?

The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this unit cooler carry?

It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the unit cooler be supplied for my local voltage?

The standard configuration is 220-240V/1/50Hz-60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
