Key specification for this control dryer booster fan: material PVC, type Current Sensor. Everything below is reproduced from the factory data sheet. Made by Yueqing Hongji Trade Co., Ltd. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Control Dryer Booster Fan
- Material: PVC
- Warranty: 12 Months
- Certification/Listing: ETL
- Place Of Origin: Zhejiang, China
- Type: Current Sensor
- Mounting Type: SWITCH
Technical Specifications
| Type | Current Sensor |
|---|---|
| Output | Analog SENSOR |
| Usage | AMP Sensor |
| Mounting Type | SWITCH |

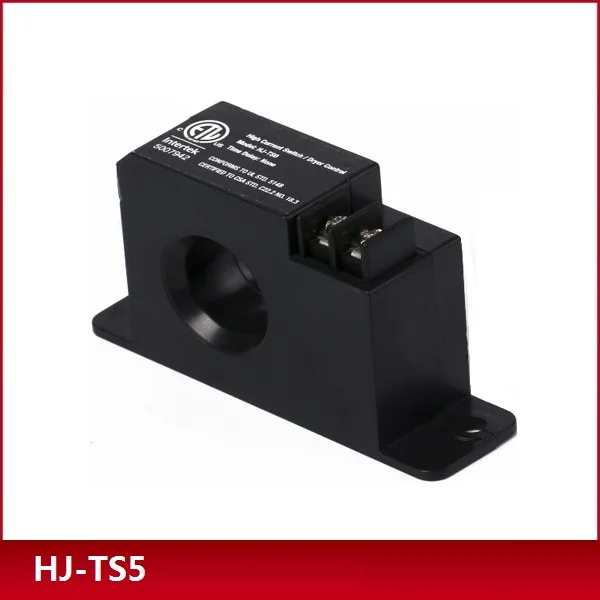

| Manufacturer Part Number | HJ-TS5 |
| Brand Name | HONGJI/OEM |
| Description | current sensing switch |
| Place Of Origin | Zhejiang, China |
| Color | Black |
| Leakage | <1mA |
| Input Main | ~1Amp |
| Time Delay | 5 minutes |
| Input | 50Amps |
| Material | PVC |
| Warranty | 12 Months |
| Certification/Listing | ETL |
| Selling Units | Single item |
Product Details
120VAC 2.5Amp High Current Sensing Switch Control Dryer Booster Fan Directly
Dimmers, Fan Speed Controls, Motion Sensors, Timers, GFCIs, USB Charger Receptacles,
Switches, Receptacles, Floor Boxes, Plugs and Connectors, Flush Mount Receptacles,
Locking Devices, Data-Com Devices, Wallplates
Our Advantage
1. 10+ years experience in design and manufacturing.
2. We have UL recognized laboratory.
3. A wide selection of products.
4. ALL of our goods have got certificates such as cULus and cETLus etc.
5. We have sold our products to GE, THD, LOWE'S, Wal-Mart, etc.
6. The capabilities of our team and equipment allow us to design, develop, and do more than just OEM and ODM.
7. The production area is about 20000square meter (WENZHOU).

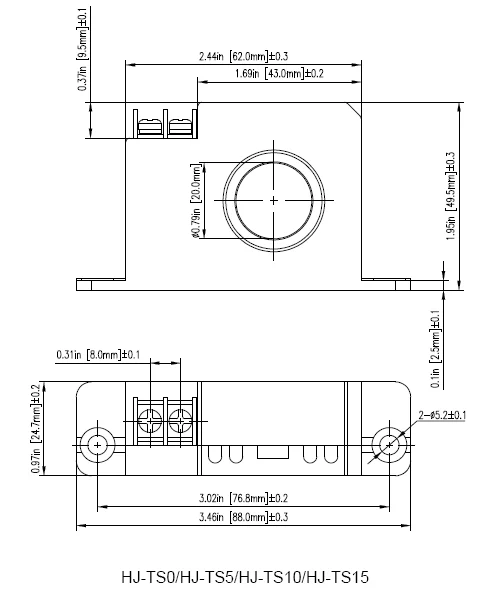

| CAT.NO. | HJ-TS0 | HJ-TS5 | HJ-TS10 | HJ-TS15 |
| Stye | AMP Sensor | AMP Sensor | AMP Sensor | AMP Sensor |
| Voltage | 120VAC, 2.5Amp | 120VAC, 2.5Amp | 120VAC, 2.5Amp | 120VAC, 2.5Amp |
| Output | Triac | Triac | Triac | Triac |
| Leakage | <1mA | <1mA | <1mA | <1mA |
| Input Main | ~1Amp | ~1Amp | ~1Amp | ~1Amp |
| Input | 50Amps | 50Amps | 50Amps | 50Amps |
| Time Delay | None | 5 minutes | 10 minutes | 15 minutes |
| Certification/Listing | ETL | ETL | ETL | ETL |
DESCRIPTION

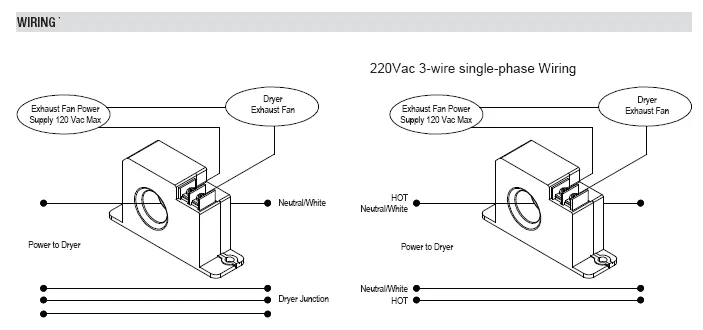

The High Current Switch / Dryer Control is solid-state N.O. high current AC Switch that operates a dryer booster fan directly. This device senses when a clothes dryer is drawing ~1 Amp of current and then closes the output switch to activate the dryer vent boosterfan. When the dryer cycle is complete and the current drops below the threshold, the output switch is opened again. The HC model has a turn off delay of 5 minutes. The HCN model does not have a turn off delay. The device requires no field adjustments and only two wire connections for easy installation. It is designed to mount in a standard electrical box and the dryer supply wire passes through the center of sensor so no physical connection is made.The device output will switch loads at 120 Vac and 2.5 Amps maximum. Internal circuits are totally powered by induction from the line being monitored and all units are UL certified to Canadian and US standards.
SEND YOUR INQUIRY DETAILS IN THE BELOW FOR FREE SAMPLE, CLICK "SEND" NOW!
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: We accept TT.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What kind of certification do you have ?
A: We have the UL, cUL, ISO9001 and ETL etc.
NOW, CLICK "SEND" TO GET DEEP SERVICE
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–2999 piece: US $8.25 / piece
- 3000+ piece: US $6.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this control dryer booster fan?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 Months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this control dryer booster fan carry?
It is supplied with ETL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
