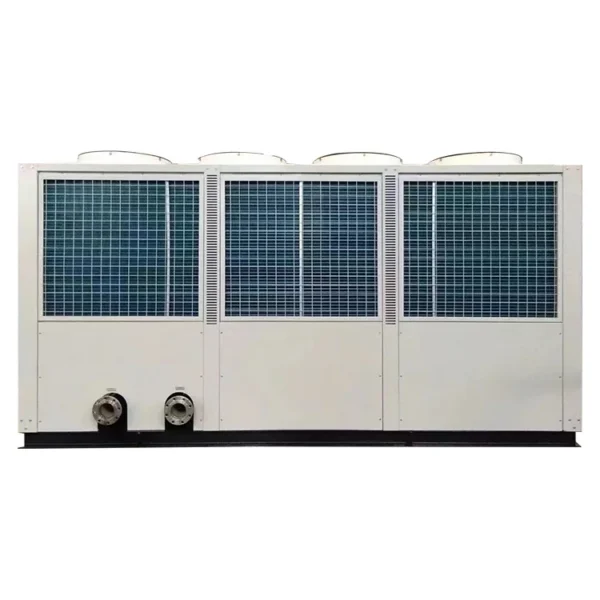

The cooled screw water chiller listed here carries 380V /415V/440V/460V /50Hz or 60Hz, 35kw —–2000kw, documented exactly as the manufacturer publishes it. Made by Jiangsu Huazhao Refrigeration Equipment Co., Ltd. (17 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooled Screw Water Chiller
- Power: 52kw—980kw
- Voltage: 380V /415V/440V/460V /50Hz or 60Hz
- Cooling Capacity: 35kw —–2000kw
- Refrigerant: R22/R404a/R407c/R134a
- Warranty: 3 Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 380V /415V/440V/460V /50Hz or 60Hz |
|---|---|
| Power | 52kw—980kw |
| Compressor Brand | Bitzer, Copeland, Hanbell |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Easy To Operate, Competitive Price, Eco-Friendly, Famous Brand PLC, High Safety Level, Remote Monitoring, Energy Saving, Low Noise Level |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 3120 |
| Brand Name | Huazhao |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Refrigerant | R22/R404a/R407c/R134a |
| NAME | industrial screw air cooled water chiller |
| Application | Process Cooling |
| Function | Cooling Refrigeration Unit |
| Compressor | Semi-closed Screw |
| Cooling Type | Air Coolded |
| Cooling Capacity | 35kw —–2000kw |
| Usage | cool water |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Note:
1.Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃,evaporation temperature 2℃.
2.We can make order according to your requirement.
3.Please indicate the hot recycled if needed,as the recycle rate can be up to 25%-30% of the unit refrigerating capacity,the temperature can be up to 55℃.
This form is for reference only. We provide customized solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables.
1. Employing original double SCREW compressor, Compressor may according loading auto-adjust, add level sensor for prevent compressor low-loading to luck-oil, extent use life
2. Employing all-new imported high class component
3. Employing two sets of compressor which can be used jointly or independent
4. Switch control, easy operation and maintenance
5. The weld of brass pipe is non-oxidization
6.Condenser and Evaporator both to conform GB150, GB151, TB/T4750-2003,operation safe
Model Description:
| For more product information, please click | CONTACT US > |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $13200 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooled screw water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the cooled screw water chiller be supplied for my local voltage?
The standard configuration is 380V /415V/440V/460V /50Hz or 60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
