This cooling fan is published with the manufacturer’s full specification — 5v/12V, power source Electric. Made by SHENZHEN YCCFAN TECHNOLOGY CO., LTD. (13 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Fan
- Model Number: YDH2507C05F, YDM2507C05F, YDL2507C05F, YDH2507C12F, YDM2507C12F, YDL2507C12F
- Power Source: Electric
- Voltage: 5v/12V
- Material: Fiber Glass
- Blade Material: Plastic
- Warranty: 12 months

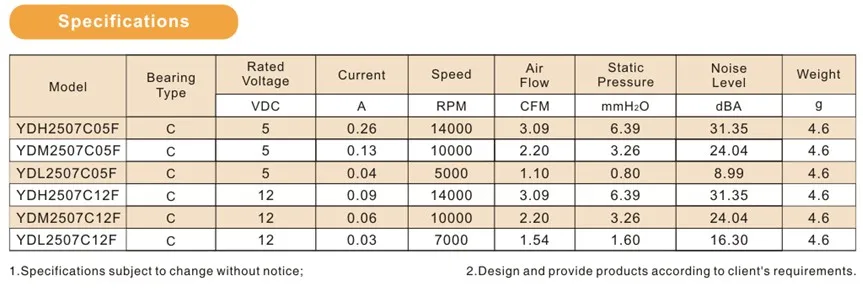

Technical Specifications
| Voltage | 5v/12V |
|---|---|
| Type | dc cooling fan |
| Material | Fiber Glass |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 12 months |
| After-Sales Service Provided | Video Technical Support |
| Place Of Origin | Guangdong, China |
| Brand Name | YCCFAN |
| Model Number | YDH2507C05F, YDM2507C05F, YDL2507C05F, YDH2507C12F, YDM2507C12F, YDL2507C12F |
| Impeller | Plastic(Black)94V-0 |

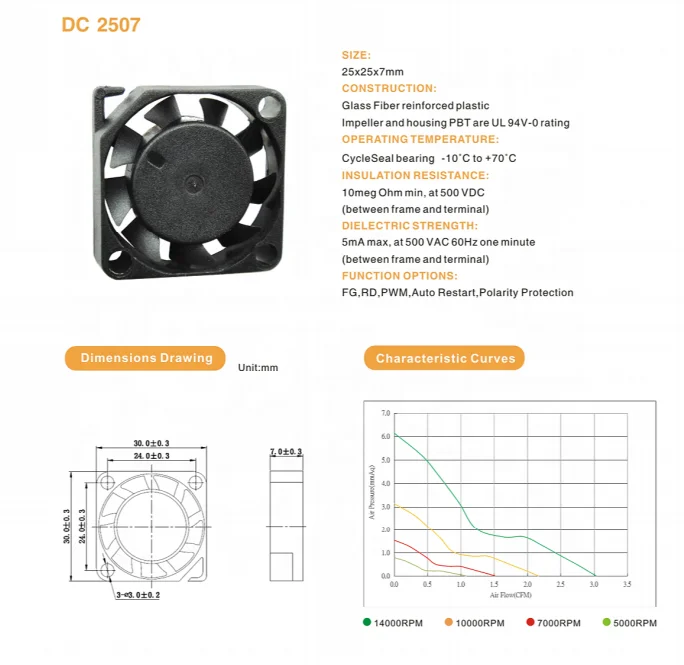

| Item Name | DC 2507 MINI FAN |
| Fan Impeller | 8 Blades |
| Product Type | Axail Flow Fan |
| Size | 20x20x7mm |
| Color | Black Cooling Fan |
| Fan Type | DC Axial Brushless Fan |
| Weight | 4.6g |
| Certification | UL |
| Selling Units | Single item |
| Single Package Size | 4X4X2 cm |
| Single Gross Weight | 0.009 kg |
Product Details

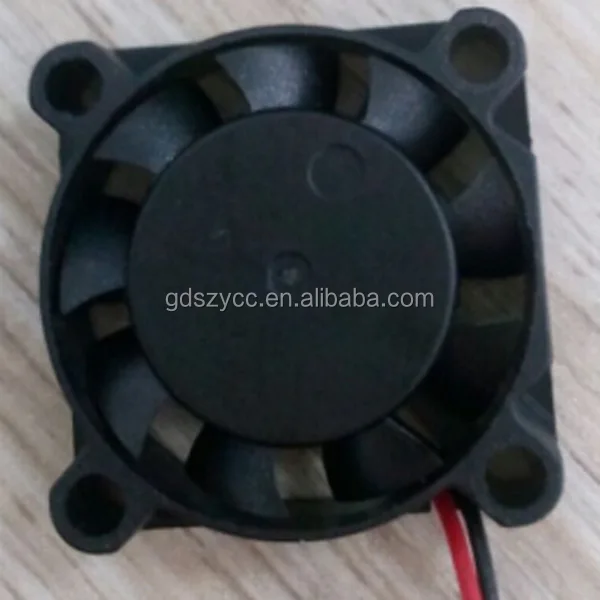

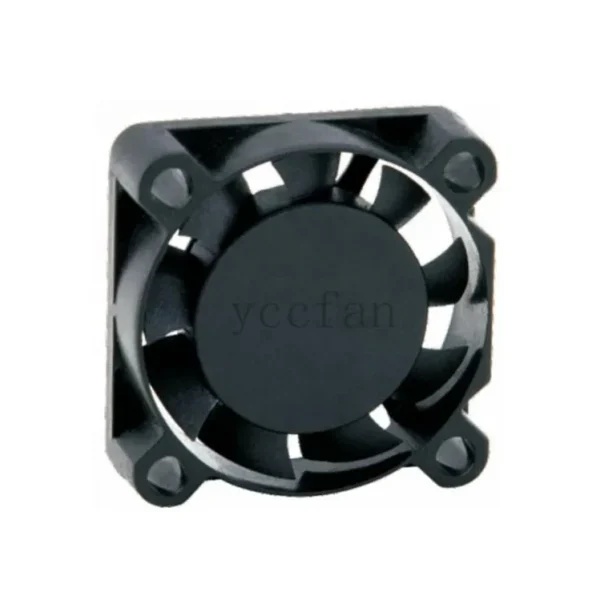

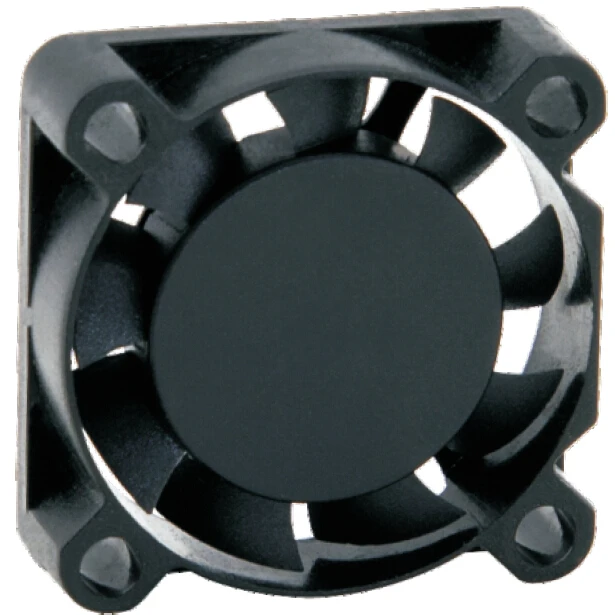

CHINA SUPPLIER YCCFAN DC 2507 MINI FAN
OTHER DETAILS:
1) Noise Measure
According to Standard ISO3745/GB4214-84,Back ground noise 20±2dBa with room condition.

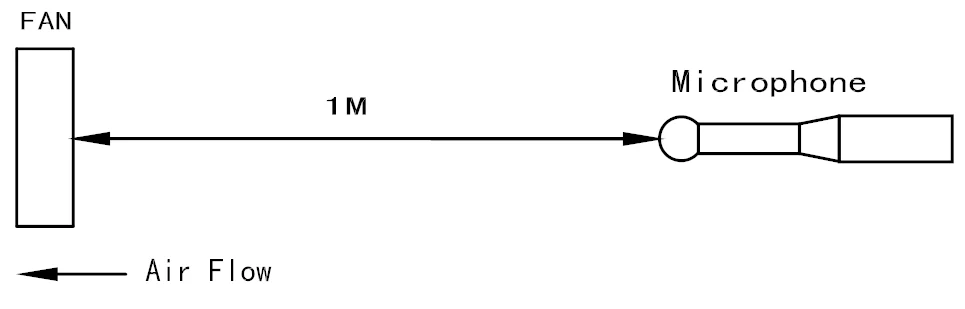

Measure Condition:
Fan is hanged in anechoic chamber,measured at rated voltage,measure microphone at a distance of one meter from the fan air intake.
Operating Temperature —————————————————— -10 ~ +70 ℃
Storage Temperature —————————————————— -40 ~ +75 ℃
Operating Humidity —————————————————– 35% ~ 85%RH
Storage Humidity —————————————————– 35% ~ 85%RH
Sleeve Bearing System: 30000 Hours At 25℃ Environment
Hypro Bearing System:30000 Hours At 40℃ Environment
CycleSeal Bearing System:40000 Hours At 40℃ Environment
Dual Ball Bearing System: 50000-70000hours At 40℃ Environment
Shipping:
1. The fan will be delivered by express ( FedEx, DHL, DHl or TNT ) for under 100 kg, our shipping agnet have perfect discount with these express company.
2. Large Measure are shipped by ship or by air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory is in Shenzhen, Dongguang or Guangzhou City.
1.100% inspection of Incoming materials
2.In process quality control
3.QA Inspection
4.100% testing before the packing

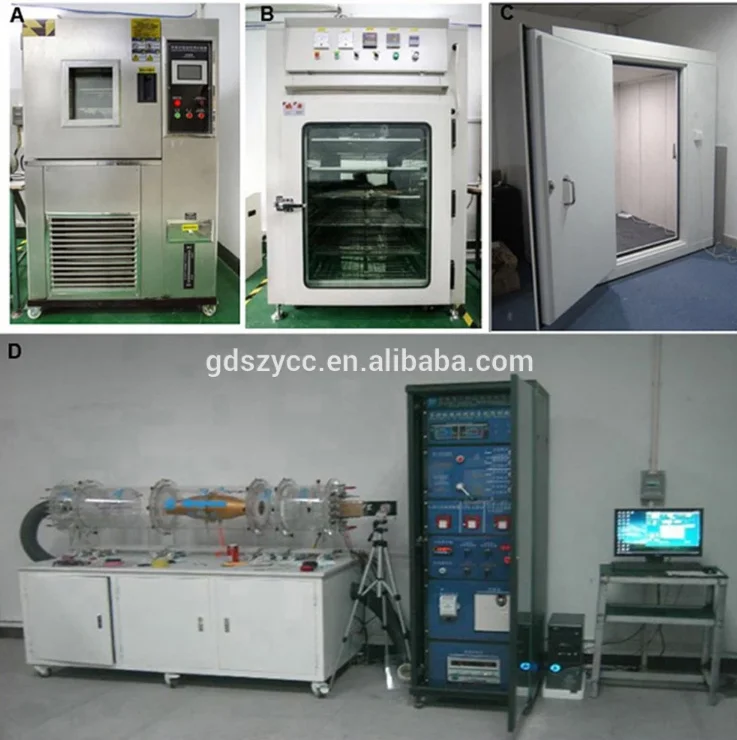

Testing equipments
A & B manchine: temperature testing manchines
C Noise room
D Wind Tunnel
E Vibrating equipment
F Salt-flog testing equipment
G XRF-ROHS Inspection Instrument
H Water proof testing
J Pull and push strength testing
K Video Microscope
L Droping Testing
M Simulaed transport vibration testing
N High temperature aging testing
O dust proof testing

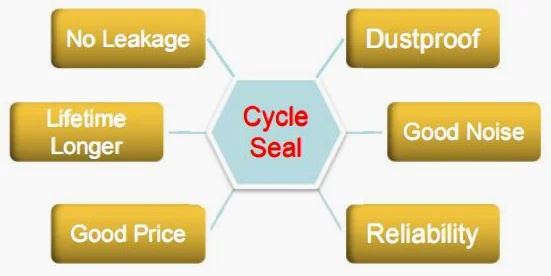

WHAT IS YOUR SO CALLED " CycleSeal Bearing " ?
Since 2014,YCCFAN made a new product design concept: 'Best
Price Best Quality',and we planed to develop a new bearing
system which same as sleeve bearing price and dual ball
bearing quality,meanwhile solved the noise issue.After 3 years efforts and experiments,finally we developed the 'CycleSeal
Beraing System'.The products with CycleSeal bearing had been widely used in strict standard automotive firstly,and got good
feedback from customers. CycleSeal is a kind of Bearing System that is combined by a
variety of high-quality materials,keep grease working circularly
in a sealed space to extended the product's lifetime.
Ordering and Pricing
- Minimum order quantity: 500 piece
- Volume pricing:
- 500–999 piece: US $1 / piece
- 1000–4999 piece: US $0.99 / piece
- 5000+ piece: US $0.85 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling fan?
The standard minimum order quantity is 500 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooling fan carry?
It is supplied with UL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooling fan be supplied for my local voltage?
The standard configuration is 5v/12V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by SHENZHEN YCCFAN TECHNOLOGY CO., LTD., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full SHENZHEN YCCFAN TECHNOLOGY CO., LTD. range on HVACR Nexus.
