The cooling pad air conditionerair listed here carries material Craft Paper, model number 7090/7060/5090, documented exactly as the manufacturer publishes it. Made by Shandong Yuyun Sanhe Machinery Co., Ltd. (19 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Pad Air Conditionerair
- Model Number: 7090/7060/5090
- Material: Craft Paper
- Raw Material: Kraft Paper/ Resin/Glue
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Single Package Size: 20X20X15 cm
Technical Specifications
| Usage | Chicken, cow, Pig |
|---|---|
| Material | Craft Paper |
| Condition | New |
| Warranty | 1 Year |
| Model Number | 7090/7060/5090 |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 25 |
| Brand Name | Yuyun Sanhe |
| Product Name | Evaporative Cooling Pad |
| Color | brown, green, brown and green, black coated,/ customized |
| Raw Material | Kraft Paper/ Resin/Glue |
| Height | 1200mm/1500mm/1800mm/2000mm/Customized |
| Width | 300mm/600mm/Customized |
| Thickness | 100/150/200mm/customized |
| Selling Units | Single item |
| Single Package Size | 20X20X15 cm |
| Single Gross Weight | 1.0 kg |
Product Details
Product Description

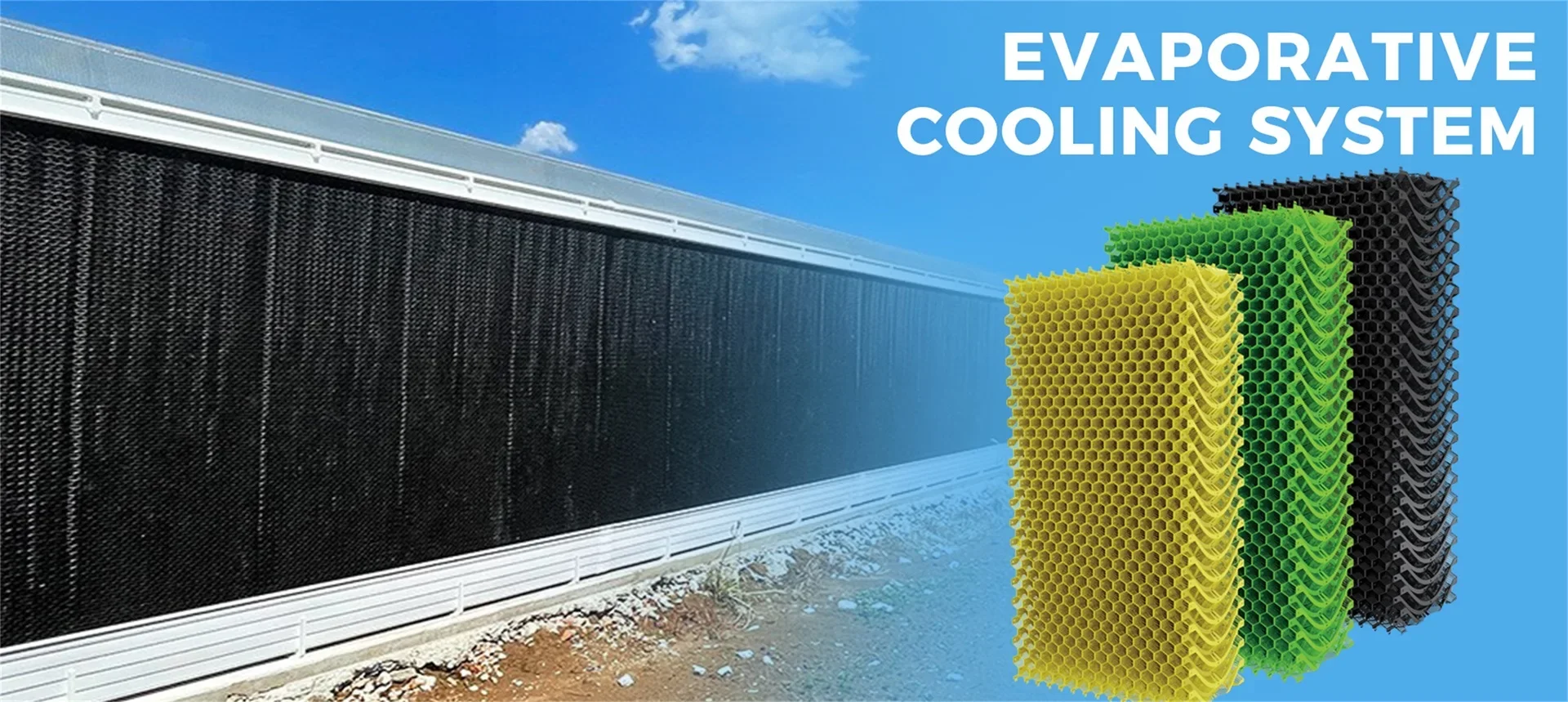

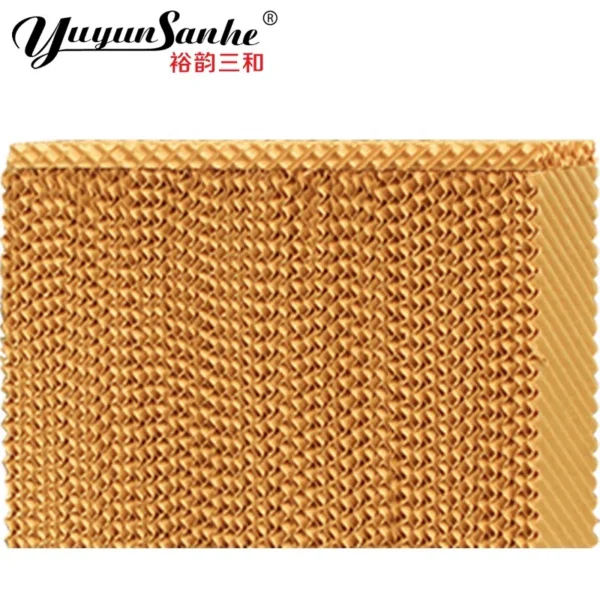

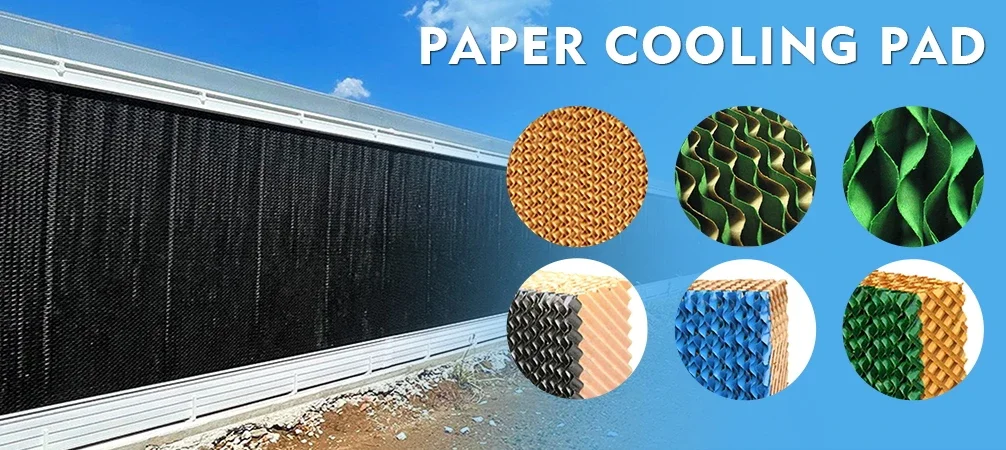

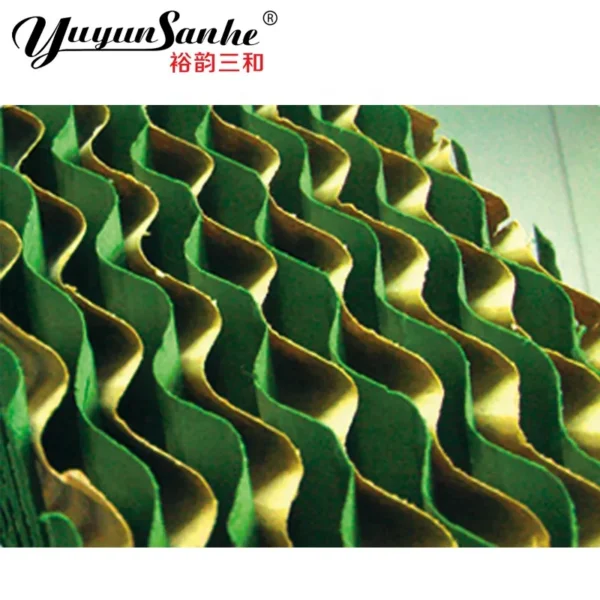

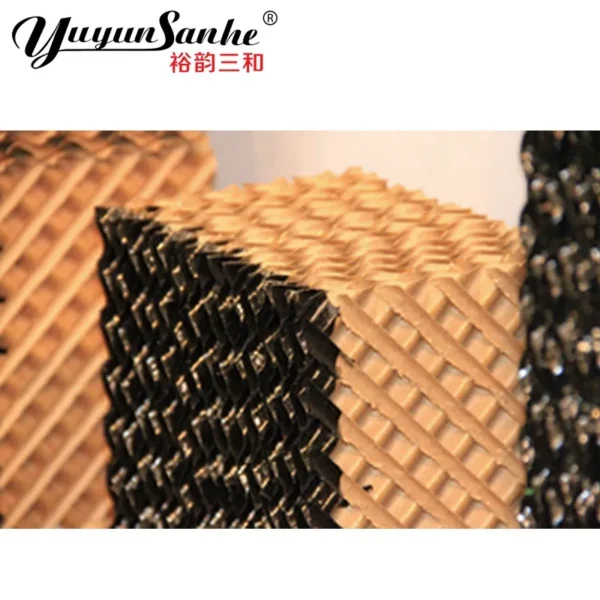

“Cooling Pad – Exhaust Fan” ventilation and cooling system is the most economical and effective cooling solution in summer.
Model | Height(mm) | Width(mm) | Thickness(mm) | Flute | Angle |
7090 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/45° |
7060 | 1500/1800/2000/Customized | 300/600/Customized | 100/150/200/Customized | 7mm | 45°/15° |
5090 | Customized | Customized | Customized | 5mm | 45°/45° |
Features:

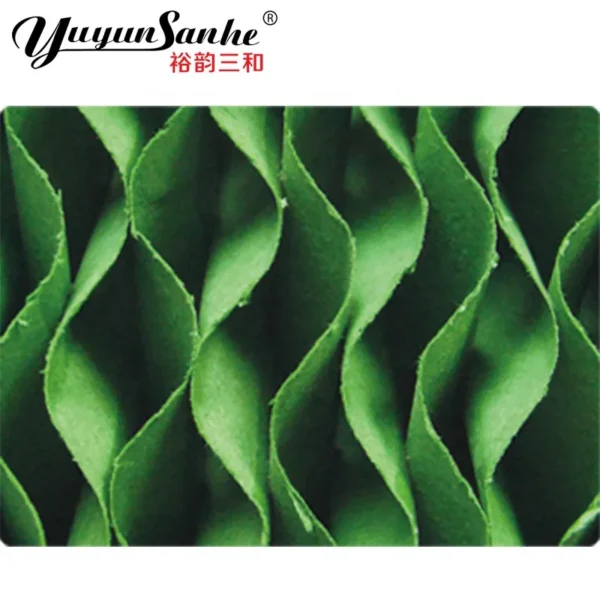

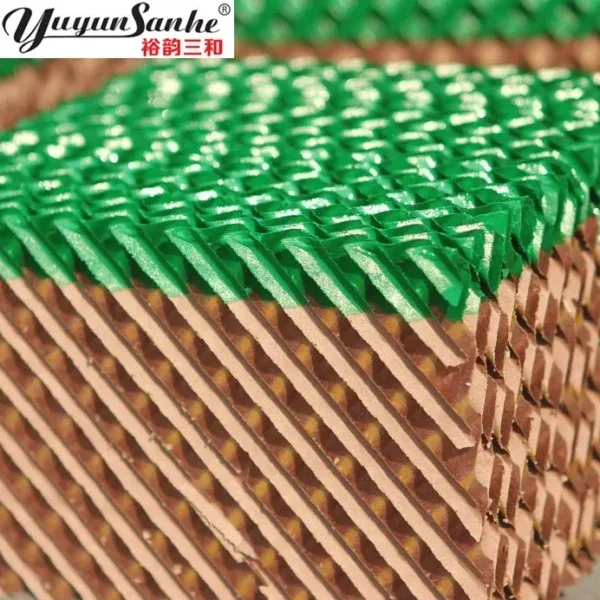

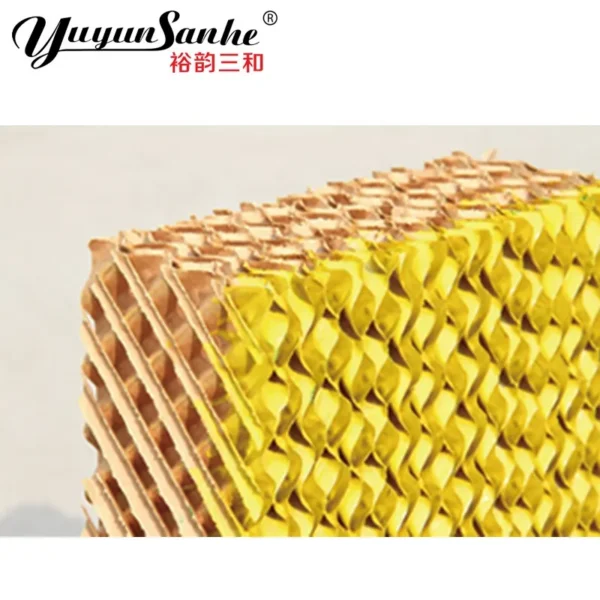

1. Corrugated paper has undergone special processing,high structural strength, corrosion resistance, mildew resistance and long service life.
2. Good permeability and water absorption, no water drift, can ensure that water evenly penetrates the entire cooling pad system.
3. The unique three-dimensional structural design provides a larger evaporation surface area, significantly enhancing the heat exchange efficiency between water and air.
4. Safety, energy saving, environmentalfriendly, economical and practical.
5. Strict production as per standard, width of 600mm cooling pad involves 86 sheets.
6. Aluminum frame, stainless steel frame, galvanized sheet frameand PVC frame are optional
1. Corrugated paper has undergone special processing,high structural strength, corrosion resistance, mildew resistance and long service life.
2. Good permeability and water absorption, no water drift, can ensure that water evenly penetrates the entire cooling pad system.
3. The unique three-dimensional structural design provides a larger evaporation surface area, significantly enhancing the heat exchange efficiency between water and air.
4. Safety, energy saving, environmentalfriendly, economical and practical.
5. Strict production as per standard, width of 600mm cooling pad involves 86 sheets.
6. Aluminum frame, stainless steel frame, galvanized sheet frameand PVC frame are optional
Model | Height(mm) | Width(mm) | Thickness(mm) |
Single Wave | 600/1200/1500/1800/2000/Customized | 300/600mm | 100/150mm |
Features:
* The plastic cooling pad is made of raw material injection molding, acid and alkali resistance, corrosion resistance,anti-mildew, anti-moth, strong and durable.
* The evaporative cooling efficiency of plastic cooling pad is more than 80%, fast water distribution speed and diffusion speed, and high continuous efficiency. The honeycomb structure design enables the water to be evenly distributed to the cooling pad, with less water splashing and good cooling effect. And the indoor humidity will also be lower than traditional paper cooling pad.
* The plastic cooling pad has good resistance to UV light and weathering,and is not easy to deformation and collapse,which effectively overcomes such problems as paper cooling pad.
* The dust on the surface of cooling pad can be cleaned at any time with high pressure spray, which will not damage the cooling pad and will not reduce the cooling effect.
* The geometric design of the cooling pad blocks out light.
* The plastic cooling pad is made of polypropylene. This material is highly resistant to most of all chemicals.
* The plastic cooling pad is made of raw material injection molding, acid and alkali resistance, corrosion resistance,anti-mildew, anti-moth, strong and durable.
* The evaporative cooling efficiency of plastic cooling pad is more than 80%, fast water distribution speed and diffusion speed, and high continuous efficiency. The honeycomb structure design enables the water to be evenly distributed to the cooling pad, with less water splashing and good cooling effect. And the indoor humidity will also be lower than traditional paper cooling pad.
* The plastic cooling pad has good resistance to UV light and weathering,and is not easy to deformation and collapse,which effectively overcomes such problems as paper cooling pad.
* The dust on the surface of cooling pad can be cleaned at any time with high pressure spray, which will not damage the cooling pad and will not reduce the cooling effect.
* The geometric design of the cooling pad blocks out light.
* The plastic cooling pad is made of polypropylene. This material is highly resistant to most of all chemicals.

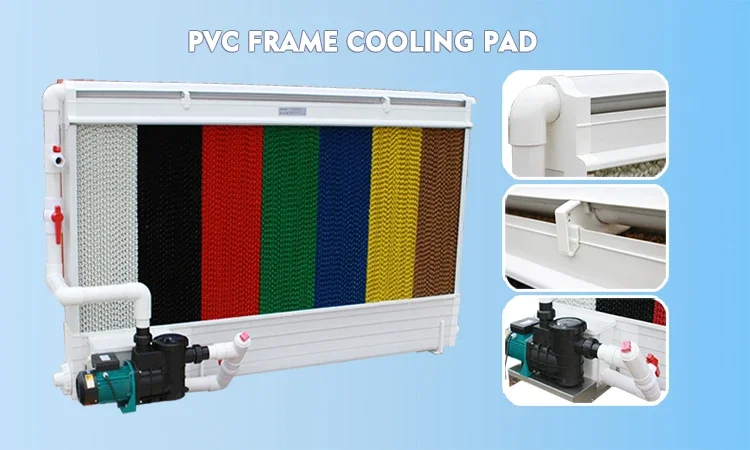

Features:
* New Modular design, easy to install and remove, convenient to clean or replace the cooling pad
* High quality PVC material, anti-aging, resistant to corrosion and rust.
* Matching use with the water distribution pipe, the special designed deflector can make the water soaking into the cooling pad evenly.
* The pad support enables water recycling and prevents rodents from entering the water tank.
* No need to add external water tank as the bottom water gutter contains the entire water requirement of the pad climate system.
* The floating valve system will fill water automatically when the water level is low.
* New Modular design, easy to install and remove, convenient to clean or replace the cooling pad
* High quality PVC material, anti-aging, resistant to corrosion and rust.
* Matching use with the water distribution pipe, the special designed deflector can make the water soaking into the cooling pad evenly.
* The pad support enables water recycling and prevents rodents from entering the water tank.
* No need to add external water tank as the bottom water gutter contains the entire water requirement of the pad climate system.
* The floating valve system will fill water automatically when the water level is low.

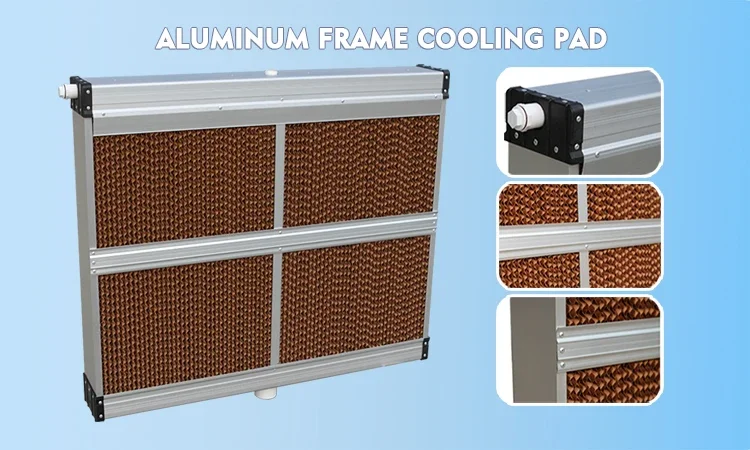

Features:
This product is made of high-quality aluminum alloy and features a specially designed end cover connection structure. It can be equipped with an H-shaped support plate to enhance system strength, or optionally fitted with dedicated reinforcing plates, allowing the cooling pad height to reach up to 3.6m. The design ensures easy disassembly and replacement, significantly improving operational efficiency.
In surface treatment, the industry standard for oxide film thickness is 4μm, whereas we set our quality benchmark at 8–12μm. Through precision oxidation processes, a dense protective layer forms on the aluminum alloy surface, achieving comprehensive enhancement in strength, durability, and appearance.
Features:
* Reasonable structure , stable running ,high efficiency.
* The drying light boxes of resin machine are made of high quality stainless steel, to ensure never rust under high temperature condition.
* The drying light boxes adopt 8 digital control, easy operation, uniform temperature, higher heating efficiency, lower electricity consumption , to improve the quality of cooling pad .
* The corrugated machine adopts wear resistant bushing which is made of special material, withstand high temperatures, longer service life.
* Adopt inner circulating heating oven, multi-direction heating, quick temperature rising ,high efficiency ,lower drying cost .
* Widen glue machine, improve working efficiency, reduce working intensity.
* Professional machinery, quality assured, price reasonable .
* Reasonable structure , stable running ,high efficiency.
* The drying light boxes of resin machine are made of high quality stainless steel, to ensure never rust under high temperature condition.
* The drying light boxes adopt 8 digital control, easy operation, uniform temperature, higher heating efficiency, lower electricity consumption , to improve the quality of cooling pad .
* The corrugated machine adopts wear resistant bushing which is made of special material, withstand high temperatures, longer service life.
* Adopt inner circulating heating oven, multi-direction heating, quick temperature rising ,high efficiency ,lower drying cost .
* Widen glue machine, improve working efficiency, reduce working intensity.
* Professional machinery, quality assured, price reasonable .
Installation Site：

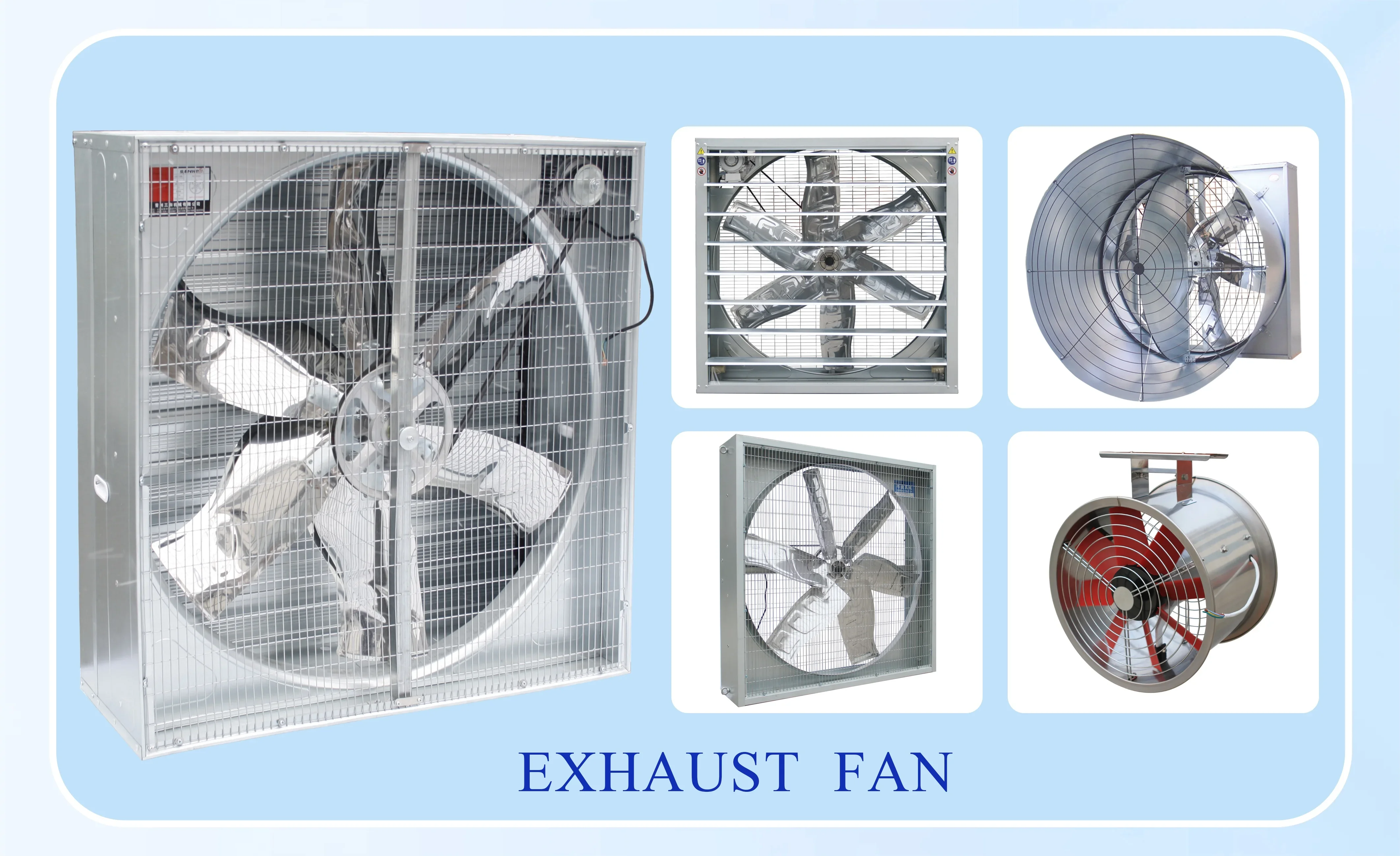

Related Products

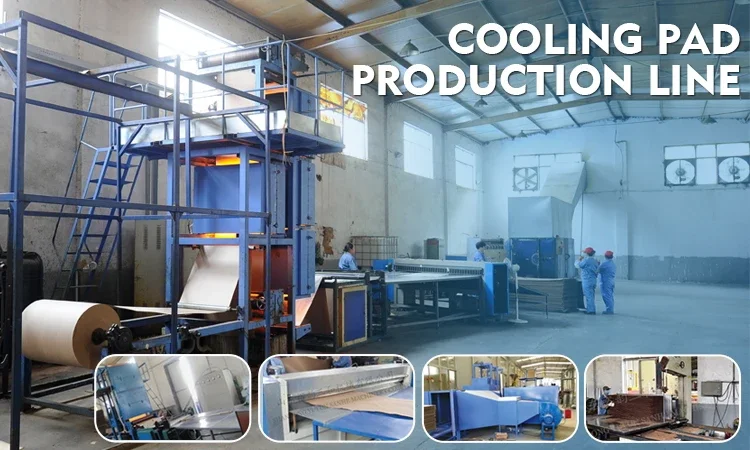

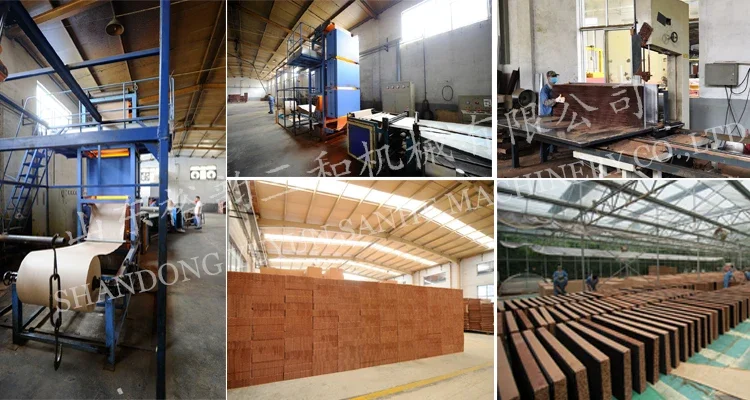

Factory&Workshop
Compnay Production Ability
Shandong Yuyun Sanhe Machinery Co., Ltd. is the largest manufacturer of ventilation and cooling equipment in China. The company have the advanced cooling pad production machine, precise computer control, high automation, high production efficiency, the cooling pad produced has uniform corrugation, high structural strength and good water absorption.
Professional Manufacturer of Evaporative Cooling Pad in China, We use the best raw material to ensure the quality , Output is 120CBM/day
Yuyun Sanhe Cooling Pad have been exported to more than 70 countries in Asia, Europe, America, Australia, etc.
Global service, Annual sales over $ 30 million
Many customers from all over the world come to visit our company every year. Our company is highly praised by customers
Yuyun Sanhe Company attend many domestic exhibitions and abroad exhibitions every year to promote our products, Continuous improvement in communication with customers
Our Service
Pre-Sales Service
* 24H Online Consulting
* Sample Testing
* Visit Factory.
After-Sales Service
* Two Years Guarantee
* Fast Delivery
* Fast Solve Problems
Ordering and Pricing
- Minimum order quantity: 10 cubic meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling pad air conditionerair?
The standard minimum order quantity is 10 cubic meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
