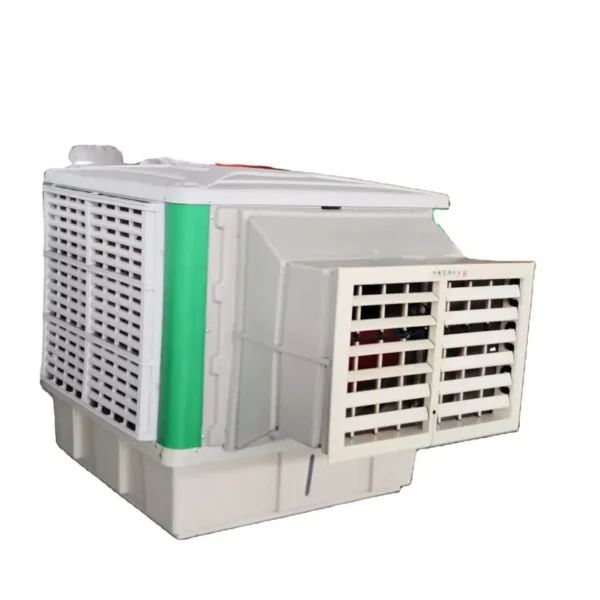

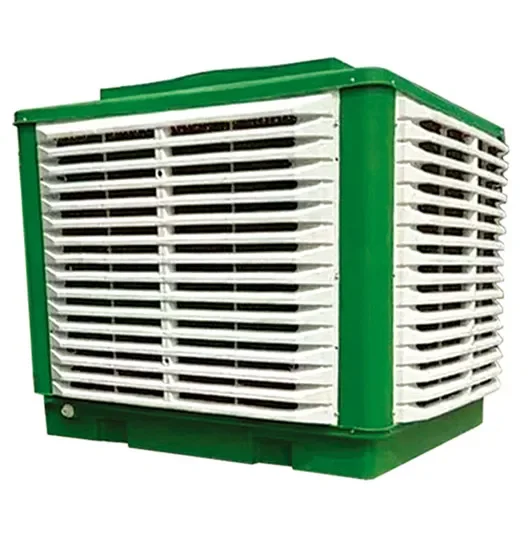

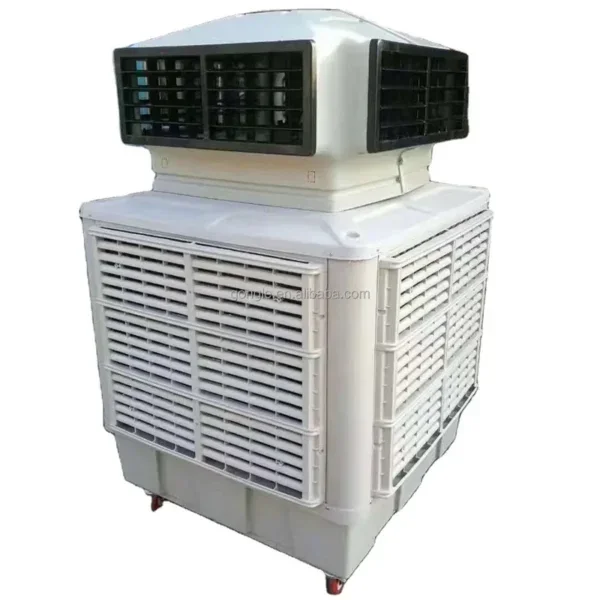

Ventilation fan — 220V/380v/415v or customized, type EVAPORATIVE AIR COOLER. The complete factory specification follows. Made by Qingzhou Gongle Electric Fan Co., Ltd. (18 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ventilation Fan
- Motor Power: 1.1kw 1.5kw 2.2kw 3kw 4kw
- Operating Voltage: 380v/220v/415v
- Voltage: 220V/380v/415v or customized
- Airflow: 18000m3/h~30000m3/h(635664ft3/h~1059440ft3/h)
- Warranty: 2 Years
- Place Of Origin: Shandong, China
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Airflow | 18000m3/h~30000m3/h(635664ft3/h~1059440ft3/h) |
| Operating Voltage | 380v/220v/415v |
| Mounting Type | Floor Standing |
| Key Selling Points | Competitive Price |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 50 KG(110.23lb) |
| Brand Name | gongle |
| Dimension(L*W*H) | 1190*1190*950 |
| Wind | 18000CMH/25000CMH/30000CMH/40000CMH |
| Motor Power | 1.1kw 1.5kw 2.2kw 3kw 4kw |
| Voltage | 220V/380v/415v or customized |
| Frequency | 50HZ/60hz |
| Application | barn/testile/greenhouse/ industry factory /warehouse/poultry farming |
| Product Name | evaporative air coolers |
| Other Name | climatizador industrial |
| Keyword | air coolers |
| Remote Control/Control Panel | yes |
| Installation | window/wall mounted /free standing/ceiling mount/indoor or outdoor |
| Selling Units | Single item |
| Single Package Size | 119X119X95 cm |
| Single Gross Weight | 55.0 kg |
Product Details
2022 CE certificate 18000 25000 30000 40000 m3/H Ventilation Fan Evaporative Breezair Air Coolers for Industrial Cooling
Main features of 2022 CE certificate 18000 25000 30000 40000 m3/H Ventilation Fan Evaporative Breezair Air Coolers for Industrial Cooling :
2- cooling pad can be 7090 or 5090 model.
3- blades are high quality plastic material PP with steel bracket/ stainless steel blade/aluminum alloy blade, promise long
service life, steel or aluminum blade bracket motor support can be choosen.
4- the motor power can be 1.1Kw(1.5HP) and 1.5Kw(2.0HP),2.2Kw, 3Kw,4kw .
5- shutters can be wind automatic type or electric type, air windows can be 1/2/4/8 sides.

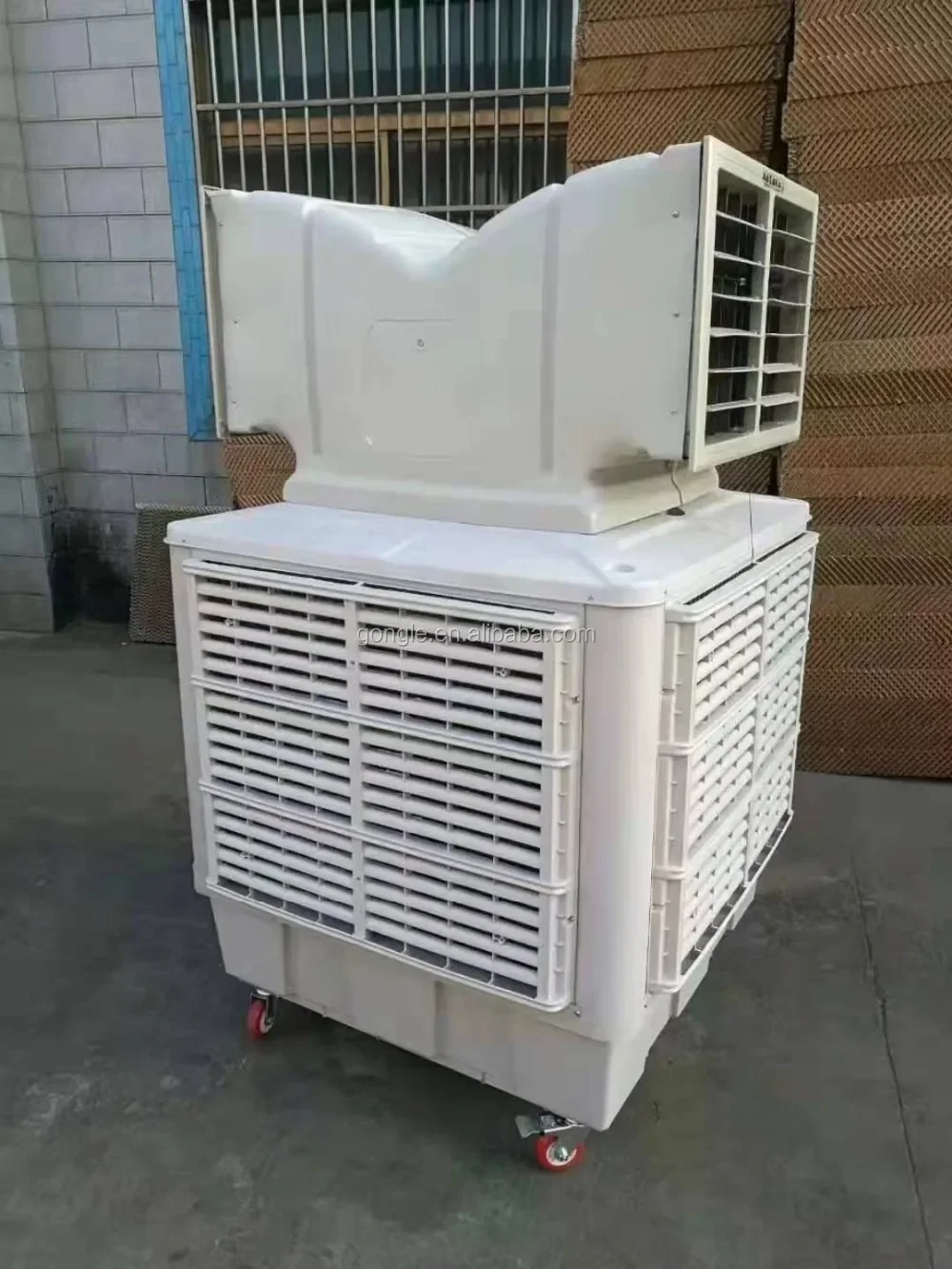

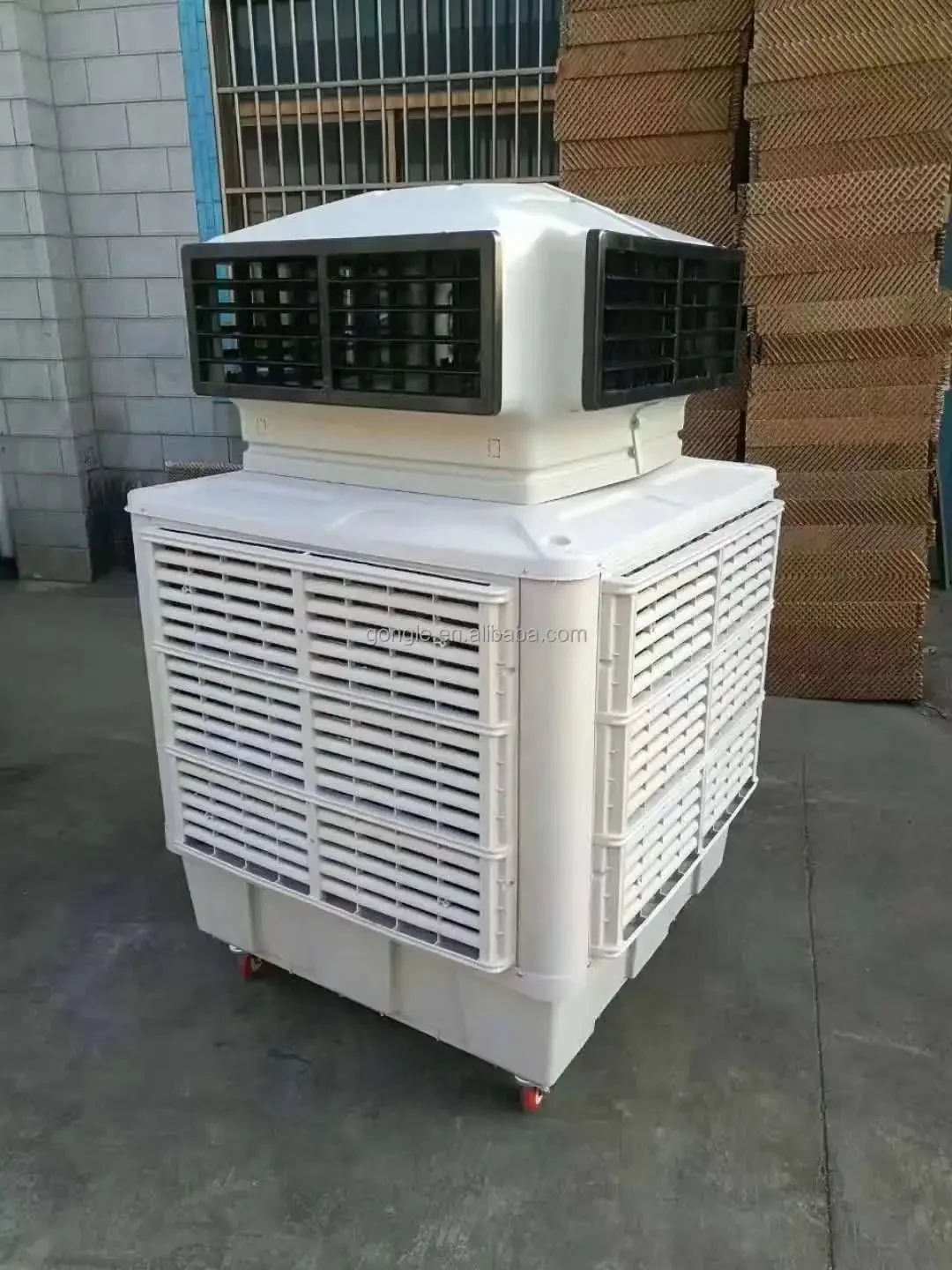

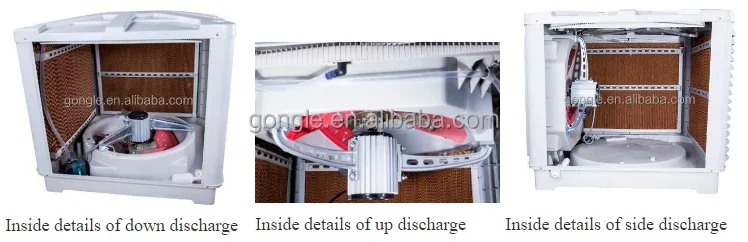

6- side, down or top air discharge.
7- Voltage can be customized with 380 /415/220v.
Characteristics and parameters of 2022 CE certificate 18000 25000 30000 40000 m3/H Ventilation Fan Evaporative Breezair Air Coolers for Industrial Cooling :

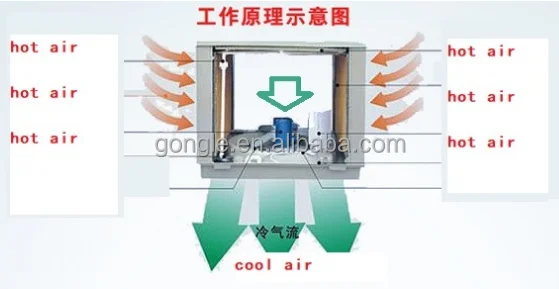

2-Reduce temperature,purify air with no noise.

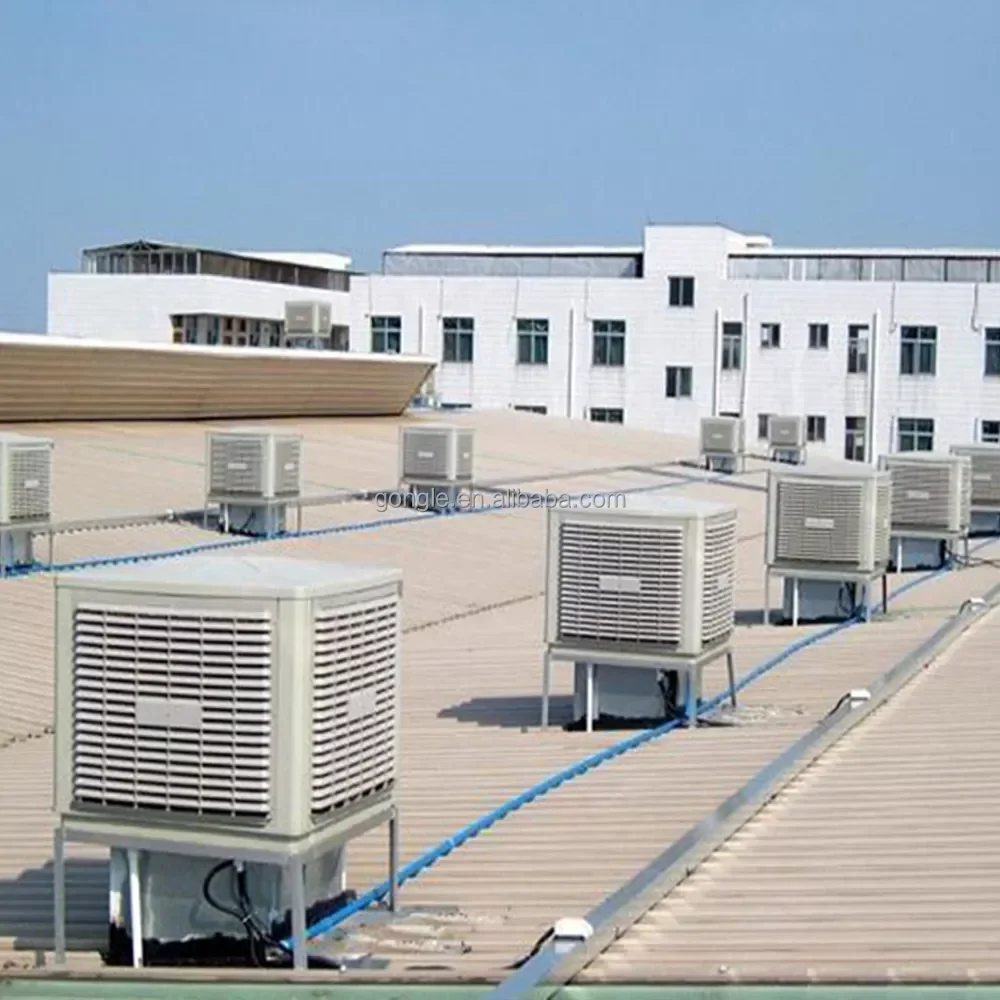

3-Positive pressure air supply without all the premises closed,specially used for factories,work shop,canteens,cafes,clothing textiles,greenhouse etc farming or industrial large hall for cooling and wetting.
4- Environment friendly and high efficiency.
5- Package: Plastic file and then in paper carton to prevent from damage.
6- Assembled and unassembled( CKD, SKD) both can be supplied.
Power (kw) | szie (mm) | Air flow (m3/h) | using area (m2) | fan type | voltage/frequency(v) | Noise(db) | water consumption （L/H) | Outlet size (mm) | cooling pad |
1.1 | 1100*1100*950 | 18000 | 120-150 | axial | 380/220/50hz/60 | ≤65 | 10-15 | 670*670 | 7090/ 5090 |
1.5 | 1100*1100*950 | 22000 | 120-160 | axial | 380/220/50hz/60 | ≤65 | 10-15 | 670*670 | 7090/ 5090 |
2.2 | 1150*1150*1150 | 25000 | 160-260 | axial | 380/220/50hz/60 | ≤70 | 10-15 | 670*670 | 7090/ 5090 |
3 | 1250*1250*1250 | 30000 | 200-300 | axial | 380/220/50/60hz | ≤70 | 40 | 800*800 | 7090/ 5090 |
4 | 1430*1430*1380 | 40000 | 260-400 | axial | 380/50 | ≤70 | 40-50 | 900*900 | 7090/5090 |

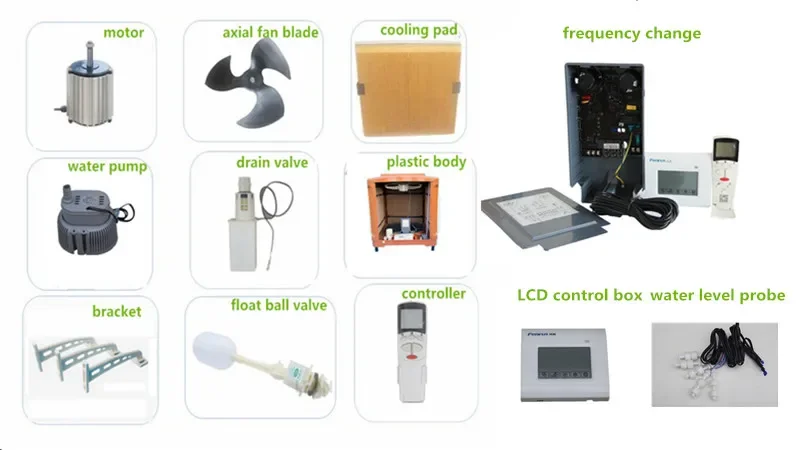

1 | Dust Filter | Prevent dust and flies into the cooling pad |

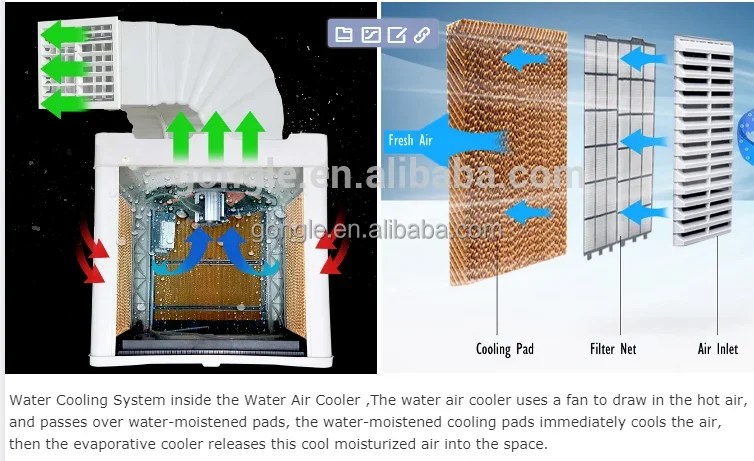

2 | Cooling Pad | 7090/5090 Obvious cooling effect in top quality |
3 | Water Pump | protection design, keep product last longer |
4 | Sealed Aluminum Motor | Super quality pure copper motor with efficient heat exchange |
5 | Draw-off Valve | Timing drain circulating water by manual or automatic |
6 | Water Level Probe | Water control system to protect your water air condition |
7 | Water distributor | Water flows uniform smoothly & no-blocking with water distributor |
8 | PP Plastic Shell | Anti-UV, anti-corrosion, anti-aging, anti-deformation |
9 | Electric Board | Prevent moisture and safe in use |
10 | Auto Water Inlet Valve | Auto water to keep the appropriate water level |
11 | Fan blade | To clean air in using time |
12 | Speed controller | 12 speed or normal type |
Part 1. Motor
Part 2. Fan Blade

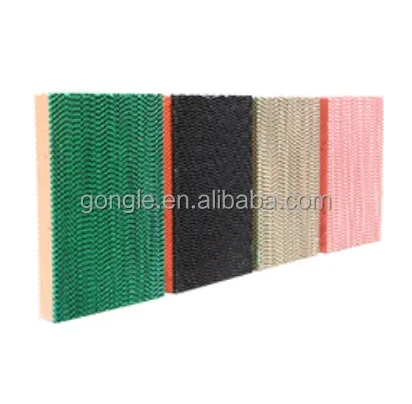

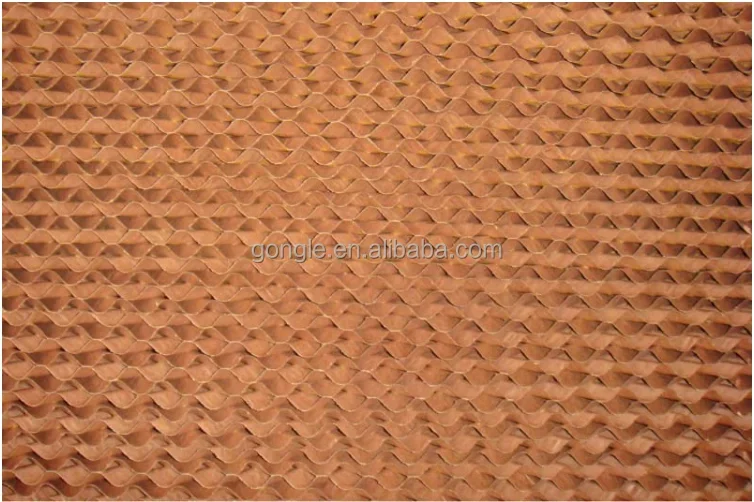

Part 3. Cooling Pad
Part 4. Water Pump
Part 5. Inlet Float

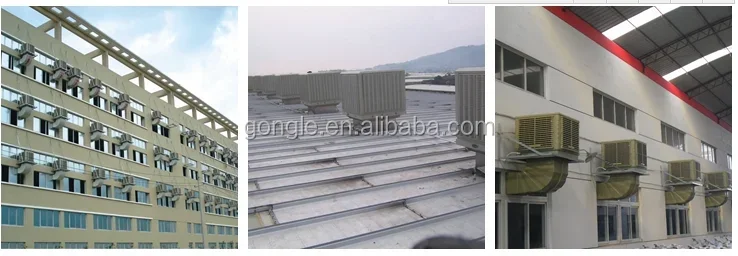

Widely application of 2022 CE certificate 18000 25000 30000 40000 m3/H Ventilation Fan Evaporative Breezair Air Coolers for Industrial Cooling

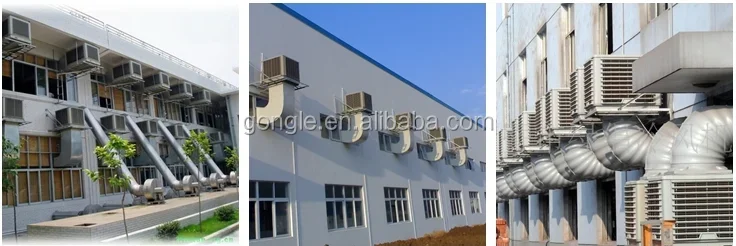

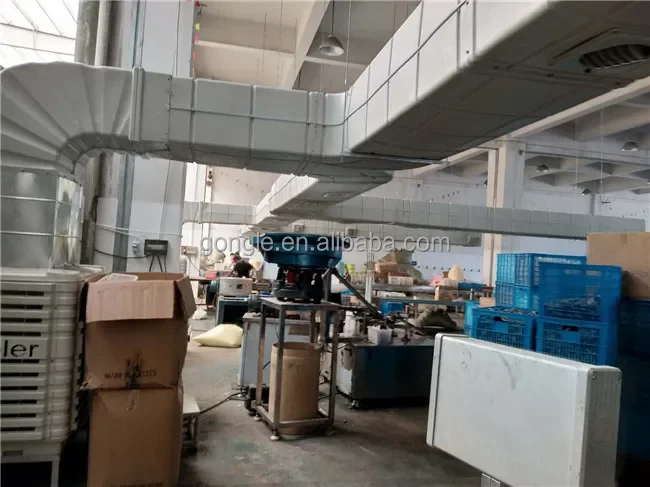

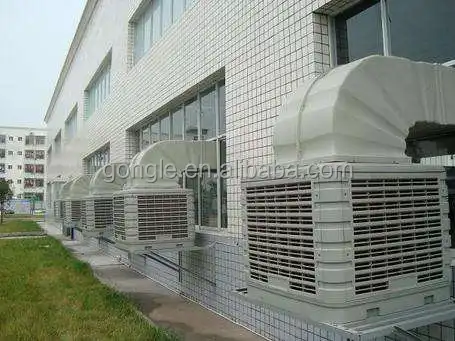

1)Any Industrial (Texitle, Garment, Plastic, Ceramic etc).
2)Commercial (shopping mall, restaurant, parties etc).
3)House, villas, office ect.
4)Coporation countries: South Africa ,Algeria ,Philippines ,Thailand, Australia, Brazil ,Romania, Cyprus, Africa, Middle East ,etc .

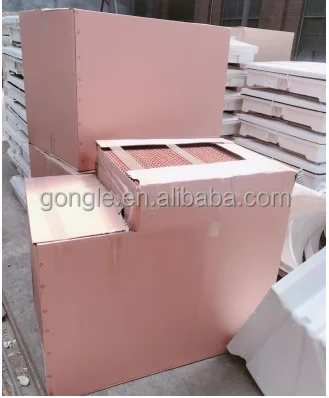

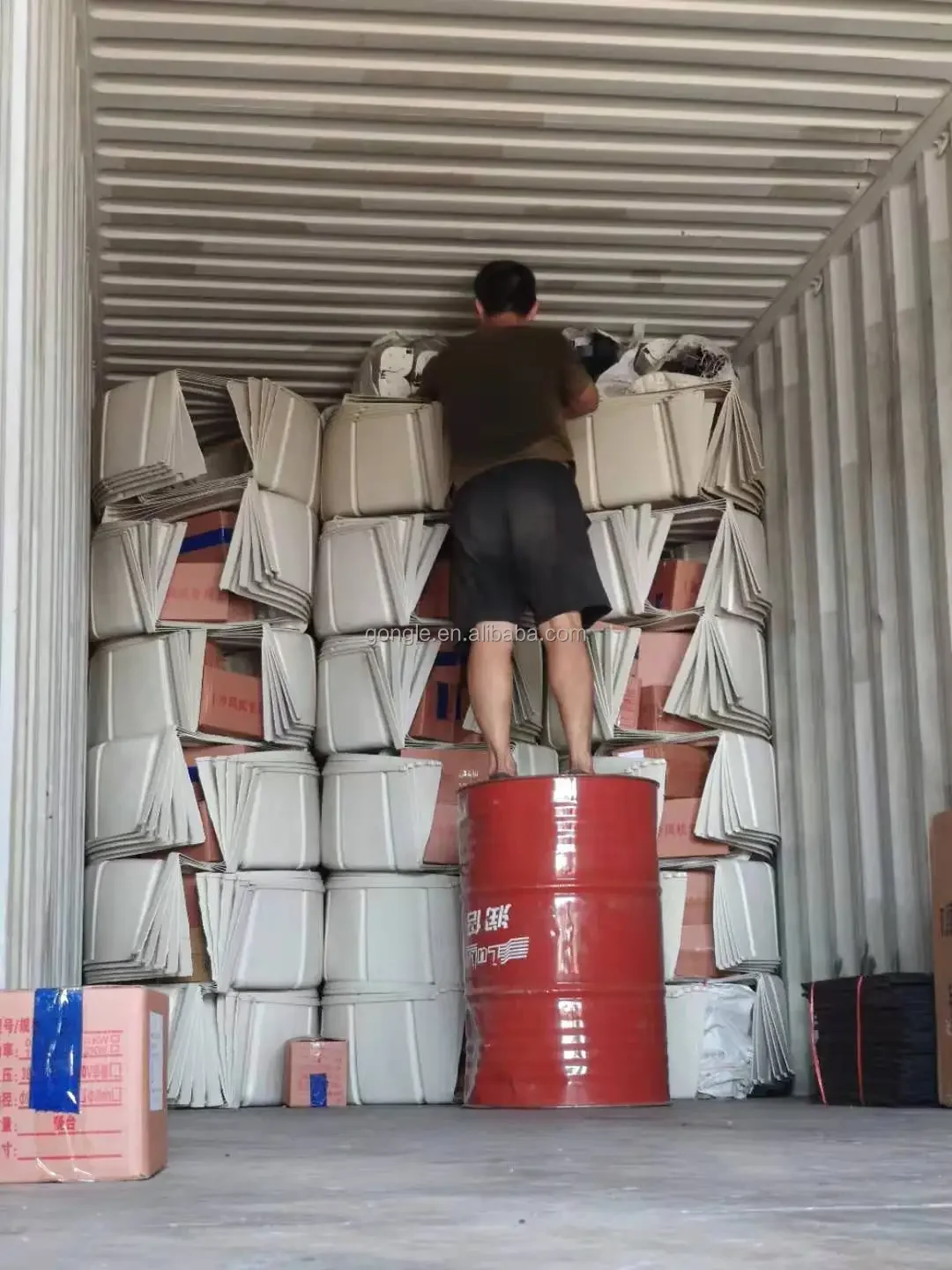

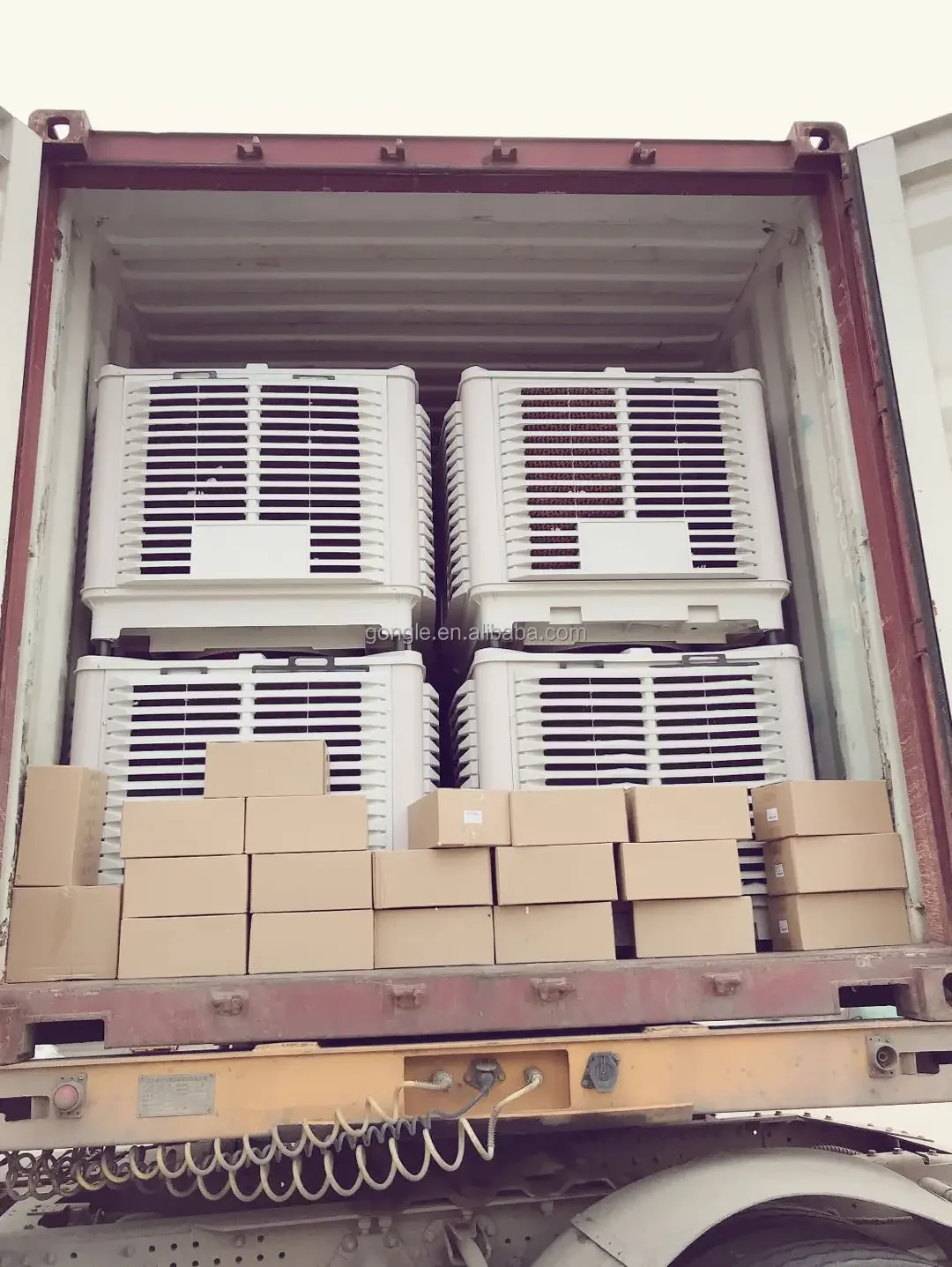

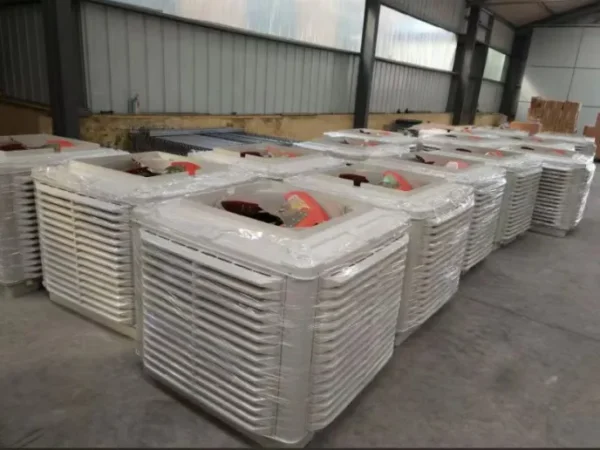

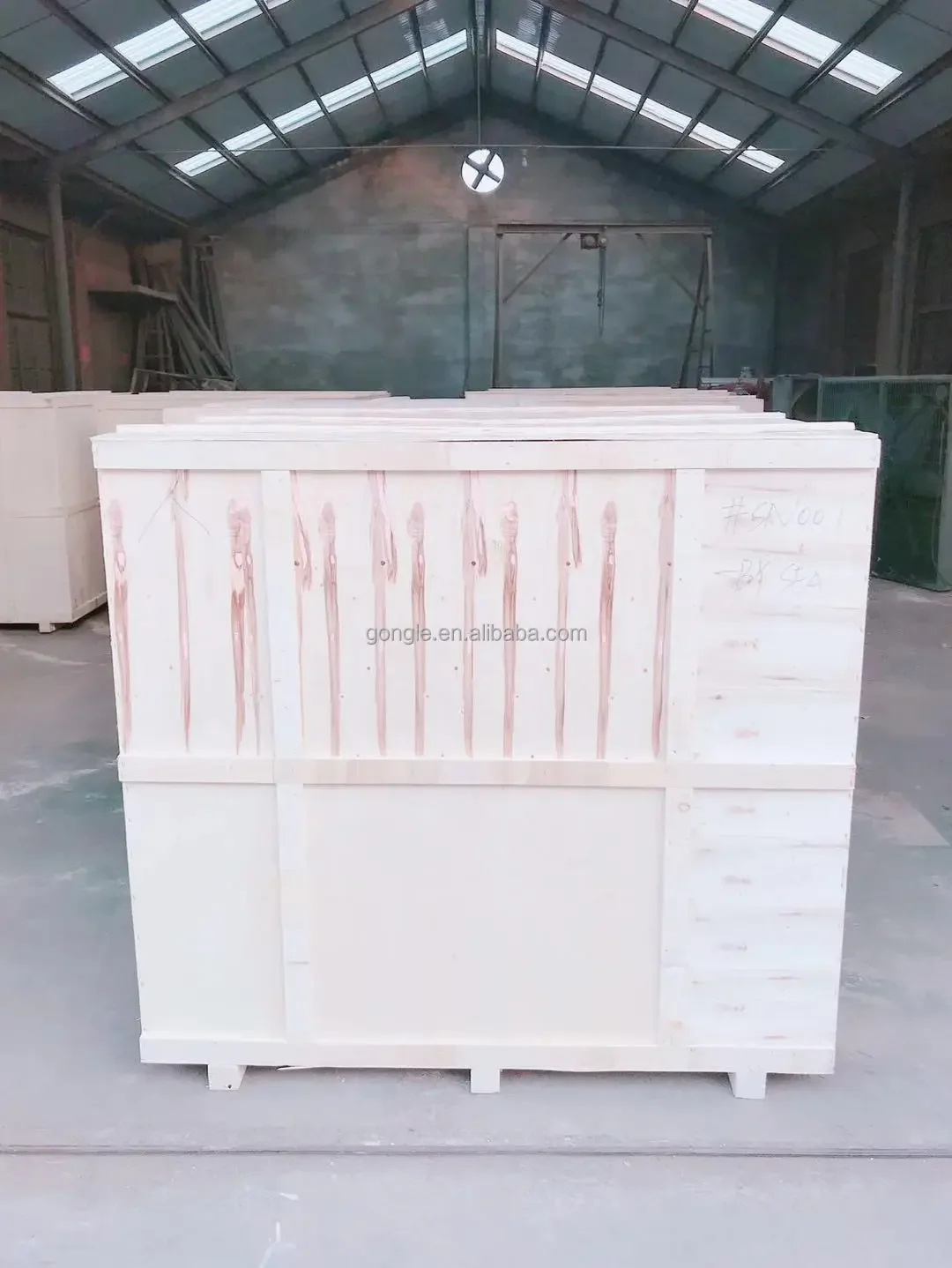

Package: in carton and packing belt.

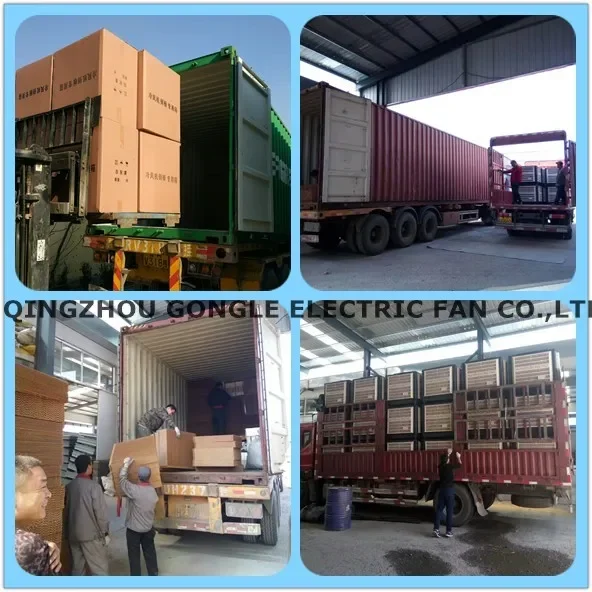

Delivery: FCL or LCL by sea.
Assembled and unassembled both can be supplied.

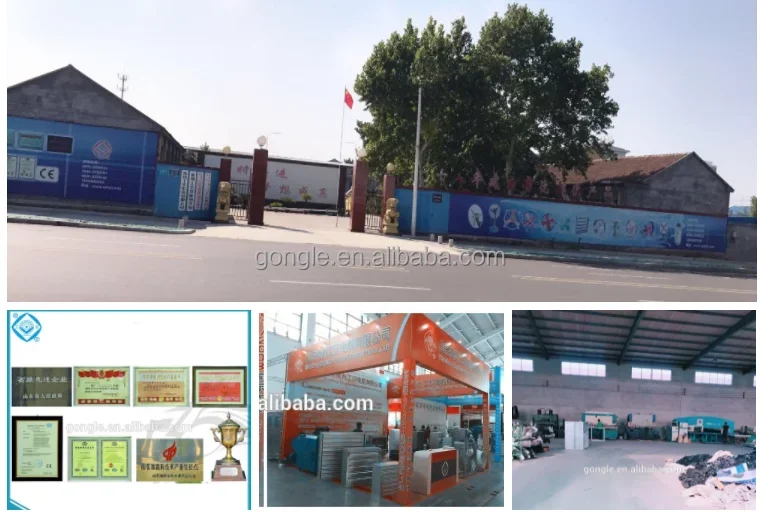

★ Qingzhou Gongle Electric Fan Co., Ltd. founded in 1978, is a private enterprise from primary Qingzhou City Electric Fan Company in No.1388 Industrial Road, Qingzhou City, Shandong Province, China.

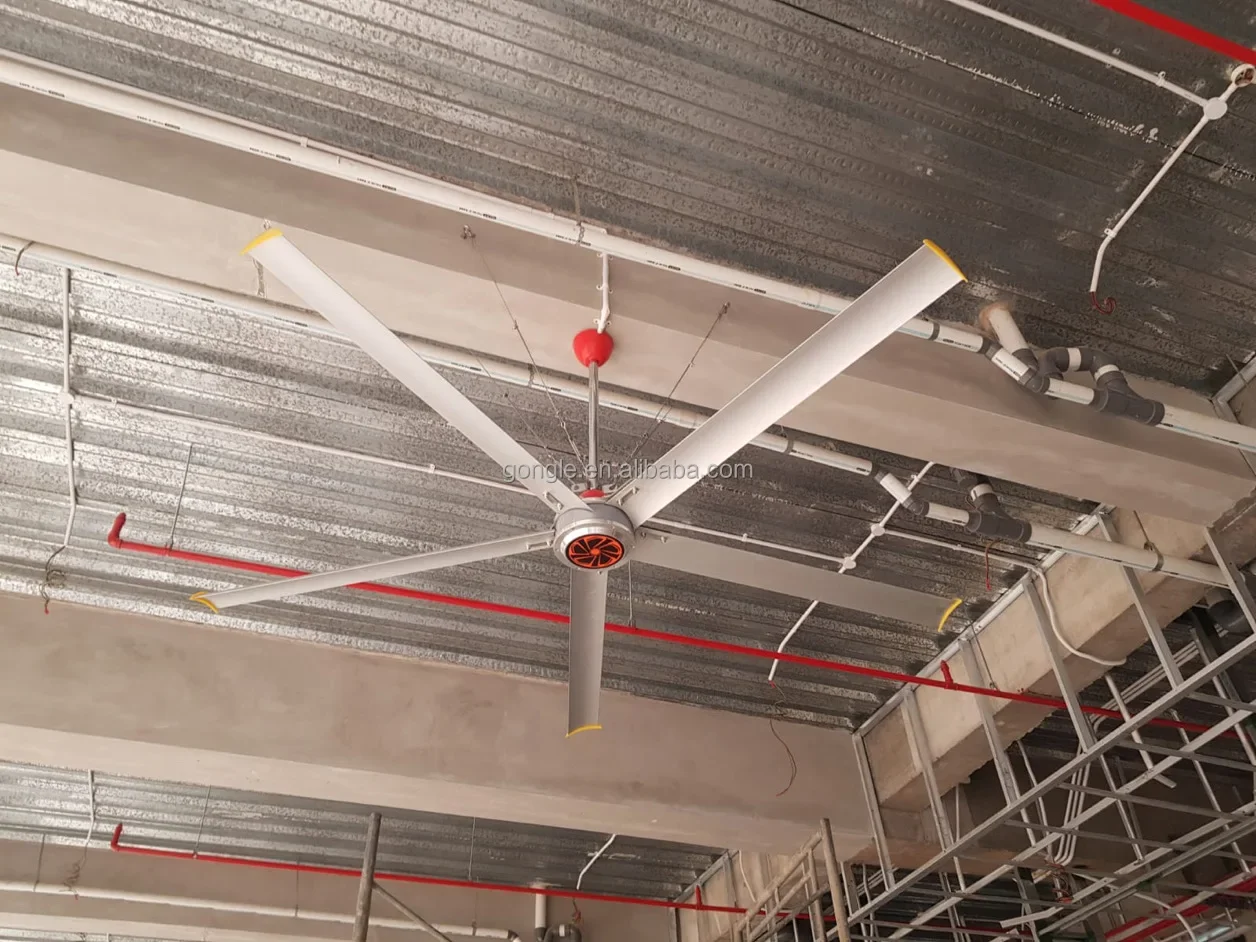

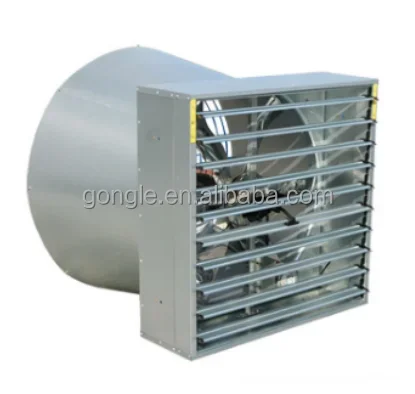

★Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,industrial air coolers, industrial ceiling fans and so on.
★They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.
Why you choose us?
1.Good quality, Competitive price, Fast delivery.
2. We have a team who have average 38 years experience in designing and producing fans, we can OEM different kinds of products according to your requirement, in order to produce the products more suitable to your market !
3. We have a lot of customers from overseas. A lot of our customers has established long term business relationship with us.
4.All the products have 1 year warranty. All products are conducted strict QC and inspection before shipping.
5.If you have any problems or suggestions about our products or service, you can contact me or our sales manager whenever you want. We will give you a satisfying reply.

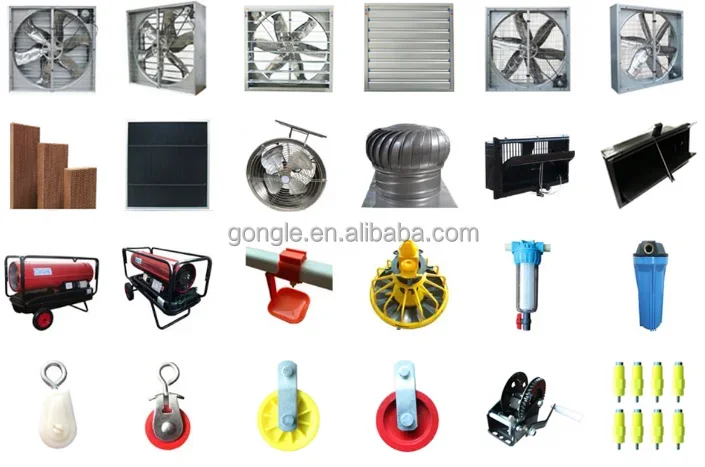

Need other kinds of products ?
OK ! Please contact us , we will help you !
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–99 set: US $380 / set
- 100+ set: US $118 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ventilation fan?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ventilation fan be supplied for my local voltage?
The standard configuration is 380v/220v/415v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
