This cooling tower is published with the manufacturer’s full specification — 220V/240V/380V/415V/480V, cooling capacity 100T. Made by Shandong Handun Environmental Technology Co., Ltd. (9 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Power(W): 1.1KW(1.48hp)
- Voltage: 220V/240V/380V/415V/480V
- Cooling Capacity: 100T
- Material: FRP
- Noise Level: 35–39 dB
- Warranty: 1 Year
Technical Specifications
| Voltage | 220V/240V/380V/415V/480V |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 1.1KW(1.48hp) |
| Material | FRP |
| Core Components | Gearbox, Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Noise Level | 35–39 dB |
| Key Selling Points | Competitive Price |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 5600 |
| Brand Name | HANDUN |
| Dimension(L*W*H) | 1912mm*1912mm*2842mm(75.28in*75.28in*111.89in) |
| Name | 100RT Cooling Tower |
| Cooling Capacity | 100T |
| Shape | Round |
| Color | White/ Green |
| Other Name | Bottle Cooling Tower |
| Application | Water Treament/Industrial Cooling System |
| Type | Counter Flow |
| Working Life | 10-15 Years |
| Guarantee | One Year |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

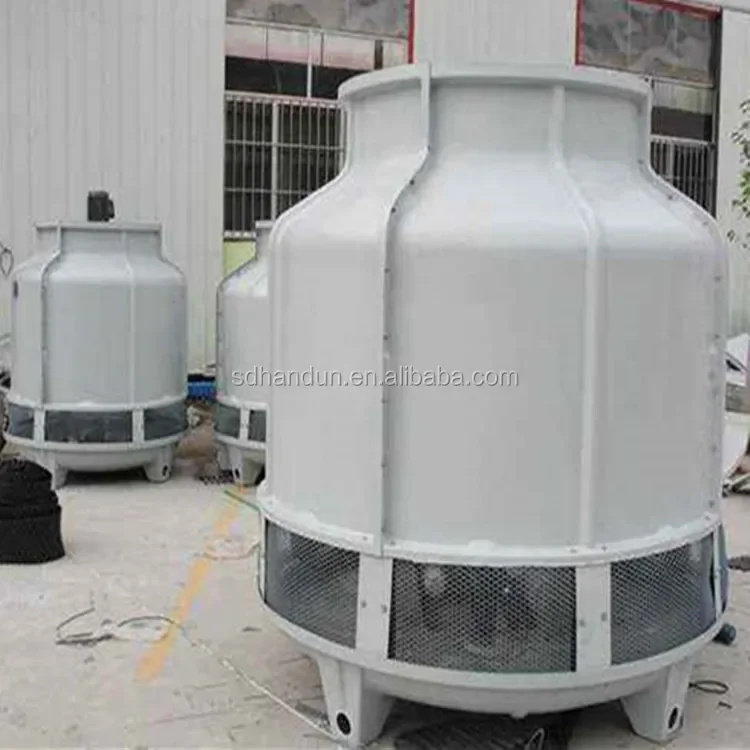

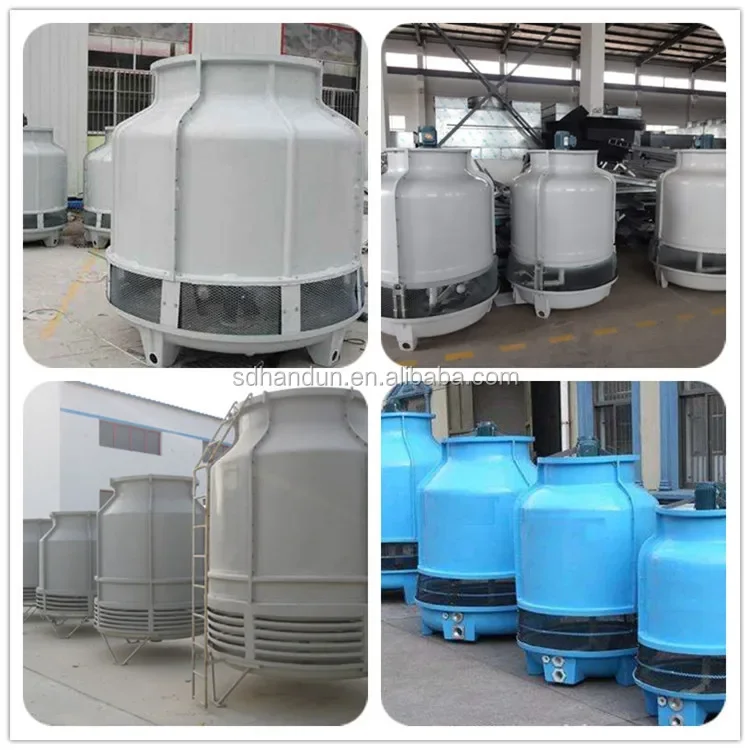

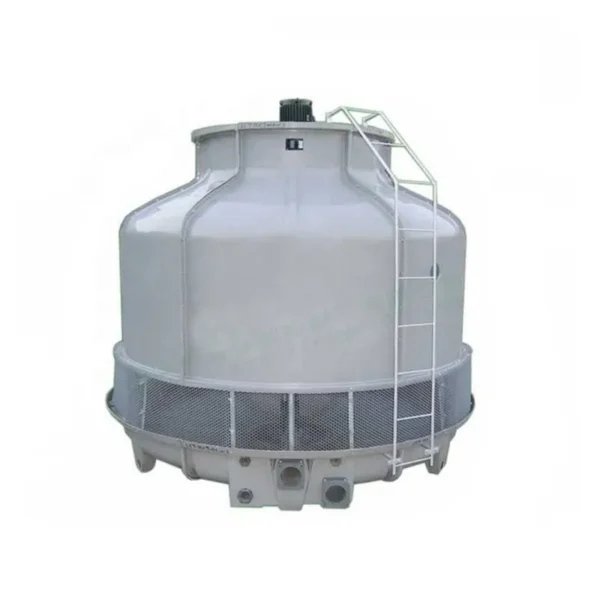

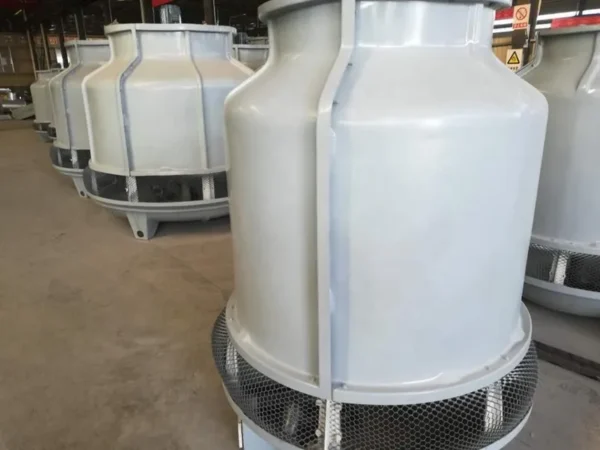

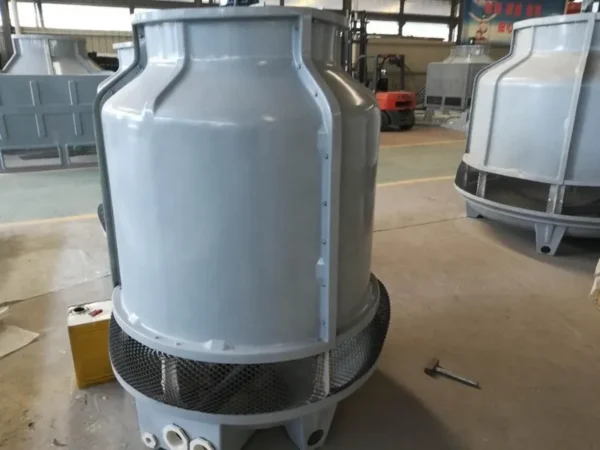

Fiberglass 100RT Cooling Tower Water Cooling tower

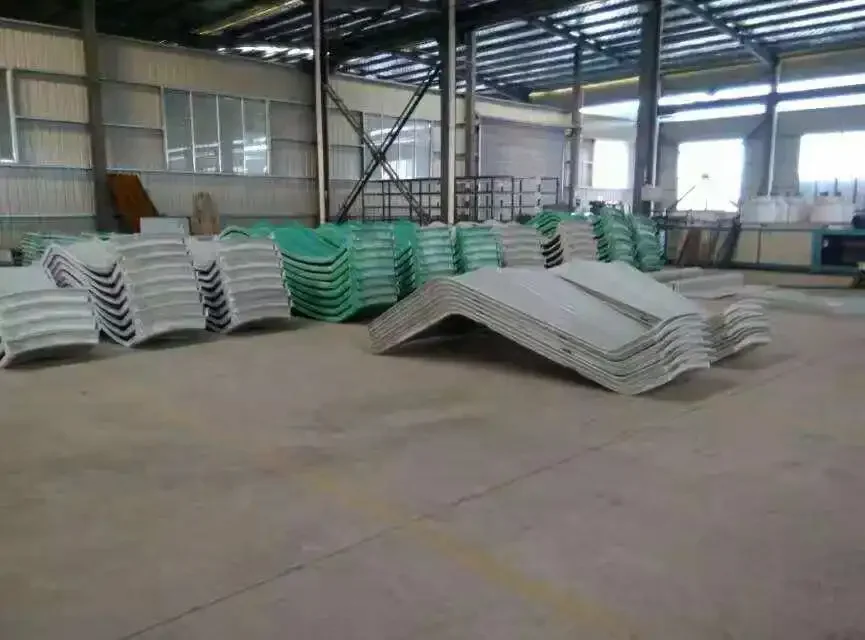

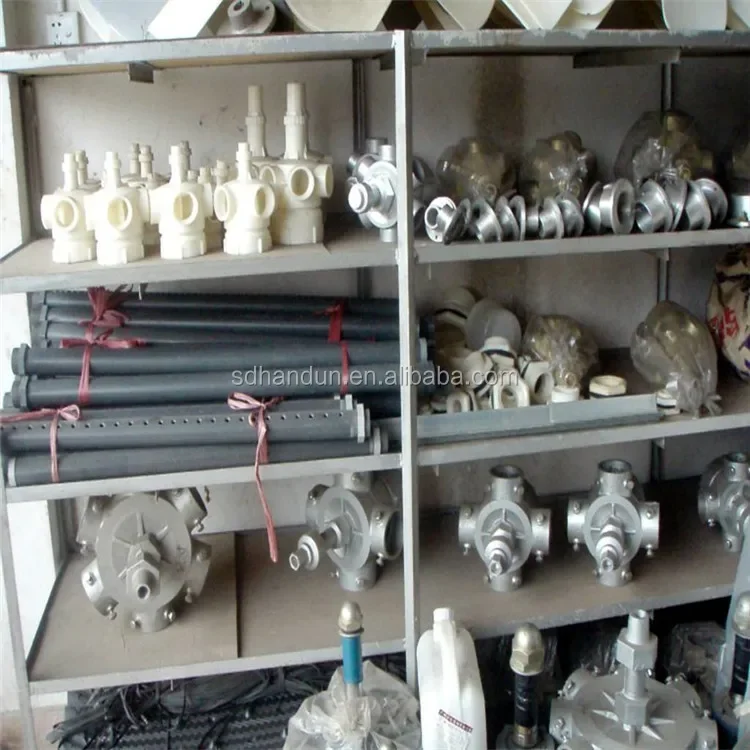

The FRP cooling tower has the corrosion resistant,high strength,light weight,small volume, saving space, attractive and durable and other features. Also it is convenient to transportation,installation and maintain. It is widely used in each department of national economy ,especially for the cooling water circle system such as central air-conditioning, refrigeration,air compression station,heating furnace and so on.The round shape counter flow cooling tower adopts to the counter flow heat exchange technology;The materials of filler is high-quality PVC so it can diffuse the water drenching area; we realize the uniform water distribution and better cooling performance via the spray water or spinning water.
Model:
There are three series FRP circular counter flow cooling Tower: DBNL3, CDBNL3, GBNL3.
(1) DBNL3 series low noise FRP cooling tower——Apply to the general cooling occasion such as the Air conditioning refrigeration unit which temperature drop is 3-8 ℃
(2)CDBNL3 series ultralow noise FRP cooling tower ——Apply to the occasions which more strict for noise such as hotel, hospital, public buildings and so on.
(3)GBNL3 series FRP industrial cooling tower ——Apply to the industrial water circular cooling system which the temperature drop is 10-25 ℃
Technical Parameters
| DBNL3 industrial cooling tower parameter table | ||||||||||||||||
| Model (T) | T=28℃ cooling Capacity | T=27 ℃ cooling Capacity | Main Size mm | Air Capacity m3/h | Air blower Diameter | Motor power | Weight | Inlet Water Pressure | Noise | Diameter | ||||||
| T=5℃ | T=8℃ | T=5℃ | T=8℃ |
|
|
|
|
| NET | working |
|
|
|
|
| |
| 12 | 12 | 9 | 15 | 10 | 2033 | 1210 | 7200 | 700 | 0.75 | 206 | 484 | 1.96 | 54.0 | 40.3 | 36.6 | 1.5 |
| 20 | 20 | 15 | 24 | 17 | 2123 | 1460 | 12400 | 800 | 0.8 | 230 | 514 | 2.00 | 54.0 | 41.1 | 37.5 | 1.5 |
| 30 | 30 | 22 | 35 | 27 | 2300 | 1912 | 18000 | 1200 | 0.8 | 406 | 956 | 2.21 | 55.0 | 43.5 | 39.9 | 1.8 |
| 40 | 40 | 30 | 46 | 34 | 2342 | 1912 | 21500 | 1200 | 1.1 | 478 | 1118 | 2.6 | 55.0 | 43.5 | 39.9 | 1.8 |
| 50 | 50 | 37 | 57 | 44 | 2430 | 2215 | 28000 | 1400 | 1.5 | 596 | 1480 | 2.65 | 55.0 | 44.7 | 41.1 | 2.1 |
| 60 | 60 | 44 | 68 | 51 | 2580 | 2215 | 32300 | 1400 | 1.5 | 642 | 1592 | 2.90 | 56.0 | 45.7 | 42.0 | 2.1 |
| 70 | 70 | 51 | 79 | 60 | 2600 | 2629 | 39200 | 1600 | 2.2 | 790 | 2064 | 2.78 | 56.0 | 47.0 | 43.0 | 2.5 |
| 80 | 80 | 61 | 92 | 70 | 2700 | 2629 | 43400 | 1600 | 2.2 | 875 | 2243 | 3.03 | 56.5 | 47.5 | 43.5 | 2.5 |
| 100 | 100 | 74 | 114 | 86 | 3000 | 2780 | 56000 | 1800 | 3.0 | 973 | 3064 | 2.68 | 57.0 | 50.0 | 46.0 | 3.0 |
| 125 | 125 | 92 | 142 | 108 | 3544 | 3134 | 67200 | 1800 | 4.0 | 1063 | 3290 | 3.15 | 58.0 | 50.7 | 47.4 | 3.0 |
| 150 | 150 | 112 | 171 | 129 | 3553 | 3732 | 84000 | 2400 | 4.0 | 1695 | 4125 | 2.90 | 58.5 | 52.0 | 48.6 | 3.6 |
| 175 | 175 | 131 | 200 | 150 | 3803 | 3732 | 94300 | 2400 | 5.5 | 1835 | 4461 | 3.15 | 59.5 | 53.0 | 49.6 | 3.6 |
| 200 | 200 | 153 | 231 | 180 | 3835 | 4342 | 112000 | 2800 | 5.5 | 2132 | 5592 | 3.01 | 59.5 | 53.0 | 49.6 | 3.6 |
| 250 | 250 | 186 | 283 | 215 | 4085 | 4342 | 134300 | 2800 | 7.5 | 2344 | 6365 | 3.26 | 61.0 | 55.6 | 52.3 | 4.2 |
| 300 | 300 | 225 | 334 | 260 | 4223 | 5134 | 168000 | 3400 | 7.5 | 3558 | 9229 | 3.50 | 6100 | 56.8 | 53.5 | 5.0 |
| 350 | 350 | 267 | 395 | 304 | 4473 | 5134 | 187400 | 3400 | 11.0 | 3860 | 9906 | 3.75 | 61.5 | 57.3 | 54.0 | 5.0 |
| 400 | 400 | 301 | 455 | 341 | 4618 | 6044 | 224000 | 3800 | 11.0 | 4300 | 12086 | 3.60 | 62.0 | 58.8 | 55.7 | 5.9 |
| 450 | 450 | 343 | 514 | 387 | 4868 | 6044 | 242000 | 3800 | 11.0 | 4646 | 13464 | 3.85 | 62.0 | 58.8 | 55.7 | 5.9 |
| 500 | 500 | 375 | 576 | 427 | 5219 | 6764 | 280000 | 4200 | 15.0 | 5768 | 16258 | 3.70 | 62.0 | 60.0 | 56.9 | 6.6 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $6390 / set
- 2+ set: US $6260 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 220V/240V/380V/415V/480V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Handun Environmental Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Handun Environmental Technology Co., Ltd. range on HVACR Nexus.
