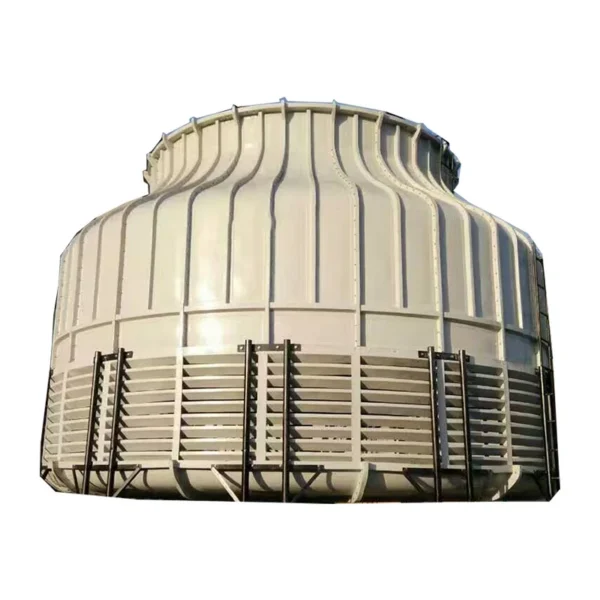

Cooling tower — 220V/240V/380V/480V, 0.18KW-180KW. The complete factory specification follows. Made by Shanghai Axd Heavy Machinery Co., Ltd. (14 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
Power(W): 0.18KW-180KW
Voltage: 220V/240V/380V/480V
Material: Concrete
Coil Material: Galvanized Steel
Warranty: 1 Year
Place Of Origin: Shanghai, China
Technical Specifications
Voltage
220V/240V/380V/480V
Cooling Type
Cross Flow
Power(W)
0.18KW-180KW
Material
Concrete
Core Components
PLC
Machinery Test Report
Not Available
Warranty
1 Year
Video Outgoing-Inspection
Not Available
Key Selling Points
Automatic
Place Of Origin
Shanghai, China
Weight (Kg)
3000
Brand Name
SEMC
Dimension(L*W*H)
Depends
Product Name
200T Energy saving cooling tower 300T Cross-flow Cooling Tower
After-Sales Service Provided
Overseas service center available
Name
Industrial Water Cooling Tower
Application
Water Treament
Usage
Cooing Tower
Coil Material
Galvanized Steel
Water Flow
25~300t/h
China Plastic Cooling Tower
Closed Circuit Cooling Tower Pricing
Selling Units
Single item
Single Volume
0 cm³
Single Gross Weight
0.0 kg
Product Details
Product Description
Product Name
200T Energy saving cooling tower 300T Cross-flow Cooling Tower
Cooling Tower
Closed cooling tower is mainly used for cooling system of medium-frequency induction furnace , high frequency power supply, high and low voltage rectifier, heating furnace, diathermy furnace, quenching furnace, induction holding furnace, melting furnace, crystallizer, electronic, instrument, hydraulic machine, vacuum pump station, central air conditioning, large system of molding machine, electric arc furnace, ladle refining furnace, cupola furnace in the industry of metallurgy and casting.
Product features
Reliability: The unique and rational design of the external turbine, installed outside the cooling tower wind tube, is convenient for maintenance and maintenance. The structure is the same as the traditional cooling tower motor and reducer. It cancels the mechanical noise and failure rate of the traditional motor, runs smoothly and has high reliability. Cold effect guarantee: as the season changes, the cooling system will change. External turbine unique design of three brake valves so that the fan speed increases or decreases with the increase or decrease of circulating water flow, air flow also increases or decreases, so that the cooling tower gas and water It is better than stable in the best state to achieve the best operation effect. Environmental protection: external turbine replace motor, reduce mechanical noise and vibration, reduce user energy. Energy-saving: Make full use of the backwater pressure of the circulating water system to convert mechanical energy, external turbine to replace the motor drive, to achieve 100% energy-saving. Safety: fundamentally eliminate the motor, electrical control and leakage burning damage to the fault, provide a guarantee for safe and sustainable operation, can be in any explosion-proof environment safe operation.
Application
Cooling tower is mainly used in air-conditioning cooling system, refrigeration series, injection molding, leather making, foaming, power generation, steam turbine, aluminum profile processing, air compressor, industrial water cooling and other fields, the most used for air-conditioning cooling, refrigeration, plastic chemical industry. The specific divisions are as follows:
A, air conditioning room: air conditioning, cold storage, refrigerated room, refrigeration, air-conditioning, etc.
B. Manufacturing and processing industries: food industry, pharmaceutical industry, metal casting, plastic industry, rubber industry, textile industry, steel works, chemicals, petrochemical products, etc.
C, mechanical operation cooling type: generators, steam turbines, air compressors, hydraulic presses, engines, etc.
D, other industries…
The function of cooling tower is to exchange the cooling water carrying waste heat with air in the tower body, so that waste heat can be transferred to air and dispersed into the atmosphere.
Specification
Main Technical Parameters of The Electric Arc Furnace
Nominal capacity
t
15
The average amount of tapping steel
t
20
The maximum amount of tapping steel
t
23
Furnace shell diameter
mm
φ3700
Graphite electrode diameter
mm
φ400
Electrode distribution park diameter
mm
φ1100
Electrode lifting speed
m/min
4.0
Electrode dropping speed
m/min
2.5
Electrode stroke
mm
2700
Tilting furnace angle
°
43~45°
Tilting furnace speed
°/S
Steel tapping:1°/S, Fast back:3°/S, slag out:1°/S
Furnace lid lifting height
mm
400
Rated capacity of transformer
KVA
8000
Primary voltage of transformer
KV
35
Secondary voltage of transformer
V
Ten grade:280~260~135
Voltage adjusting mode of transformer
No excitation electric voltage regulation(working voltage: 220V)
Secondary rated current of transformer
A
17765.1
Cooling form of transformer
Oil water cooler
Unscrewing angle of the furnace lid
75°
Maximum working pressure of hydraulic system
MPa
8~10
Hydraulic medium
water – glycol
Water system feeding water pressure
MPa
8~10
Water system backwater pressure
MPa
0.25
The total water consumption of cooling water
m3/h
200
Water cooling feeding water temperature
C
≤35
Outlet water temperature
C
≤55
The furnace hoisting weight(with liner)
t
90
The supply scope of complete set of equipment The supply scope includes furnace, furnace lid lifting and rotating mechanism, tilting furnace mechanism, hydraulic system, high voltage switch cabinet, hydraulic control box, electrode automatic control system.

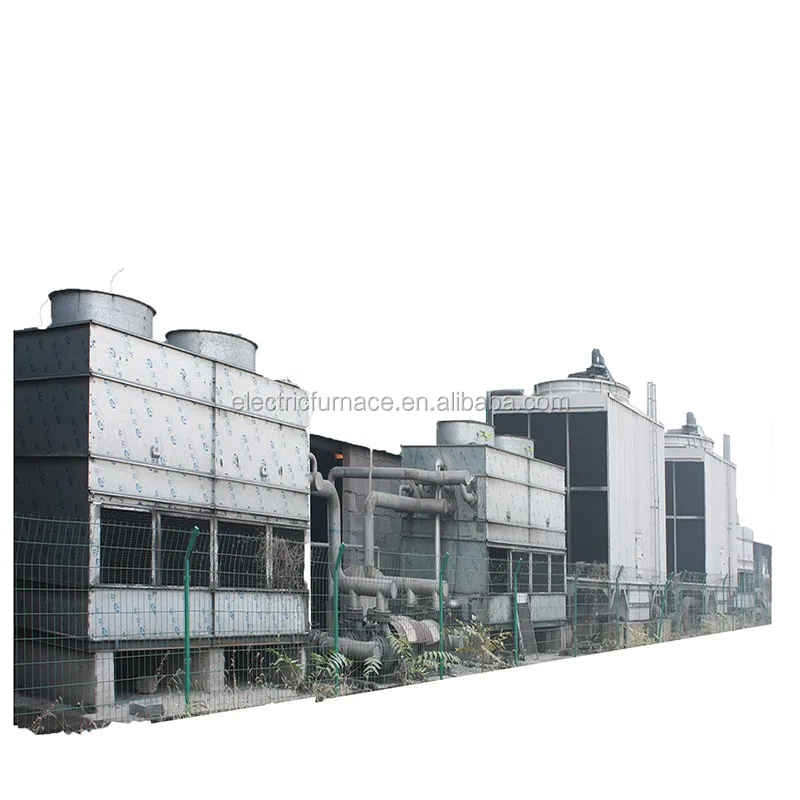

Products Show
Company Profile
Workshop Photo
Packing & Delivery
FAQ
Ordering and Pricing
Minimum order quantity: 1 set
Volume pricing:
1–4 set: US $30000 / set
5–9 set: US $25000 / set
10+ set: US $20000 / set
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 220V/240V/380V/480V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Axd Heavy Machinery Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shanghai Axd Heavy Machinery Co., Ltd. range on HVACR Nexus.
Specifications, certifications and images on this page are as published by the manufacturer and have not been
independently tested or verified by HVACR Nexus. Confirm the full specification and the approvals valid in your
market in writing before ordering.
