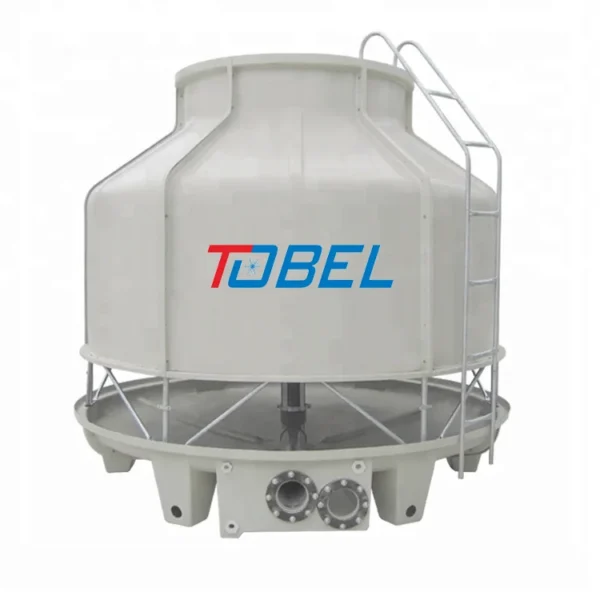

Cooling tower — 380V/50Hz/3Phase, 0.37KW(0.50hp). The complete factory specification follows. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Power(W): 0.37KW(0.50hp)
- Voltage: 380V/50Hz/3Phase
- Material: FRP
- Warranty: 1 Year
- Certification: ISO9001
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 380V/50Hz/3Phase |
|---|---|
| Cooling Type | Counter Flow |
| Power(W) | 0.37KW(0.50hp) |
| Material | FRP |
| Core Components | Motor |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | cooling tower |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 100 |
| Brand Name | TOBEL |
| Dimension(L*W*H) | 1195*1195*2110 |
| After-Sales Service Provided | Online support |
| Name | cooling tower |
| Water Flow | 19.51 m3/h |
| Water Pump Motor | 0.18-22 kw |
| Height | 2110mm |
| Diameter Of Water Tray | 1195mm |
| Diameter Of Fan | 630mm |
| Certification | ISO9001 |
| Net Weight | 98kg |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
TOBEL Concept
One-stop solution provider for cooling systems.
The company's cooling tower series includes: TBYT series counter-flow round tower、TBHT series low-noise cross-flow square tower、TBH-G series all-steel structure cross-flow square tower、TBNT series low-noise counter-flow square tower、TBN-G series all-steel counter-flow square tower Tower、TBNG series industrial counterflow square tower、TBB series closed cooling tower.
TOBEL company refers to the GB/T7190-2018 formulated by the China Cooling Tower Industry Association (CCTI), the (CTI) STD-201 formulated by the American Refrigeration Institute and other standards, combined with the IS09001 quality system requirements, and gradually developed through rigorous and professional practice and improvement. We have improved a series of standardized standard products, which have the characteristics of good cooling effect, low noise, energy saving, no floating water, small size, compact structure, beautiful appearance, etc. We have obtained 1 invention patent and 9 utility model patents, and won the title of "National High-tech" Technology Enterprise" and other honorary titles.
Performance parameter table & structural diagram
TBYT series counter-flow round tower.
Optional Parts：Noise reduction components (accoustic screen&fan cylinder)、Vibration isolator&Rubber mat、High-temperature components、Sump Heater、Stainless Steel Framework/Bolts&Nuts
Note: 1. The design working conditions of this series of cooling towers are: dry bulb temperature 31.5°C, wet bulb temperature 28°C, inlet water temperature 37°C, outlet water temperature 32°C, and atmospheric pressure 99.4kpa. 2. During the installation process of cooling tower pipelines, customers need to add Y-type filters, valves, pressure gauges and other auxiliary fittings at the water inlet. 3. The noise test point is the second point in the national standard GB7190.1-2008 (the horizontal distance between the tower air inlet direction and the tower wall is 1 times the diameter of the tower and 1.5 meters above the ground).
TBHT series low-noise cross-flow square tower.
Optional Parts：Noise reduction components (accoustic screen&fan cylinder)、Handrail&safety caged ladder、Vibration isolator&Rubber mat、High-temperature components、Built-in water inlet pipe、Sump Heater、Stainless Steel Framework/Bolts&Nuts
Note: 1. The design working conditions of this series of cooling towers are: dry bulb temperature 31.5°C, wet bulb temperature 28°C, inlet water temperature 37°C, outlet water temperature 32°C, and atmospheric pressure 99.4kpa. 2. During the installation process of cooling tower pipelines, customers need to add Y-type filters, valves, pressure gauges and other auxiliary fittings at the water inlet.
TBNT series low-noise counter-flow square tower.
Optional Parts：Noise reduction components (accoustic screen&fan cylinder)、Handrail&safety caged ladder、Vibration isolator&Rubber mat、High-temperature components、Built-in water inlet pipe、Sump Heater、Stainless Steel Framework/Bolts&Nuts
Note: 1. The design working conditions of this series of cooling towers are: dry bulb temperature 31.5°C, wet bulb temperature 28°C, inlet water temperature 37°C, outlet water temperature 32°C, and atmospheric pressure 99.4kpa. 2. During the installation process of cooling tower pipelines, customers need to add Y-type filters, valves, pressure gauges and other auxiliary fittings at the water inlet.
TBB series closed cooling tower.
Note: 1. The design working conditions of this series of cooling towers are: dry bulb temperature 31.5°C, wet bulb temperature 28°C, inlet water temperature 37°C, outlet water temperature 32°C, and atmospheric pressure 99.4kpa. 2. During the installation process of cooling tower pipelines, customers need to add Y-type filters, valves and pressure gauges at the water inlet. 3. The dimensions described in the parameter table are only the dimensions of the host box and do not include the dimensions of the water tank and circulation pump.
Other Series
All-steel square cross-flow cooling tower
All-steel square counterflow cooling tower
Cooling tower accessories
Craftsmanship
Project Cases
University
Alcoholic beverage industry
Food processing
Printing and dyeing waste water
Technology and new energy
New materials
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $449 / set
- 5+ set: US $400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooling tower carry?
It is supplied with ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V/50Hz/3Phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
