This air cooled radiator is published with the manufacturer’s full specification — airflow 8000m³/h, type EVAPORATIVE AIR COOLER. For a binding price and lead time, send the volume you need and where it ships to.
A double row air cooled radiator puts two coil passes in the airstream instead of one, extracting substantially more heat from the same fan power and frontal area — which is how this unit moves 8000m3/h from a 20kg package. The wide 110-240VAC input covers both North American and European sites on a single build. Floor standing with integrated motor and pump, supplied with a one-year warranty.
Key Features of This Air Cooled Radiator
Operating Voltage: 110~240VAC
Airflow: 8000m³/h
Warranty: 1 Year
Place Of Origin: China
Mounting Type: Floor Standing
Type: EVAPORATIVE AIR COOLER
Technical Specifications
Operating Voltage
110~240VAC
Mounting Type
Floor Standing
Airflow
8000m³/h
Type
EVAPORATIVE AIR COOLER
Key Selling Points
Eco-Friendly
Core Components
Motor, Pump
Warranty
1 Year
Machinery Test Report
Not Available
Place Of Origin
China
Weight (Kg)
20 KG
Dimension(L*W*H)
800*480*1380
Product Name
Industrial Portable Evaporative Air Cooler
Packaging Details
Regular Packing
Port Of Dispatch
Shanghai,Ningbo,Shenzhen,or as your requirements
Selling Units
Single item
Packaging Examples
Supply Ability
500000 sets per Month
Product Description

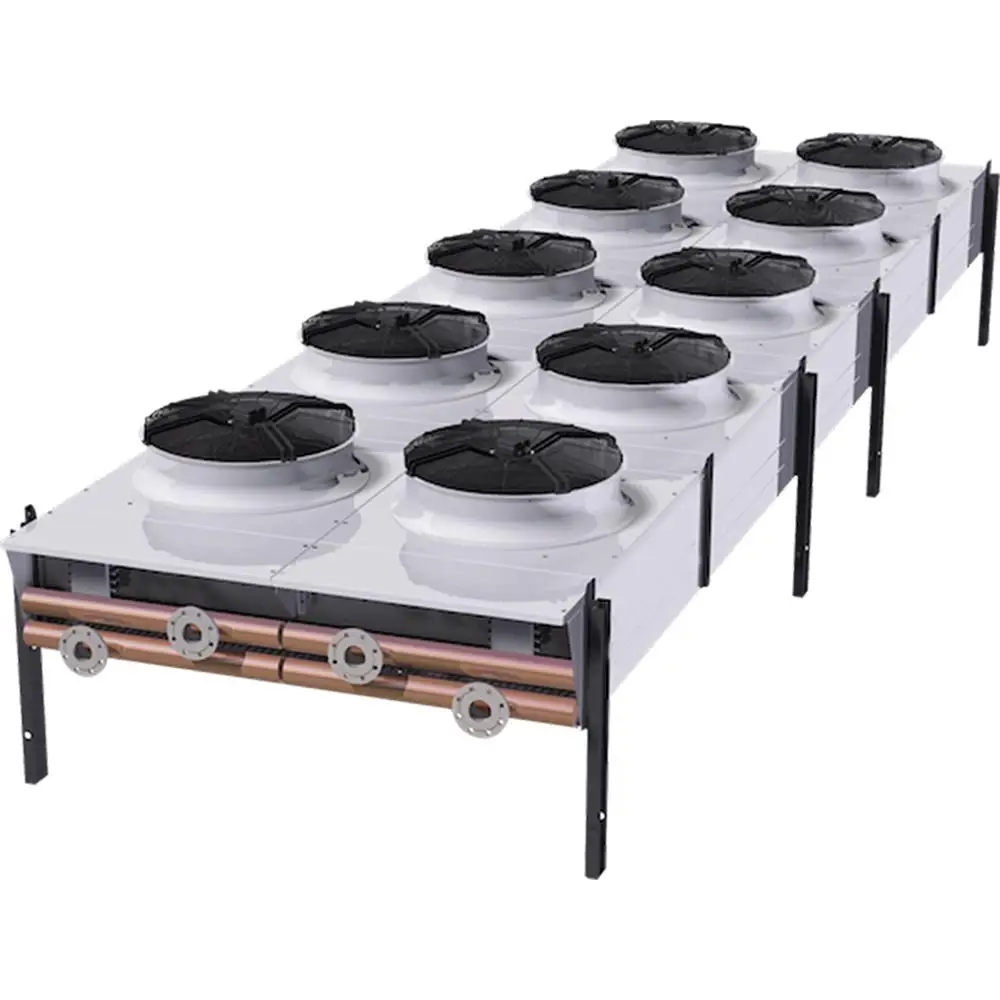

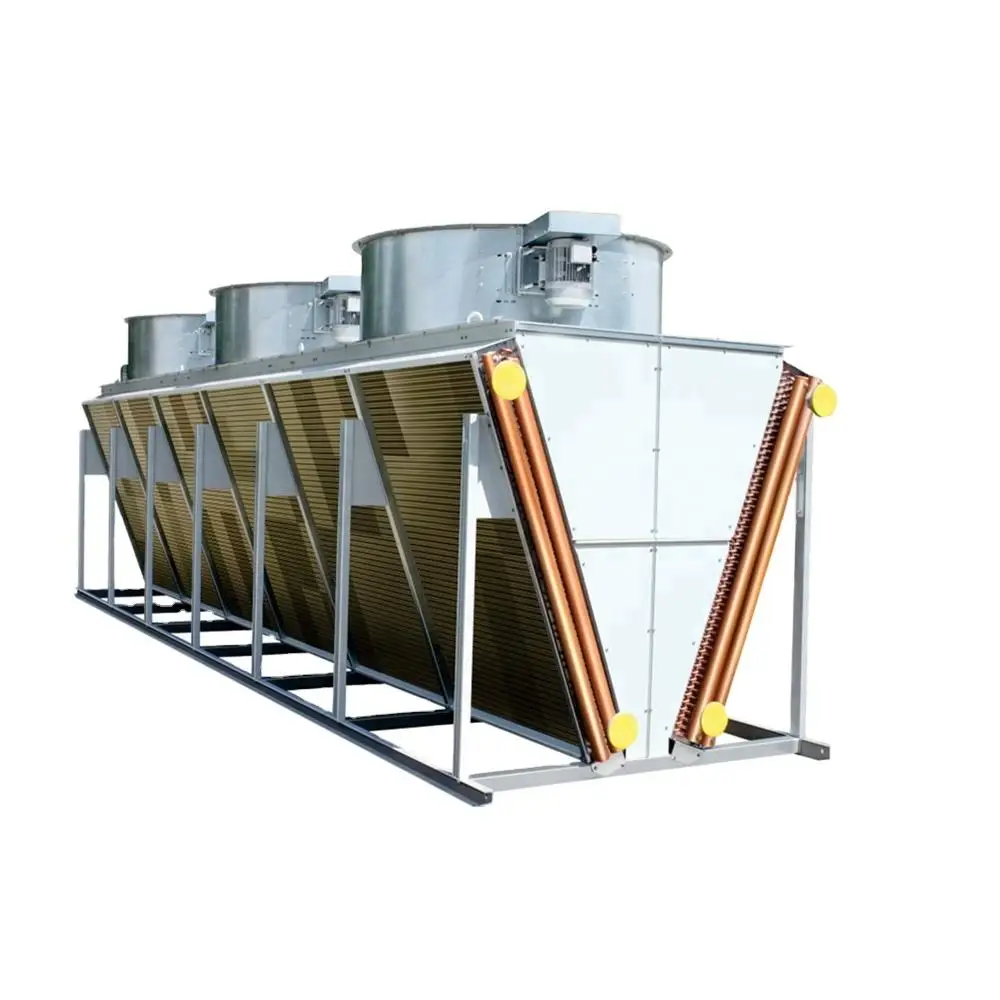

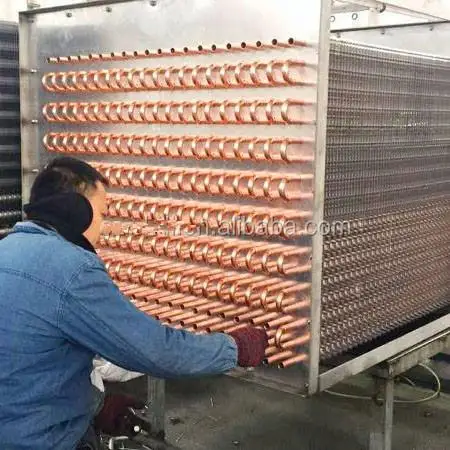

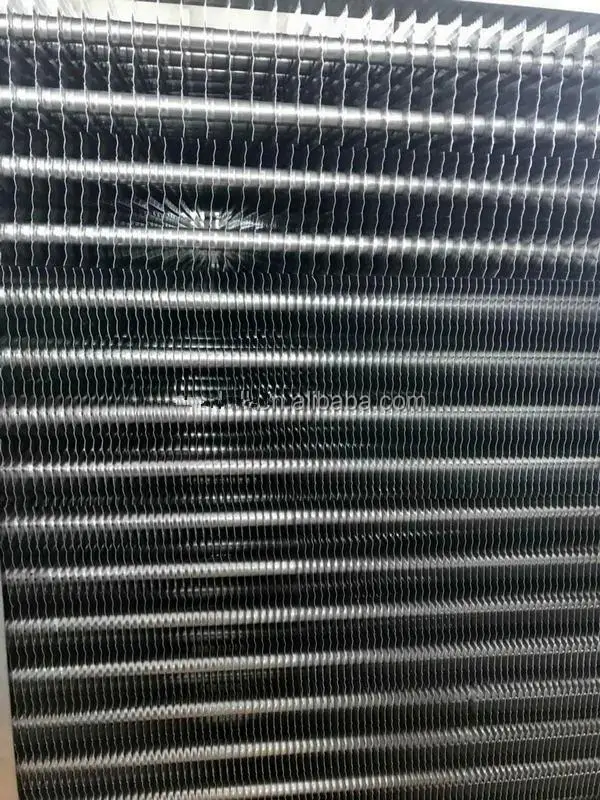

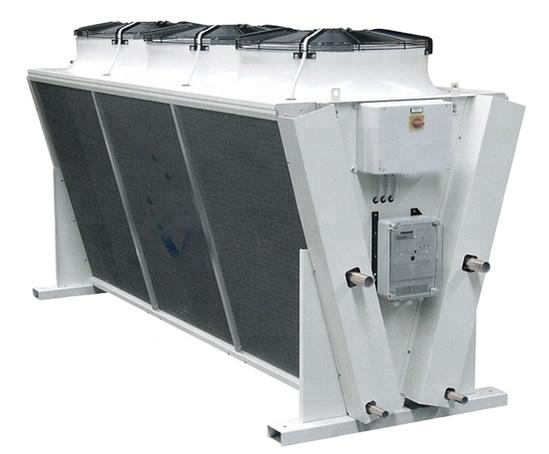

Dry cooler provide a smart way to take advantage of free cooling when surrounding temperature allows for it. They are made with cross-fin copper tubes or stainless steel tube and corrugated aluminum fins, resulting in a combination of compact dimensions and high capacity. Dry cooler can be easily integrated with liquid-cooled plate heat exchangers, especially in free cooling systems. Dry coolers were designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. In order for dry cooler to work, the air temperature needs to be cooler than water in the system. To cool the system liquid, hot process liquid flows through the dry cooler tubes. The liquid is then cooled by the relatively cold ambient air that is forced through the coil. The core of our air heat exchangers is the fin coil, built from a circuit of interconnected tube serpentines and fins to increase the heat exchanging surface.
dvantage of WKDL Dry Cooler 1. Modular designs of dry cooler helps in space optimization 2. High efficient fin to tube heat exchanger 3. Zero water wastage : as it is closed loop operation and now water evaporation 4. Negligible maintenance cost : as water treatment, makeup water and replacement of fills are not required. 5. No periodic cleaning requirement 6. Separates process side from any contamination due to closed loop system 7. Casing made of galvanzied steel, enhanced corrosion resistance.
Fin Thickness: 0.18 /0.2/0.3/0.5/0.8/1.0mm etc Fin Material: Red Copper/ Stainless Steel/ Aluminum/ Carbon Steel Fin Coat: Hydrophilic film and anti-corrosion coat Fin Pitch: 1/2/3/4mm etc
Title goes here.

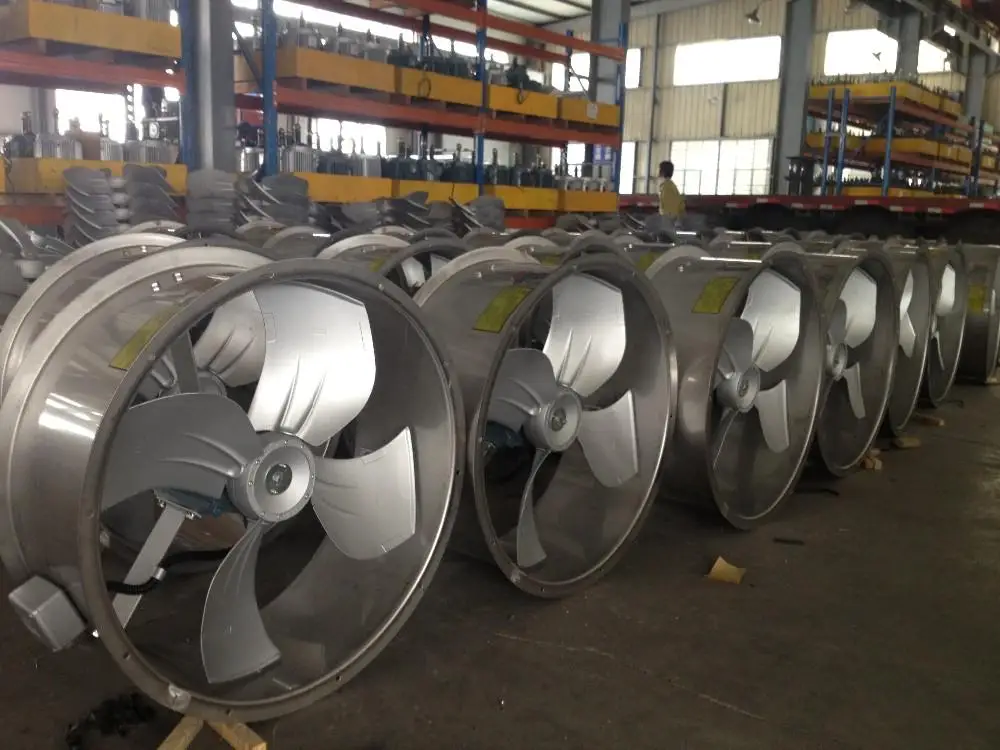

Machine Parts Name: Axial Fan Brand: EBM / ZIEHL-ABEGG / Good China Brand We have common model in stock. If you need special voltage we can order it for you in 20-30 days.
Main Features Name:

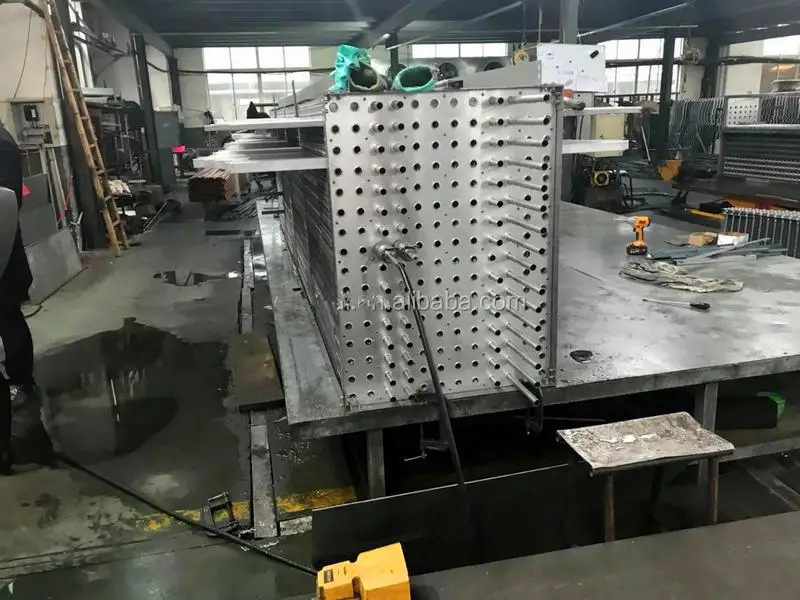

Water tube expanding test
All evaporators will be tested twice before out of factory. One test is leakage test, put the evaporator in pool to inspect if there is a bubble. Another test is water tube expanding with 10-30Mpa pressure, our stainless steel tube can bear 30Mpa pressure.
Specification

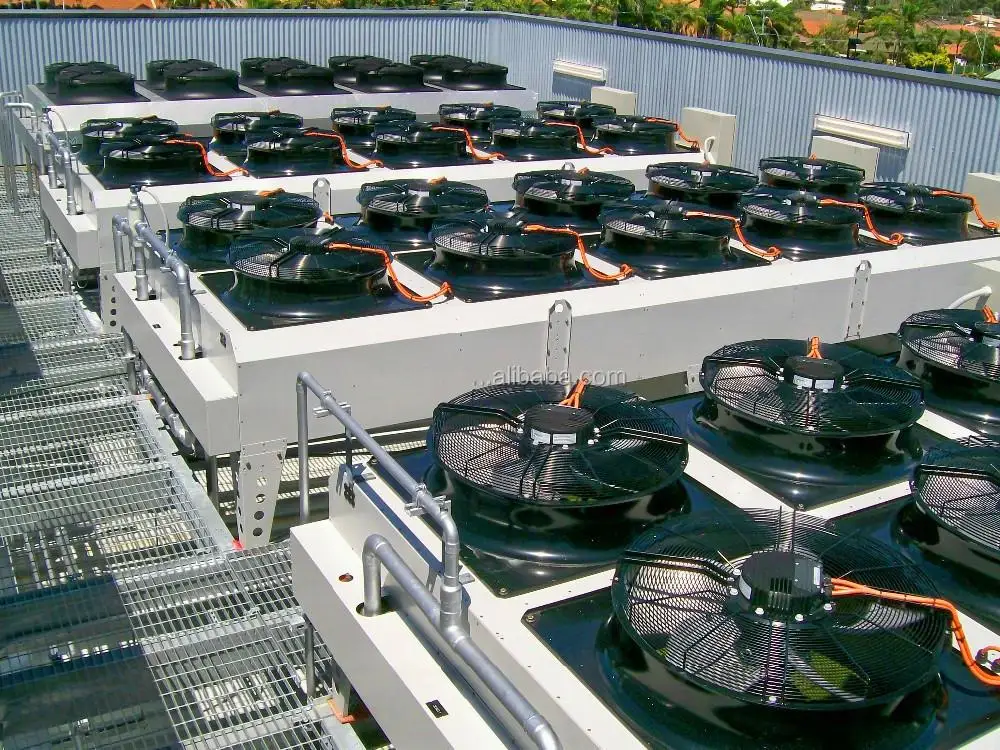

1. Steel Industry — Electrical Arc Furnace / induction furnace cooling 2. Refinery & petrochemicals — Reactor column cooling 3. Rubber — Roller cooling 4. Independent Power Stations — Cooling of engine jacket water, lube oil and inter-stage cooler 5. Plastics — Cooling of injection molding machine 6. Textiles — Condensation of process vapour 7. Refrigeration / Air conditioning — as condenser for air cooled chillers 8. Power Industry — Turbine lube oil cooler / turbine intercooler

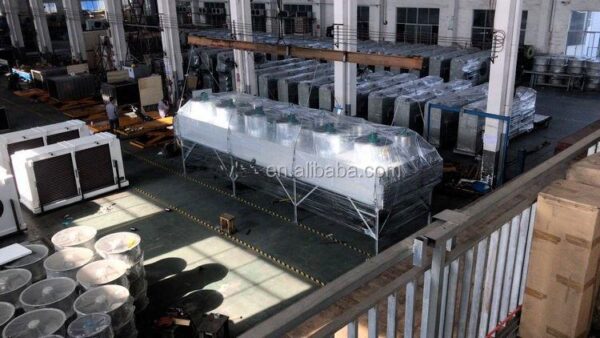

Packing & Delivery

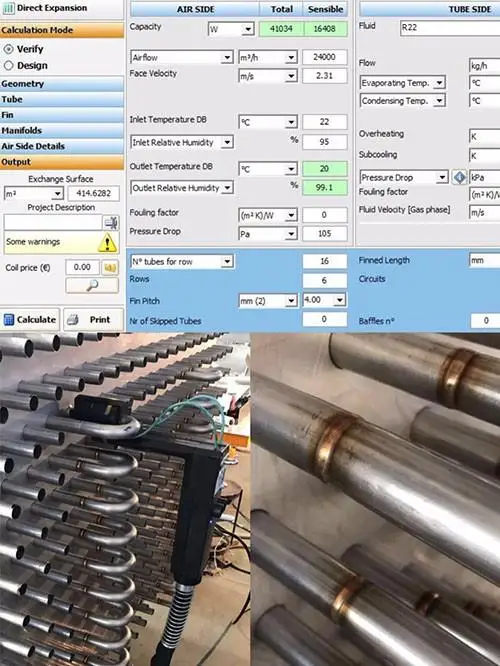

Software

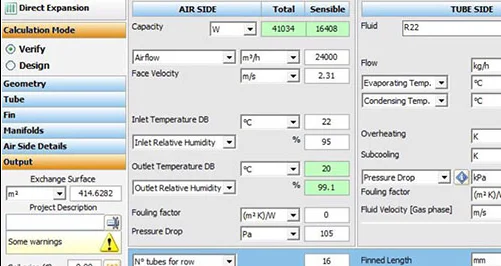

* We have heat exchange calculation software which can offer optimal solution.
Stainless steel automatic welding Tech
* Imported from Germany and it offer good appearance and high strength.
Frequently Asked Questions
What is the minimum order quantity for this air cooled radiator?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this air cooled radiator?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 110~240VAC. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
