The cooling tower listed here carries 380V or Customized, cooling capacity 250 000Kcal/h, documented exactly as the manufacturer publishes it. Made by Wuxi Master Cooling Machinery Manufacturing Co., Ltd. (5 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Tower
- Power(W): 3700
- Fan Power: 2.2kw
- Voltage: 380V or Customized
- Cooling Capacity: 250 000Kcal/h
- Material: Metal
- Warranty: 1 Year
Technical Specifications
| Voltage | 380V or Customized |
|---|---|
| Cooling Type | Combined Flow |
| Power(W) | 3700 |
| Material | Metal |
| Core Components | PLC, Bearing, Motor, Pressure Vessel, Pump, Cooling Coil, Fan, Spray Head, Out Shell |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 5000 |
| Brand Name | MASTER COOLING |
| Dimension(L*W*H) | 2500*2300*3350mm |
| Product Name | Combined flow closed water cooling tower |
| Item NO | MSTFBS-50 |
| Application | Industrial Cooling System |
| Cooling Capacity | 250 000Kcal/h |
| Water Flow | 50m³/h |
| Fan Power | 2.2kw |
| Fill | P.V.C |
| Shape | Square Shape |
| Fan Type | Aluminum -alloy Axial-flow |
| Motor | IP55 |
| Selling Units | Single item |
Product Details

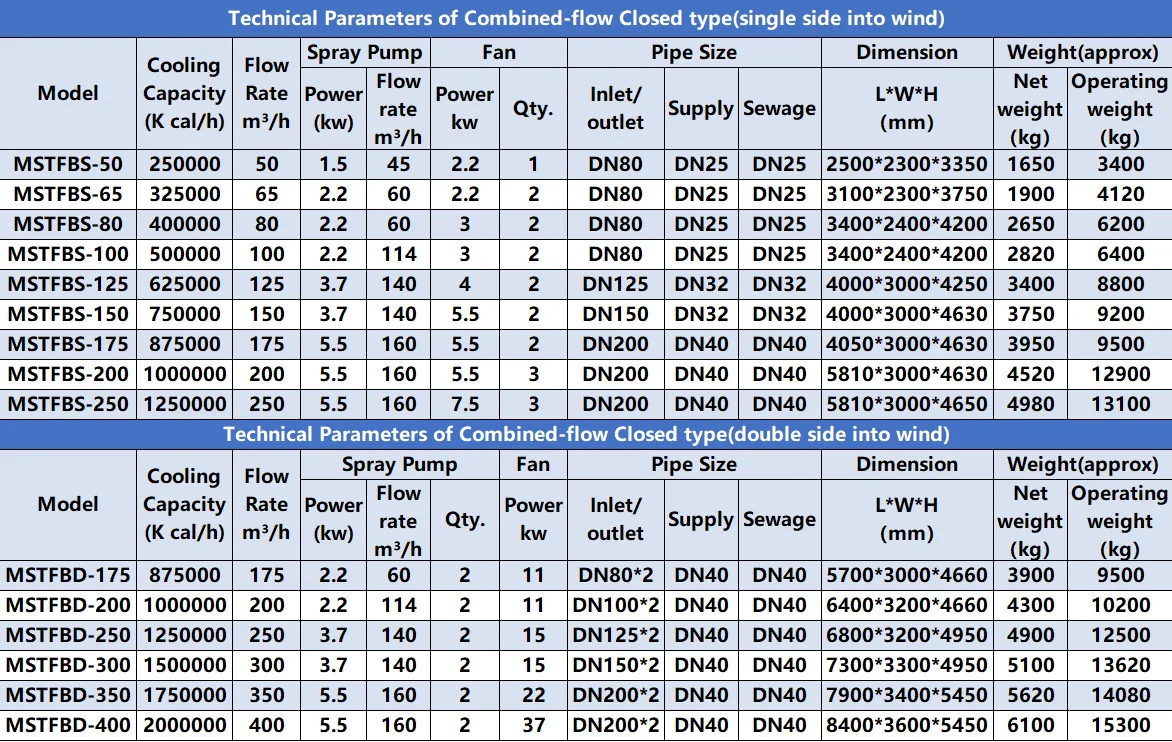

Product parameters
Product Name | Combined Flow Closed Cooling Tower |
Model NO. | MSTFB |
Certification | CE/ISO |
OEM | Supported |
Products Description
Process principle
The heated working fluid is flowing inside of the coil, which is en-wrapped by spray water on the outside. The heat of water is conducted by coil and become the saturated vapor when meet the water and air. The heat is exhausted out of the tower by the fan, and the water is collected back to the water tank for circulating. The spray water is cooled down when pass the PVC fills in the process of circulation, and flows in the same direction with the inlet cold air, and the coil mainly cooled by sensible heat conduction. So this type cooling tower is wildly used for high temperature cooling media.
Characteristics
1. Double sides into wind
Cold air inlet from the top and side of the tower, cooling coils are layout in two sides, maximize the fan size. Enhance the air circulation, cooling capacity is more efficient.
2. Avoiding scaling
The cooling coils install up above the PVC fills, inlet cold air flows in the same direction with the spray water, so the spray
water can complete cover the cooling coils and will avoid formation of dry point to form scale.
3. Low noise
Cold air inlet from the top and side of the tower, cooling coils are layout in two sides, maximize the fan size. Enhance the air circulation, cooling capacity is more efficient.
2. Avoiding scaling
The cooling coils install up above the PVC fills, inlet cold air flows in the same direction with the spray water, so the spray
water can complete cover the cooling coils and will avoid formation of dry point to form scale.
3. Low noise
Based on low revolving speed with wide leaf fan. Vulnerable parts using famous brand, low failure rate,cheap
maintenance cost.
4. High air duct design exhaust system to ensure ventilation quality, fast heat dissipation, ensure the cooling effect.
5. Convenient maintenance
Modular design is easy to assemble, disassemble and service. There is a maintenance passage inside tower, it is convenient for staff to entrance to examine and repair.
maintenance cost.
4. High air duct design exhaust system to ensure ventilation quality, fast heat dissipation, ensure the cooling effect.
5. Convenient maintenance
Modular design is easy to assemble, disassemble and service. There is a maintenance passage inside tower, it is convenient for staff to entrance to examine and repair.
Application
" MSTFB " has a huge inside spare space which convenient for people to get into maintenance and repair. This type's advantages are high work efficiency and avoiding scaling, also apply to the high cooling temperature (35℃-50 ℃)or large cooling range(△T=5-20℃)

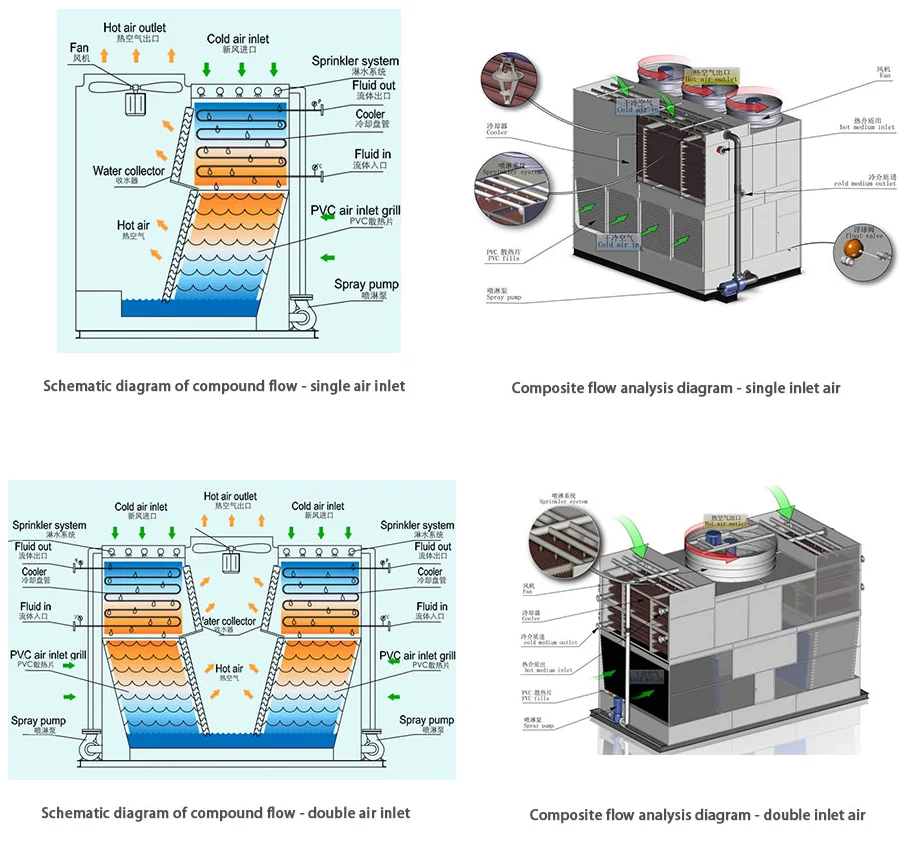

The Combined Flow Cooling Towers is also called "mixed flow closed cooling tower", referred to as "mixed flow", because the water spray and hot air are mixed in the direction, the spray water flows from top to bottom, the wind is divided into two channels, and a part of the cold air It flows from top to bottom, and the other part enters horizontally from the tail, and the temperature of the spray water is reduced through the cross heat exchange between the filler and the spray water.
The Combined Flow Cooling Towers is also called "mixed flow closed cooling tower", referred to as "mixed flow", because the water spray and hot air are mixed in the direction, the spray water flows from top to bottom, the wind is divided into two channels, and a part of the cold air It flows from top to bottom, and the other part enters horizontally from the tail, and the temperature of the spray water is reduced through the cross heat exchange between the filler and the spray water.
Product Structure & Details

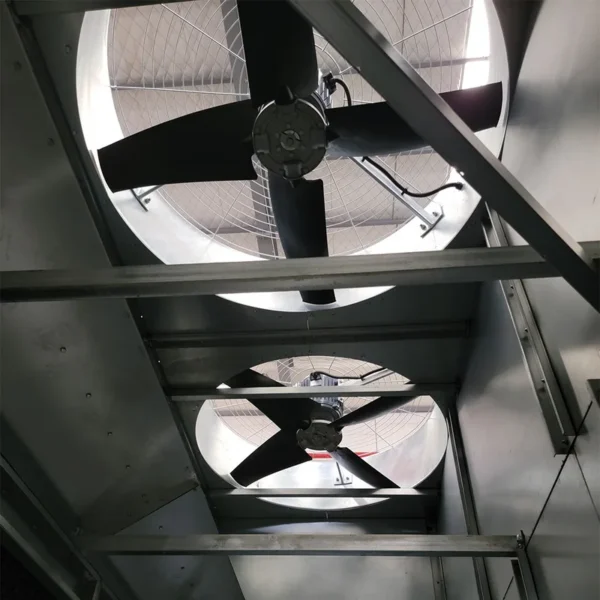

Fan–Low noise large diameter fan
Low speed fully sealed motor adopts blades with super width. The fan is composed of aluminum blades and steel wheel hub, featuring low wind resistance, high rate of air flow, low noise, high efficiency and reliable performance and so on. The protective level is IP55, suitable used for out door.
( Blade options: aluminum alloy, aluminum alloy hollow, carbon fiber, polythylene )
Outer Sheel–Imported Aluminum-zinc Plate
The imported Aluminum-zinc plate is one of the best corrosion resistant materials at present, with life span 3-6 times than common galvanized steel. And has follwing advantages such like high strength and toughness, good heat resistance and beautiful appearance, etc.
( Shell material options: Aluminum-zinc plate, SuperDyma, 304 Stainless steel )
Cooling Coils–Different choices of material
Red Copper Coils: Good heat exchange effect, high antifreeze requirements. Pressure design 1.6Mpa.
Stanless Steel Coils: Pressure design 2.5Mpa, corrosion-resistance ability, cheaper.
Adopt advanced automatic welding equipment to ensure no leakage.
PLC–Brand:Siemens, Schneider
PLC intelligent control, local/remote control, can be adjusted according to different working conditions.
PVC Fills–High efficiency PVC material
High quality PVC material may effectively transfer heat and reducing the water flow to save energy resources.
( Air window options: steel louver type, pvc honeycomb type )
Spraying System–Efficient spray system
Spraying Nozzle: The high-efficiency water spary system provides important guarantee for the cooling capacity. Spray water is evenly distributed, and the spray nozzles are easy to clean and replace.
Spraying pump: Special circulating spary pump with the protective level is IP55, no leakage, long life span.
Auxiliary–Choose depend on your needs

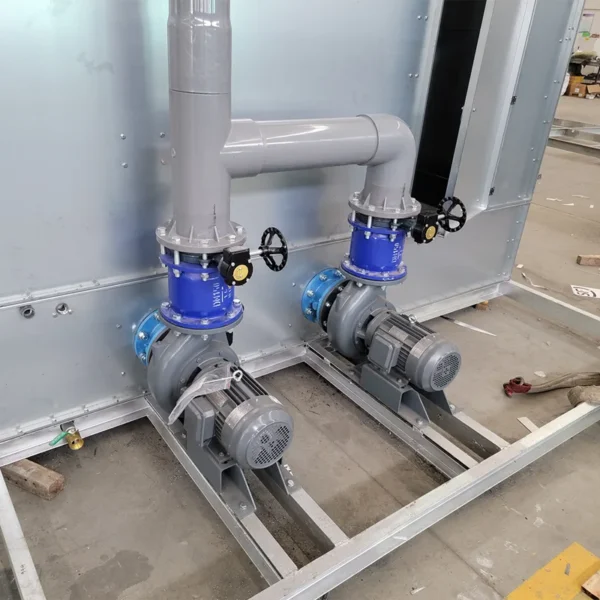

Main circulationg pump
A pump with a backup, failure occurs the backup pump can automatically put into operation high efficiency. Low-vibration, low-noise and high energy efficient.
( Motor options: Simens, ABB, Datang, Dongyuan )
Company Profile
Wuxi Master Cooling Machinery Manufacturing Co , Ltd is a professional manufacturer of cooling system .
Our company is located in Wuxi national industrial park , we have convenient transportation and elegant environment , with modern factory , advanced technologyand equipments. Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller, RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling, light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings .
Certifications
Why Choose Us
(1)We have complete service of cooling tower equipment
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
FAQ
More information needed when you request a proper cooling tower
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase .
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase .
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $8000 / set
- 2–4 set: US $7200 / set
- 5+ set: US $6400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cooling tower be supplied for my local voltage?
The standard configuration is 380V or Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
