Key specification for this cooling tower: material FRP, type Liangchi. Everything below is reproduced from the factory data sheet. Made by Tianjin Latino Environmental Technology Co., Ltd. (10 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cooling Tower
- Material: FRP
- Warranty: 1 Year
- Place Of Origin: China
- Application: Industrial Fluids Cooling
- Cooling Type: Counter Flow
- Type: Liangchi
Technical Specifications
| Cooling Type | Counter Flow |
|---|---|
| Material | FRP |
| Core Components | cooling tower |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High quality and low price |
| Place Of Origin | China |
| Weight (Kg) | 30 |
| Brand Name | Latino |
| Dimension(L*W*H) | option |
| Product Name | drift eliminator cooling tower |
| Type | Liangchi |
| Key Words | cooling tower parts |
| Water Flow | Counter flow |

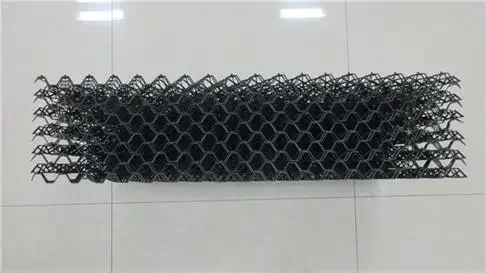

| Pitch Between Waves: | 25mm/45mm |
| Marketing Type | Ordinary Product |
| Application | Industrial Fluids Cooling |
| Name | Water Cooling Tower |
| Keyword | Industrial Towers Frp Cooling Tower |
| Selling Units | Single item |
| Single Package Size | 100X30X0.5 cm |
| Single Gross Weight | 11.0 kg |
Product Details
Specification

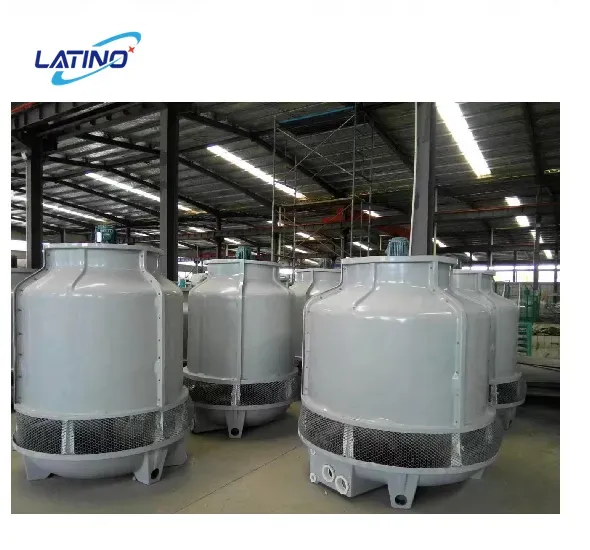

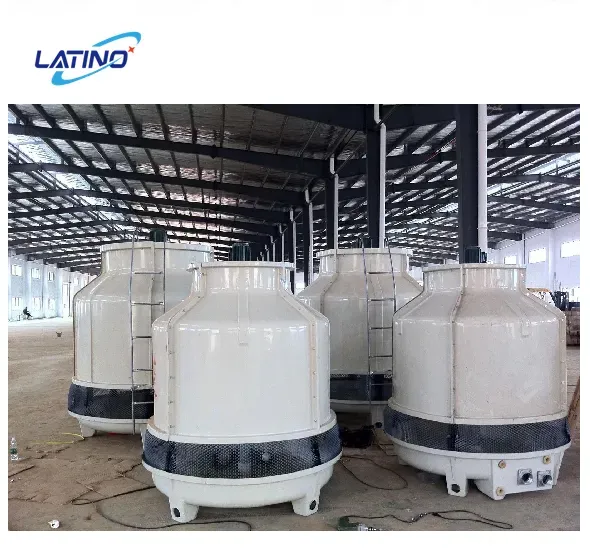

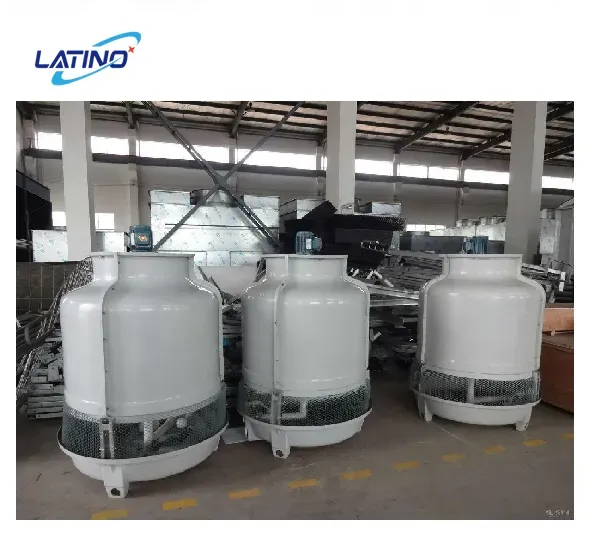

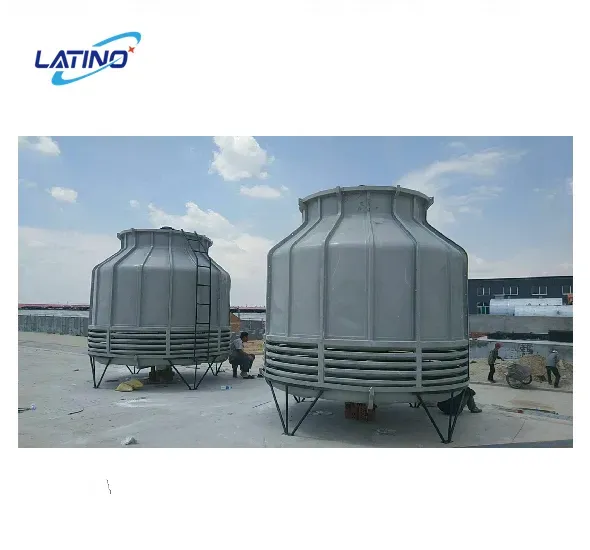

Round Shape Water Cooling Tower For Chiller
A cooling tower is a specialized heat exchanger in which air and water are brought into direct contact with each other in order to reduce the water’s temperature. As this occurs, a small volume of water is evaporated, reducing the temperature of the water being circulated through the tower.
Water, which has been heated by an industrial process or in an air-conditioning condenser, is pumped to the cooling tower through pipes. The water sprays through nozzles onto banks of material called “fill,” which slows the flow of water through the cooling tower, and exposes as much water surface area as possible for maximum air-water contact. As the water flows through the cooling tower, it is exposed to air, which is being pulled through the tower by the electric motor-driven fan.
When the water and air meet, a small amount of water is evaporated, creating a cooling action. The cooled water is then pumped back to the condenser or process equipment where it absorbs heat. It will then be pumped back to the cooling tower to be cooled once again. Cooling Tower Fundamentals provides a level of basic cooling tower knowledge and is a great resource for those wanting to learn more.
Product Description
Types Of Cooling Towers
Crossflow Cooling Towers
In crossflow towers the water flows vertically through the fill while the air flows horizontally, across the flow of the falling
water. Because of this, air does not have to pass through the distribution system, permitting the use of gravity flow hot water distribution basins mounted at the top of the unit above the fill. These basins are universally applied on all crossflow towers.

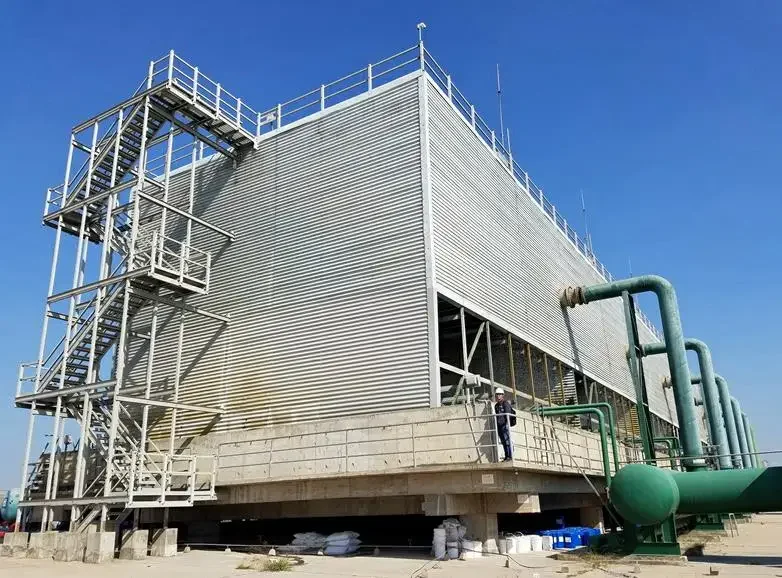

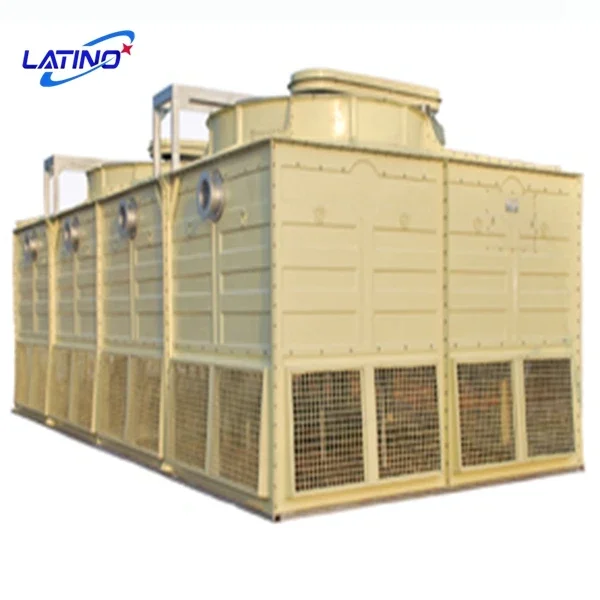

Counterflow Cooling Towers
Counterflow towers are designed so that air flows vertically upward, counter to the flow of falling water in the fill.
Because of this vertical airflow, it is not possible to use the open, gravity-flow basins typical in crossflow designs. Instead,
counterflow towers use pressurized, pipe-type spray systems to spray water onto the top of the fill.
Since air must be able to pass through the spray system, the pipes and nozzles must be farther apart so as not to restrict
airflow.
In crossflow towers the water flows vertically through the fill while the air flows horizontally, across the flow of the falling
water. Because of this, air does not have to pass through the distribution system, permitting the use of gravity flow hot water distribution basins mounted at the top of the unit above the fill. These basins are universally applied on all crossflow towers.
Counterflow Cooling Towers
Counterflow towers are designed so that air flows vertically upward, counter to the flow of falling water in the fill.
Because of this vertical airflow, it is not possible to use the open, gravity-flow basins typical in crossflow designs. Instead,
counterflow towers use pressurized, pipe-type spray systems to spray water onto the top of the fill.
Since air must be able to pass through the spray system, the pipes and nozzles must be farther apart so as not to restrict
airflow.
Crossflow Cooling Towers | Counterflow Cooling Towers | OEM cooling tower |
Liangchi | Liangchi | Latino |
Delta | Delta | Latino |
Company Profile
Relevant Cooling Towers
About our company
LATINO is a team of independent cooling tower engineers; our management team is a former Hamon's operation team and has more than 30 years of combined experience in the industry and is committed to providing quality materials, expertise and first-class service to the customers at a reasonable price. We are a one-stop shop for all parts of wet cooling towers, if you have an existing cooling tower manufactured by Evapco, Marley, BAC, Davenport, Hamon, Film, Balcke Duerr, Carter, Visco, Watertech, Cooltech, Head Wrightson, Foster Wheeler HTI, Searl or another manufacturer we are able to help. Whether your cooling tower is small or large, constructed from steel, timber, concrete, fibre glass or plastic we can provide any parts no matter what type of cooling tower you have. We service a wide variety of clients and agents across the UK, Germany, Indonesia, Korea, Dubai, Malaysia, Singapore, Philippines, Spain, the USA, Australia, Vietnam, South Africa, India and worldwide; With the experience and the know-how of our engineers we plan and realize mostly tailormade solutions, which can be accurately adapted to the requirements and care of the oversea customers when they are purchasing in China. LATINO has been providing outstanding service, and quality at the best value possible. We provide the parts you need to manage your cooling tower system efficiently and cost-effectively.
FAQ
1. who are we?
We are based in Tianjin, China, start from 2016,sell to Domestic Market(58.00%),South America(9.00%),Mid East(6.00%),South Asia(5.00%),Eastern Europe(4.00%),Southeast Asia(4.00%),Oceania(4.00%),Western Europe(4.00%),Eastern Asia(3.00%),Southern Europe(2.00%),North America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

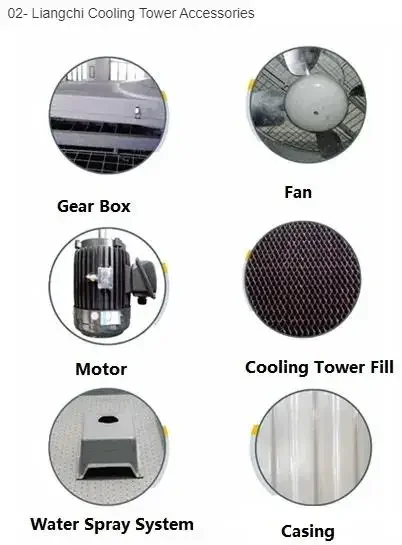

Cooling Tower/Cooling Tower Fill/Cooling Tower Eliminator/Cooling Tower Nozzle/Cooling Tower PVC Fill
4. why should you buy from us not from other suppliers?
We make it easy for you to purchase high quality and good value internal plastic parts of cooling twoer. Our flexible ISO certified facility specializes in international projects-you can rely on us to deliver a successful project while reducing your costs.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese, Russian
We are based in Tianjin, China, start from 2016,sell to Domestic Market(58.00%),South America(9.00%),Mid East(6.00%),South Asia(5.00%),Eastern Europe(4.00%),Southeast Asia(4.00%),Oceania(4.00%),Western Europe(4.00%),Eastern Asia(3.00%),Southern Europe(2.00%),North America(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cooling Tower/Cooling Tower Fill/Cooling Tower Eliminator/Cooling Tower Nozzle/Cooling Tower PVC Fill
4. why should you buy from us not from other suppliers?
We make it easy for you to purchase high quality and good value internal plastic parts of cooling twoer. Our flexible ISO certified facility specializes in international projects-you can rely on us to deliver a successful project while reducing your costs.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese, Russian
Contact us
Elena
Overseas department
Wechat /Whatsapp : +86 18522607790
Tel.: +86 22 65616307
Email: wangzhihong@latino.onaliyun.com
Web: http://www.tianjinlatino.com
Overseas department
Wechat /Whatsapp : +86 18522607790
Tel.: +86 22 65616307
Email: wangzhihong@latino.onaliyun.com
Web: http://www.tianjinlatino.com
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling tower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tianjin Latino Environmental Technology Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Tianjin Latino Environmental Technology Co., Ltd. range on HVACR Nexus.
