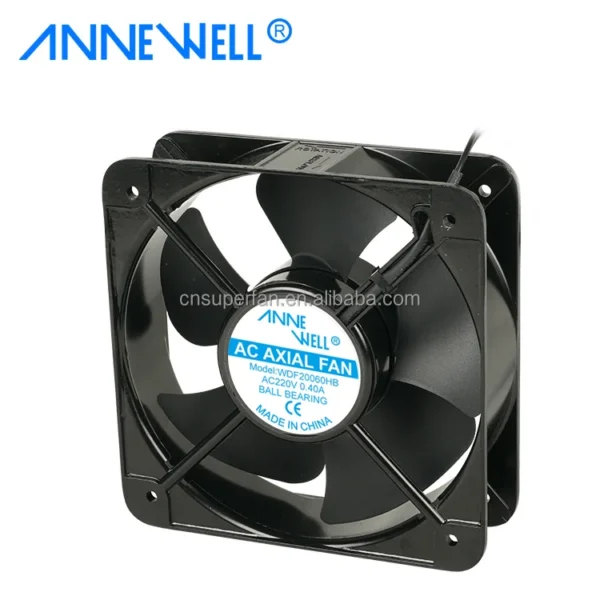

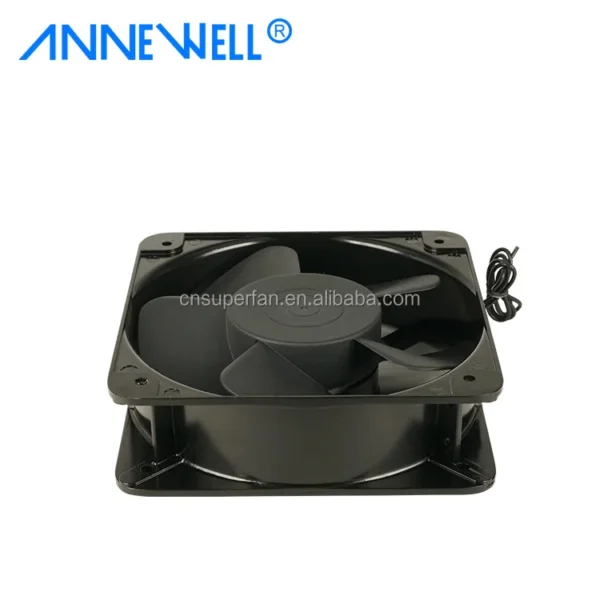

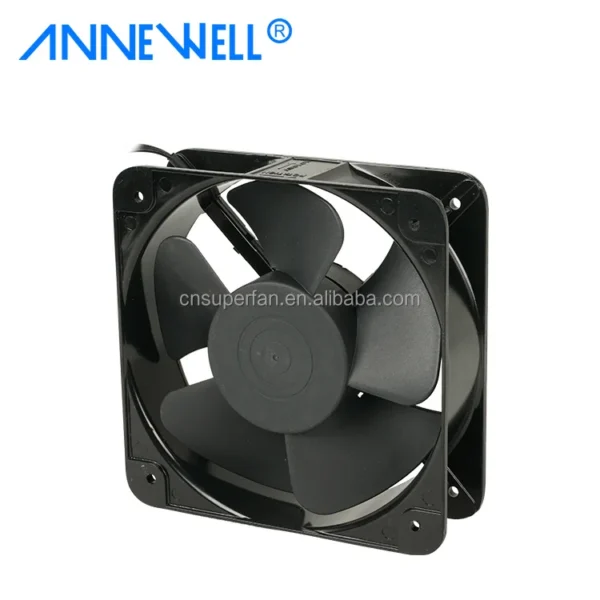

Copper motor — 220V, 380V, 65W. The complete factory specification follows. Made by Henan Superfan Electronic Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Copper Motor
- Model Number: WDF20060BL
- Power (Watts): 65W
- Voltage – Rated: 220V, 380V
- Frame Material: Thermal Plastic PBT
- Place Of Origin: Henan, China
- Application: Distribution box, large server chassis, industrial control equipment,Network cabinet,, For heat dissipation of equipment
Technical Specifications
| Place Of Origin | Henan, China |
|---|---|
| Brand Name | ANNEWELL |
| Model Number | WDF20060BL |
| Application | Distribution box, large server chassis, industrial control equipment,Network cabinet,, For heat dissipation of equipment |
| Description | Brand new factory supply DC brushless cooling fan, copper wire motor, large air volume, high speed, low noise, long life |
| RPM | 2300RPM |
| Power (Watts) | 65W |
| Voltage – Rated | 220V, 380V |
| Fan Static Pressure | 22.0 mm-H2O |
| Series | WDF20060BL |
| Size / Dimension | 200*200*60MM(7.87*7.87*2.36in) |
| Size | 200*200*60mm |

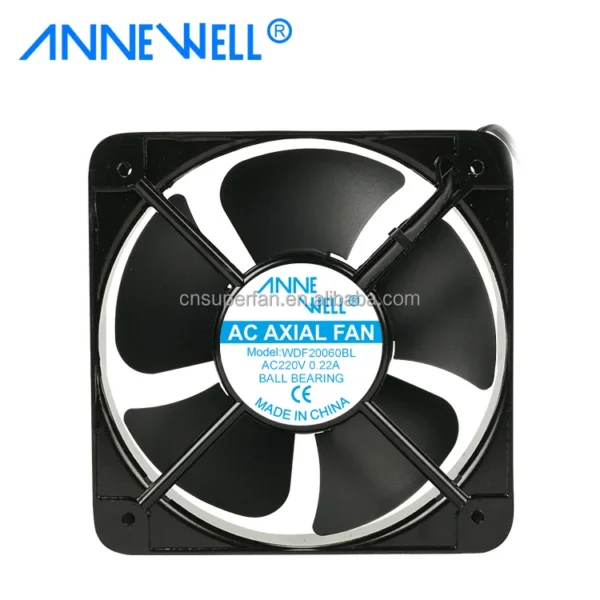

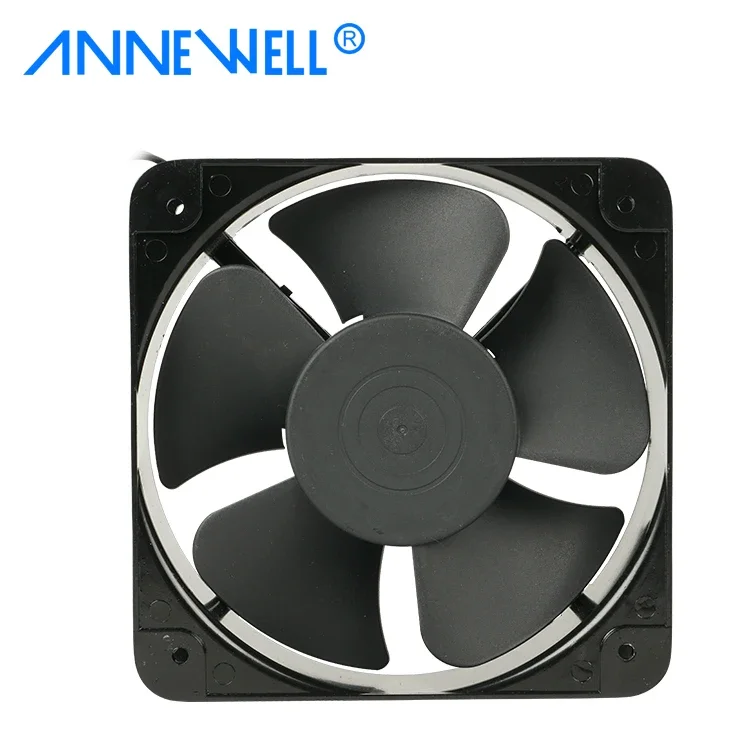

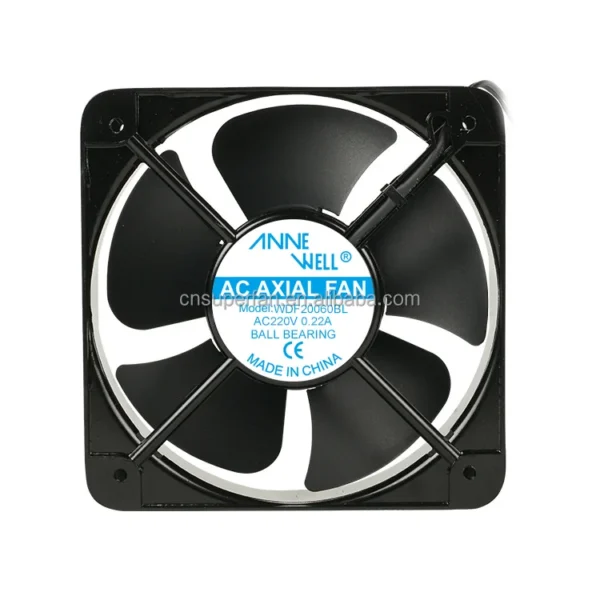

| Product Name | AC Axial Cooling Fan |
| Bearing | 2 Ball Bearing |
| Expectancy Life | 50000 Hours |
| Weight | 1540g |
| Frame Material | Thermal Plastic PBT |
| Motor Type | Shaded Pole Motor |
| Type | Axial Flow Fan |
| Selling Units | Single item |
| Single Package Size | 25X25X12 cm |
| Single Gross Weight | 1.3 kg |
Product Details
Good quality 220v 380v copper motor ac high speed cooling fan 200x200x60mm WDF20060BL 200mm ac big CFM silent axial cooling fan

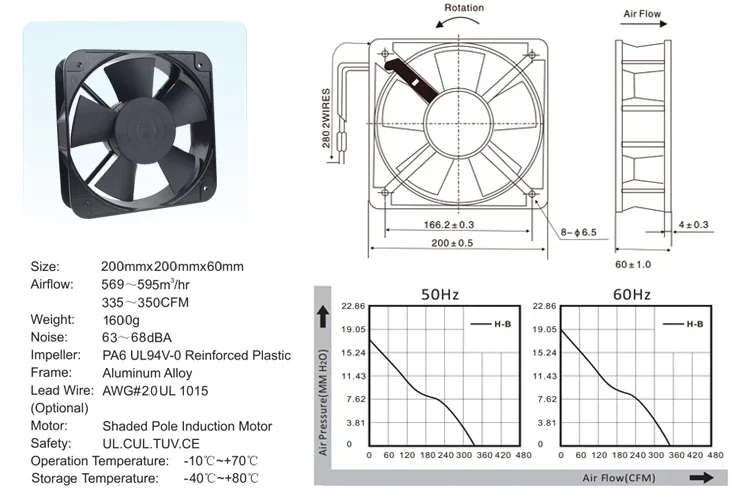

| Listed Model | Bearing System | Voltage (VAC) | Freq. (HZ) | Current (A) | Power (W) | Speed (RPM) | Air Flow (CFM) | Air Pressure (mm-H2O) | Noise (dBA) | Weight (G) |
| WDF20060H | Ball | 380~420 | 50/60 | 0.30 | 65 | 2300 | 350 | 22.0 | 54 | 1540 |
| WDF20060H | 220~240 | 0.45 | 65 | 2300 | 350 | 22.0 | 54 |
| FAQ |
1. What is a DC Axial Fan?
A DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. DC motor runs from the attract and repel of the permanent magnet inside the motor. It blows air along the axis of the fan, or parallel to the track of the blade axis to create changeable and not stable air-flow. Standard DC axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm, 120mm, 140mm, 150mm, 172mm, 200mm and 254mm.
2. How to choose an DC fan?
You should consider the points of blow:
-Size(MM)
-Rated voltage(V)
-Speed(RPM)
-Airflow(CFM)
-Noise level(dBA)
-Current(A)
-Connector
-Lead wire:3pin, 3pin, 4pin, RD, FG, PWM, etc.
3. What is a Bearing?
Fan bearing includes
-Sleeve Bearing Fan: life expectancy 30000 hours,
-Hydraulic Bearing Fan: life expectancy 40000 hours,
-Ball Bearing Fan: life expectancy 50000 hours or more.
4. Are you a factory?
Yes, we are a factory.
-Established Year: 2015
-The Number of total employees: 516
-No of R&D team member: 15
-No of QC team membe: 15

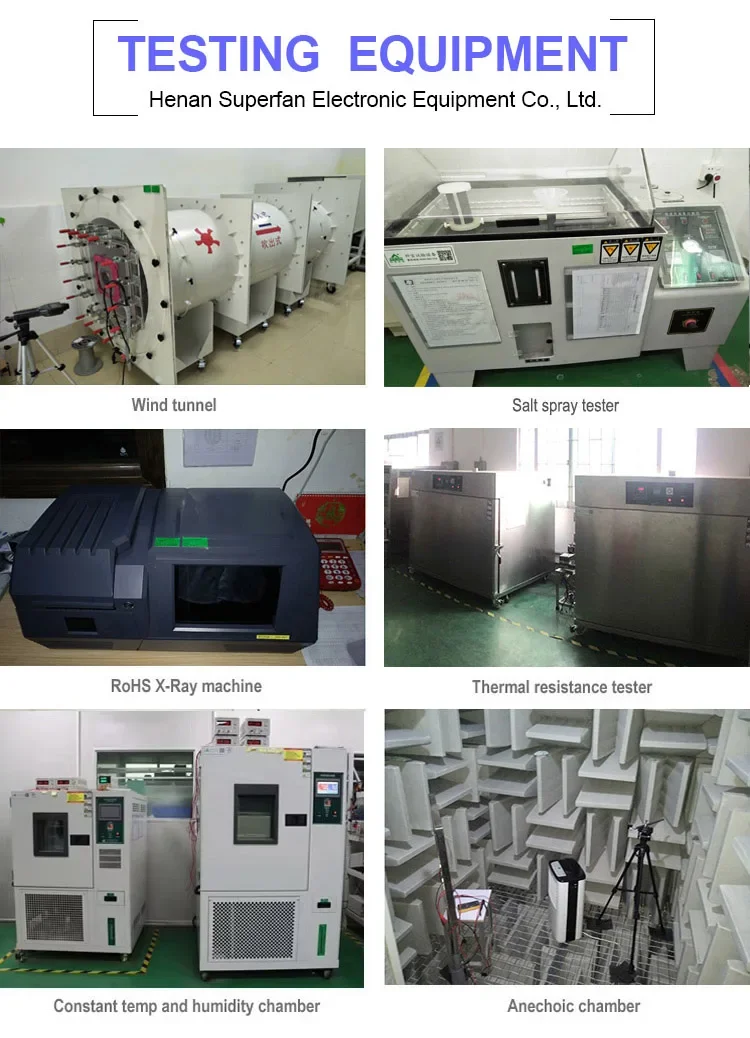

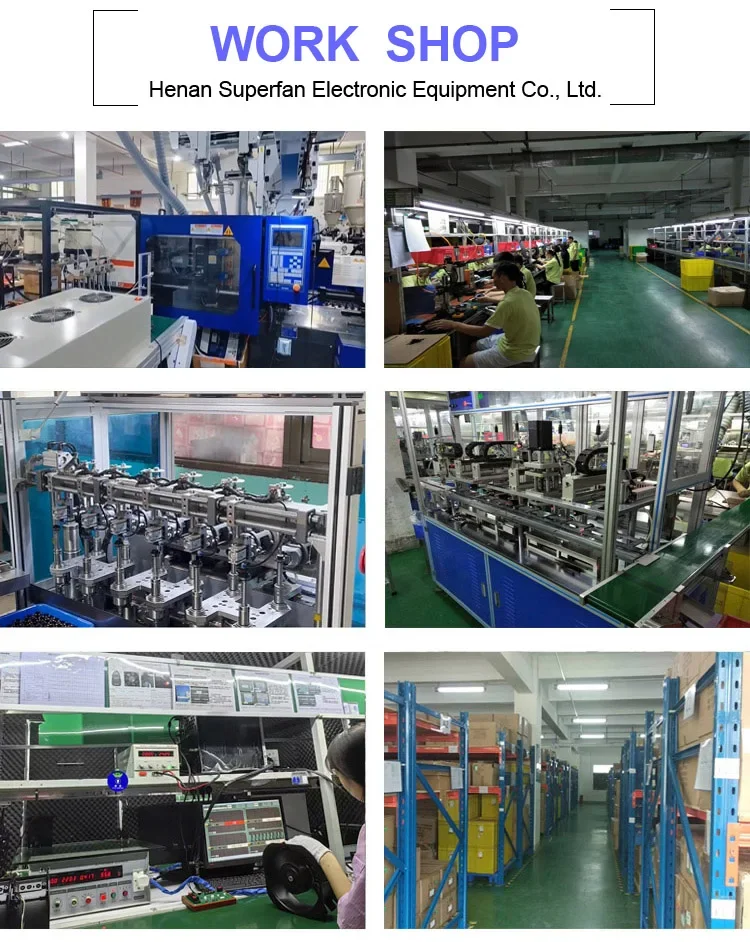

-Production & Test Facility: 39
-No of Production Line: 6
-Certification: UL, CUL, TUV, CE, CCC, SGS, ISO:9001-2008.
5. What is the delivery time?
Sample lead time: 3~5 business days.
Mass production delivery lead time: 3~22 business days,
Delivery Ways: FedEX, DHL, UPS, TNT Door to Door Express service, By Air, By Sea, etc.
6. Can you provide any sample? Is it free or extra?
Yes, we can offer the free samples for each model.
| Other Dimension | |||||
| 20*20*6mm | 20*20*10mm | 25*25*7mm | 25*25*10mm | 35*35*10mm | 40*40*10mm |
| 40*40*10mm | 40*40*20mm | 40*40*28mm | 50*50*10mm | 50*50*15mm | 60*60*15mm |
| 60*60*20mm | 60*60*25mm | 70*70*25mm | 80*80*10mm | 80*80*15mm | 80*80*25mm |
| 90*90*25mm | 92*92*38mm | 120*120*25mm | 120*120*38mm | 135*135*38mm | 140*140*25mm |
| 140*140*38mm | 150*150*50mm | 172*150*38mm | 170*152*51.5mm | 180*180*60mm | 200*200*60mm |
| 220*220*60mm | 225*255*80mm | 280*280*80mm | |||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $7.1 / piece
- 500–1999 piece: US $6.99 / piece
- 2000–4999 piece: US $6.87 / piece
- 5000+ piece: US $6.76 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this copper motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the copper motor be supplied for my local voltage?
The standard configuration is 220V, 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Superfan Electronic Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Superfan Electronic Equipment Co., Ltd. range on HVACR Nexus.
