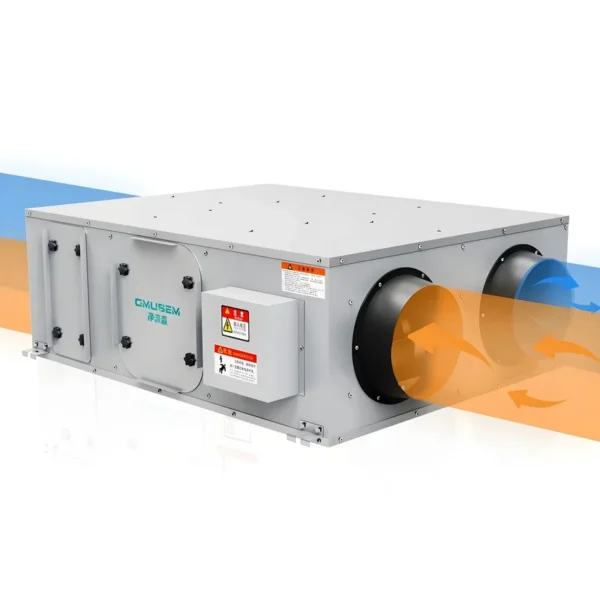

Counter Flow Heat Exchanger, AC 240V, 25000CFM

Counter flow heat exchanger — voltage AC 240V, 25000CFM. The complete factory specification follows. Made by Jiangsu Gmusem Ventilation System Manufacture Co., Ltd. (3 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Counter Flow Heat Exchanger

• Voltage: AC 240V
• Maximum Airflow: 25000CFM
• Airflow: 150-25000CBM(optional)
• Warranty: 5 year
• Place Of Origin: Jiangsu, China
• Feature: Easy Installation

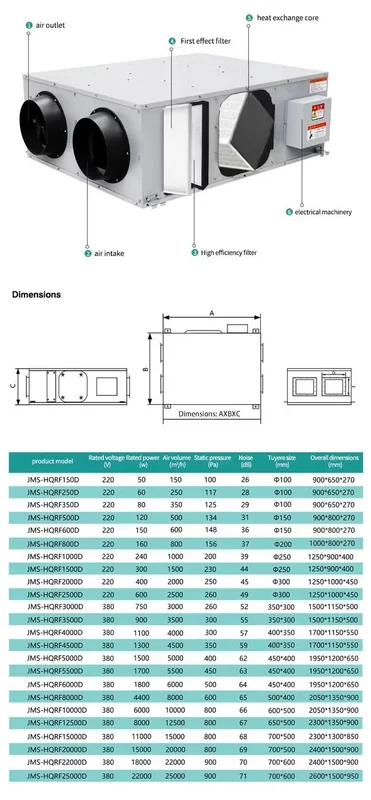

Technical Specifications

Product Details

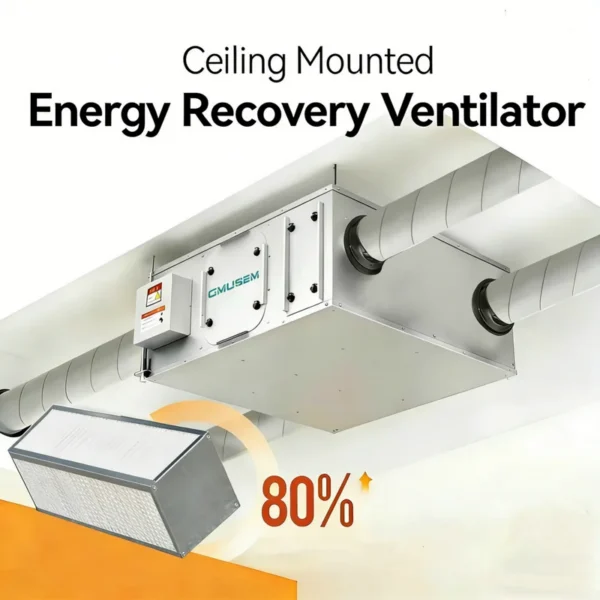

Energy Recovery Ventilation Solution (ERV)

UV Care Zero Carbon Energy Recovery Ventilation (ERV) solution provides fresh and healthier indoor air with energy-saving

technologies and air purifying filters.

Interlocks with Air Conditioning System to Save Energy

The ERV works alongside an indoor unit to improve energy efficiency beyond what a standalone ventilation system can achieve.

Energy Saving Technologies

The ERV includes various energy-saving technologies, including a heat exchanger that achieves up to 24% more energy savings than natural ventilation, resulting in total energy savings of up to 40%.

Automated Seasonal Operation

The ERV adjusts its operation based on outdoor temperature to achieve an additional 6.1% energy savings annually.

Automated Seasonal Operation

To achieve an additional 5% annual energy savings, the ERV expels warm indoor air and circulates cool outdoor air indoors during summer nights.

Co2 Operation

With automatic fan speed control that adjusts according to CO2 levels, the erv achieves a 4.6% annual reduction in energy loss.

Suspended Operation

The ERV minimizes annual heating and cooling energy loss by 0.9% by delaying its operation until necessary, allowing it to operate simultaneously with the air conditioner.

Why ERV Solution?

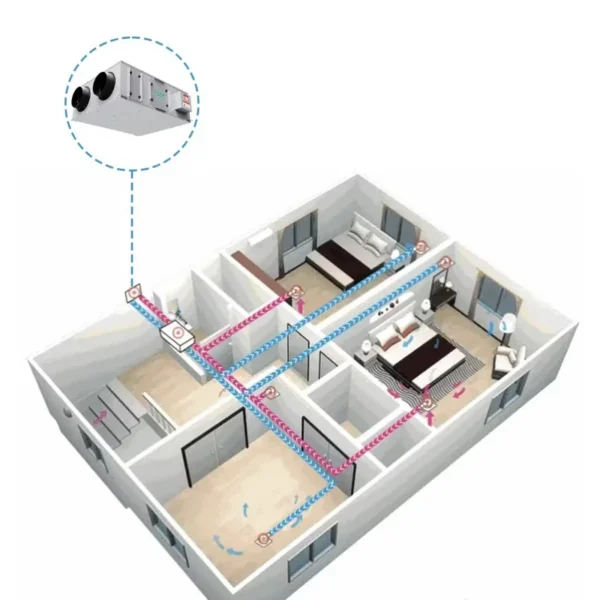

While natural ventilation may result in energy wastage, the ERV offers a solution by delivering fresh outdoor air while reducing the amount of polluted indoor air. This is achieved through its heat exchanger technology which significantly minimizes the loss of heating or cooling energy, thus resulting in energy savings.

Natural Ventilation

Energy Recovery Ventilation

Monitor CO2 Levels At Any Time

The room's CO2 levels are monitored by a sensor, which displays them continuously on the wired remote control screen. If levels go above 900 ppm, an alarm indicator is triggered. The ERV utilizes this data to regulate fan speeds automatically.

Q1:Do you have your own factory?

A1:Yes,we have our own factory located in Pizhou City.

Q2:How about the quality?

A2:We have obtained international LAD,EMC,ROHS and CE to make our products more secure.

Q3:If I want to customize the product, is there a dedicated person in charge?

A3:Yes, you can put forward the size, function and other personalized requirements, we can help you do the best design.

Q4:Can you produce according to the sample?

A4: If you have your own drawing, we can make it according to the drawing. If you want our existing product style, we can also provide.

Q5: Do you test all your goods before delivery?

A5: Yes, we will check the quality of the products and packaging strictly and systematically before delivery.

Q6: Is the sample fee refundable or not?

A6: If the order is confirmed, it can be refunded; Or it can be included in the order price as a discount.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $189 / set
  • 10–49 set: US $175 / set
  • 50+ set: US $128 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this counter flow heat exchanger?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the counter flow heat exchanger be supplied for my local voltage?

The standard configuration is AC 240V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jiangsu Gmusem Ventilation System Manufacture Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Gmusem Ventilation System Manufacture Co., Ltd. range on HVACR Nexus.
